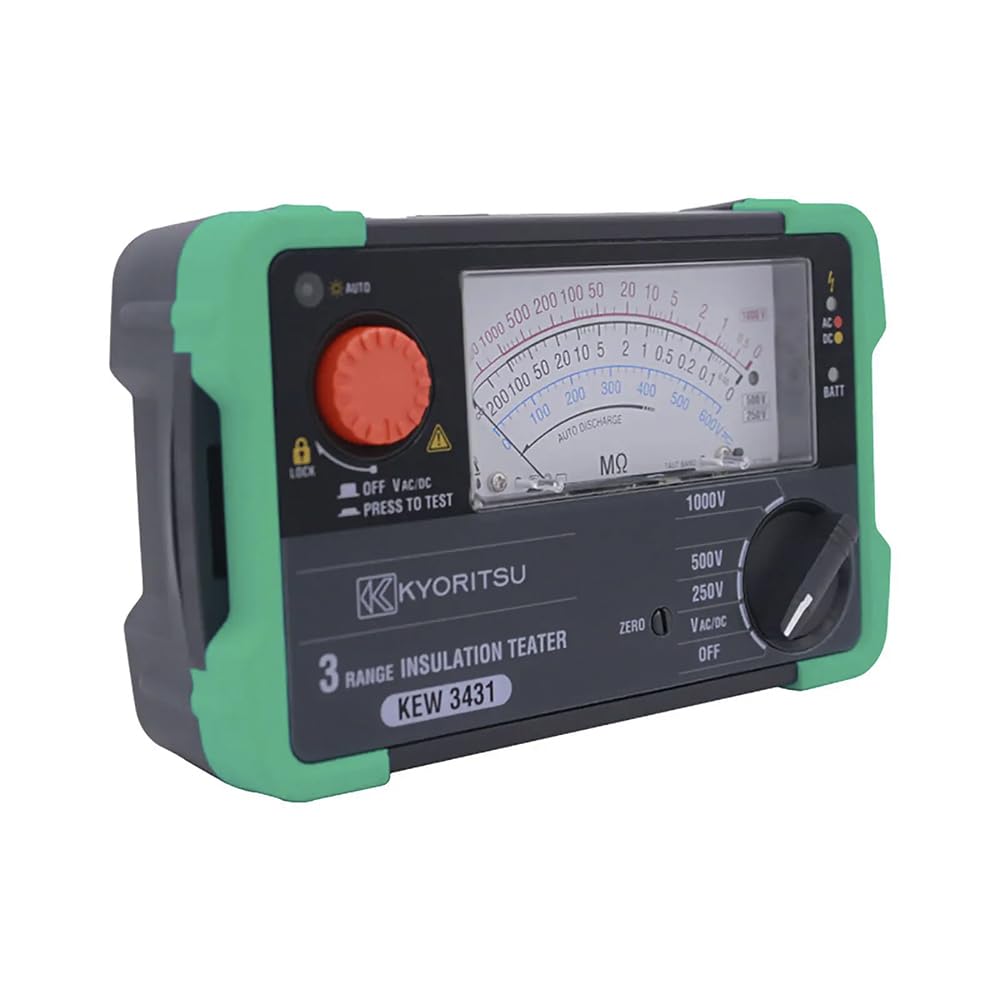

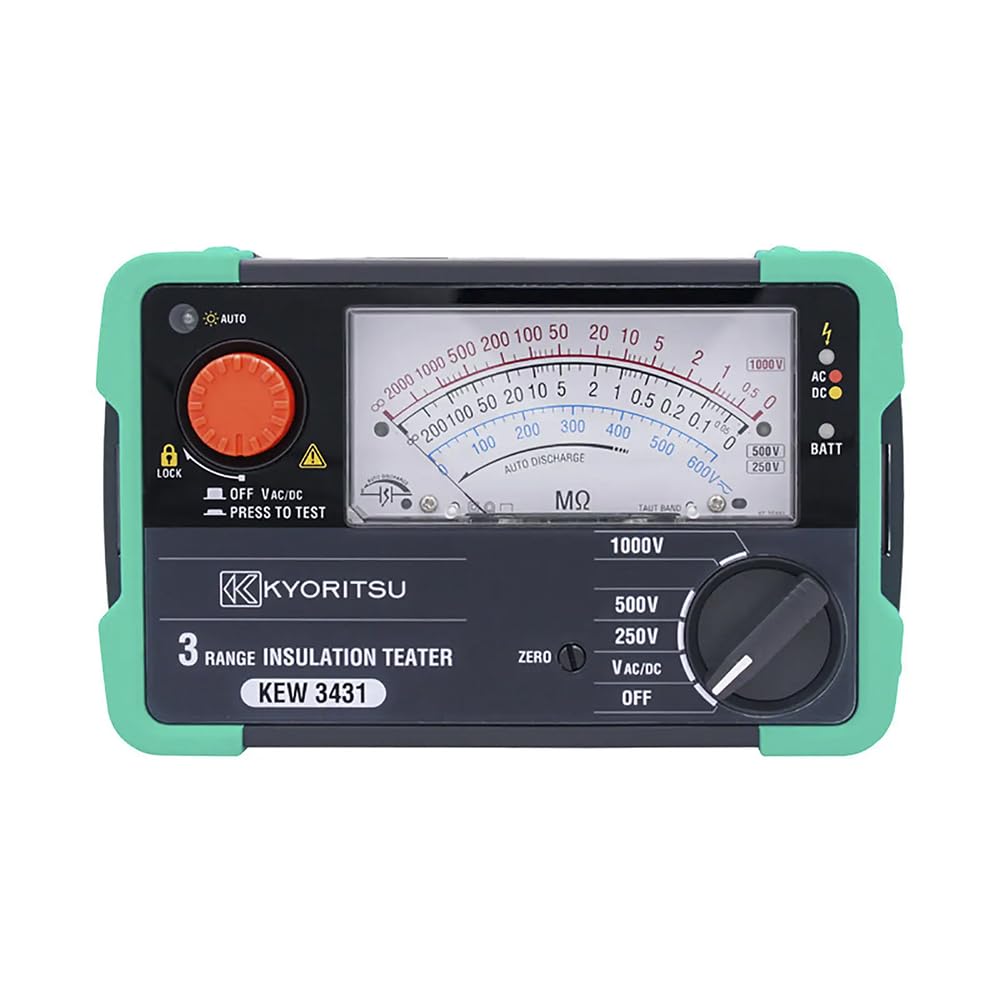

Kyoritsu3431 Analogue Insulation Resistance Testers 3 Range Insulation Tester Test Voltage 250V 500V 1000V KEW3431

Kyoritsu3431 Analogue Insulation Resistance Testers 3 Range Insulation Tester Test Voltage 250V 500V 1000V KEW3431

$1,439.00 USD
$1,439.00 USD
促销 售罄

 Kyoritsu3431 Analogue Insulation Resistance Testers Kew3431 250V 500V 1000V

Features:

• Extremely compact and lightweight design.
• Automatic sensor turns the illuminated scale and LED spot light ON/OFF, useful in dimly lit location.
• Standard accessories include test probe with remote control switch and protective carry case.
• Live circuit warning with buzzer and flashing LED.



Specification:

Insulation resistance
  Test voltage  250V 500V 1000V
Max. effective scale value 200MΩ 2000MΩ
Mid-scale value 5MΩ 50MΩ
First effective measuring ranges 0.1MΩ - 100MΩ 1MΩ - 1000MΩ
Accuracy ±5% of indicated value
Second effective measuring ranges Measuring ranges other than above, 0 and ∞
Accuracy ±10% of indicated value
LED insulation state indicator indicating result by red / green color 0.25MΩ 0.5MΩ 1MΩ
Voltage measurement
  Voltage range AC 600V [45 - 65Hz]/DC 600V
Accuracy ±5% of full scale value
Applicable Standards IEC 61010-1, 2-030 CAT Ⅲ 600V, IEC 61557-1, -2
IEC 61010-031, IEC 61326(EMC), EN 50581(RoHS)
Power source LR6/R6(AA)(1.5V) × 4
Dimensions / Weight 97(L) × 156(W) × 46(D)mm / 430g approx.

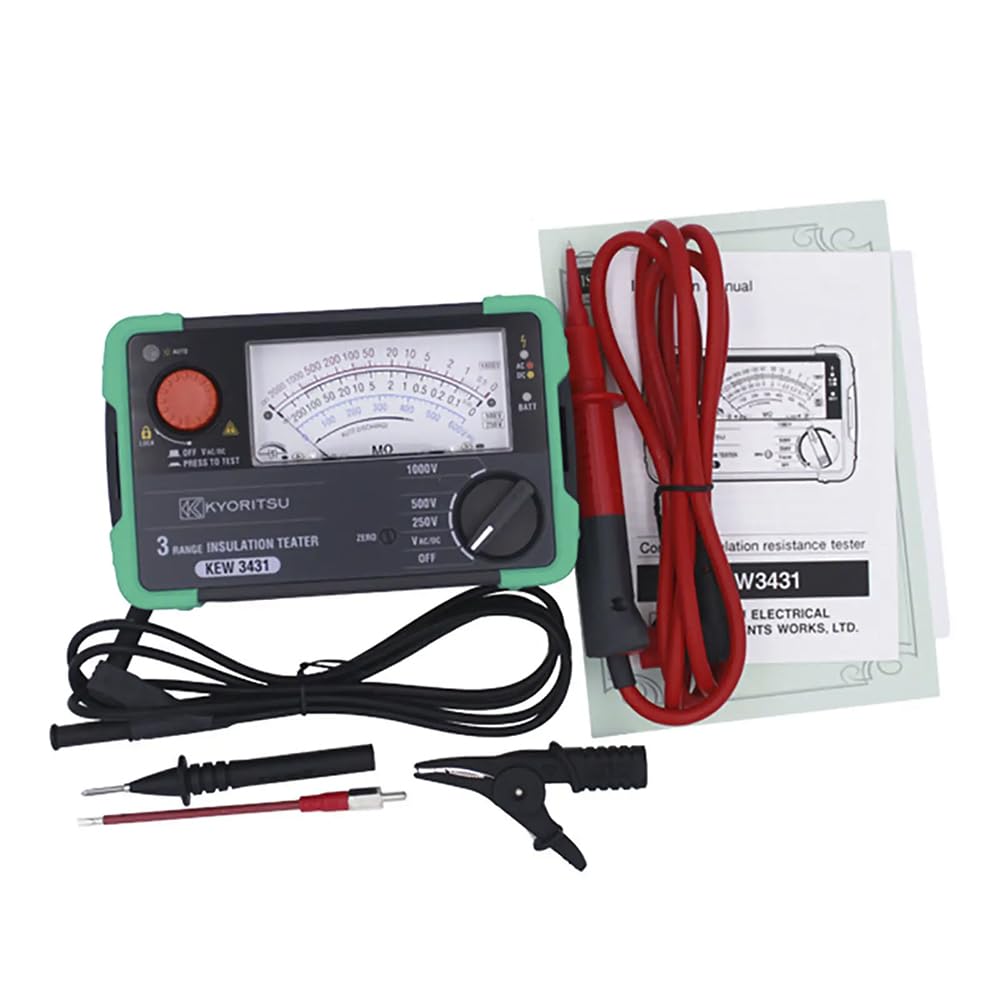

Included Accessories 7260 (Test lead with remote control switch)
7261A (Test lead with alligator clip)
8017A (Extension prod long)
9121 (Shoulder strap)
9173 (Carrying case)
LR6 (AA) × 4, Instruction manual
Optional Accessories 9186A (Carrying case)
9187 (Cord case)
7243A (L-shaped probe)
8016 (Hook type prod)

Brand: Graigar

Color: Black and Blue

Features:

  • Compact and lightweight design
  • Scale light and LED spot light to facilitate working at dimly illuminated location or at nighttime work
  • Built-in illuminance sensor automatically turns lights on and off
  • Test lead with remote control switch set is supplied as standard accessory
  • Live circuit warning with blinking LED and buzzer

Part Number: Kyoritsu3431
