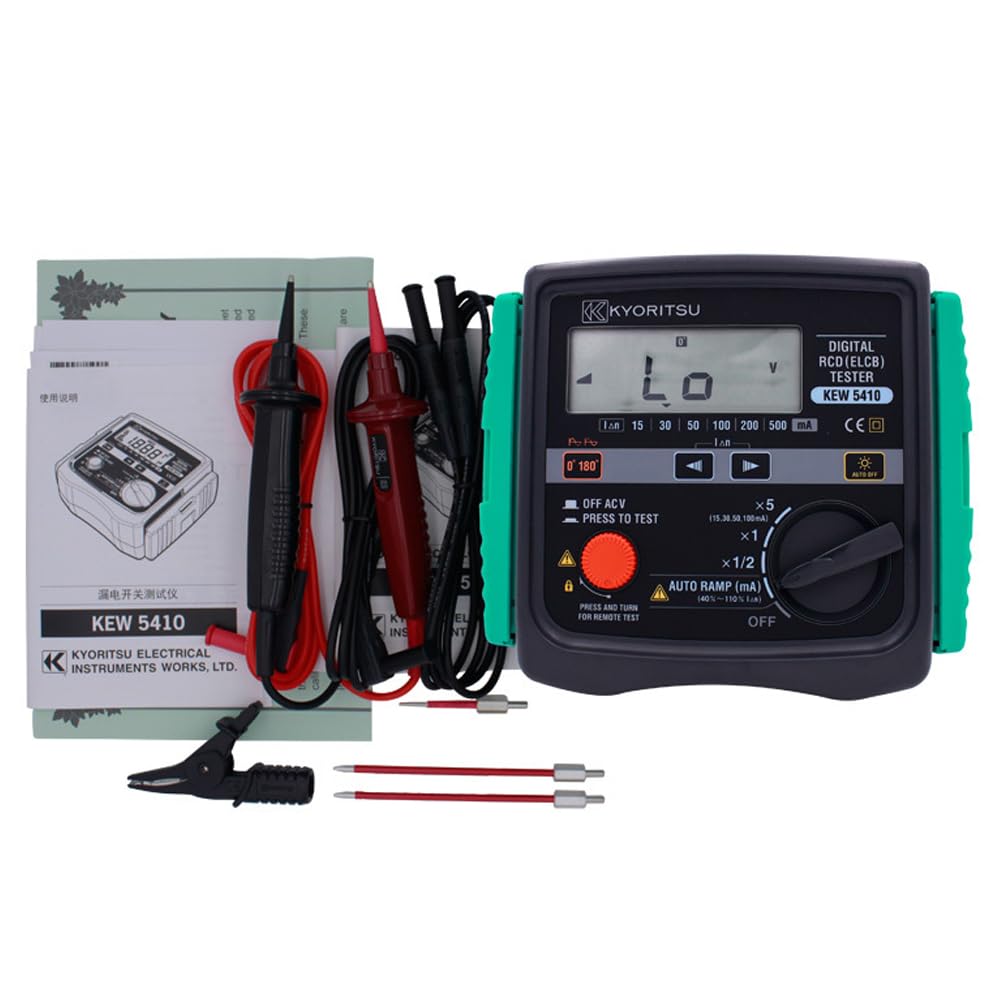

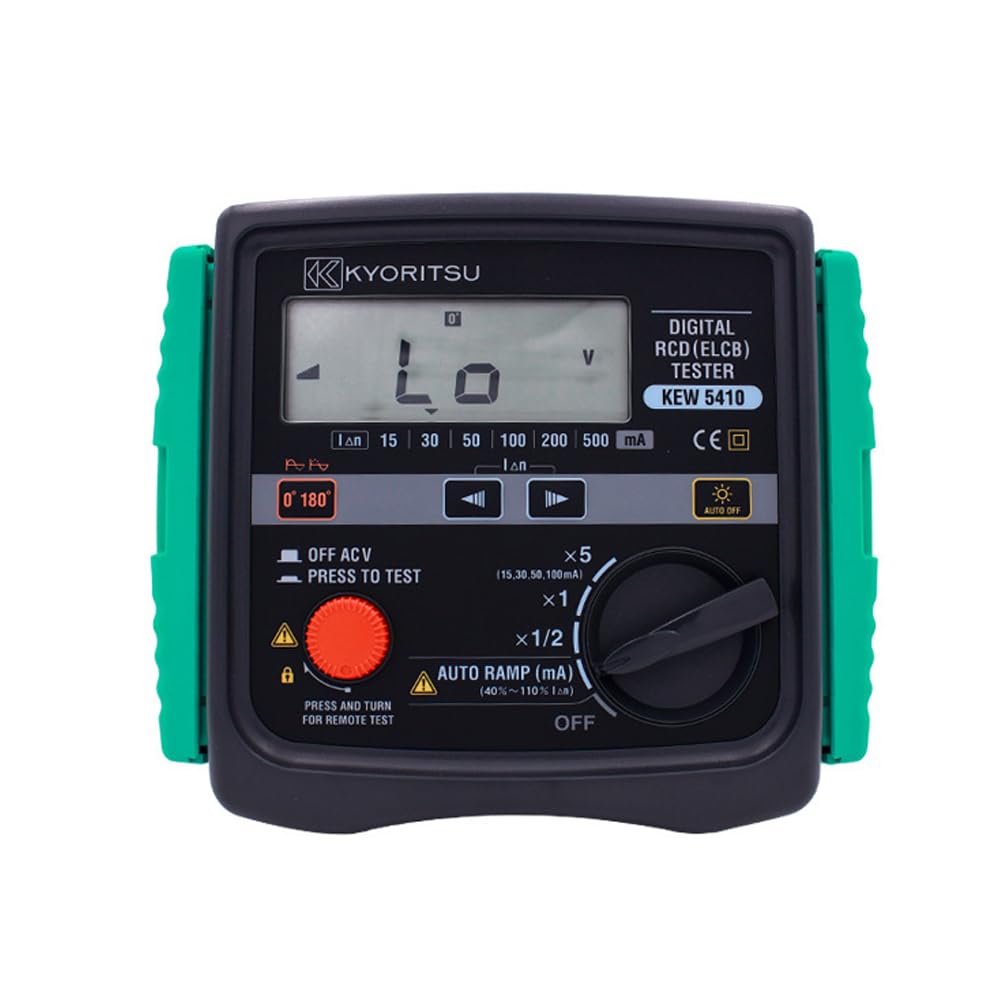

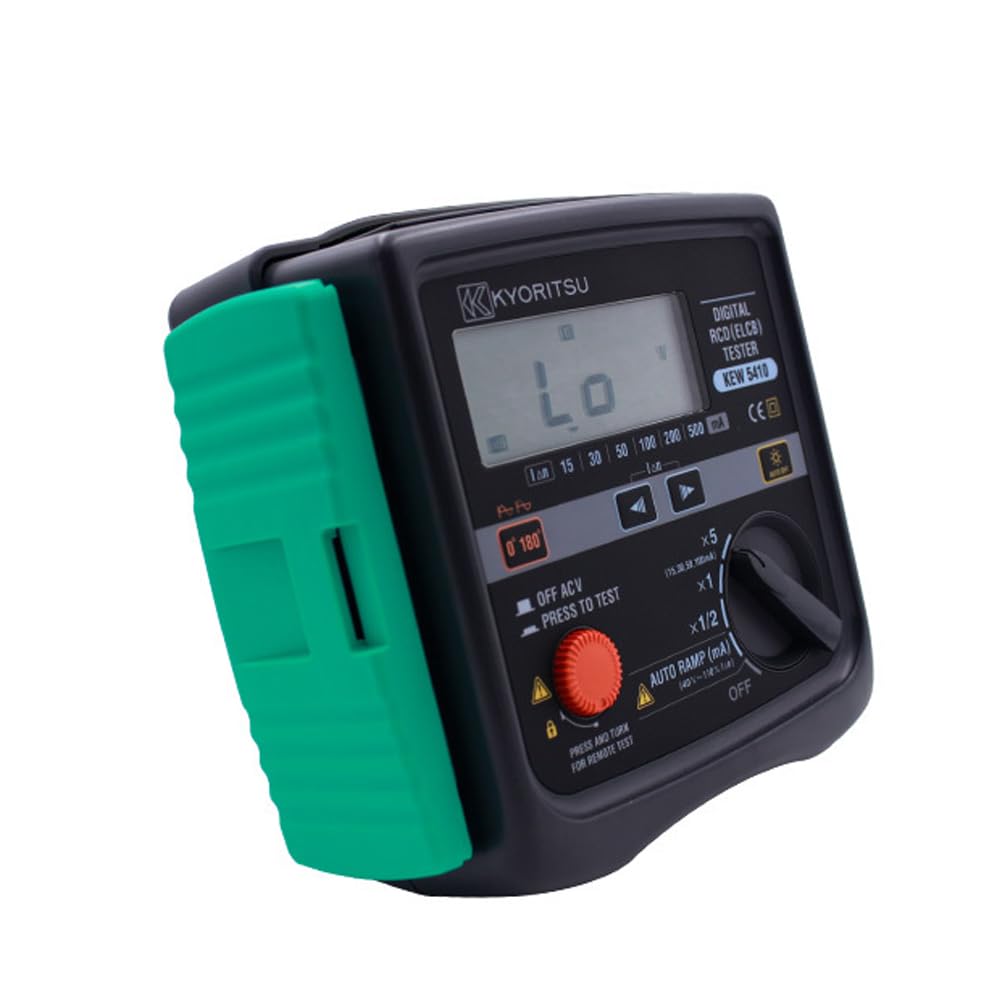

Kyoritsu5410 RCD Testers Voltage Tester Measuring Range 80~450V 50/60Hz KEW5410

Brand: Graigar

Color: Green and black

Features:

• Measurement of RCD trip time:Conducting testing of rated residual non-operating currents at × 1/2 Range, measuring RCD trip time at × 1 and × 5 Ranges.
• Measurement of trip out current:Measuring trip out current by varying current automatically.
• Remote Test:Enabling a user to hold the Test Leads with his both hands by locking the Test Button. Measurement will automatically start when the main voltage is detected.
• Voltage Measurement:Carrying out a constant measurement of voltage in the stand-by mode at each Range.
• Auto-detection of Contact voltage:Detecting the voltage to earth of Earth electrodes or Protective conductors during RCD test - when applying test currents - at measurement using EARTH in order to prevent electrical shocks caused by the damaged earth. Measurement will be ceased at AC50V or more.
• Dust- and Water-proof:Dust- and Water-proof construction
• Backlight:Facilitating working at dimly illuminated locations.

model number: Kyoritsu5410

Part Number: Kyoritsu5410

EAN: 0707457582911
