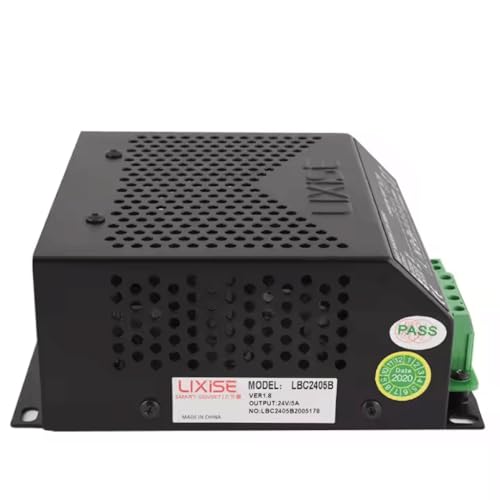

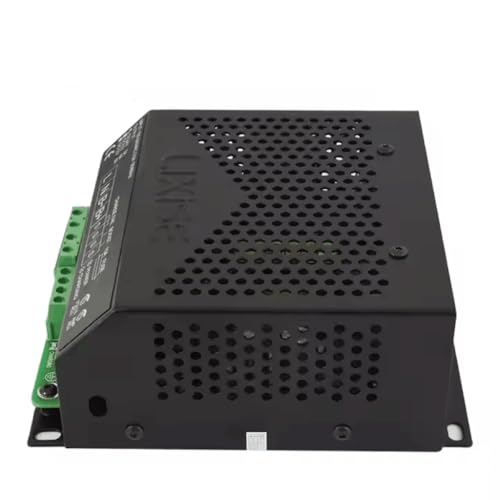

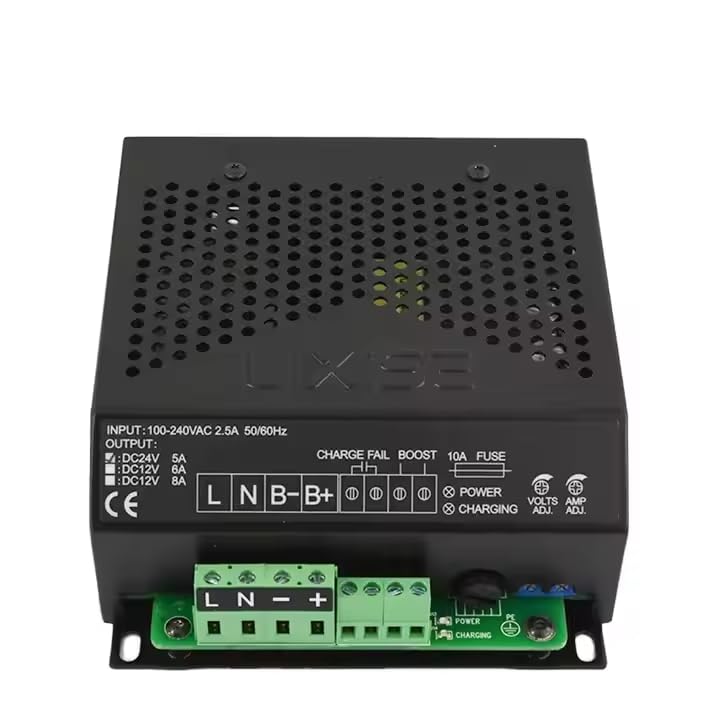

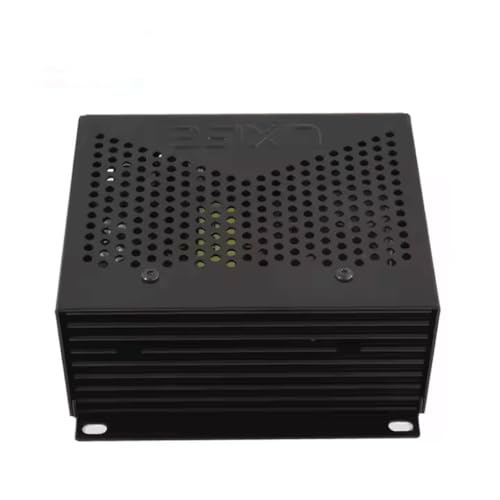

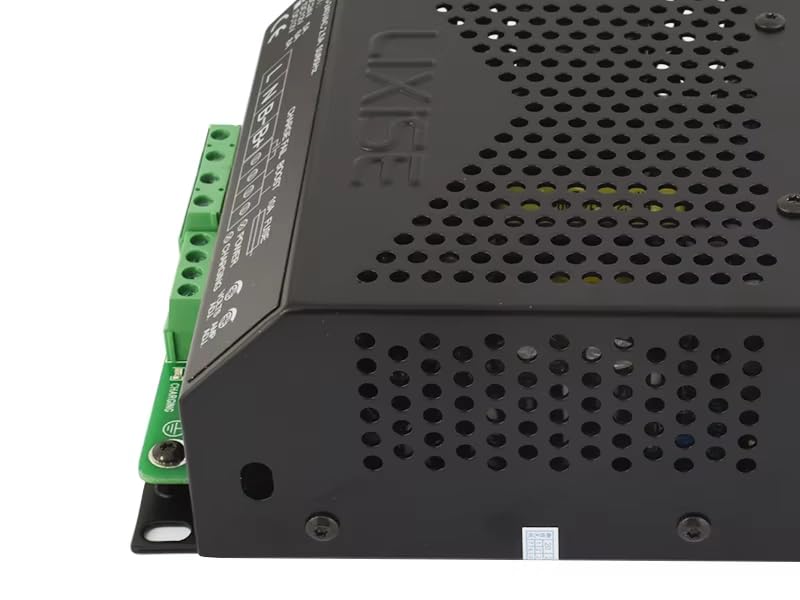

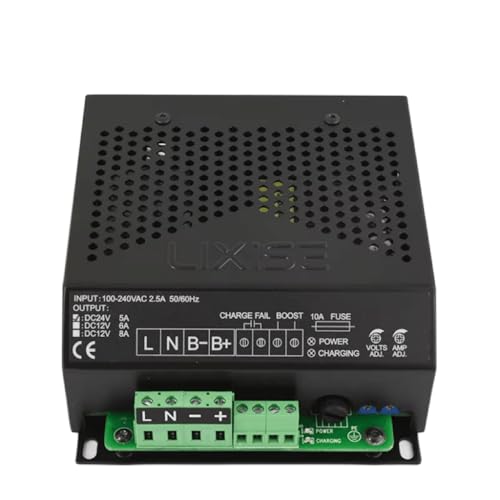

LIXiSE 24V 5A Battery Charger LBC2405B Power Supply for Generator

LIXiSE 24V 5A Battery Charger LBC2405B Power Supply for Generator

$99.99 USD
$99.99 USD
促销 售罄

LBC2405 LBC2405B 24V 5A LIXISE Battery Charger Diesel Generator Intelligent Float Charger



 Designed for engine starting operation of battery charging, charging more.With constant voltage, constant current, a trickle floating, full automatic stop, short circuit, reverse connection, etc.

Selling point:

Does many sections of charging, extend battery life 30%;

Does have short circuit resistance, resistance to reverse function;

Does high reliability, can work normally in - 30 ~ 70 degrees;

Does plus: one year replacement, lifetime warranty;

we would like to introduce some characteristic of LIXiSE battery charger as below.

1)3-stage charging,

   after full will automatically reduce the voltage re-enter the trickle float stage, greatly           extending battery life.

 2)Multi-stage charging:

   Adjust charging current automatically according to ambient temperature and battery               temperature difference, prolong battery life.

3)Charging failure output (only for the models with B,such as LBC2405B): it can be           connected to a generator controller to achieve charging fault alarm.

4) BOOST function: the compensation charge in the winter of discontent.

5) Anti-reverse, anti-short circuit function.

6)operating temperature range is wider: can work in -40 ~ 70 ℃ (normally other brand             charger can work in 60℃ max.)

Product Description
Category Project Specification
Input Characteristic nominal AC input voltage range AC (100~240)V
Max. AC input voltage range AC (95~280)V
AC frequency 50 Hz/60 Hz
No-load power consumption <3 W
efficiency AC 110 V AC 220 V
>82% >86%
Max. input active power LBC 2405 LBC 2403 LBC 1206 LBC 1208
168 W 97 W 90 W 118 W
Max. Input current  2.9 A 1.8 A 1 A 1.5 A
Output Characteristic No-load output voltage 27.6 V,error ±1% 13.8 V, error ±1%
rated charging current 5 A,error ±2% 3 A,error ±2% 6 A,error ±2% 8 A,error ±2%
rated output 135 W 85 W 83 W 111 W
Alarm Output relay contact 0.5 A/250 VAC(Only useful with B suffixes, such as LBC2405B)
Insulating Property  insulating resistor Input and output,input and shell both read DC500V 1min RL 500MΩ
insulating voltage Input and output,input and shell both read AC1500V 50Hz 1min leak current IL  3.5 mA
Working Situation  working temperature (-30~55)°C
store humidity (-40~85)°C
working humidity 20% RH~ 93% RH( no condensation)
storage humidity 10% RH~ 95% RH(no condensation)
weight 0.7 kg
Configuration   size 133 mm× 117 mm× 53 mm (length× width× height)
Advantages
MOVE ADVANTAGE
sales 4000pcs/month the fastest transit time 2days!
inventory situation a lauge number of stocks operational advantages easy for operation
production cycle 1~3days

Service

 answer all of your questions within 1day

Brand: Graigar

Features:

  • 1)3-stage charging, after full will automatically reduce the voltage re-enter the trickle float stage, greatly extending battery life.
  • 2)Multi-stage charging: Adjust charging current automatically according to ambient temperature and battery temperature difference, prolong battery life.
  • 3)Charging failure output (only for the models with B,such as LBC2405B): it can be connected to a generator controller to achieve charging fault alarm.
  • 4) BOOST function: the compensation charge in the winter of discontent.
  • 5) Anti-reverse, anti-short circuit function.
  • 6)operating temperature range is wider: can work in -40 ~ 70 ℃ (normally other brand charger can work in 60℃ max.)
