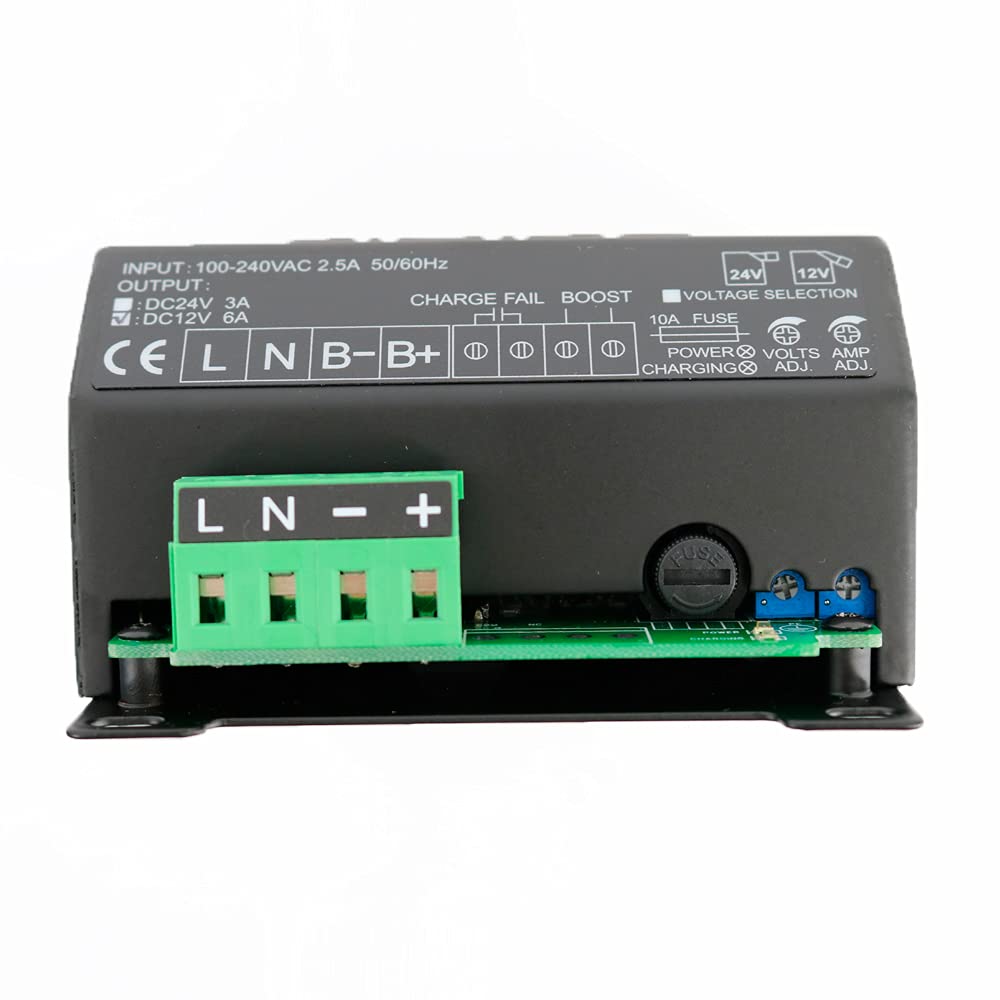

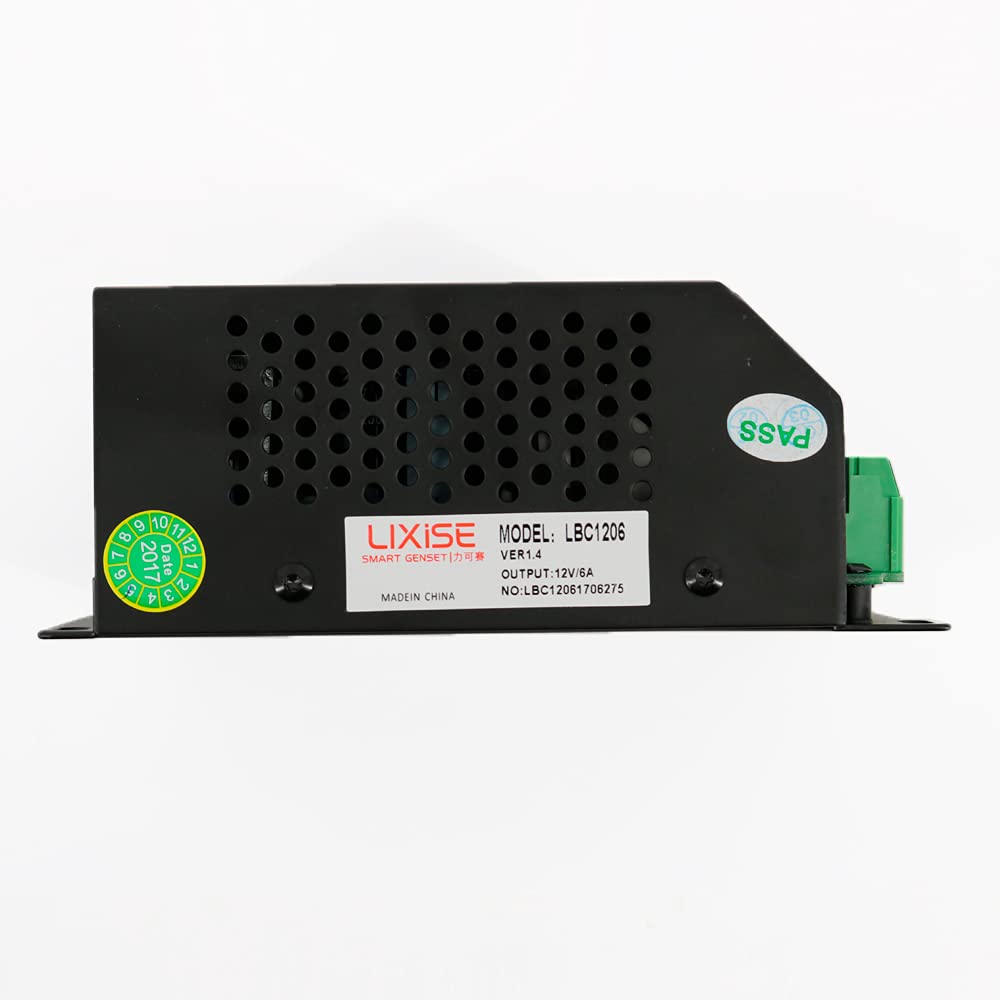

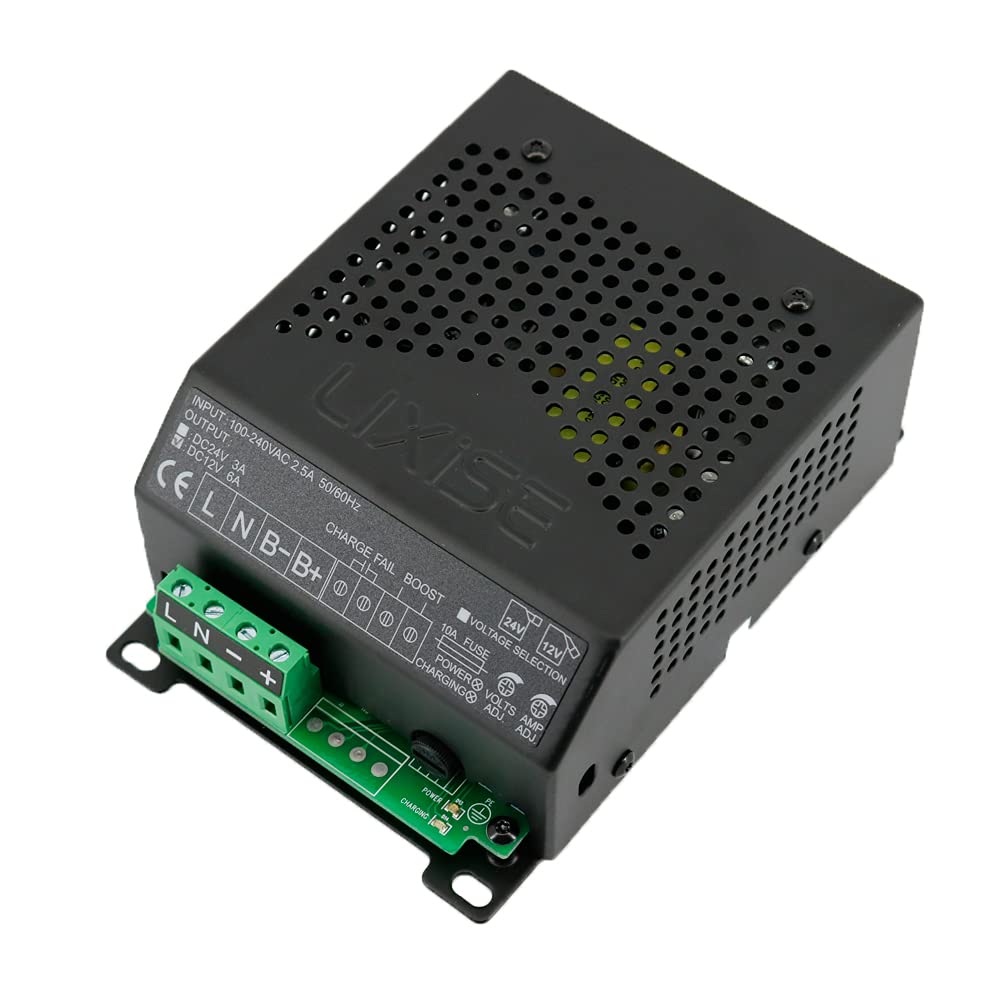

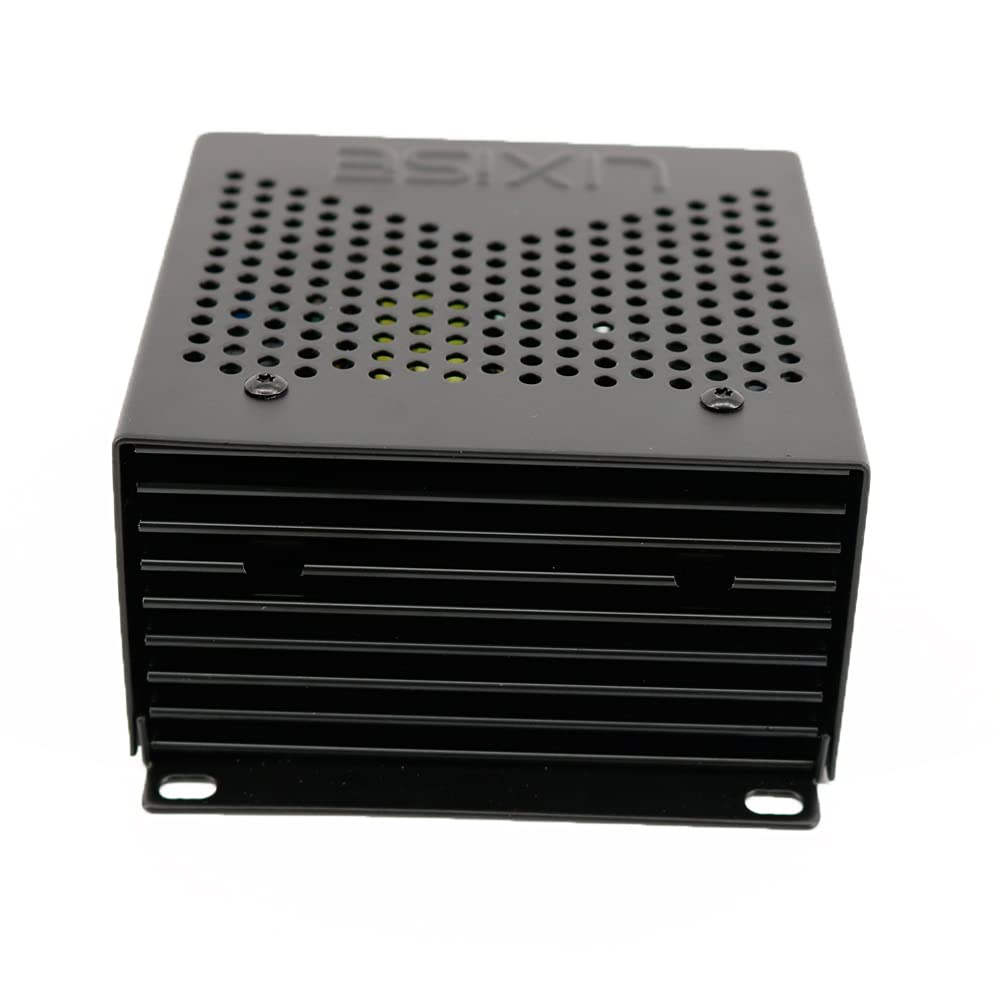

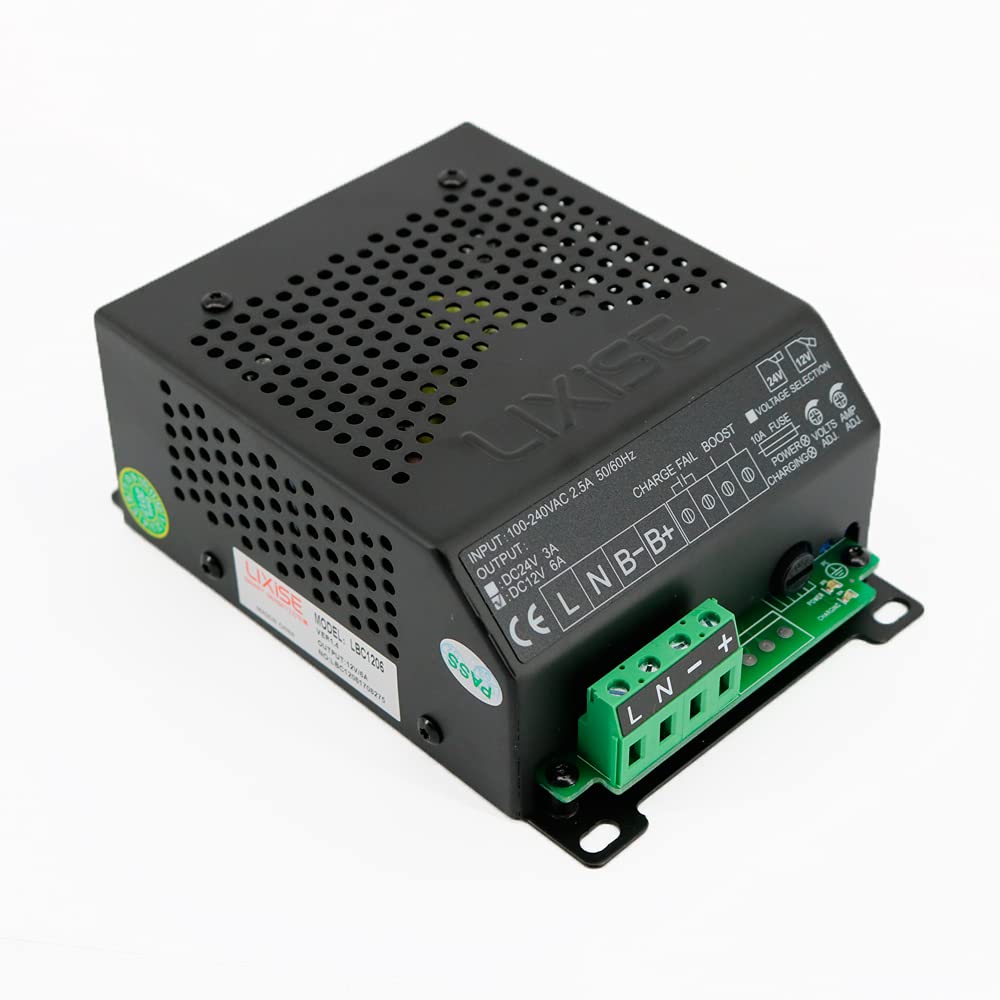

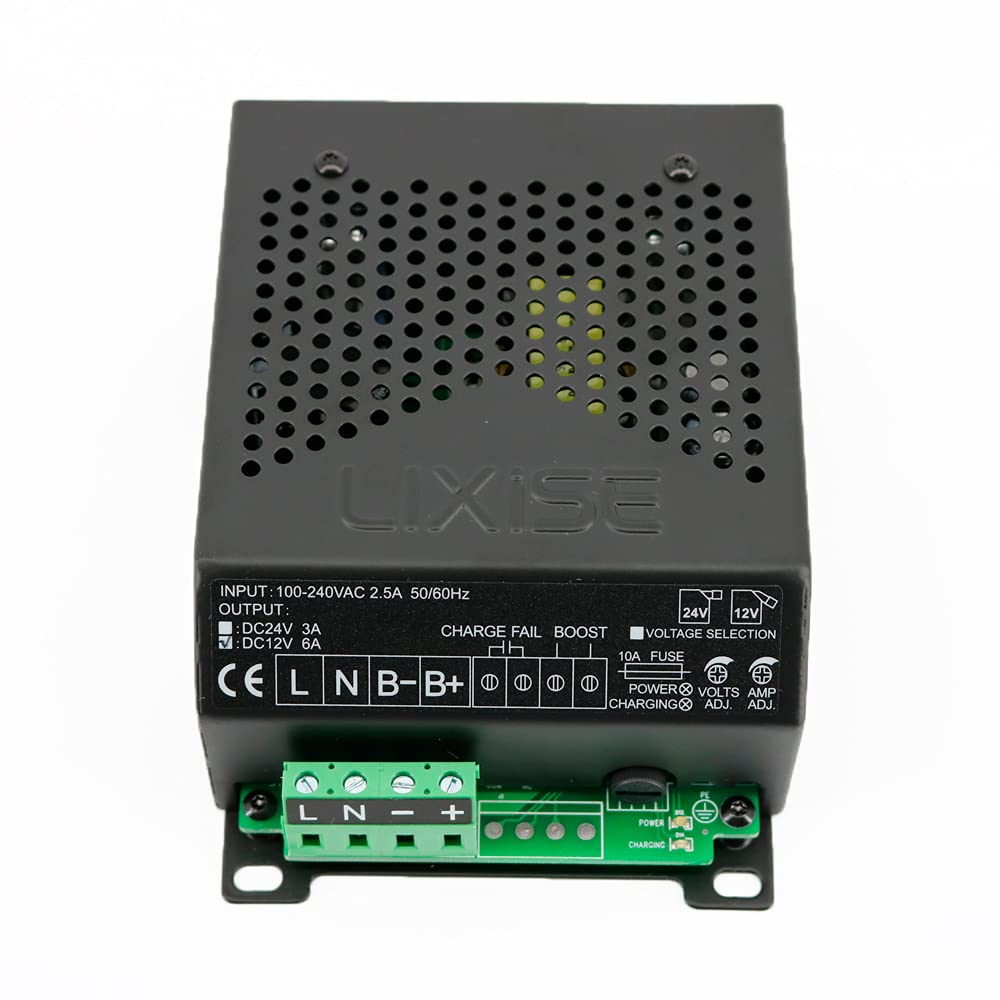

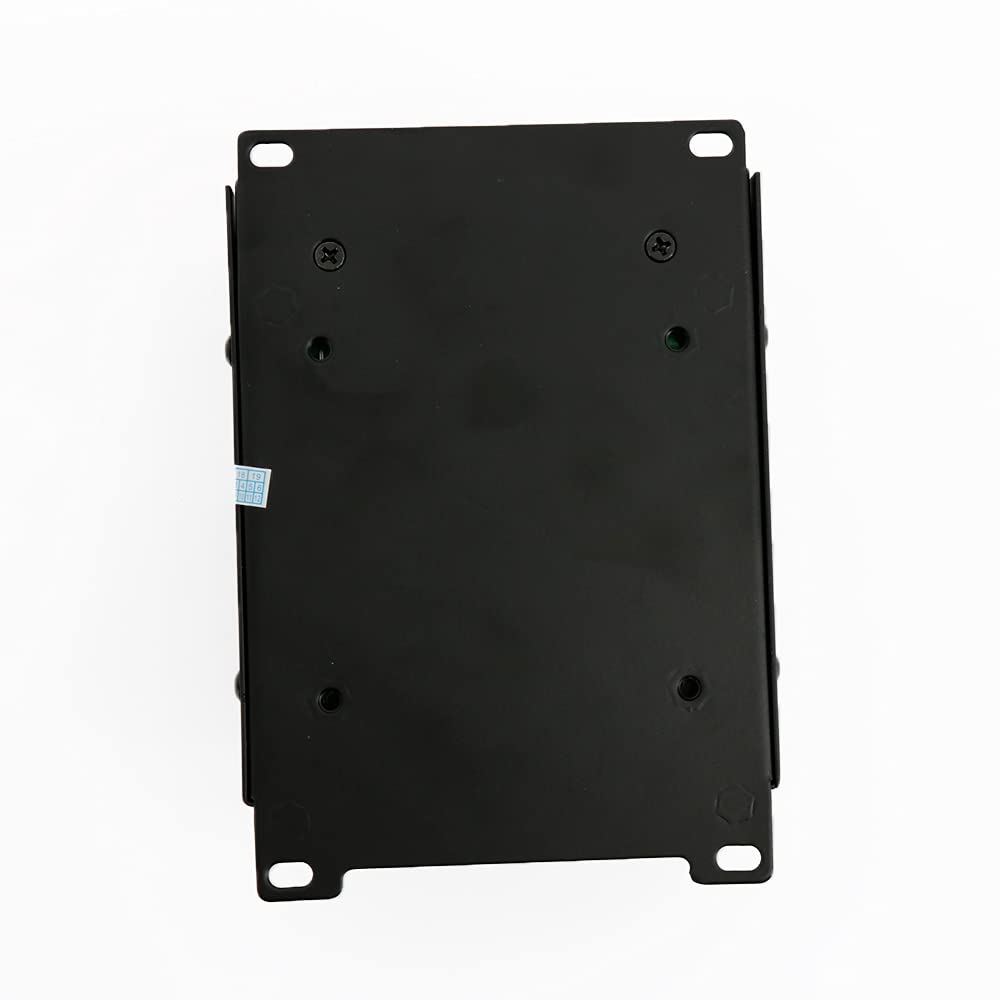

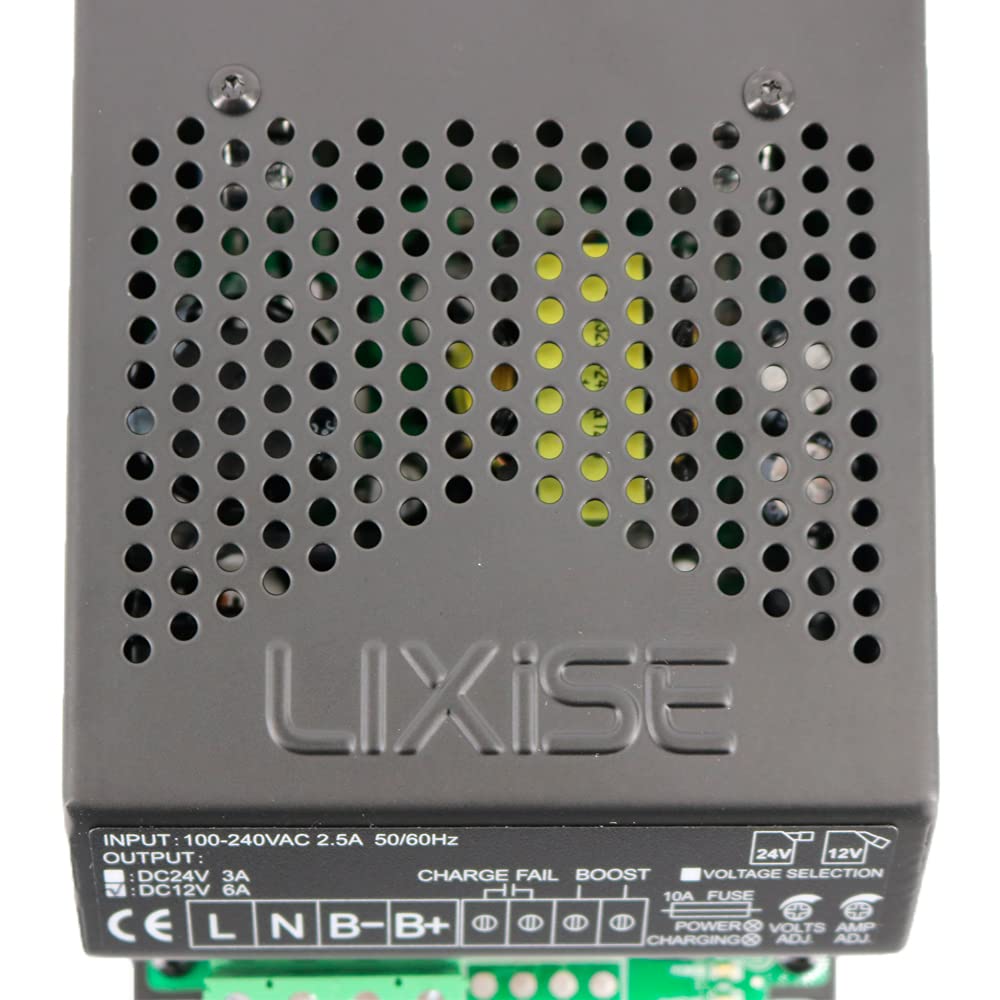

LIXiSE LBC1206 Generator Automatic Battery Float Charger 12V 6A Generator Parts

Brand: Graigar

Color: Black

Features:

• Designed for engine starting operation of battery charging, charging more.With constant voltage, constant current, a trickle floating, full automatic stop, short circuit, reverse connection, etc.
• Charger has perfect resistance to short circuit and reverse connect protection, when the battery capacity is very minimal (resistance), load short circuit, or the charger connect to the mains to charge battery at the same time to start the engine at the same time, still for the constant current output current without damage, so when the battery as the starting power supply at the same time, the charger can not disconnect measures;.
• With charging output interface failure, can be connected to the PLC, generator controller, such as charging fault alarm.In the low storage battery voltage, the short circuit, there is no ac power failure such as effective;
• With the BOOST up voltage function, compensation winter filling dissatisfaction phenomenon;
• Over temperature protection function.When the internal temperature automatic protection, return to work after being cool.Ensure the safety of the charger and battery;

model number: LBC1206

Part Number: LBC1206

Details: Input Characteristic:
Nominal AC input voltage range:AC (100~240)V
Max. AC input voltage range:AC (95~280)V
AC frequency:50 Hz/60 Hz
No-load power consumption:<3 W
Max. input active power:90 W
Max. Input current:1 A
Output Characteristic:
No-load output voltage:13.8 V, error ±1%
Rated charging current:6 A,error ±2%
Rated output:83 W
Alarm Output:
Relay contact:0.5 A/250 VAC(Only useful with B suffixes, such as LBC2405B)
Insulating Property :
Insulating resistor:Input and output,input and shell both read DC500V 1min RL 500MΩ
Insulating voltage:Input and output,input and shell both read AC1500V 50Hz 1min leak current IL 3.5 mA
Working Situation:
working temperature:(-30~55)°C
store humidity:(-40~85)°C
working humidity:20% RH~ 93% RH( no condensation)
storage humidity:10% RH~ 95% RH(no condensation)
weight:0.75 kg
Size:138mm*90mm*53mm

EAN: 0761272051861
