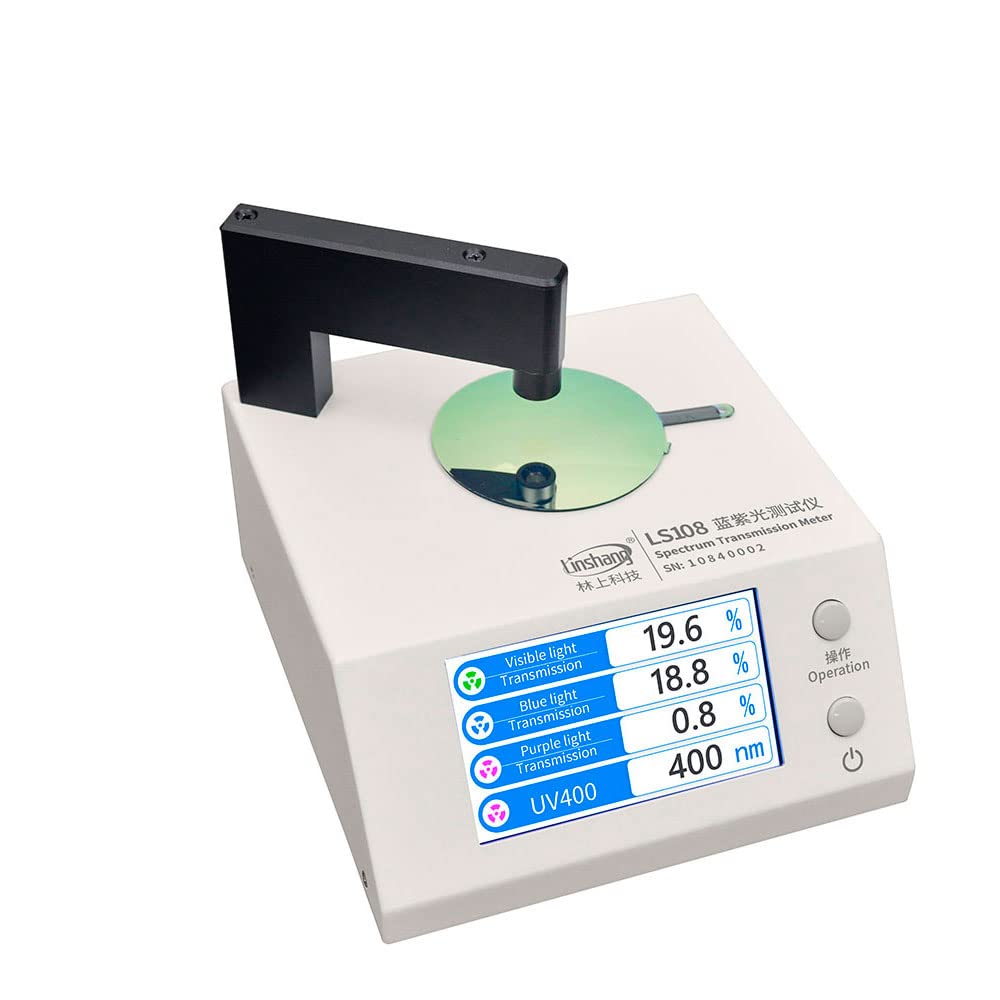

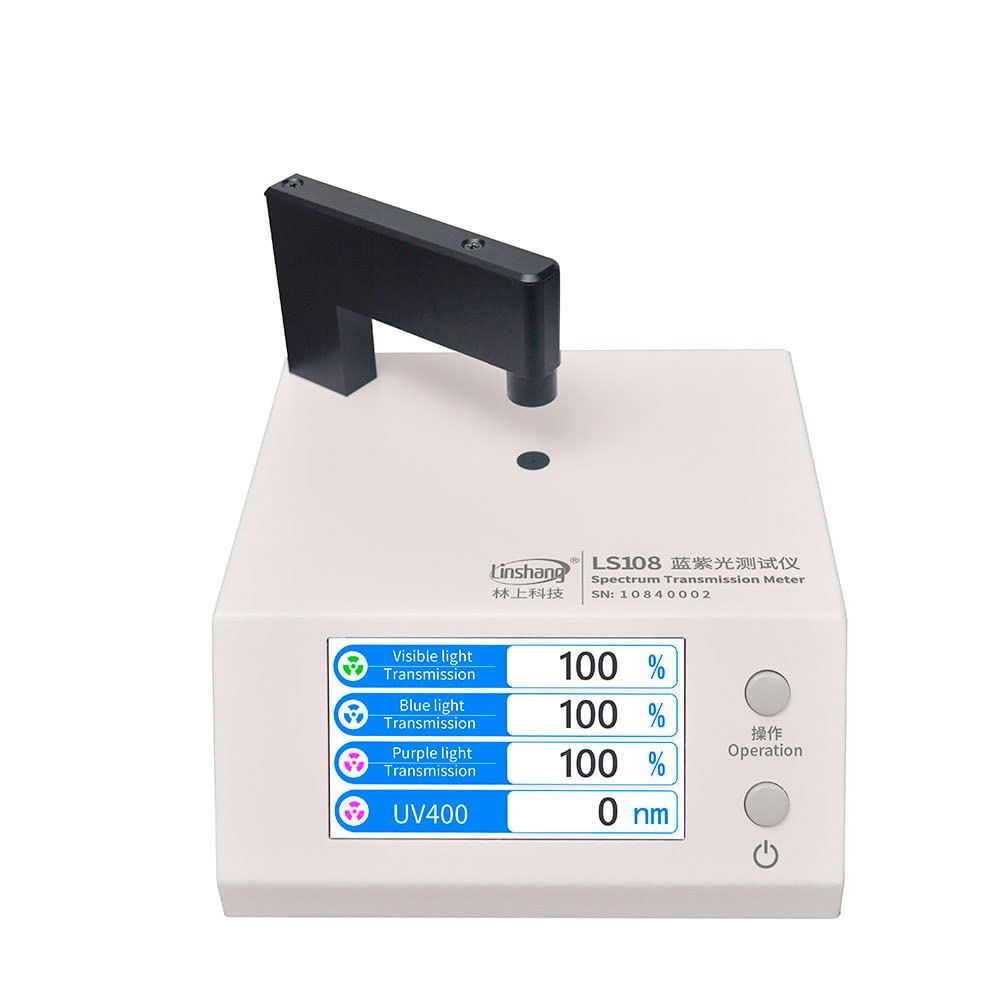

LS108 Spectrum Transmission Meter Blue and Violet Light Transmittance Tester

Brand: Graigar

Features:

• LS108 spectrum transmission meter is a professional optical transmittance tester for measuring the spectacle lenses, coating materials, organic materials, anti-blue light materials and other materials.
• The meter combines three measuring light paths into one. Users can select to measure the transmission rate or rejection rate. Four display interfaces can be switched.
• The LS108 spectrum transmission meter uses a 395nm purple light source, a 430nm blue light source and a visible light source to illuminate the transparent material during test.
• The test aperture of the instrument is 1mm, and the distance between the light source and the detector is 20mm which can measure large thickness materials
• Large LCD screen display, exquisite and stylish appearance, can be used in exhibitions and so on

model number: LS108

Part Number: LS108

Details: Parameters
Purple light peak wavelength:395nm
Blue light peak wavelength:430nm
Visible light:380nm-760nm full wavelength, in line with CIE photopic luminosity function
Minimum test sample size :1mm
Resolution:0.1%
Accuracy:±2% (colorless uniform transparent material, 0-90% transmittance)
Weight:about 1570g
Dimension:170mm × 180mm × 144mm(L*H*W)
Display:480px * 272px color LCD
Power supply:DC5V/1A

Packing
LS108 Spectrum Transmission Meter
DC5V Adapter
User Manual
Certificate / warranty card
Packing box dimension 231*241*161 cm（L*W*H）

EAN: 0707457583857
