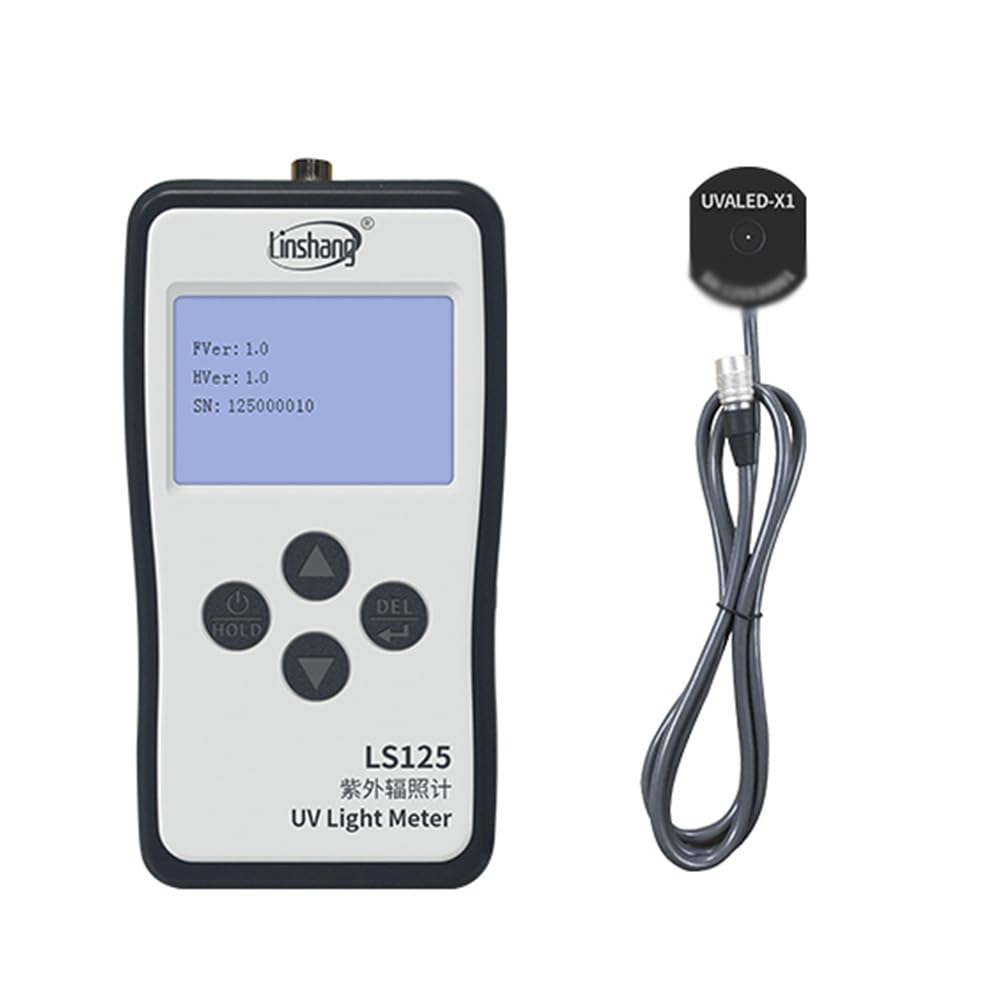

LS125 Digital UV Light Meter Energy Tester Intensity Tester with UVALED-X1 Probe
LS125 Digital UV Light Meter Energy Tester Intensity Tester with UVALED-X1 Probe
无法加载取货服务可用情况

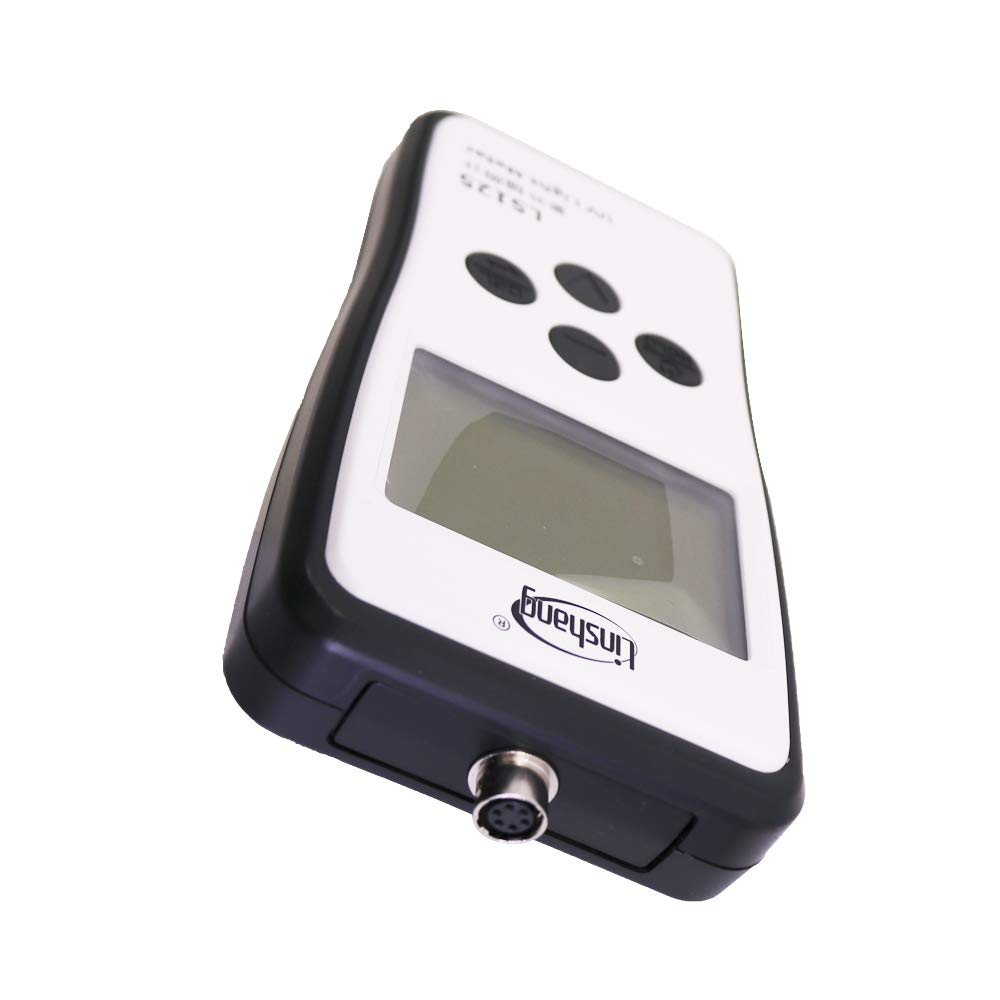

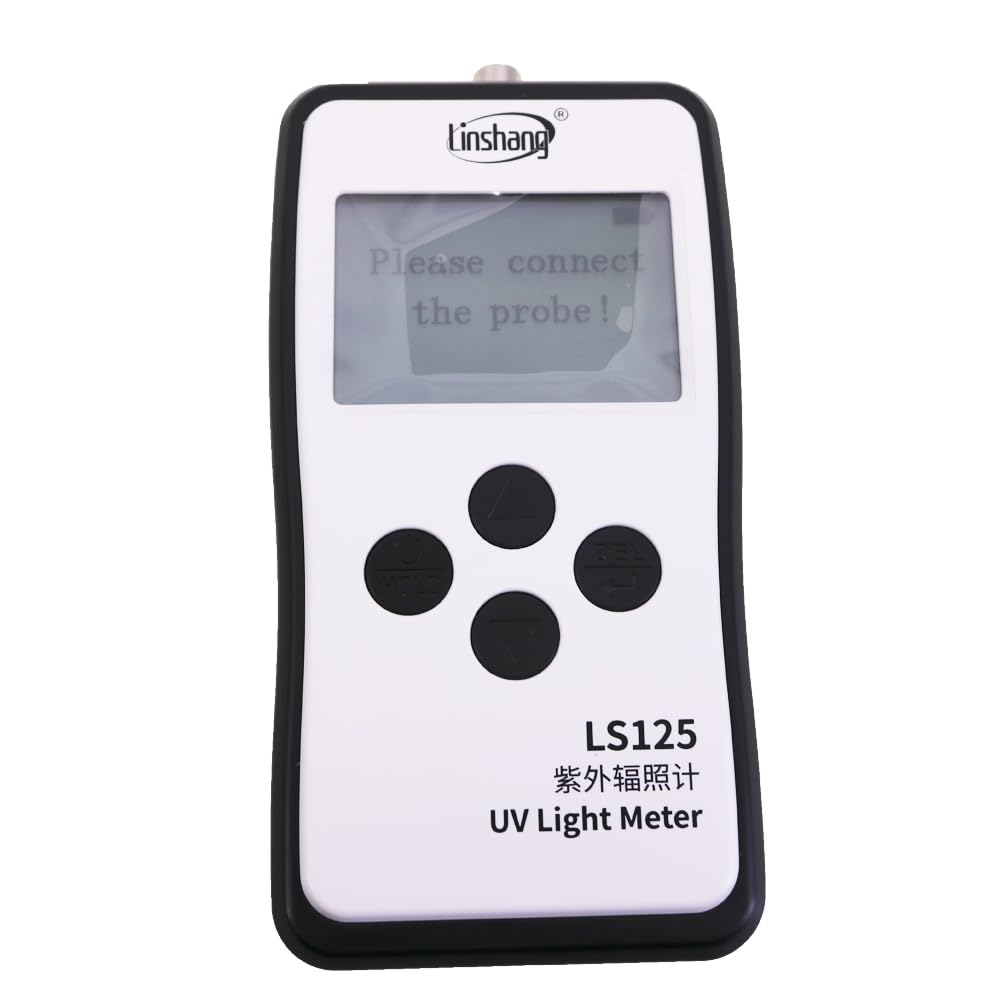

LS125 UV Radiometer Main Unit Suitable for UVA, UVB, and UVC Band UV Lamps Compatible with Various Probes
Introduction:
Ultraviolet (UV) radiation comprises the UVA band (320 nm – 420 nm), the UVB band (280 nm – 320 nm), and the UVC band (200 nm – 280 nm). The UVA band is primarily utilized in industries such as light curing, photolithographic exposure, UV light source manufacturing, and integrated circuit lithography. The UVB band is applied in physical therapy lamps within hospitals and healthcare facilities, as well as in specialized UVB fluorescent lamps designed for reptiles. The UVC band—also known as short-wave germicidal UV radiation—corresponds to the short-wave ultraviolet light emitted by germicidal UV lamps. These germicidal lamps are predominantly employed in settings requiring sterilization and disinfection, such as hospitals, pharmaceutical transfer windows, and disease control centers.
Parameter:
| Parameters | LS125 UV Light Meter |
|---|---|
| Weight | About 194g |
| Dimension | 148mm * 76mm * 26mm (L*W*H) |
| Display | 240*160 dot matrix LCD |

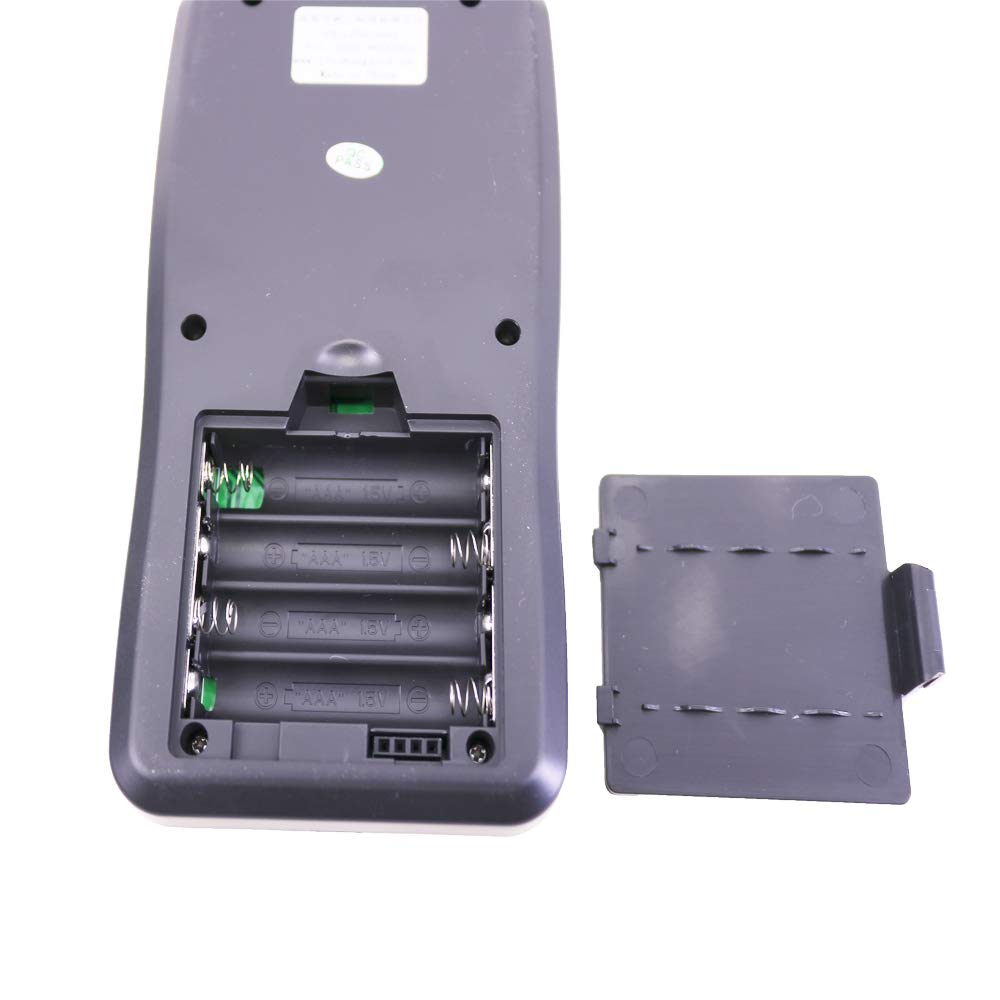

| Power Supply | 4 AAA alkaline batteries |

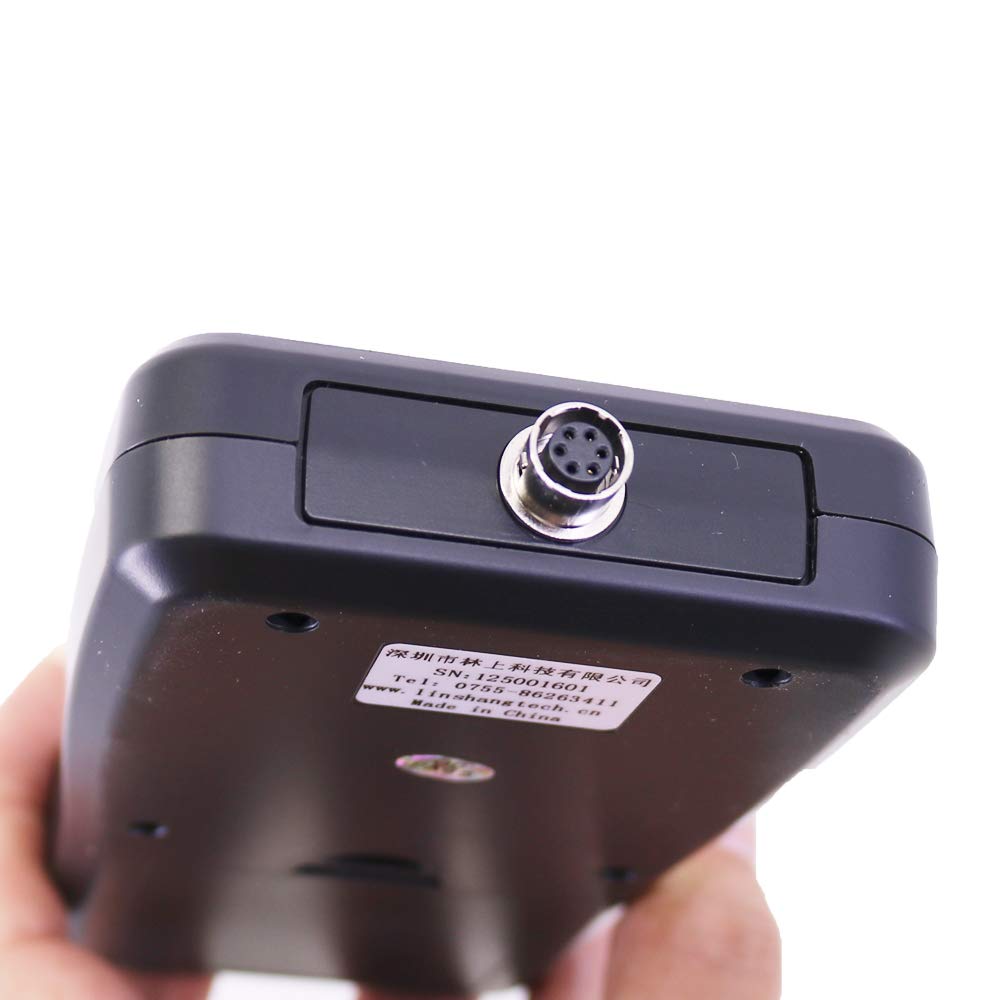

| Probe Connection | Push pull (Snap-in style),Aviation socket |
Probe Selection:
| No. | Probe Model | Spectral Response Range | Power range | Test aperture | Application |
|---|---|---|---|---|---|
| 1 | UVC-X0 | 230-280nm | 0 - 200000 μW/cm² | Φ10mm | 254nm UV sterilization mercury lamp |
| 2 | UVCWP-X1 | 230-280nm | 0 - 200000 μW/cm² | Φ10mm | 254nm UV sterilization mercury lamp,waterproof |
| 3 | UVC-X2 | 210nm-250nm | 0 - 200000 μW/cm² | Φ10mm | far UVC lamps |
| 4 | UVCLED-X0 | 230-315nm | 0 - 200000 μW/cm² | Φ10mm | 260nm-285nm UV LED germicidal lamp |
| 5 | UVB-X0 | 280-315nm | 0 - 200000 μW/cm² | Φ10mm | General UVB intensity and energy measurement |
| 6 | UVA-X0 | 315-400nm | 0 - 2000 mW/cm² | Φ10mm | High pressure mercury lamp in UV curing industry |
| 7 | UVA-X1 | 315-400nm | 0 - 200000 μW/cm² | Φ10mm | General UVA intensity and energy measurement |
| 8 | UVA-X2 | 315nm-365nm | 0 - 200000 μW/cm² | Φ10mm | 340nm UVA aging lamps |
| 9 | UVALED-X0 | 340-420nm | 0 - 200000mW/cm² | Φ10mm | Area light source of UV LED in UV curing industry |
| 10 | UVALED-X1 | 340-420nm | 0 - 200000mW/cm² | Φ1mm | Point light source of UV LED in UV curing industry |
| 11 | UVALED-X3 | 340-420nm | 0 - 200000 μW/cm² | Φ10mm | General UVA+UVV LED, low power measuring range |
| 12 | BL-X0 | 410nm-490nm | 0 - 2000 mW/cm² | Φ10mm | 450nm blue light |

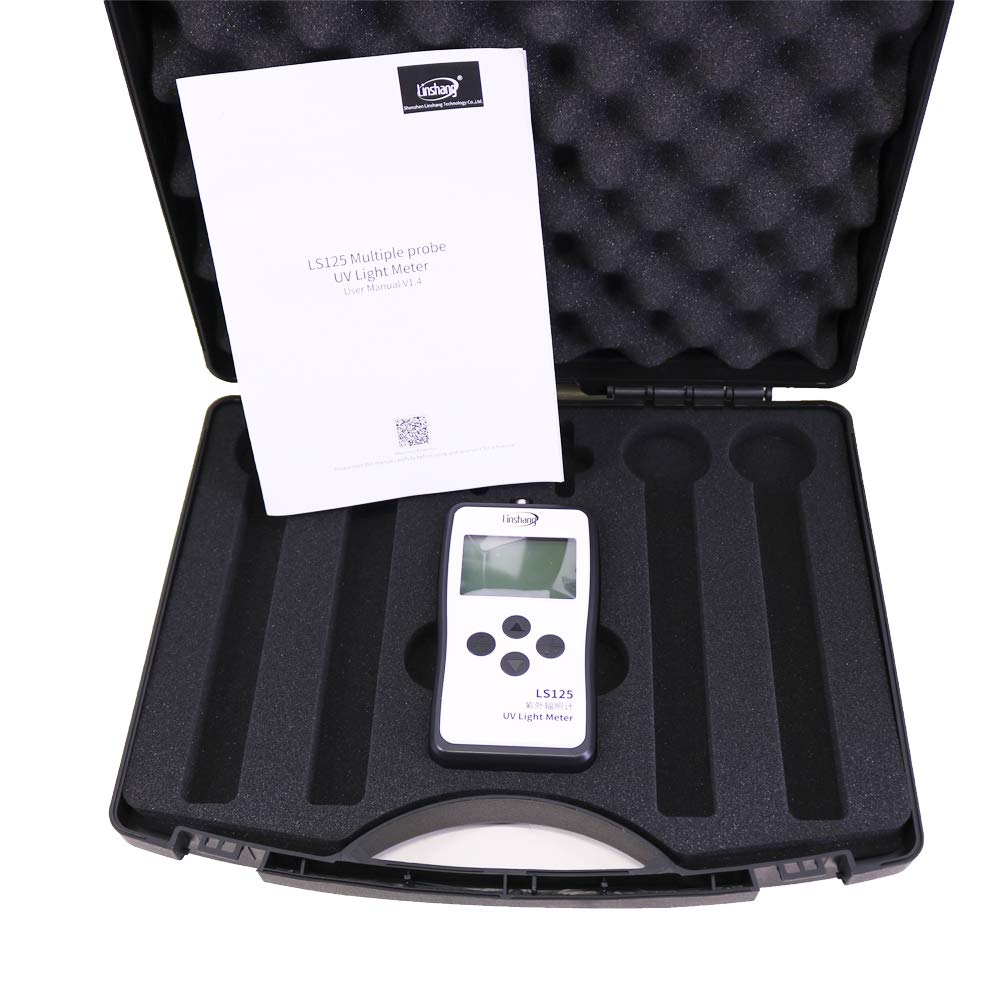

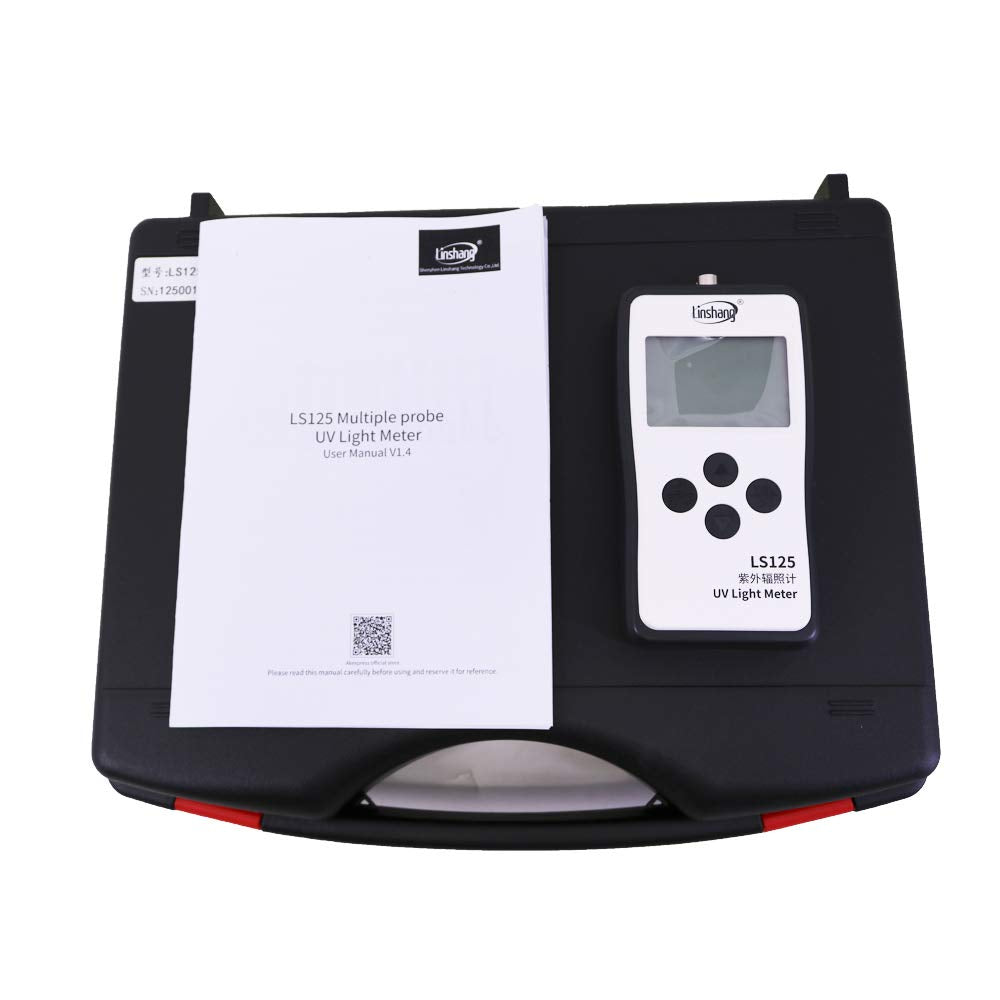

Packing:
| No. | Item | Quantity | Unit |
|---|---|---|---|
| 1 | LS125 UV Light Meter | 1 | Pcs |
| 2 | Probe | According to thenumbers of probe ordered | Pcs |
| 3 | User Manual | 1 | Pcs |
| 4 | Calibration Report | 1 | Pcs |
| 5 | Certificate/Warranty Card | 1 | Pcs |

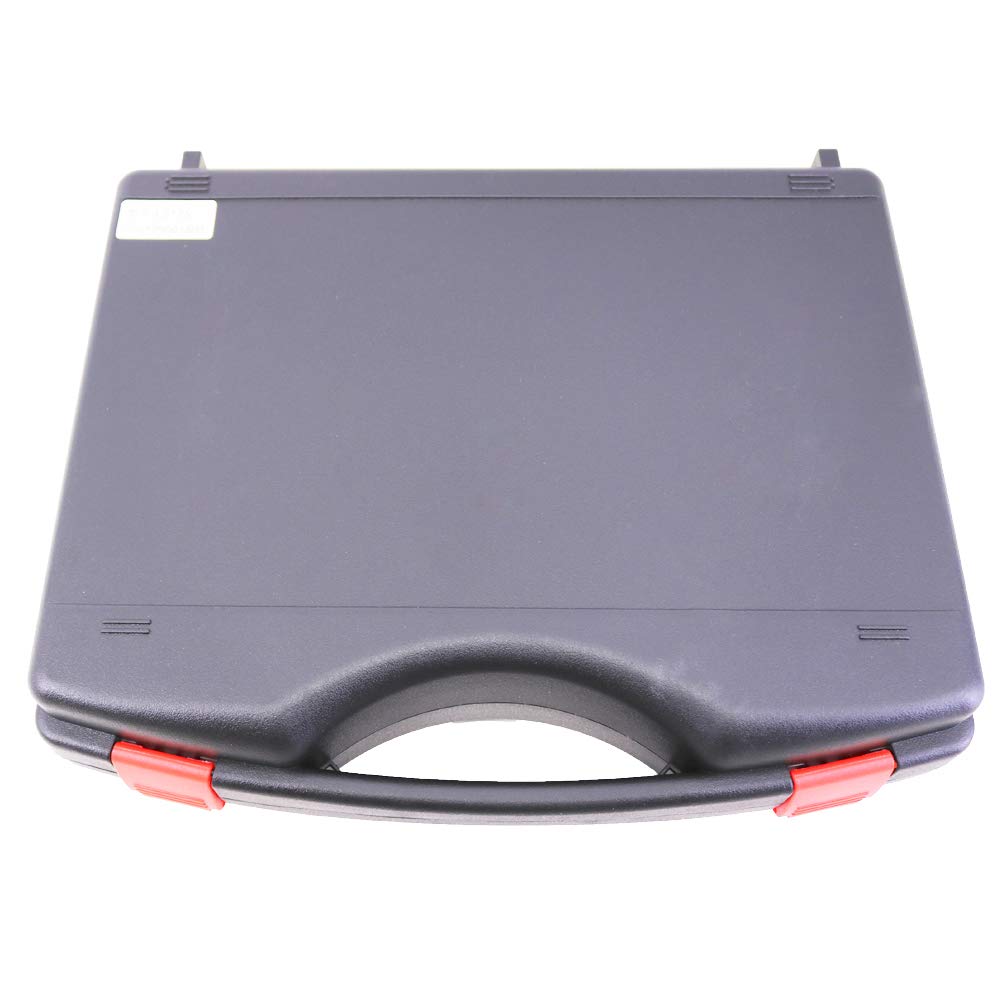

| 6 | Plastic Box | 1 | Pcs |
Brand: Graigar
Color: white and black
Features:
- 1mm ultra-small test aperture, suitable for 340nm-420nm LED point light source intensity and energy test
- The probe features wide spectral response, and it is suitable for 365nm / 375nm / 385nm / 395nm / 405nm LED point light source intensity and energy measurement in various wavelength bands
- The UV radiometer can measure energy value and power value at the same time. It also has a wealth of statistical functions, intelligent statistics of real-time power value, maximum value, minimum value, average value, measurement time, energy value
- High-speed acquisition, which can collect 2048 data per second, makes the measurement results more accurate
- Three measurement units can be switched, namely mW/cm², W/cm², W/m². Data conversion between different units does not require manual calculation
model number: LS125+UVALED-X1
