LS155 Digital Clarity Color Haze Glass Plastic Film Liquid Transparent Transmittance Measurement Analyzer Haze Meter

Name: LS155 Digital Clarity Color Haze Glass Plastic Film Liquid Transparent Transmittance Measurement Analyzer Haze Meter
Brand: Graigar
SKU: B0DNYPN35Z
Price: 1727.00 USD
Availability: InStock

$1,727.00 USD

促销售罄

数量

Company Information

Descriptions:

LS155 digital haze meter is a multifunctional color haze meter. It adopts full spectrum LED light source and spectral sensor design, which is used for the measurement of haze, transmittance and color of various diffuse transmittance materials such as milky white, matte, frosted surface and various transparent and semi-transparent regular transmittance materials, and it can also display the spectral transmittance curve. The color haze meter is equipped with 7-inch color screen and capacitive touch screen, which provides excellent operation experience.

Features:

1. Compliant with both ASTM and ISO standards, accommodating diverse testing requirements. 2. It can measure color difference, haze, and transmittance, displaying the transmittance spectral curve. 3. Easily switch between simple and comparative measurement for straightforward operation. 4. Equipped with a 7-inch touchscreen, offering excellent human-machine interaction for convenient operation. 5. It has excellent repeatability, with haze and color difference repeatability ≤ 0.03, and transmittance repeatability ≤ 0.05. 6. High accuracy ensures the ability to pass testing at authoritative metrology institutes. 7. Offers both vertical and horizontal measurement modes, and is also capable of measuring liquids. 8. Utilize a dual-aperture design with 14mm and 5mm options. 9. Equipped with A, C, and D65 standard illuminants. 10. Equipped with PC software for online measurements, supporting data export and printing.

Other attributes:

Spectral Interval	10nm	Measuring parameter	Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance
Place of Origin	Guangdong, China	Transmittance resolution	0.01%
Brand Name	Linshang	Transmittance accuracy	Better than ±1%
Model	LS155 Color Haze Meter	Transmittance repeatability	≤0.03
Illumination geometry	D/0°	Haze resolution	0.01%
Spectral Range	400-700nm
Measuring aperture	5mm/14mm

Parameter	Value
Illumination geometry	D/0°
Illumination light source	Full spectrum LED light source
Spectral Range	400-700nm
Spectral Interval	10nm
Measuring aperture	5mm/14mm
Measurement conditions	Light source D65, field of view 10°; Light source A, field of view 2°; Light source C, field of view 2°
Measuring time	About 3s
Measuring parameter	Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance
Transmittance resolution	0.01%
Transmittance accuracy	Better than ±1%
Transmittance repeatability	≤0.03
Haze resolution	0.01%
Haze accuracy	Better than ±2%
Haze repeatability	≤0.03
Color repeatability	Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)
Power supply	100~277V 0.4A 50/60HZ
Display	7-inch 1024*600 dot matrix IPS color screen
Language	Simplified Chinese, English
Data transmission	USB (Type-C)
Operating temperature range	0-45℃,0-85%RH (no condensation)
Storage temperature range	25-55℃,0-85%RH (no condensation)

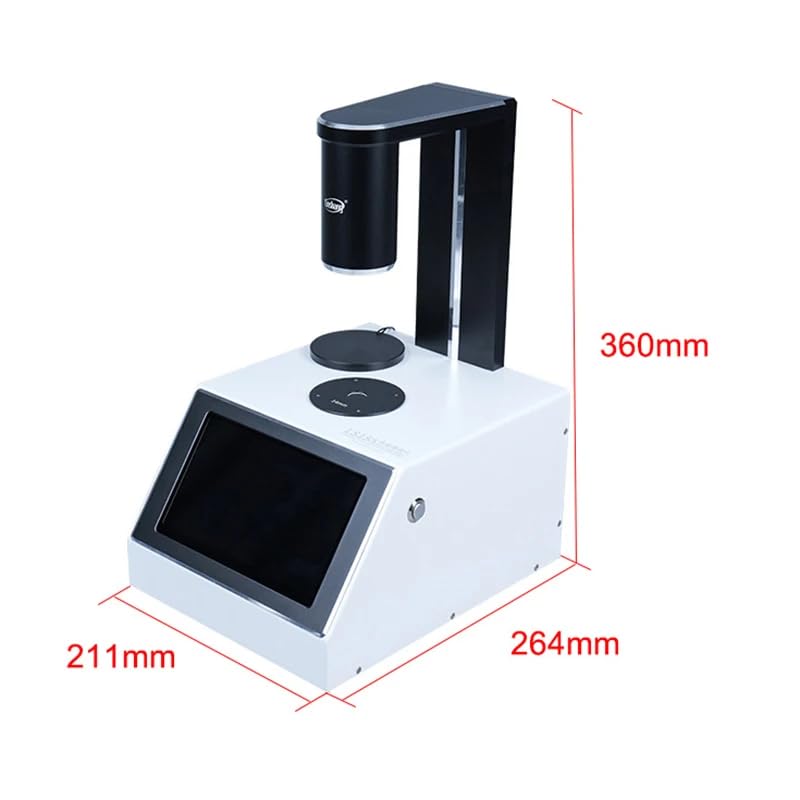

Dimension	211mm×264mm×360mm(LWH)
Weight	5300g

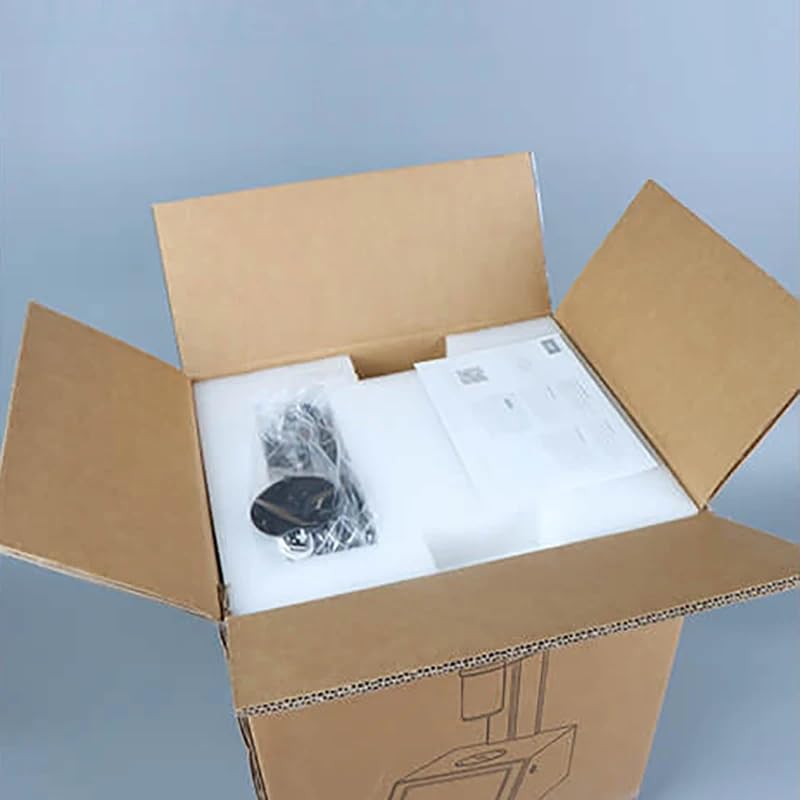

Packaging and delivery

Selling Units:	Single item
Single package size:	48X38X32 cm
Single gross weight:	6.300 kg

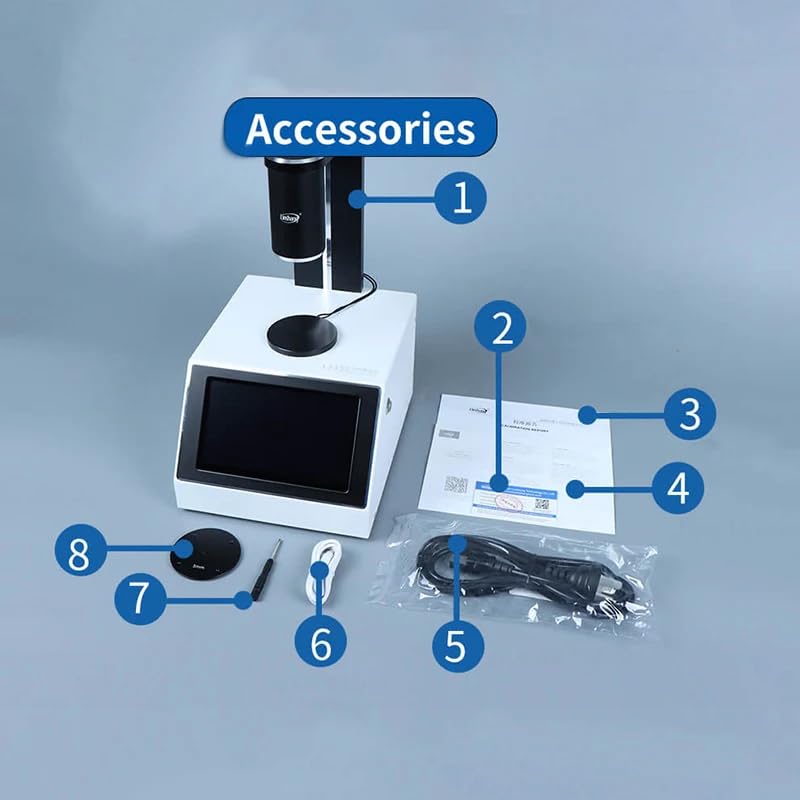

Packing list:

No.	Description	Quantity	Unit
1	Color Haze Meter	1	Set
2	USB cable	1	pcs
3	Power cable	1	pcs
4	5mm aperture cover	1	pcs
5	Screwdrivers	1	pcs
6	User manual	1	pcs
7	Certificate / Warranty card	1	pcs
