LS173 Portable Multifunctional Colorimeter D/8° Touch Scree Color Difference Analyzer Color Tester

Brand: Graigar

Color: White

Features:

• LS173 is a portable multifunctional colorimeter with D/8° optical geometry design. The color analyzer is equipped with a 3.5-inch IPS color capacitive touch screen, which has an excellent operating experience. The colorimeter integrates multiple natural color charts, which can quickly match the measured color to the closest color codes.
• Usually used in automotive paint, metal processing, stone, ink printing, decorative materials, leather cotton, plastics and plastics industries for product color measurement and management, product color difference quality control. The colorimeter is illuminated by an integrating sphere diffused light source, which is very suitable for color measurement of high-gloss and textured samples.

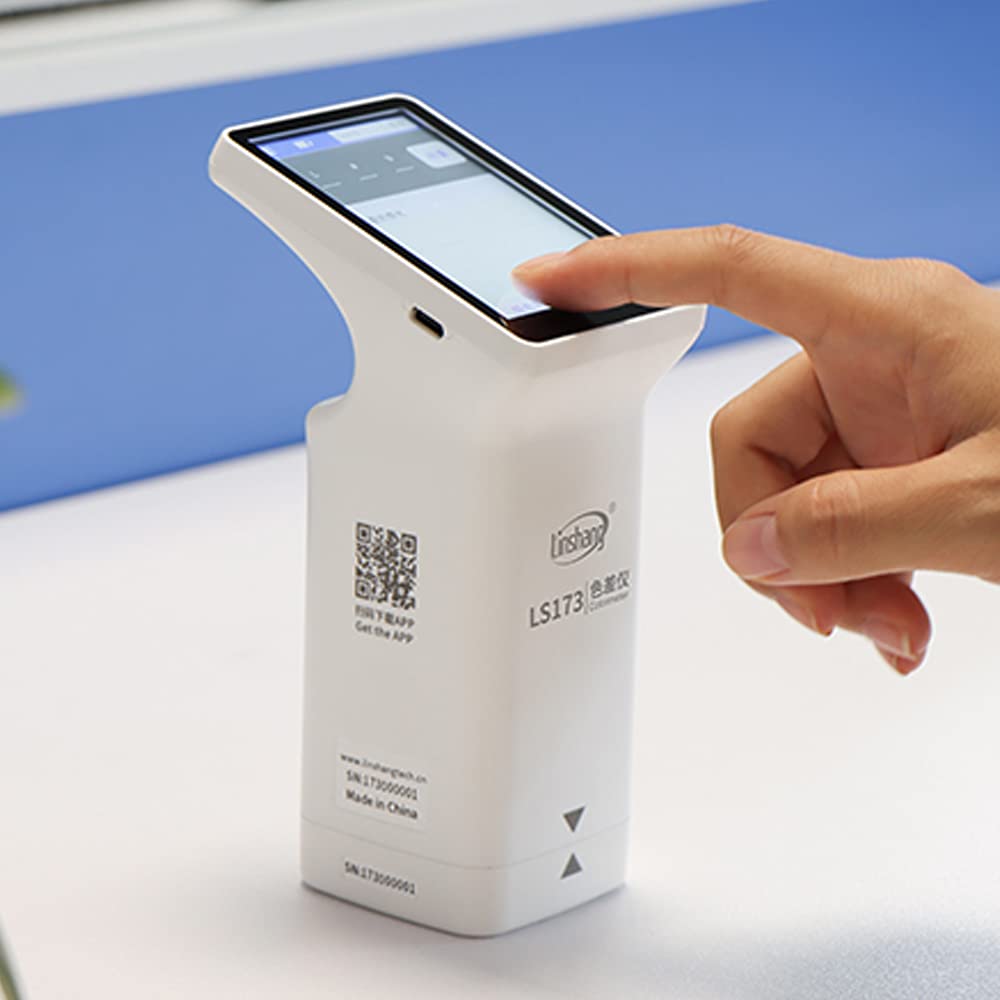

• Color measurement can be achieved by touching the screen button or pressing the power button, and the color value can be measured in 1 second.
• Built-in multiple standard electronic color charts, which can quickly match the 3 closest color codes, with an accuracy rate of over 90%.
• Seven color spaces and six color difference formulas, highly matching industry needs.

model number: LS173

Part Number: LS173

Details: Parameters
Illumination geometry:D/8, specular component include (SCI)
Illumination light source:Full spectrum LED light source

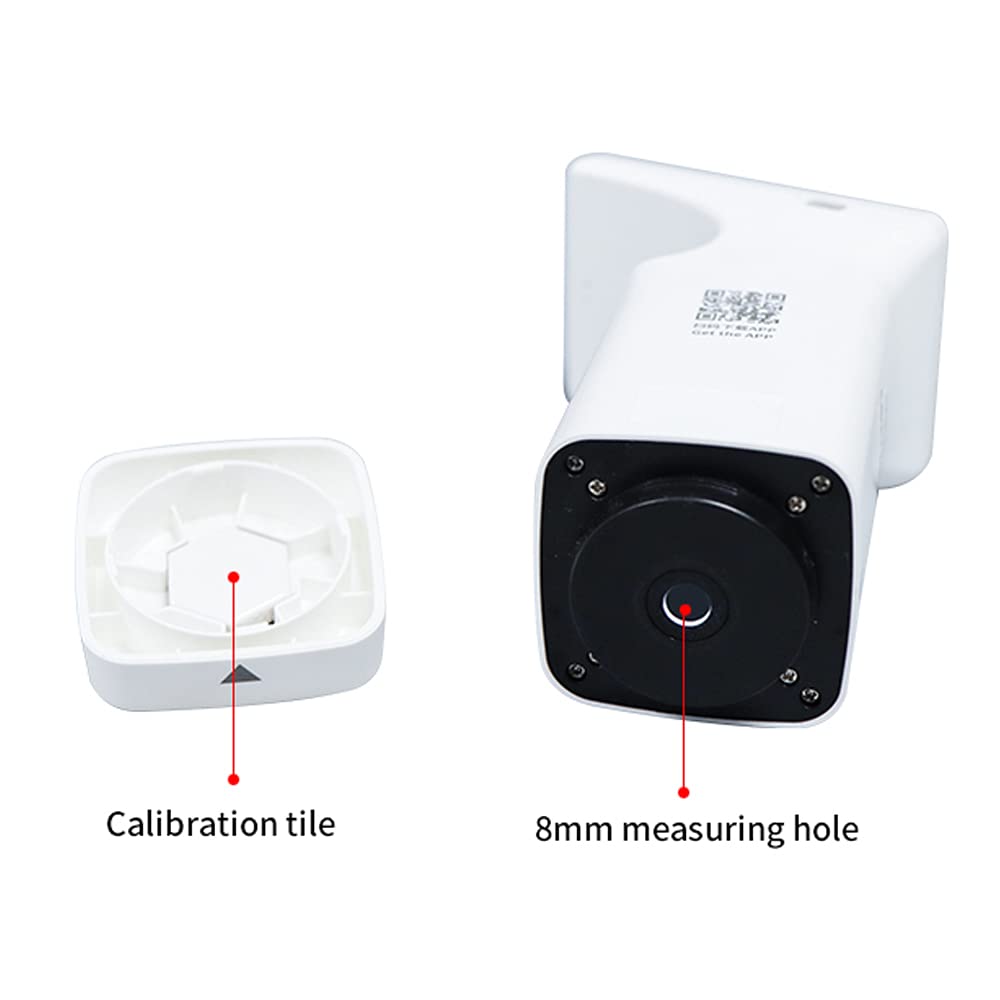

Measuring aperture:8mm
Measurement conditions:Light source D65, field of view 10°
Measuring time:About 1s
Color space:CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex
Color difference formula:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Repeatability:Standard deviation ΔE*ab is within 0.03(Measurement condition: the average value of30 measurements on the whiteboard at aninterval of 3s after calibration)

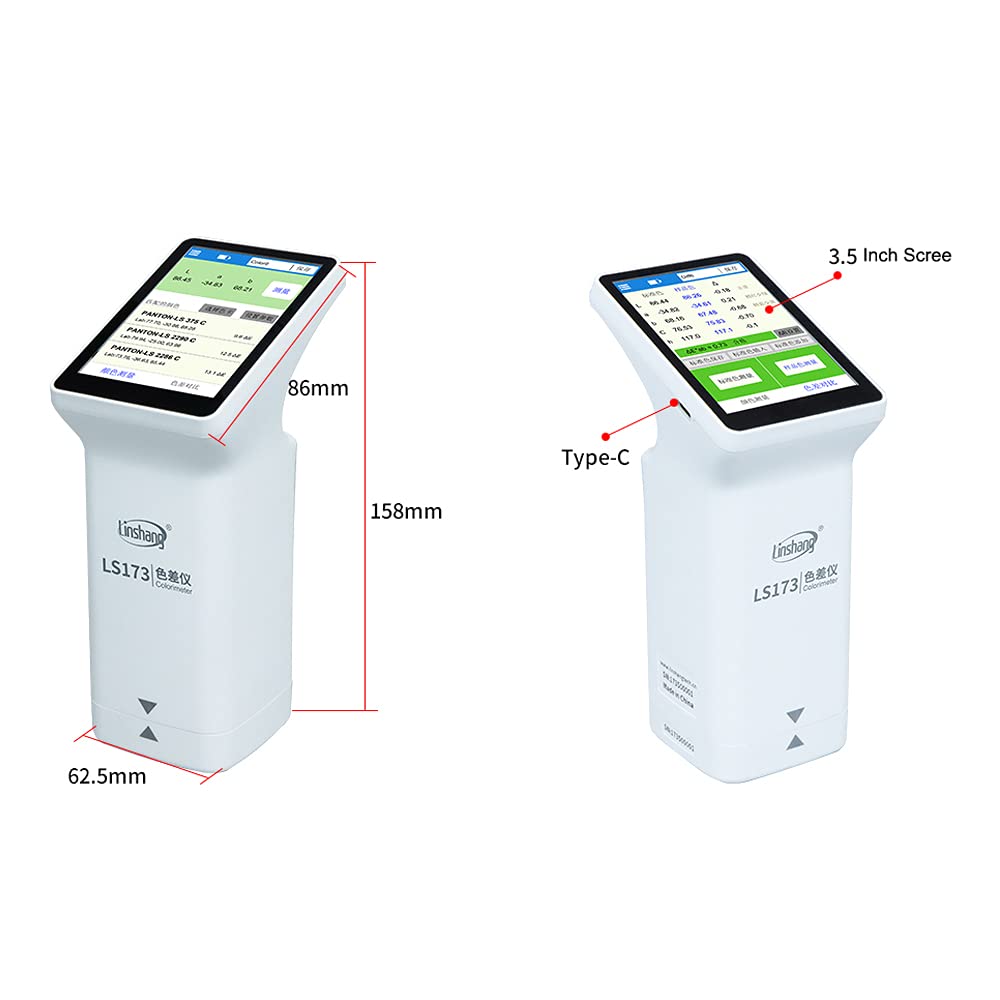

Dimension:86mm×62.5mm×158mm
Weight:About 245g
Power supply:Rechargeable lithium battery3.7V@4000mAh, can measure 10,000 timescontinuously under full charge
Display:480×320 dot matrix IPS color screen
Language:Simplified Chinese, English
Charging port:USB (Type-C)
Data transmission:USB
Operating temperature range:0~45℃, 0~85%RH (no condensation)
Storage temperature range:-25~55℃, 0~85%RH (no condensation)

EAN: 0761272052486
