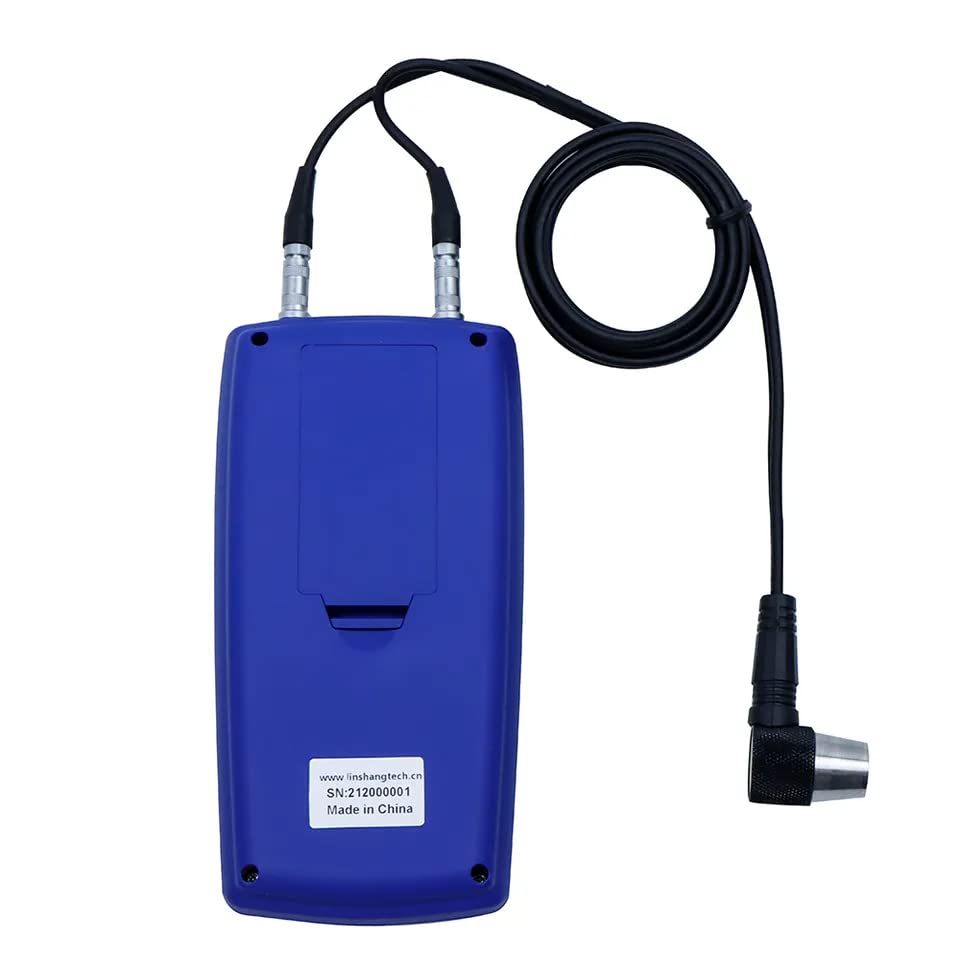

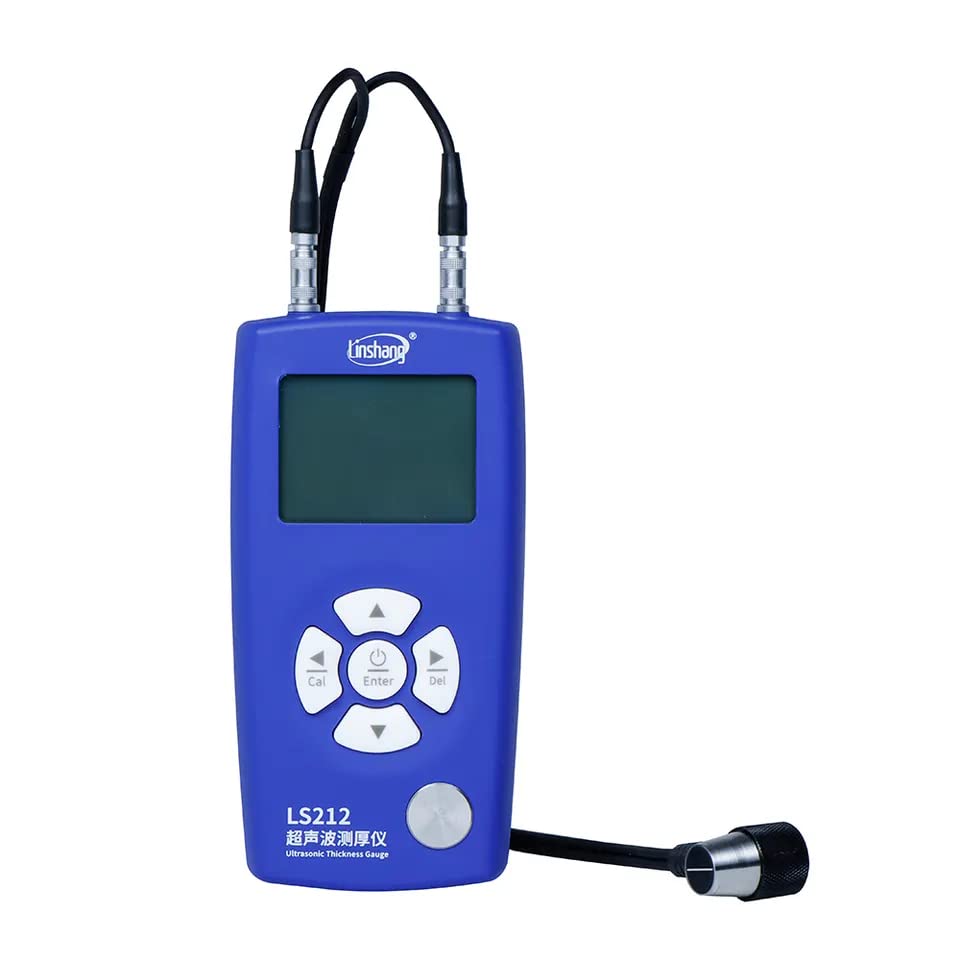

LS212 Digital Ultrasonic Thickness Gauge with 5MHZφ10 Probe Measuring Range: 0.8mm-350mm

LS212 ultrasonic thickness gauge employs a double-crystal probe consisted of two independent transducers separated by an acoustic barrier. When the ultrasonic pulse emitted by one of the crystal sensors of the probe reaches the demarcation surface through the material to be measured, the pulse will be reflected, and received by another crystal sensor.  The professional timing chip inside the instrument precisely records the time of ultrasonic wave propagation in the material, and finally the instrument determines the thickness of the material with time and velocity. The measuring range of the tester is 0.8mm-350mm, capable of testing the most engineering materials, including metals, plastics, ceramics, glass, glass fiber and any other ultrasonic good conductor.

Application

In many industries, It is essential to mesure the wall thickness to confirm the condition of the material for the normal running of the items or structure safety. LS212 ultrasonic thickness gauge can be widely used in testing the thickness of various accessories or metallic structure to check them whether to be repaired or changed such as ships, tanks, pipes or steel structure. The gauge is applicable for petroleum, chemical, metallurgical, shipbuilding, aviation and aerospace various fields.

Ultrasonic double crystal probe;

Automatic Gain switchable;

Excellent Timer chips provide fast, accurate readings;

High precision, high resolution;

Various materials can be measured;

Provide sound velocity of multiple materials;

Sound velocity can be measured with the thickness in turn;

QC Mode and Statistics Mode;

Comfortable grip with non-slip silicone keys;

Large LCD Screen;

Parameters
