LS225+F500 Plating Thickness Gauge Ultra-thin Thickness Gauge Measuring Range 0.0-500um

Brand: Graigar

Features:

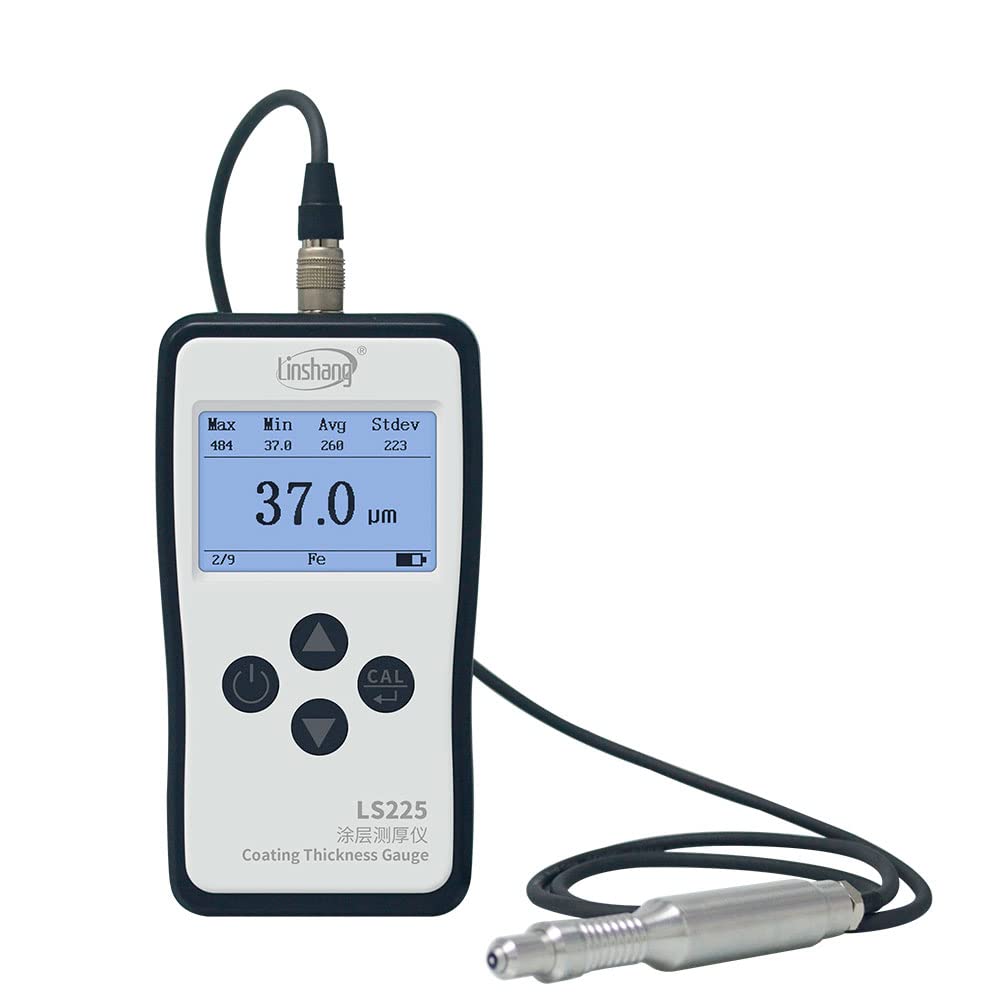

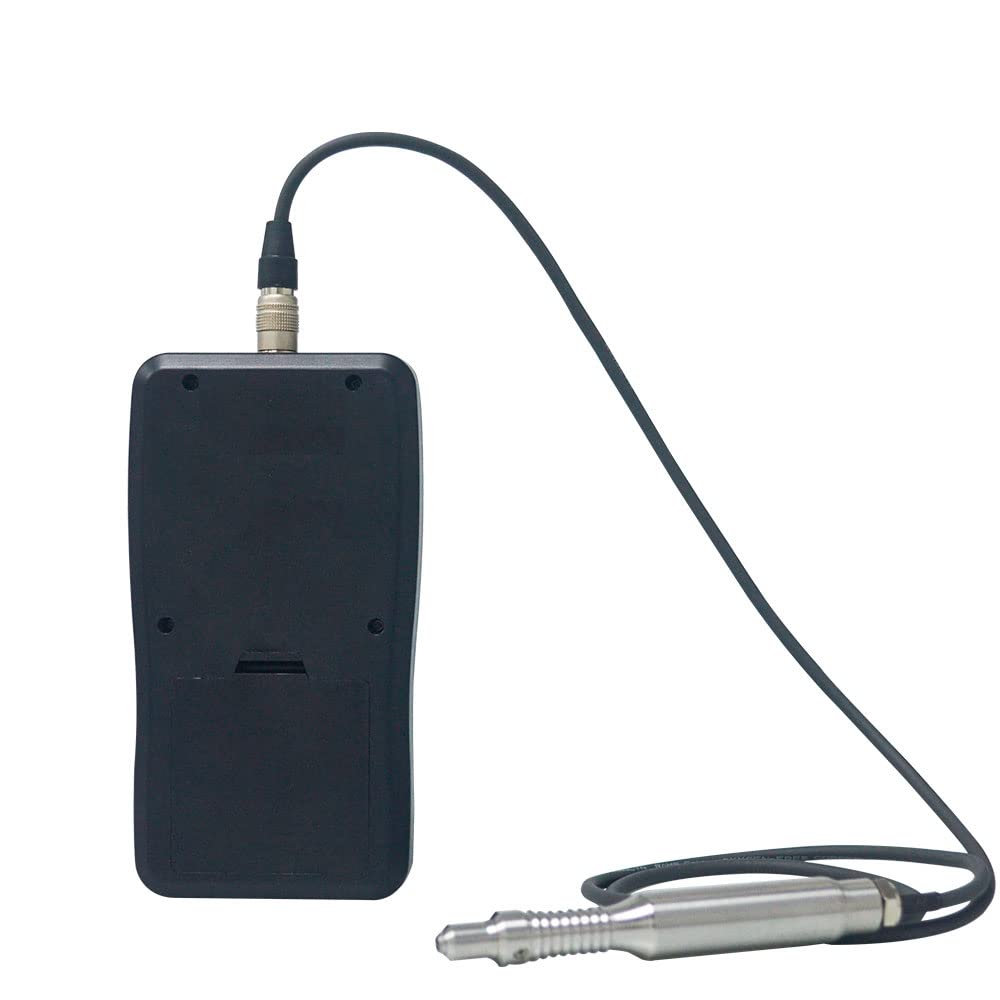

• LS225+F500 is a plating thickness gauge with separate host and probe.It consists of LS225+F500 multi-probe coating thickness gauge host and F500 probe.
• LS225+F500 plating thickness gauge is specially used to detect copper, zinc, tin, chromium and non-magnetic coatings on iron and other ferromagnetic metal substrates.
• The plating thickness gauge has ultra-high measurement accuracy and repeatability.
• It can be used to measure the thickness of ultra-thin coatings below 10μm.
• The LS225+F500 plating thickness gauge is widely used in metal processing industry, hardware and other industries and is particularly suitable for testing small-sized materials with a minimum measurement area diameter of only 7 mm.

model number: LS225+F500

Part Number: LS225+F500

Details: LS225 plating thickness gauge host parameters
Parameter:Value
Display:240×160 dot matrix LCD
Power supply:4pcs of 1.5V AAA alkaline battery
Operation temperaturerange:0℃-50℃
Storage temperaturerange:-20℃-60℃
Host size:148*76*26 mm (L*W*H)
Weight (include battery):194g

F500 probe parameters
Parameter:Value
Measuring principle:Magnetic Induction
Measuring range:0.0-500μm
Resolution:0.1μm: 0μm - 99.9μm/1μm: 100μm - 500μm
Repeatability :≤ ± (0.8%H+0.1μm)Test with fixture, H is the standard value
Accuracy:≤±(2%H+0.3μm) after calibration of 1-5 points, H is the standard value
Unit:μm / mil
Measuring interval:1.5s
Minimum measuring area:Ø = 7mm
Minimum curvature:Convex:1.5mm / Concave:10mm
Minimum substrate thickness:0.1mm

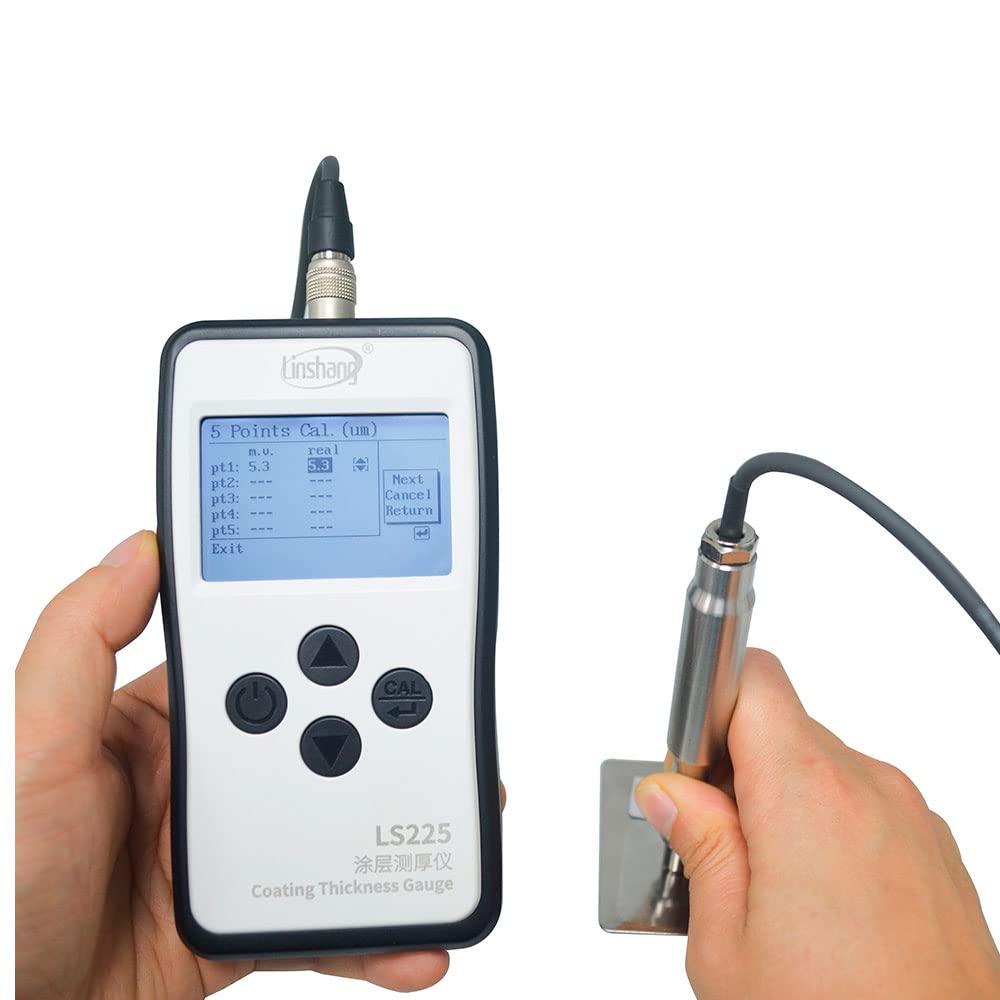

Calibration:Support zero reference adjustment and 1 to 5-points calibration
Probe size:110*15 mm (Without connecting cable)
Probe weight:81g

Packing
LS225 thickness gauge
F500 probe
Fe zero-adjustment plate
Standard films
User manual
Certificate / Warranty card

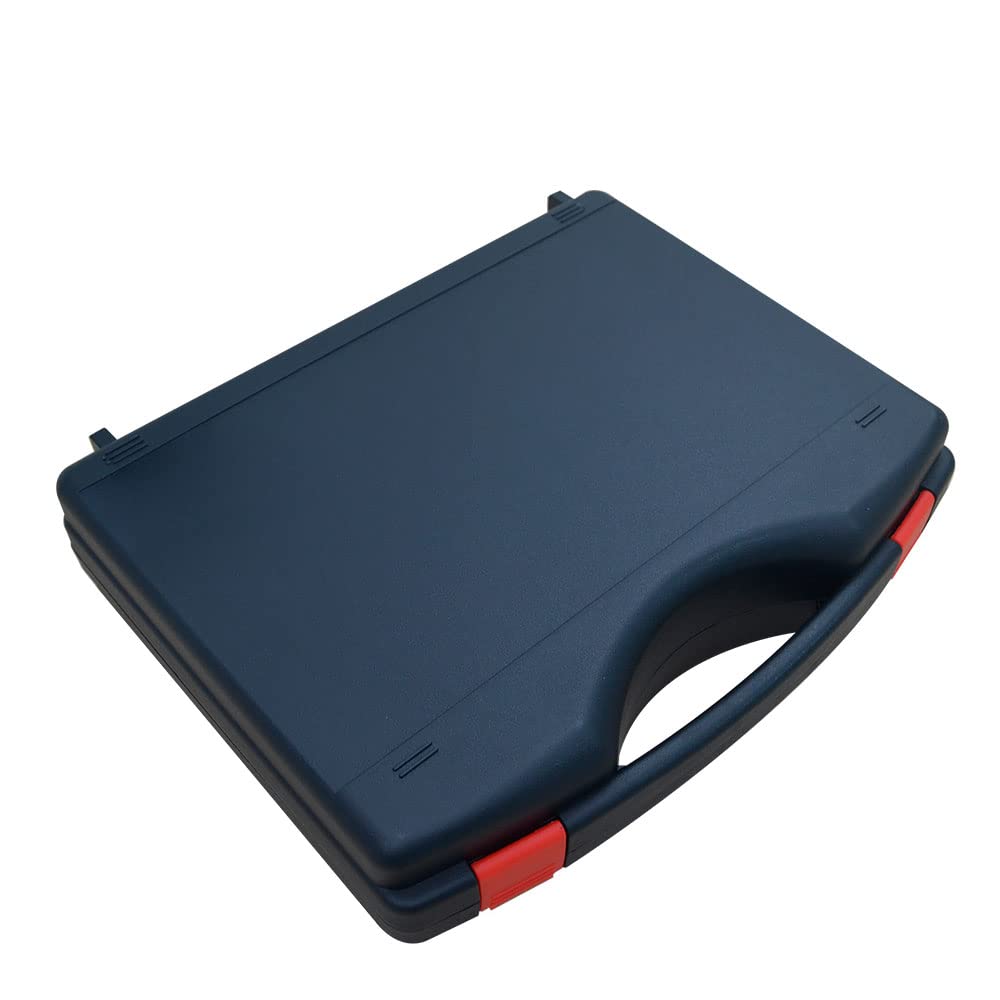

Plastic case

EAN: 0707457584144
