LS225+N1500 Ultra-thin Coating thickness Tester Plating Thickness Gauge Measuring Range 0-1500um

Brand: Graigar

Features:

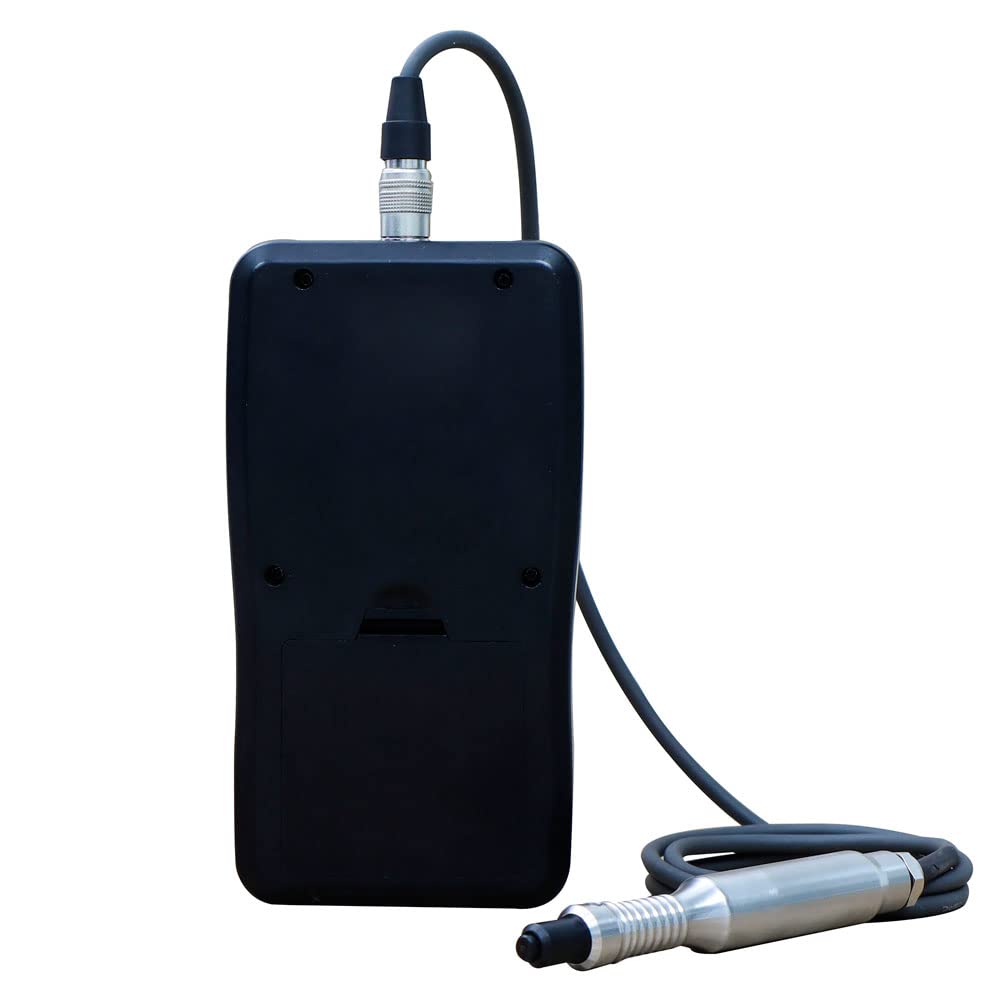

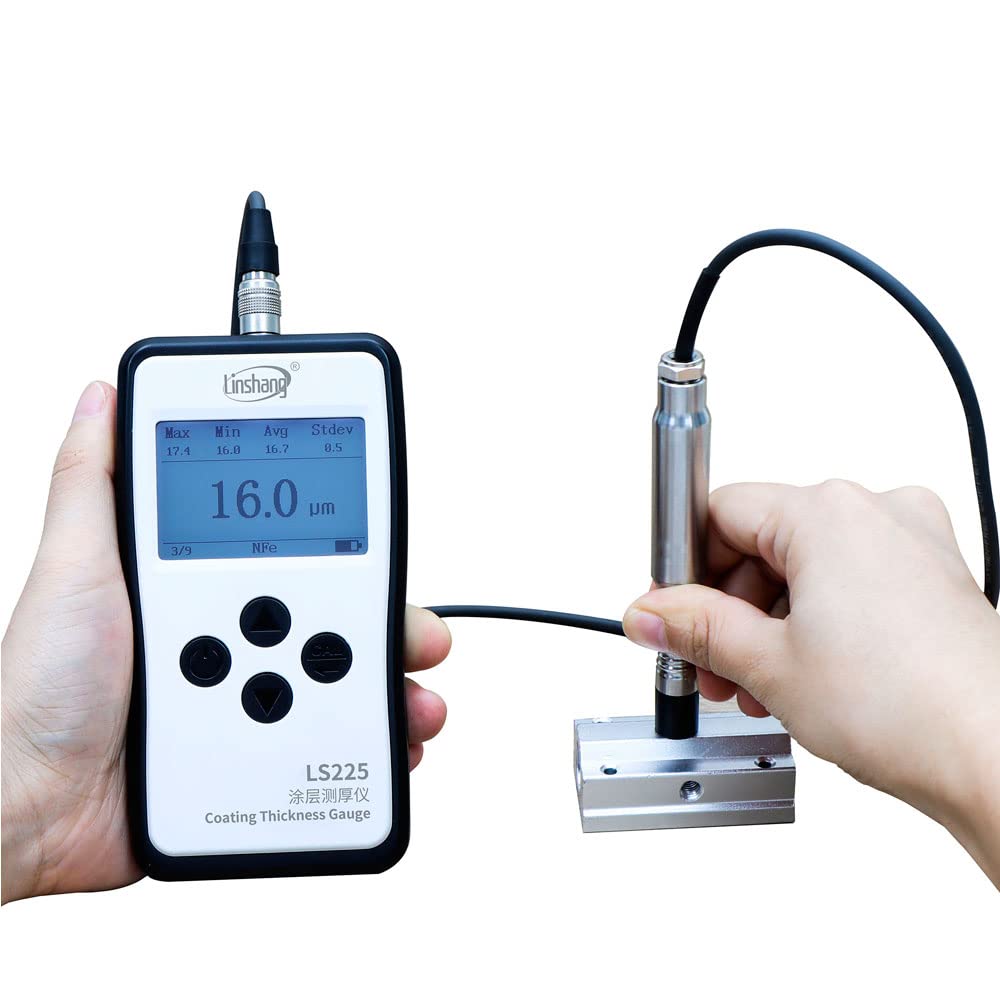

• LS225+N1500 is a split type plating thickness tester, which consists of the host and the digital probe N1500.
• It adopts the eddy current induction principle and has ultra-high measurement accuracy and repeatability which is especially suitable for measuring ultra-thin coatings and various small-sized work pieces and special-shaped materials.
• This plating thickness measurement device can be used in industries such as aviation, building materials, machinery, chemicals, engineering and instrumentation, etc.
• Test ultra-thin coating thickness below 10μm,Measuring range: 0-1500μm
• Measure the anodic oxide layer thickness on aluminum

model number: LS225+N1500

Part Number: LS225+N1500

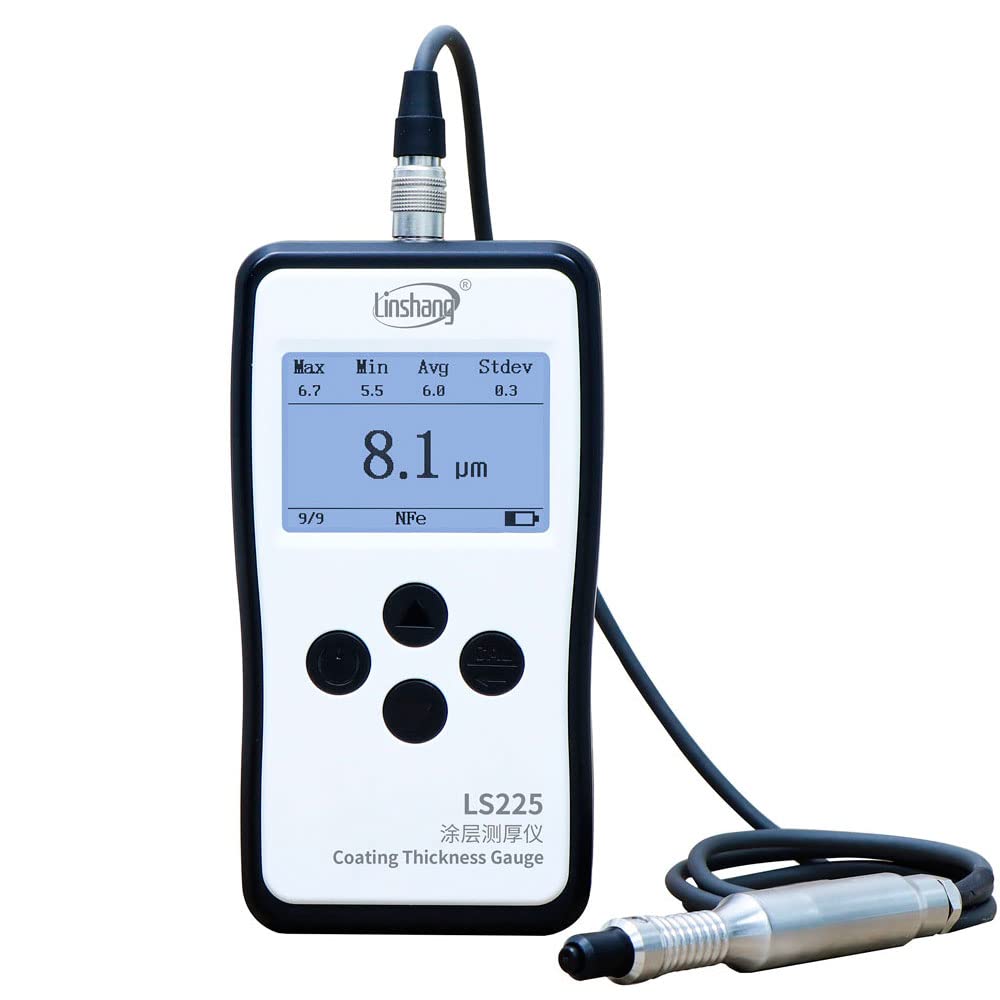

Details: LS225 Plating thickness tester host parameters:
Display:240×160 dot matrix LCD
Power supply:4pcs of 1.5V AAA alkaline battery
Operation temperaturerange:0℃-50℃
Storage temperaturerange:-20℃-60℃
Host size:148*76*26 mm (L*W*H)
Weight (include battery):194g

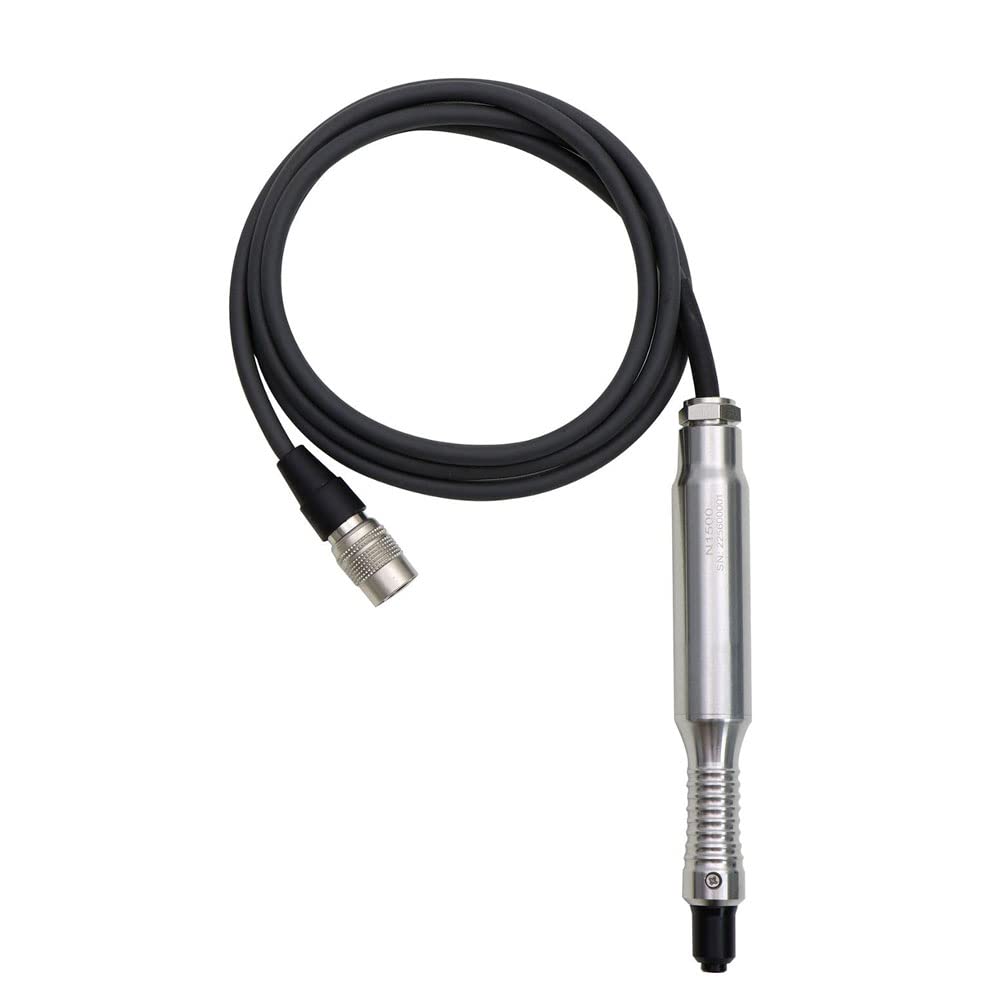

N1500 probe parameters:
Measuring principle:Eddy current
Substrate:Non-ferromagnetic metal
Measuring range:0.0-1500μm
Resolution:0.1μm: 0μm - 99.9μm/1μm: 100μm - 999μm
0.01mm: 1.00mm – 1.50mm
Repeatability:≤ ± (0.8%H+0.1μm) Test with fixture, H is the standard value
Accuracyv≤±(2%H+0.3μm) after 5 points calibration, H is the standard value
Unit :μm / mil
Measuring interval:0.8s
Minimum measuring area:Ø = 7mm
Minimum curvature:Convex:1.5mm / Concave:10mm
Minimum substrate thickness:0.05mm
Calibration:Support zero reference adjustment and 1 to 5-points calibration
Probe size:110*15 mm (Without connecting cable)
Probe weight:81g

Packing:
LS225 Plating thickness tester
N1500 probe
NFe zero-adjustment plate
Standard films
User manual
Certificate / Warranty card
Plastic case

EAN: 0707457584137
