LS225+N2000 Ultra-thin Coating Thickness Tester 0.0-1500μm Non-ferromagnetic Metal Painting Thickness Gauge

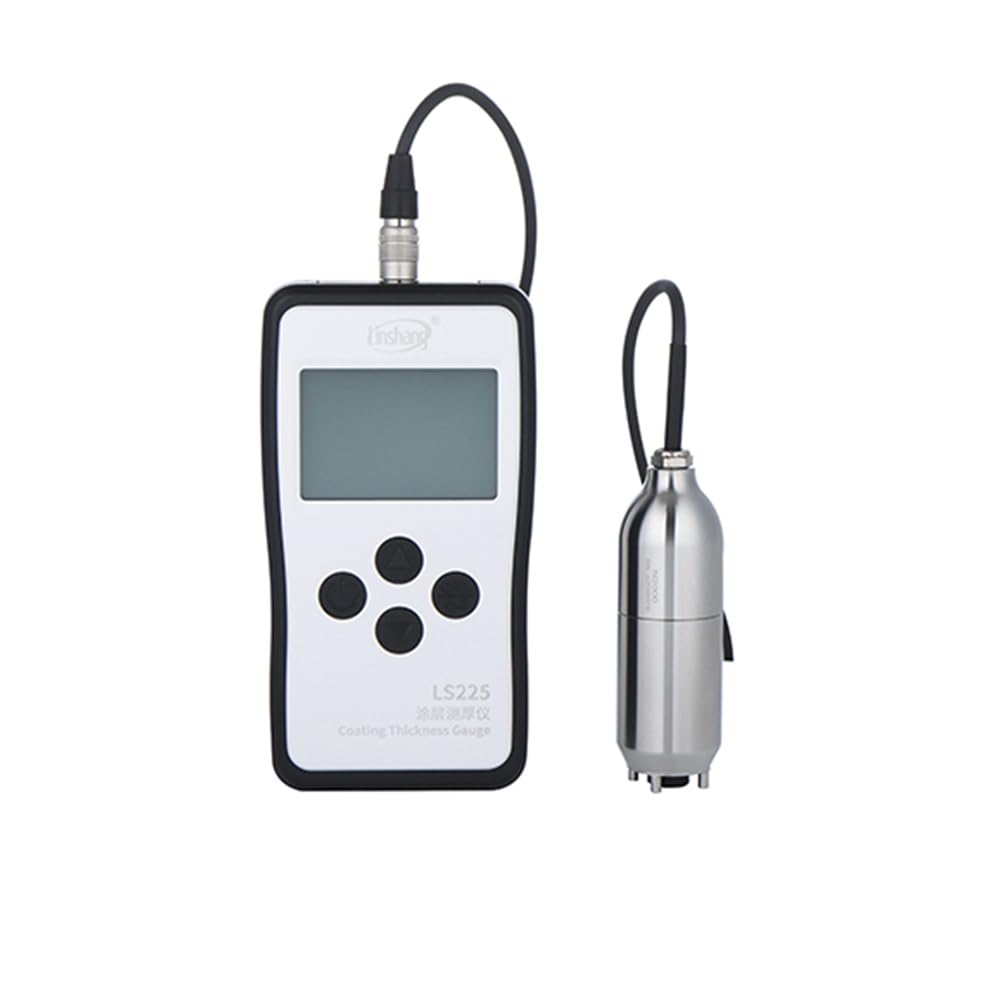

LS225+N2000 is a split type plating thickness tester, which consists of the host and the digital probe N1500. It adopts the eddy current induction principle and has ultra-high measurement accuracy and repeatability which is especially suitable for measuring ultra-thin coatings and various small-sized work pieces and special-shaped materials.
The LS225+N2000 plating thickness tester can be used in production inspection, construction acceptance as well as sales and exhibition sites. It can quickly and non-destructively measure the thickness of non-conductive coating on non-magnetic metal substrates. This plating thickness measurement device can be used in industries such as aviation, building materials, machinery, chemicals, engineering and instrumentation, etc.
Parameter
LS225 Plating thickness tester host parameters
|
Parameter |
Value |
|
Display |
240×160 dot matrix LCD |
|
Power supply |
4pcs of 1.5V AAA alkaline battery |
|
Operation temperaturerange |
0℃-50℃ |
|
Storage temperaturerange |
-20℃-60℃ |
|
Host size |
148*76*26 mm (L*W*H) |
|
Weight (include battery) |
194g |
N1500 probe parameters
|
Parameter |
Value |
|
Measuring principle |
Eddy current |
|
Substrate |
Non-ferromagnetic metal |
|
Measuring range |
0.0-1500μm |
|
Resolution |
0.1μm: 0μm - 99.9μm |
|
Repeatability |
≤ ± (0.8%H+0.1μm) Test with fixture, H is the standard value |
|
Accuracy |
≤±(2%H+0.3μm) after 5 points calibration, H is the standard value |
|
Unit |
μm / mil |
|
Measuring interval |
0.8s |
|
Minimum measuring area |
Ø = 7mm |
|
Minimum curvature |
Convex:1.5mm / Concave:10mm |
|
Minimum substrate thickness |
0.05mm |
|
Calibration |
Support zero reference adjustment and 1 to 5-points calibration |
|
Probe size |
110*15 mm (Without connecting cable) |
|
Probe weight |
81g |
Brand: Graigar
Features:
- LS225 coating thickness meter with N2000 probe, professional for measuring the coating thickness with large flat area.
- The instrument uses the eddy current induction principle, the probe uses its own weight to ensure that the same force is used to press the probe during each measurement, and the value is stable.
- It is especially suitable for measuring the thickness of paint on PCB boards, and can also be used for measuring non-conductive coatings such as paint, anodic oxide layer, ceramics, etc. on non-magnetic metal substrates such as copper, aluminum, die-cast zinc, brass, etc.
- Multi-point calibration, more accurate data:Support zeroing and multi-point calibration to ensure more accurate data, equipped with a special zeroing board and standard tablets
- With data statistics function, automatically count the maximum value, minimum value, average value and variance value of the last 9 groups of data tested
model number: LS225+N2000
Part Number: LS225+N2000
