LS233 Automotive Car Paint Thickness Meter with Dual Screen Fe/NFe Coating Thickness Gauge

Brand: Graigar

Color: Blue

Features:

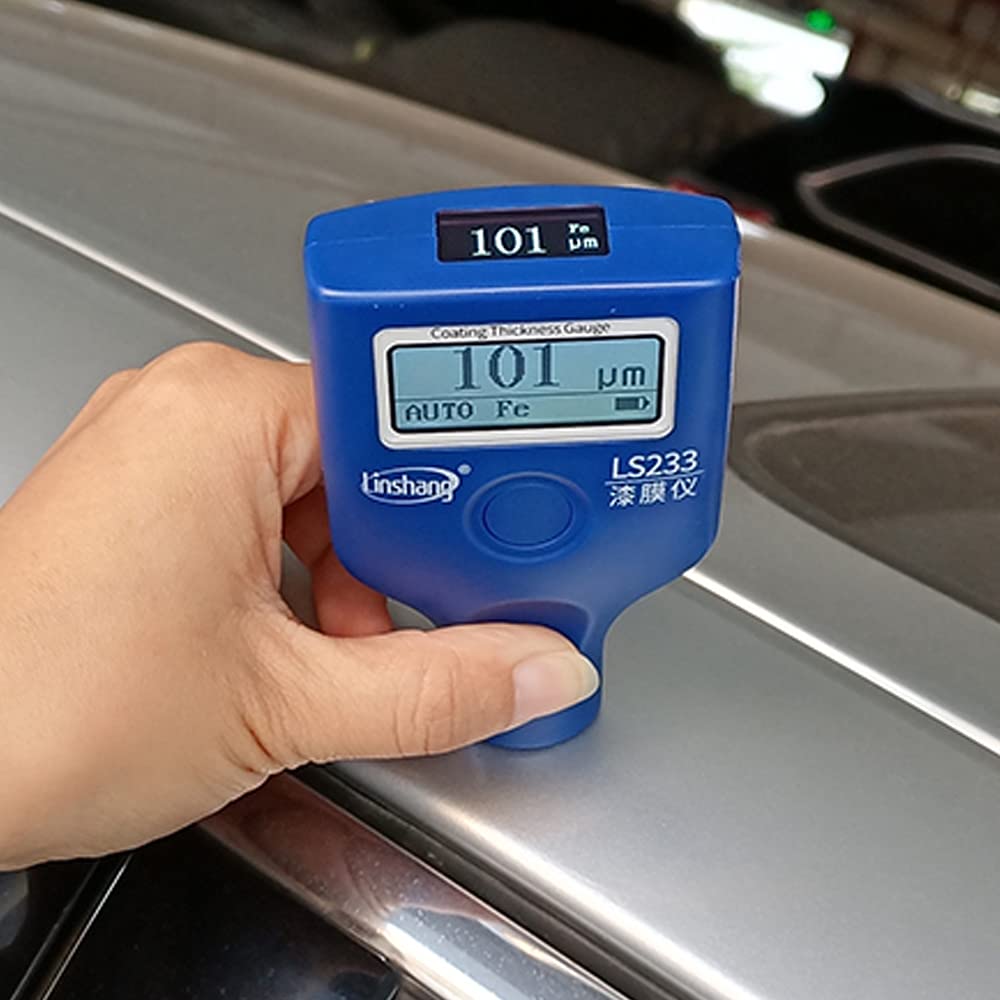

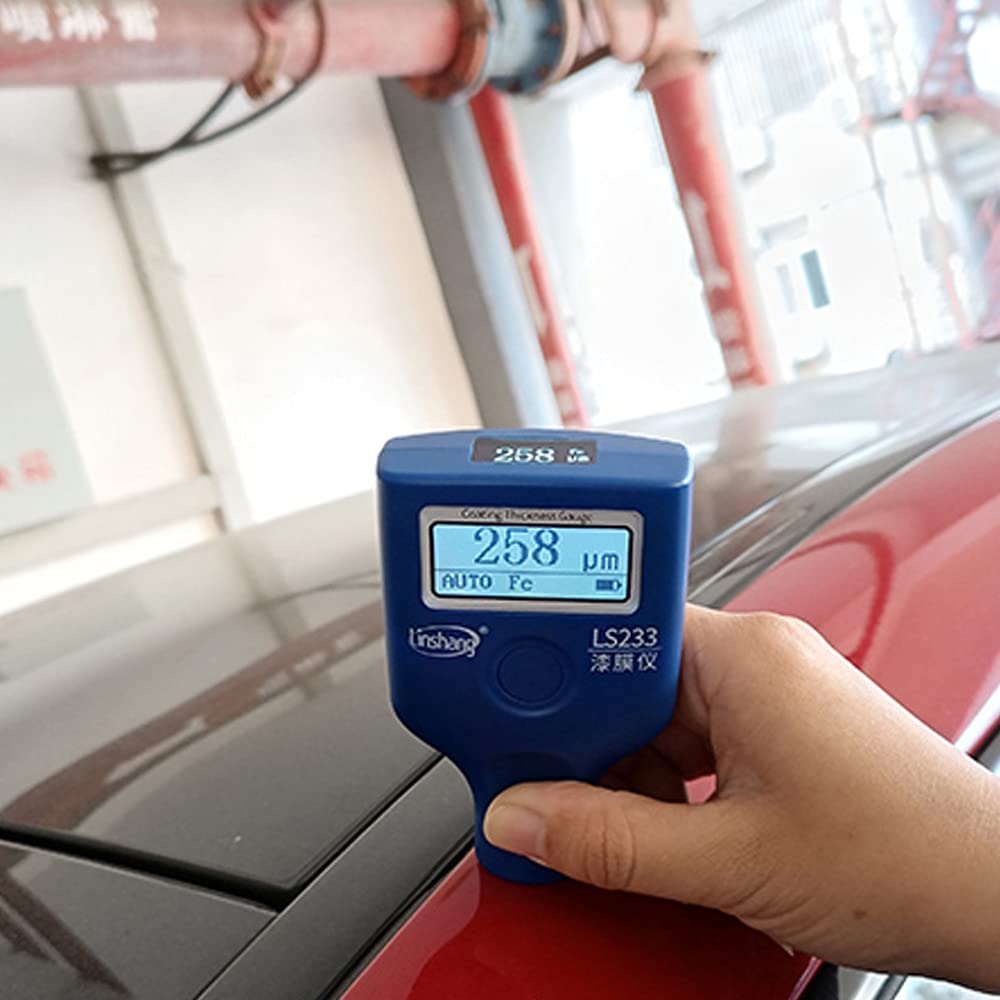

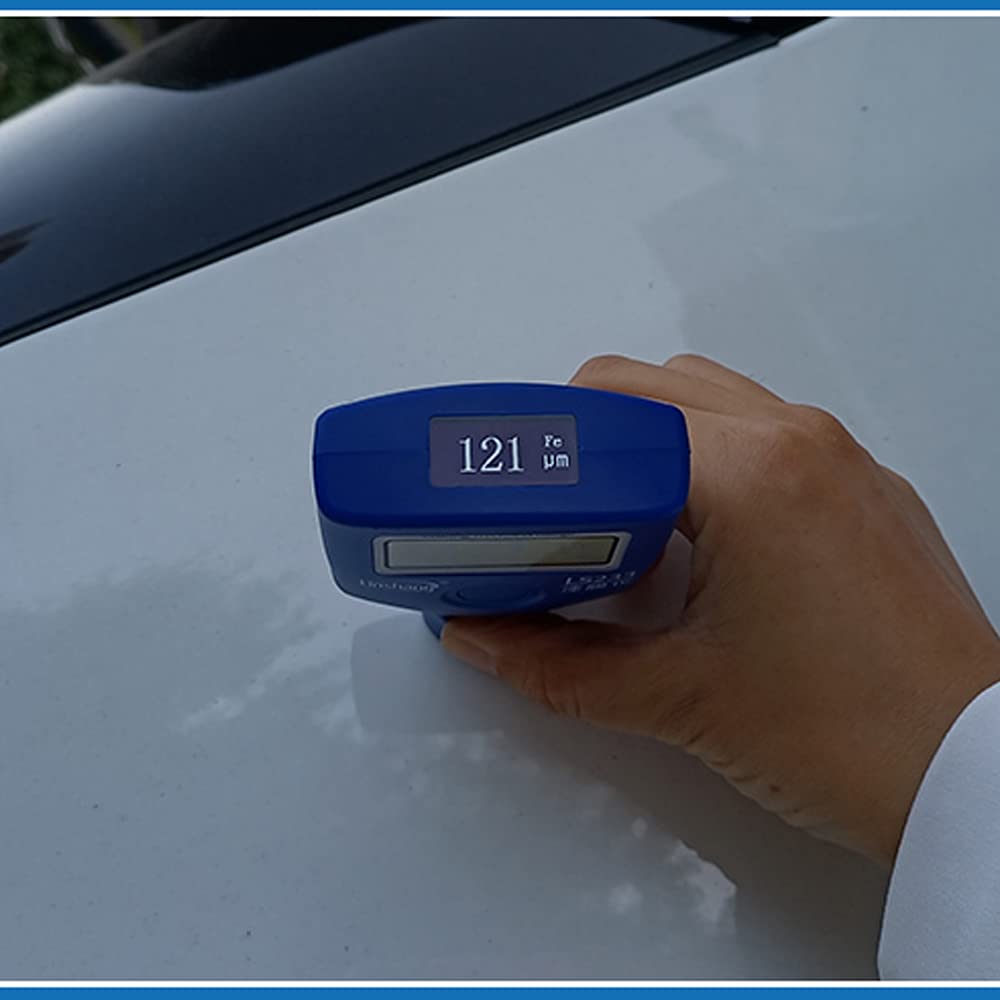

• The reading is effortless. Adopting the front (LCD) and top (OLED) dual-screen design, the automobile paint thickness can be measured using any angles.
• Available at low temperature of -40℃. The top is equipped with a low temperature resistant OLED screen, which can display the measured data normally at a low temperature of -40°C. (The working temperature of the front LCD screen is -20℃~50℃)
• Dual use for both ferrous and non-ferrous mode. The instrument can identify iron and aluminum bodies and non-metallic substrates and automatically switch the measurement mode.
• Accurate and stable. With digital probe and temperature compensation design, the measurement is not easily disturbed and provides excellent accuracy and repeatability.Easy to use. Single-button operation, no calibration required, measurement can be started after simple zero adjustment.
• "Fe", "NFe", "Fe/NFe" three modes, Chinese and English bilingual. μm/mil can be switched.

model number: LS233

Part Number: LS233

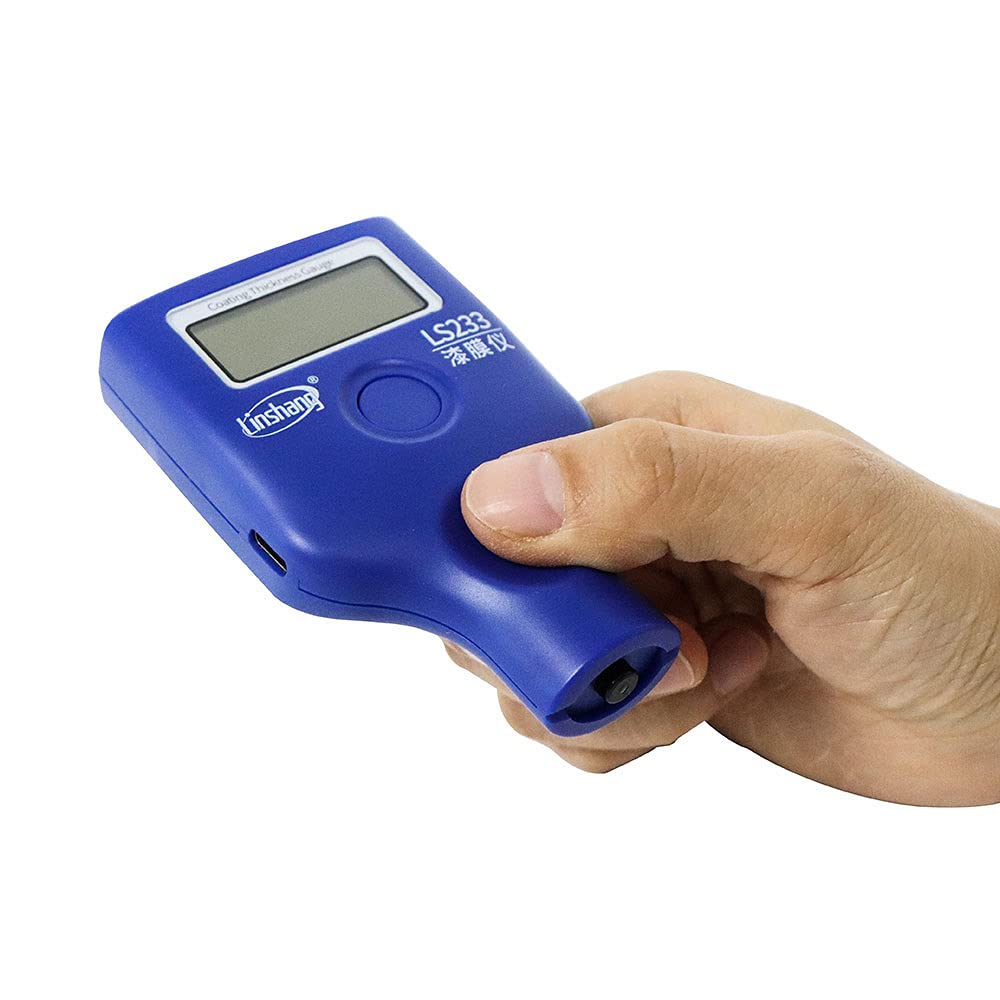

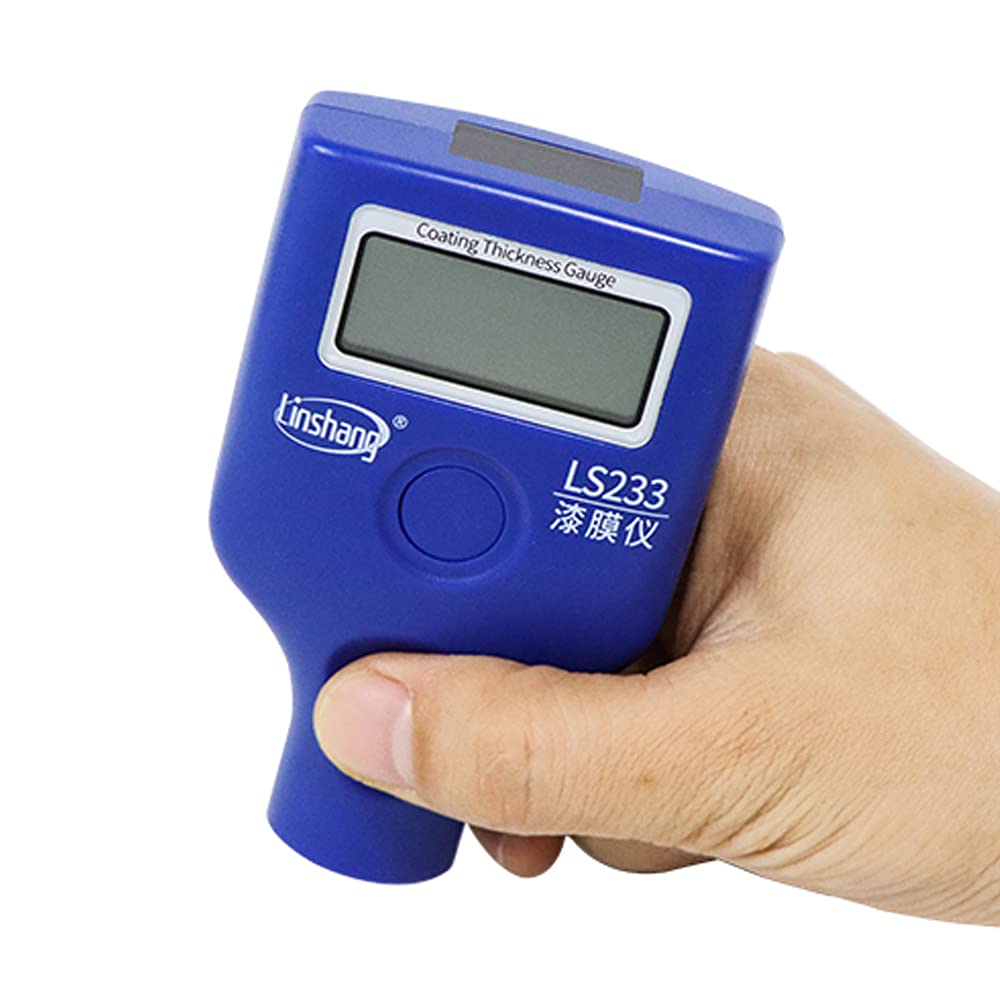

Details: LS233 automotive paint meter is a low-temperature-resistant car paint thickness measuring instrument equipped with two displays. It can be used normally at an ultra-low temperature of -40℃. The dual-screen design can ensure that users can quickly read when measuring cars at any angle. The paint film measuring instrument adopts the dual principles of Hall Effect and eddy current. It is dual-use for both ferrous (iron) and non-ferrous (aluminum) metal substrate. It can automatically identify iron and aluminum substrates and non-metallic substrates. It is easy to operate, compact and portable. Using this automotive paint meter, car appraisers can easily solve their problems of car evaluation.
Probe tip:Ruby
Measuring principle:Fe: Hall Effect / NFe: Eddy current
Probe type:Built-in integrated probe
Measuring rang:0.0-2000μm
Resolution:
0.1μm:(0μm-99.9μm)1μm:(100μm-999μm)0.01mm:(1.00mm-2.00mm)
Accuracy:≤±(3% reading+2μm)
Unit:μm / mil
Measuring interval:0.5s
Minimum measuring area:Ø = 25mm
Minimum curvature:Convex:5mm / Concave:25mm
Minimum substrate thickness:Fe:0.2mm / NFe:0.05mm

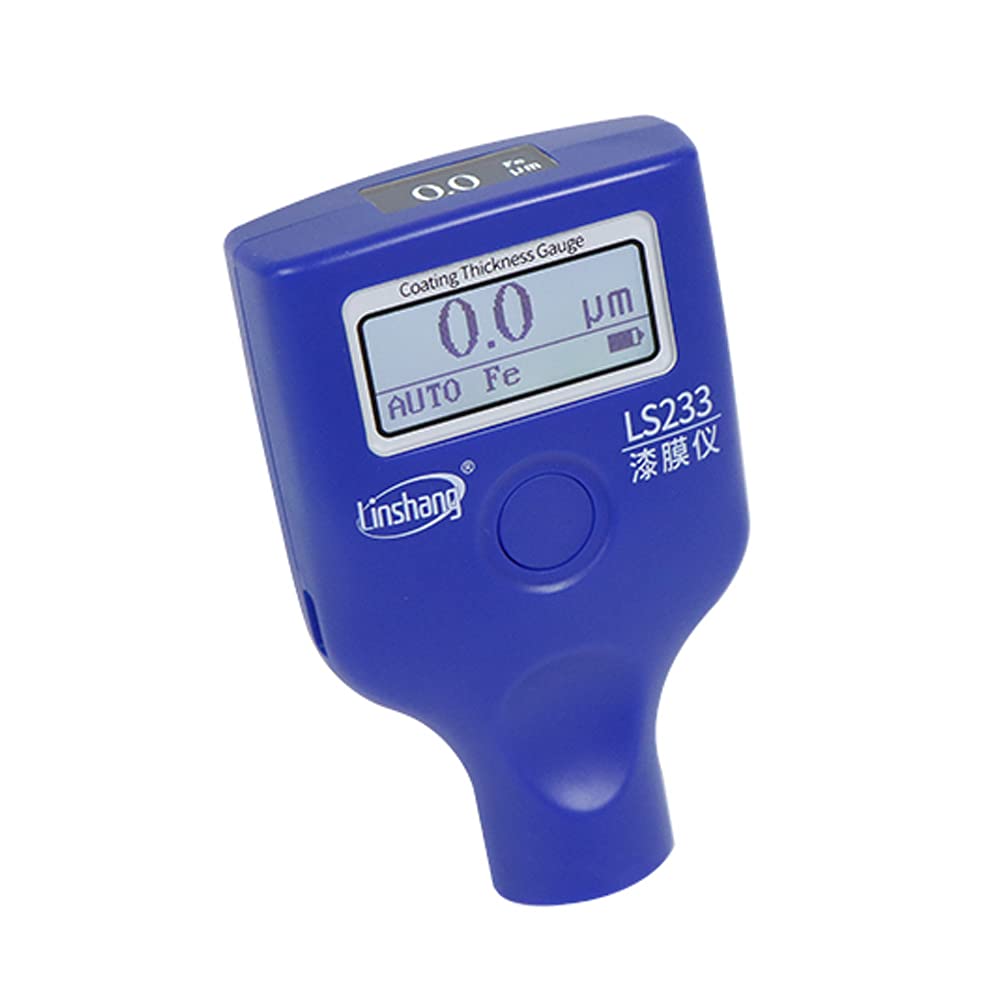

Display:Front: 128×48 dot matrix LCD, Top: 128×64 dot matrix OLED
Power supply:2 pcs of 1.5V AAA alkaline battery
Range of operation temperature:-40℃-50℃
Storage temperature range:-50℃-60℃

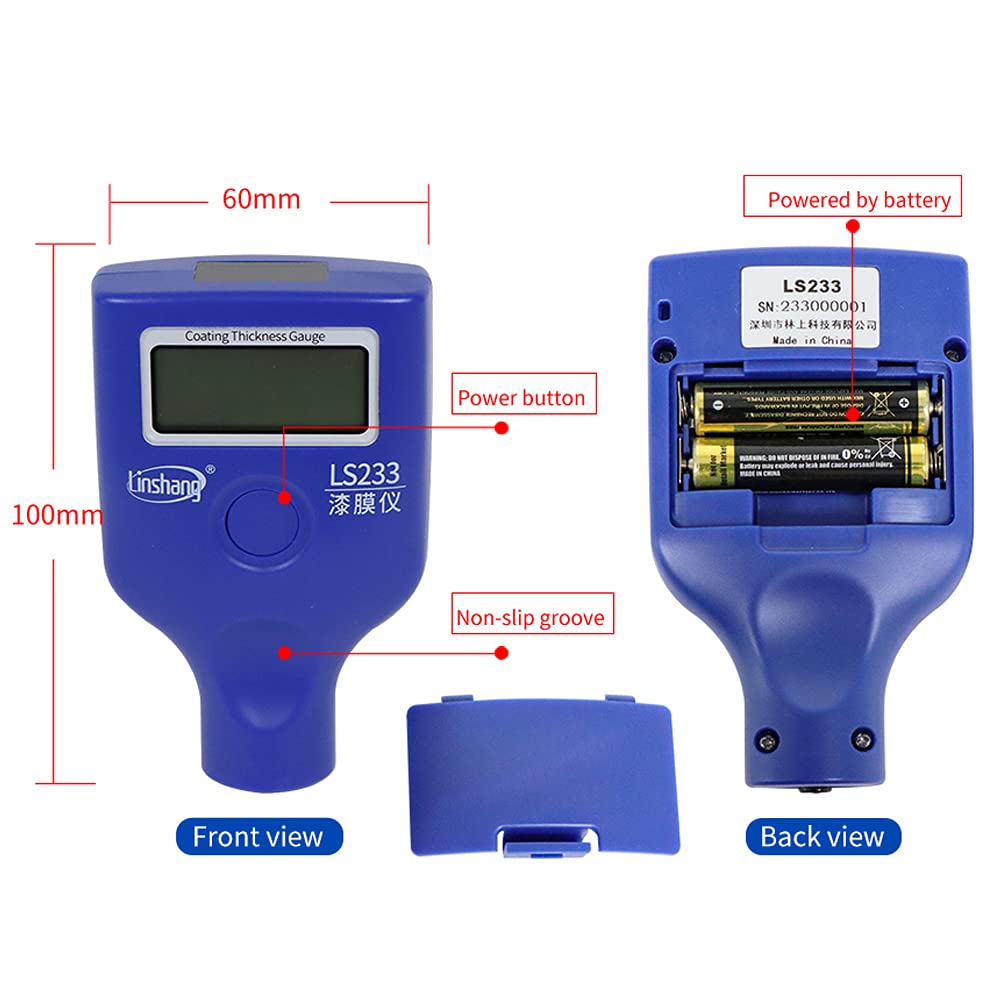

Host size:100*60*24mm
Weight:80g

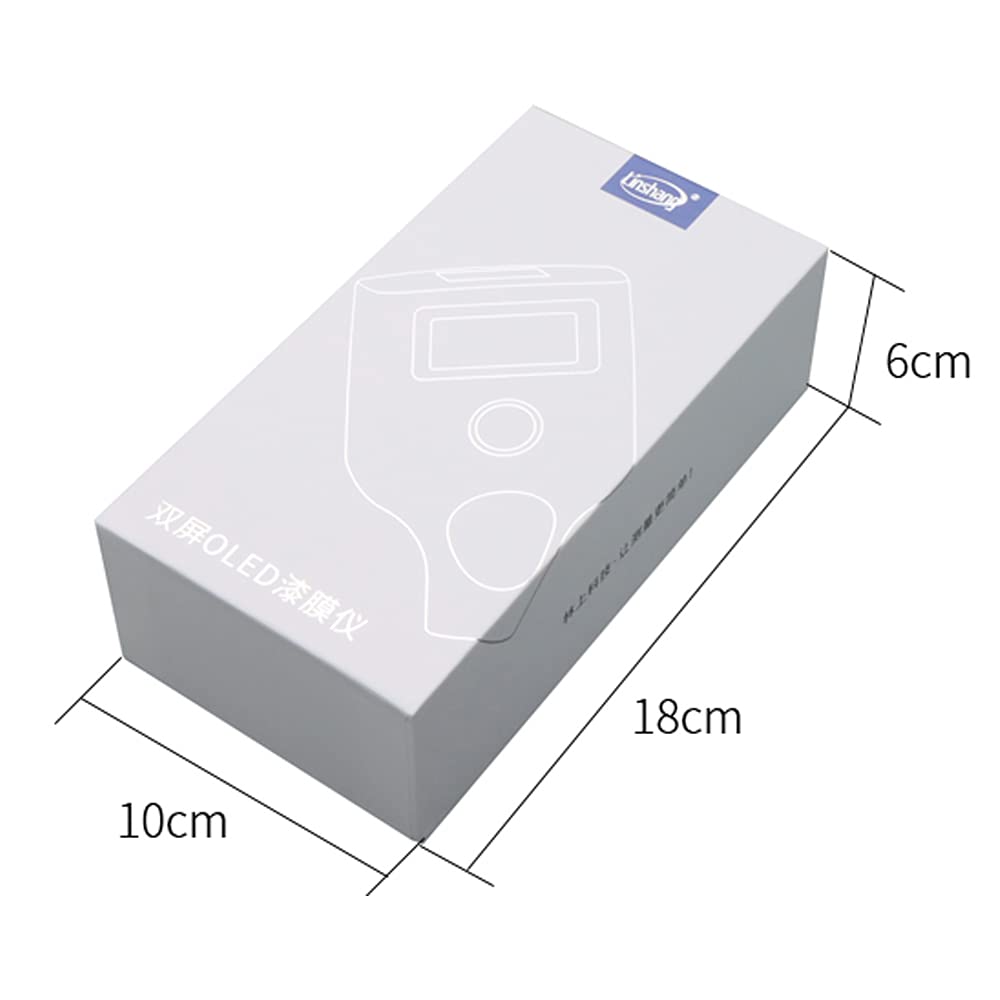

Packing Details
LS233 Coating Thickness Gauge 1Set

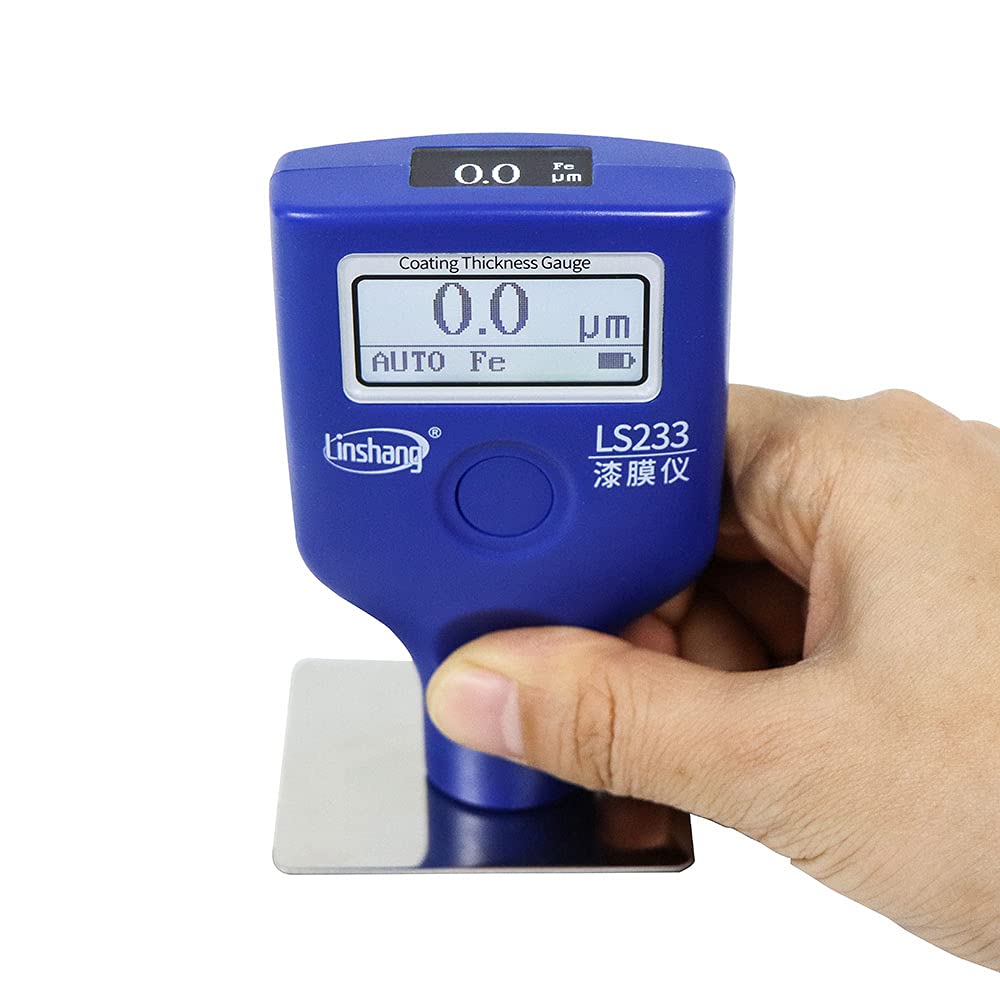

Fe plate of zero adjustment 1Pcs
NFe plate of zero adjustment 1Pcs
Standard film 1Pcs
Cloth bag 1Pcs
User manual 1Pcs
Certificate/Warranty card 1Pcs

EAN: 0761272051649
