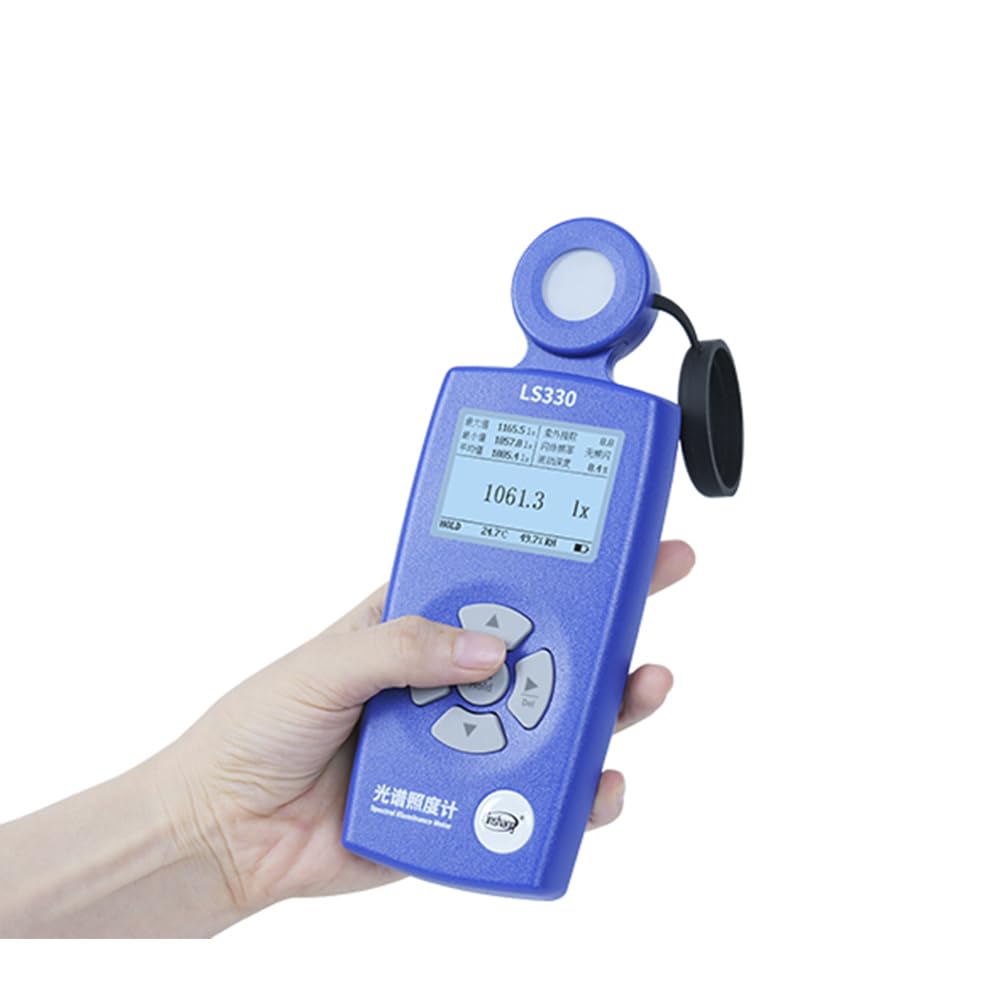

LS330 Digital Multi-Parameter Spectral Illuminance Meter Lux CCT UVI Meter Measurement Range 0~1000000Lx

LS330 Digital Multi-Parameter Spectral Illuminance Meter Lux CCT UVI Meter Measurement Range 0~1000000Lx

$199.00 USD
$199.00 USD
促销 售罄
LS330 High Precision Light Meter UV Index Cct Cri Luxmeter Spectral Illuminance Meter

Descriptions:
LS330 illuminance meter is a versatile instrument designed with a spectral sensor. The illuminance meter is used for measuring Lux, UV index, flicker frequency, standard deviation of color matching (SDCM), color rendering index (CRI), correlated color temperature (CCT), blue light hazard ratio, temperature, and humidity in various scenarios such as lamps and lanterns lighting, outdoor lighting, greenhouse lighting, and stage lighting. The cct cri lux meter also can display the spectral curve, which helps identify the type of lighting fixture.

Brand: Graigar

Features:

  • The instrument can measure illuminance, color temperature, flicker frequency, UV index, SDCM, CRI, temperature, and humidity simultaneously. It displays spectral curve for comprehensive evaluation of lighting characteristics.
  • The instrument is designed with a spectral sensor, and the spectral response matches the V(λ) function. This ensures accurate measurement precision.
  • Ultra-large range design, range up to 1 million Lx, both strong and dim light can be measured accurately.
  • The instrument features a flicker measurement function, can evaluate whether lighting meets requirements based on flicker frequency and percent flicker. This provides reference for sales and R&D of lighting.
  • The instrument has spectral measurement function, allowing identification of spectral gaps and blue light protection capabilities.
  • The instrument also measures environmental parameters such as UV index, temperature, and humidity, making it suitable for evaluating plant lighting sources.
Specifications
Parameter
Value
Illuminance Wavelength Range
400nm ~ 700nm
Illuminance Wavelength Interval
10nm
Illuminance Measurement Range
0 ~ 1000000Lx
Illuminance Resolution
0.1Lx
Illuminance Measurement Accuracy
≤±(3%H + 2 Lx) (H is the standard value, calibrated under CIE standard A light source)
Illuminance Unit Options
Lx (default), FC
Correlated Color Temperature Measurement Range
1000 ~ 100000K
UV Index Measurement Range
0.0 ~ 15.0
Flicker Frequency Measurement Range
10 ~ 500HZ
Temperature Measurement Accuracy
±0.5℃
Humidity Measurement Accuracy
±4%RH
Response Time
<0.7s
Test Aperture Diameter
Φ21mm
Size
Length 188.5mm, Width 75.2mm, Height 30.3mm
Weight
About 232g (including batteries)
Display
240*160 Dot Matrix LCD
Power Supply
2 AA Alkaline Batteries
Operating Environment
Temperature 0 ~ 40℃, Humidity <85%RH

model number: LS330

Part Number: LS330
