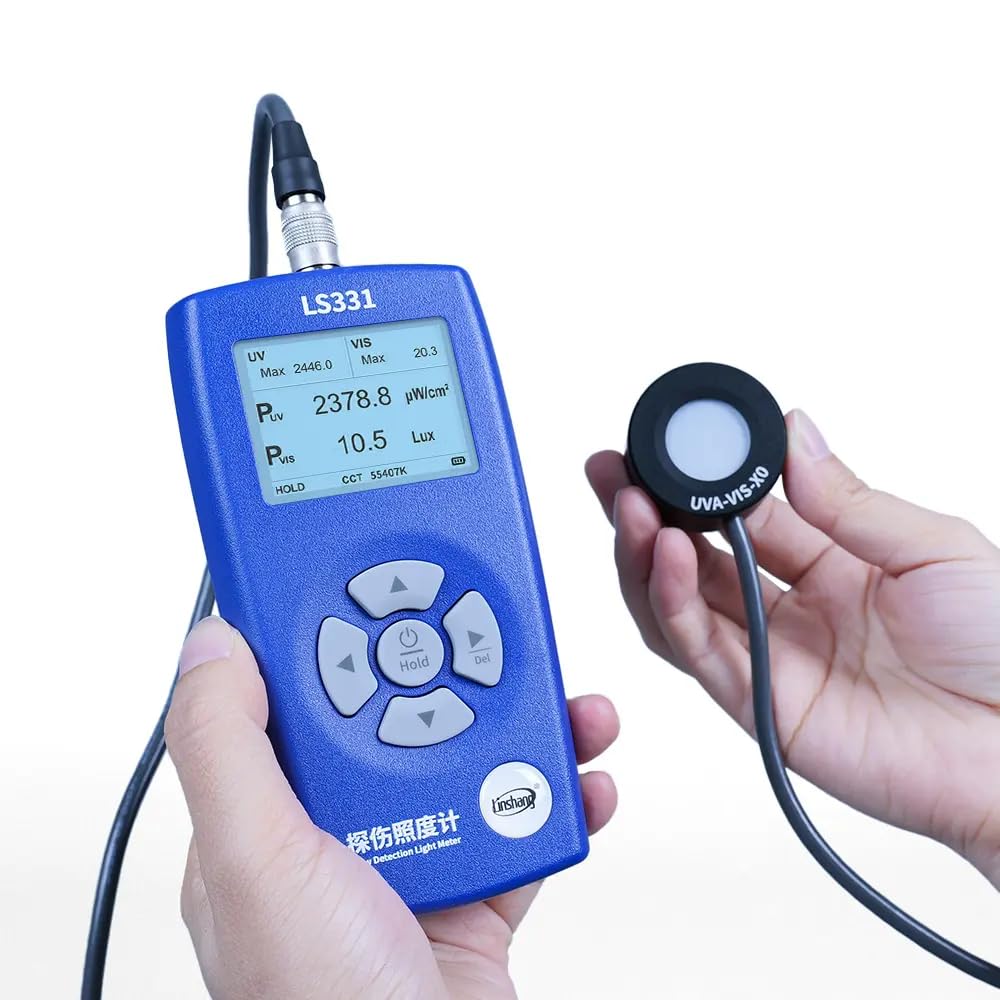

LS331 Multifunctional Flaw Detection Light Meter UV Power and Visible Light Illuminance Tester
LS331 Multifunctional Flaw Detection Light Meter UV Power and Visible Light Illuminance Tester
无法加载取货服务可用情况
LS331 is a multifunctional flaw detection light meter, specifically designed for non-destructive testing (NDT). The instrument is equipped with high-precision UV filter and professional UV detector. It can simultaneously measures UV power, visible light illuminance, and correlated color temperature (CCT). It meets the standards for non-destructive testing, penetrant testing, and magnetic particle testing.
Parameter
|
Parameter |
Value |
|
UV spectral response |
315nm-405nm,λp = 365nm |
|
UV power measurement range |
0 - 200000 μW/cm² |
|
UV power resolution |
0.1 μW/cm² |
|
UV power measurement accuracy |
H<50μW/cm²: ±5μW/cm²,H>=50μW/cm²: ±10%H, (H is the standard value) |
|
UV unit options |
μW/cm²(default), mW/cm², W/m² |
|
Illuminance measurement range |
0 – 1000000Lx |
|
Illuminance resolution |
0.1Lx |
|
Illuminance measurement accuracy |
≤±(3%H+2Lx) (H is the standard value, calibrated under CIE standard A light source) |
|
Illuminance unit options |
Lx (default), FC |
|
Correlated color temperature measurement range |
1000 – 100000K |
|
Response time |
<0.7s |
|
Test aperture diameter |
Φ21mm |
|
Size |
188.5mm*75.2mm*30.3mm (L*W*H) |
|
Weight |
About 232g (including batteries) |
|
Display |
240*160 dot matrix LCD |
|
Power supply |
2 AA alkaline dry batteries |
|
Operating environment |
Temperature 0~40℃, Humidity <85%RH |
|
Supply voltage |
DC3V |
|
Operating current |
20mA |
|
Operating power consumption |
60mW |
Packing
|
No. |
Description |
Quantity |
Unit |
|
1 |
Flaw Detection Light Meter |
1 |
pcs |
|
2 |
User Manual |
1 |
pcs |
|
3 |
Calibration Report |
1 |
pcs |
|
4 |
Certificate/Warranty Card |
1 |
pcs |
Brand: Graigar
Features:
- Designed for NDT lamp, multi-parameter simultaneous measurement:UV power and visible light illuminance, two important parameters of NDT lamp, can be measured at the same time to ensure that the lamp can play an effective role in magnetic particle testing and penetration testing.
- Professional UV detector with high-precision UV filter:The UV measurement uses high-precision UV filter and professional UV detector. It almost no response to visible wavelengths, eliminate the impact of other spectral bands on the measurement accuracy. More accurate than ordinary illuminance meter.
- High-precision spectral sensor:The instrument is designed with a spectral sensor, and the spectral response matches the V(λ) function. This ensures accurate measurements.
- Advanced digital probe technology:The instrument uses advanced digital probe technology, digital signal processing done directly at the probe.This reduces interference and provides excellent measurement accuracy.
- 1,000,000 Lx and 200,000 μW/cm² large range:the UV power range of the instrument is up to 200,000 μW/cm², and the visible light range is up to 1,000,000 Lx. With the large range design, the demand for high intensity UV or extreme lighting conditions can be met, and fluorescent materials under strong UV irradiation and subtle defects under strong light can be tested.
model number: LS331
Part Number: LS331
