LXC3120 Diesel Auto Generator Controller Replacement of DSE3110 / DSE3120

Brand: Graigar

Color: Black

Features:

• LXC3120 Series power plant automation controller integrating digital, intelligent and network technology, diesel generator sets for a single automation and monitoring system, automatic generator start / stop, data measure and alarming, and "three remote" (to be equipped with RS485 module) function.

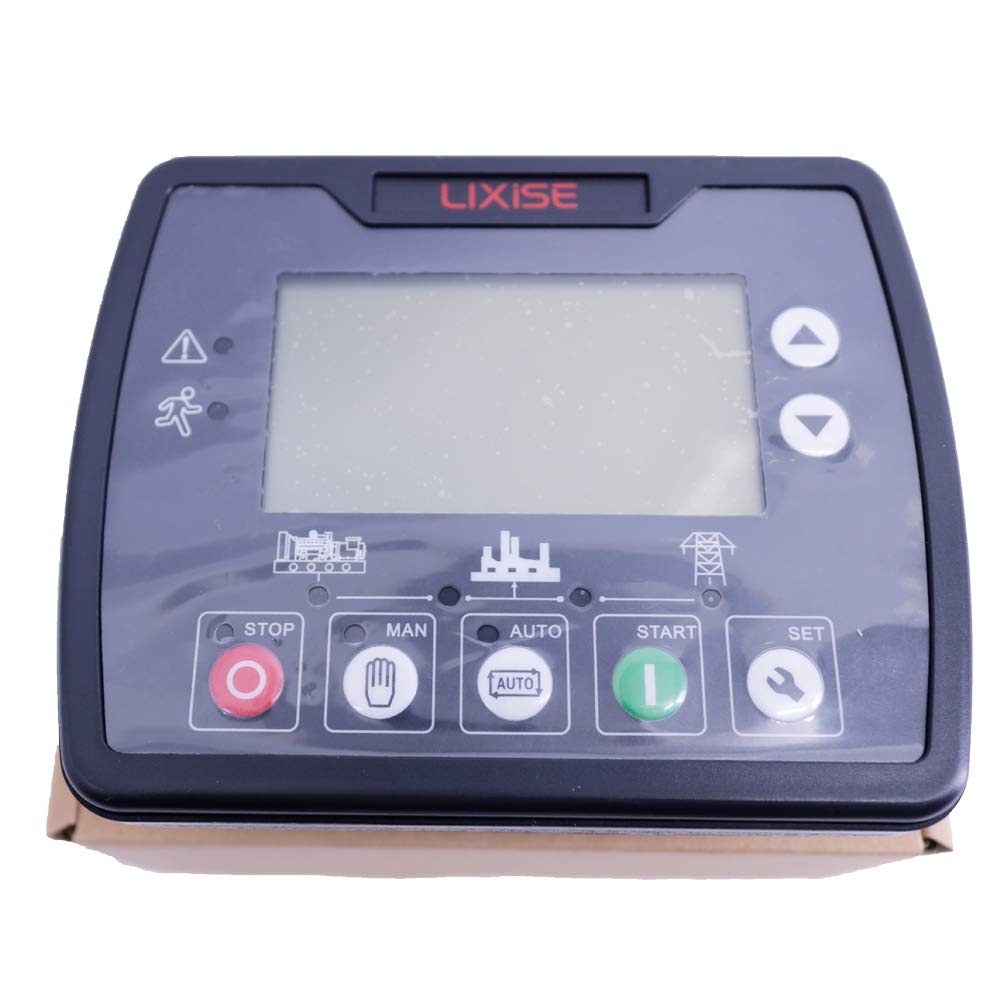

• Controller with large-screen LCD display, Chinese, English, Spanish and Russian optional interface with operation easy and reliable operation.
• Parameters to achieve a variety of precision measurement, setpoint adjustment, timing and threshold setting and other functions, the controller of all parameters can be adjusted from the controller front panel, or by using a PC via USB, RS232 interface programming, adjustment and monitoring. Its compact, simple wiring, high reliability, and can be widely used in all types of generator automation systems.
• Operating Voltage:DC8.0V continuous power supply to 35.0V
• Alternator frequency:50 Hz / 60Hz

model number: LXC3120

Part Number: LXC3120

Details: Operating Voltage:DC8.0V continuous power supply to 35.0V
Power consumption:<3W (standby mode: ≤ 2W)
Alternator voltage input:15V AC - 360 V AC (ph-N)
Phase four-wire:15V AC - 360 V AC (ph-N)
Two-phase three-wire:15V AC - 360 V AC (ph-N)
Single-phase two-wire:30V AC - 620 V AC (ph-ph)
Alternator frequency:50 Hz / 60Hz
Speed sensor voltage:1.0 to 24V (rms)
Speed sensor frequency:Maximum 10000Hz
Start relay output:5A DC28V DC power supply output
Programmable relay output 1:5A DC28V DC power supply output
Programmable relay output 2:5A DC28V DC power supply output
Programmable relay output 3:5A DC28V DC power supply output
Programmable relay output 4:5A AC250V passive output
Programmable relay output 5:5A AC250V passive output
Dimensions:143mm x 115mm x41mm
Hole size:110mm x 90mm
Current transformer secondary current:Rated: 5A
Working conditions:Temperature: (-25 ~ 70) ° C Humidity: (20 ~ 93)% RH
Storage conditions:Temperature: (-30 ~ +80) ° C
Protection class:IP55: When installed between the controller and the control panel when the waterproof rubber ring.
IP42: When between the controller and the control panel when not fitted waterproof rubber ring.
Dielectric Strength:Object: Input / Output / Power
Reference Standard: IEC688-1992
Test Method: AC1.5Kv/1min leakage current 3mA
