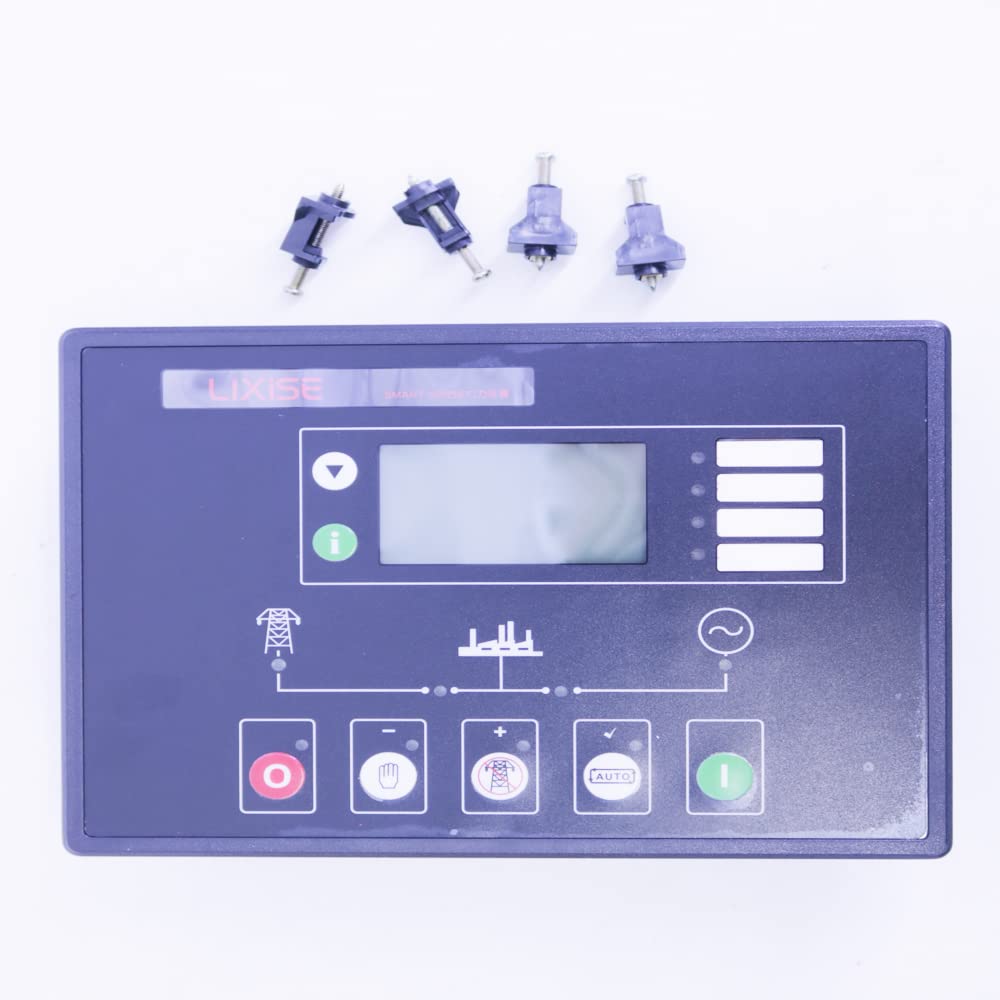

The LXC6320 is used in single machine automation, which can control the Genset starting by remote boot signal
The LXC6320 added the function is based in LX6310, which is automatic mains failure control module.
Can monitor a mains supply and automatically start.
Working voltage DC8.0V to 35.0V (continue to supply)
Consumer power <3W (stand model: ≤2W )
The voltage abnormal delay of 1# or 2# can be set (Range: 0s~60s) and Genset stop delay can be set (Range: 0s~3600s).

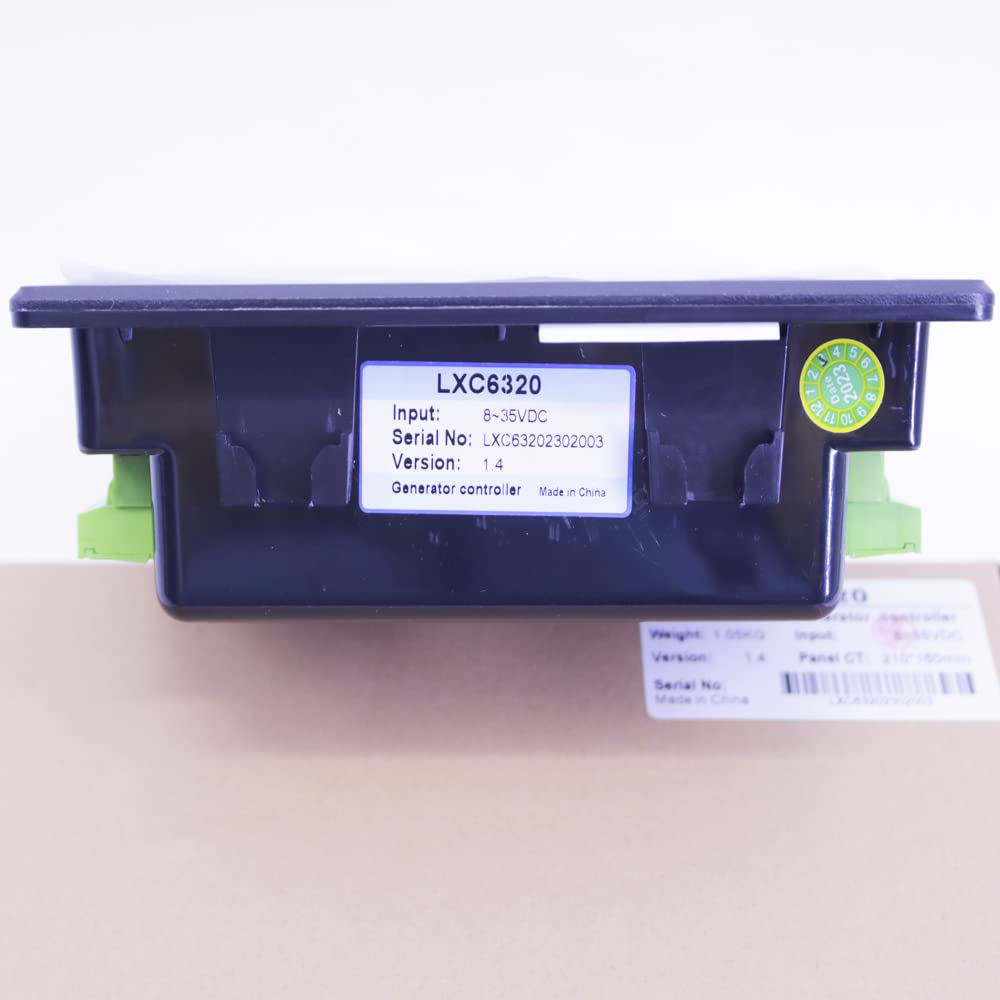

model number: LXC6320
Part Number: LXC6320
Details: Specification:
Alternator Input voltage:
20V AC - 360 V AC (ph-N) 3 Phase 4wire
30V AC - 620 V AC (ph-ph) 3 Phase 3wire
20V AC - 360 V AC (ph-N)
20V AC - 360 V AC (ph-N)
Frequency 50/60HZ
Speed sensor voltage : 1.0 - 70Vpp
Speed sensor Frequency: Max 10000HZ
Starting relay output: 16Amp
Fuel relay output : 16Amp
Programmable relay output 1: 16Amp
Programmable relay output 2: 16Amp
Programmable relay output 3: 16Amp
Programmable relay output 4: 16Amp
Power switching programmable relay output 5: 16Amp
Mains switch relay programmable relay output 6: 10Amp 250VAC
Out Size: 240mm x 172mm x 57mm
Tapping Size: 214mm x 160mm
Current transformer secondary electric 5A
Working condition: Temp. (-25~+70)°C humidity (20~90)%
Storage condition: Temp. (-40~+70)°C
Weight: 0.9kg
