Used the exclusive MICRO-COMPUTER LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
Wide measuring range & high resolution.
Digital display gives exact reading with no guessing or errors.
Compact, lightweight, and easy operation.
Can be applicable of wood fibre materials, wooden articles,Chinese traditional medicine, tobacco, cotton and papers etc.

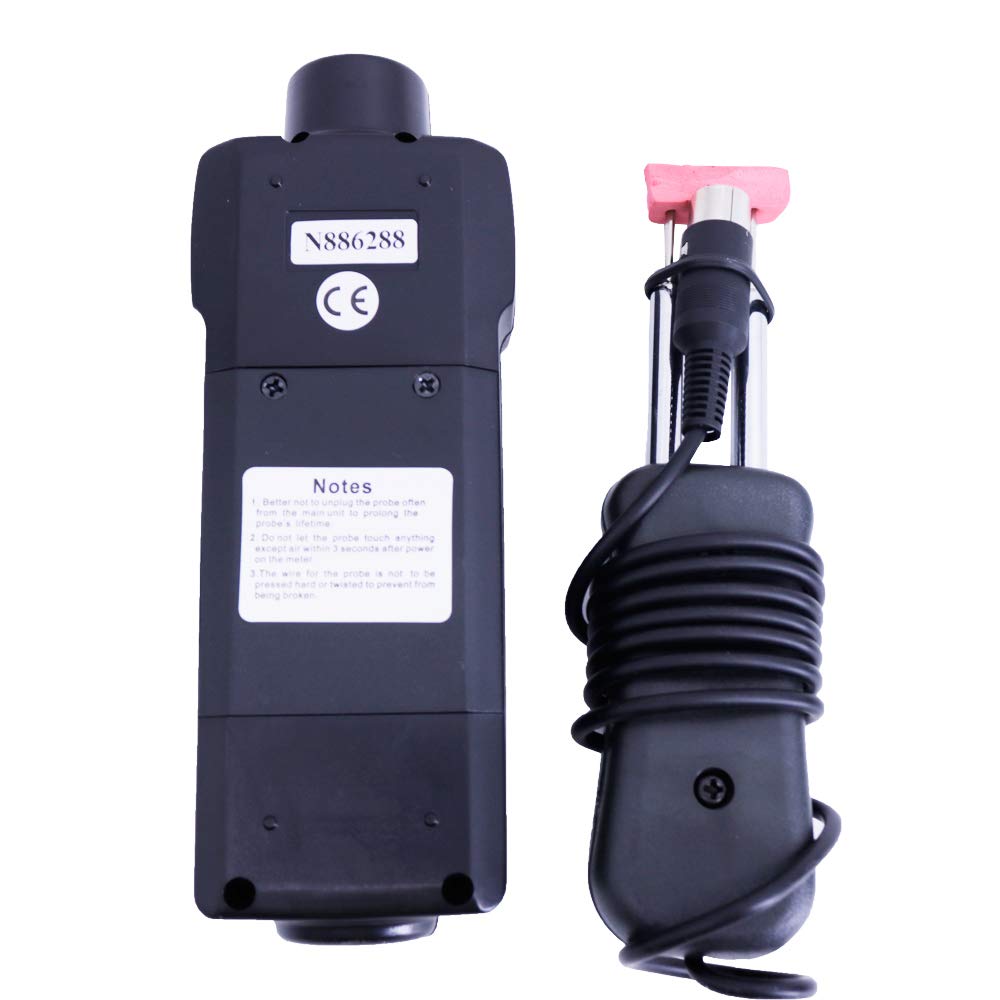

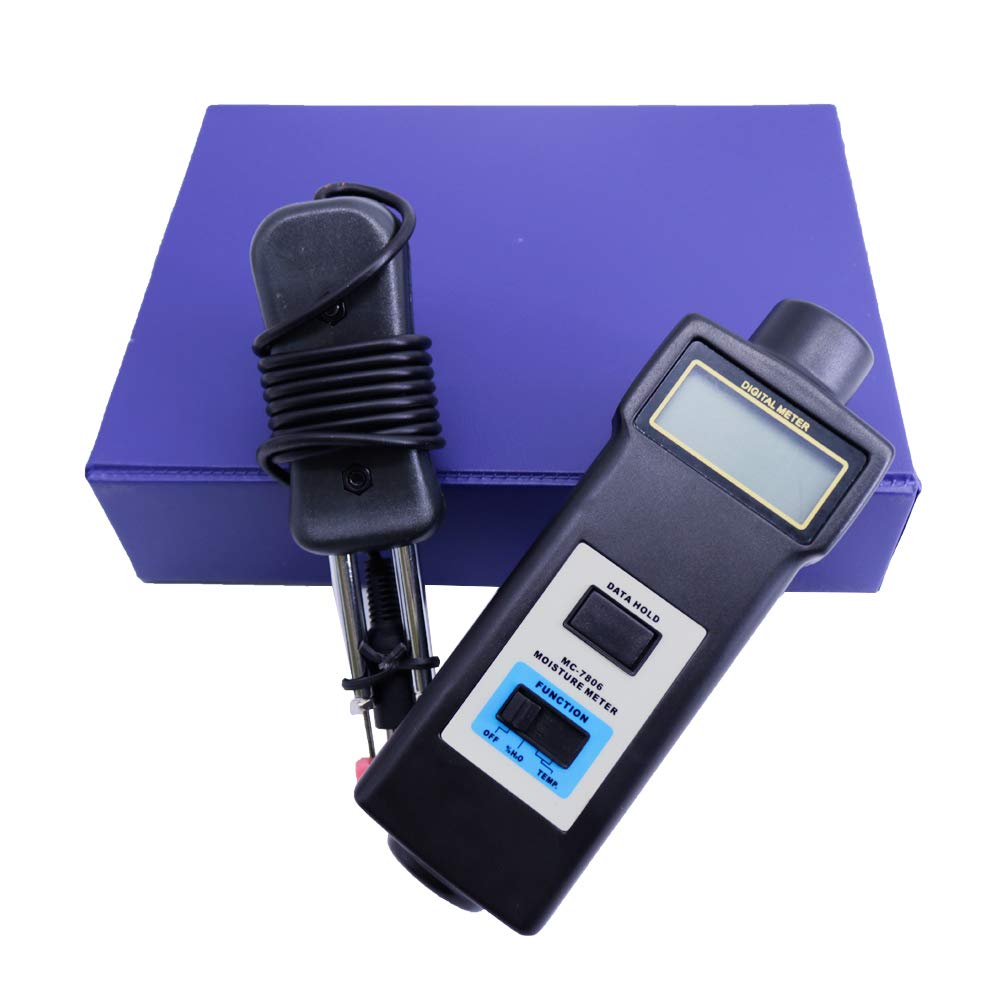

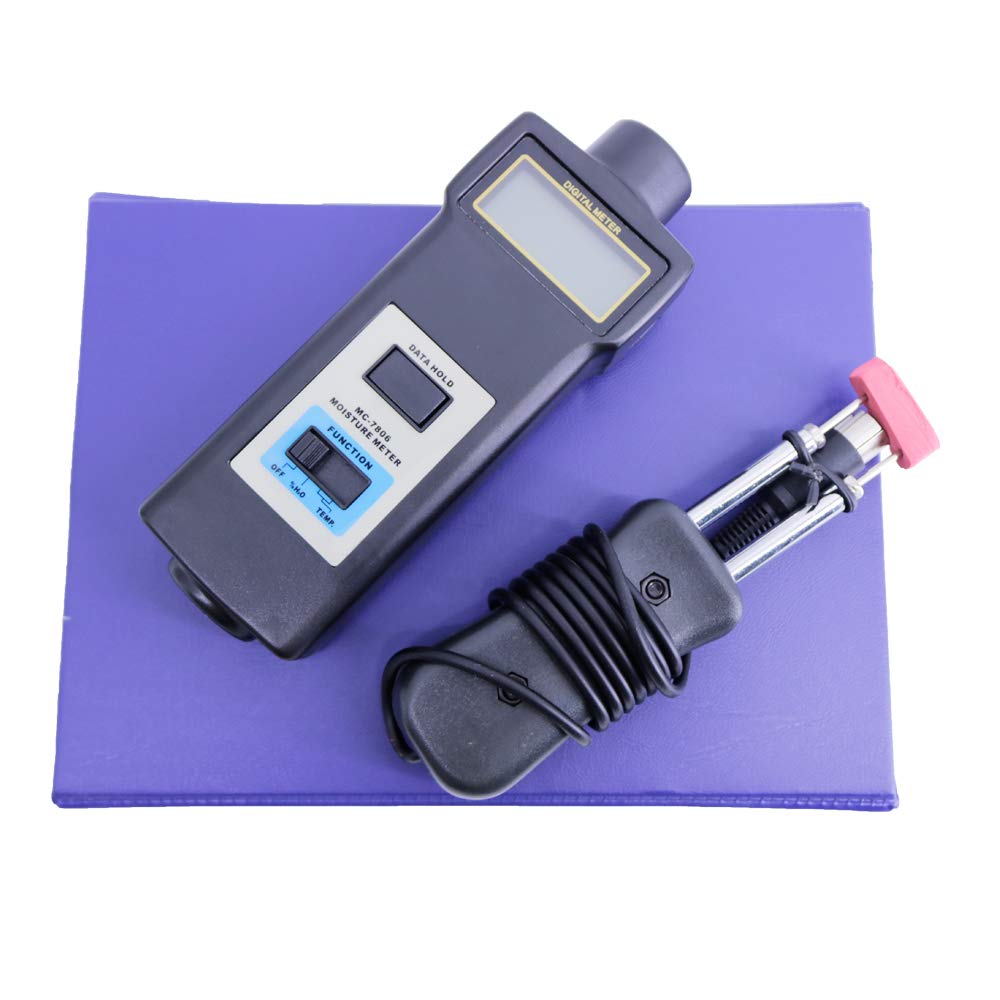

Part Number: MC-7806
Details: Model MC-7806
Sensor Type Pin
Measurement CodesFixed
RangeMoisture 0~50%
Temperature -10~60ºC
Accurary:
Moisture ±(0.5%n+1.5)
Temperature ±0.8ºC
Resolution 0 .1
Display LCD
Operating Conditions:
Temperature 0~50ºC
Humidity <85%RH
Power Supply 4x1.5V AA(UM-3)
DimensionsMain Unit 178x68x39mm
Sensor 170x44x25mm
Length of pin 33mm
Diameter of pin 0.7mm
Distance Between 2 pins 3.5mm
Weight 334g

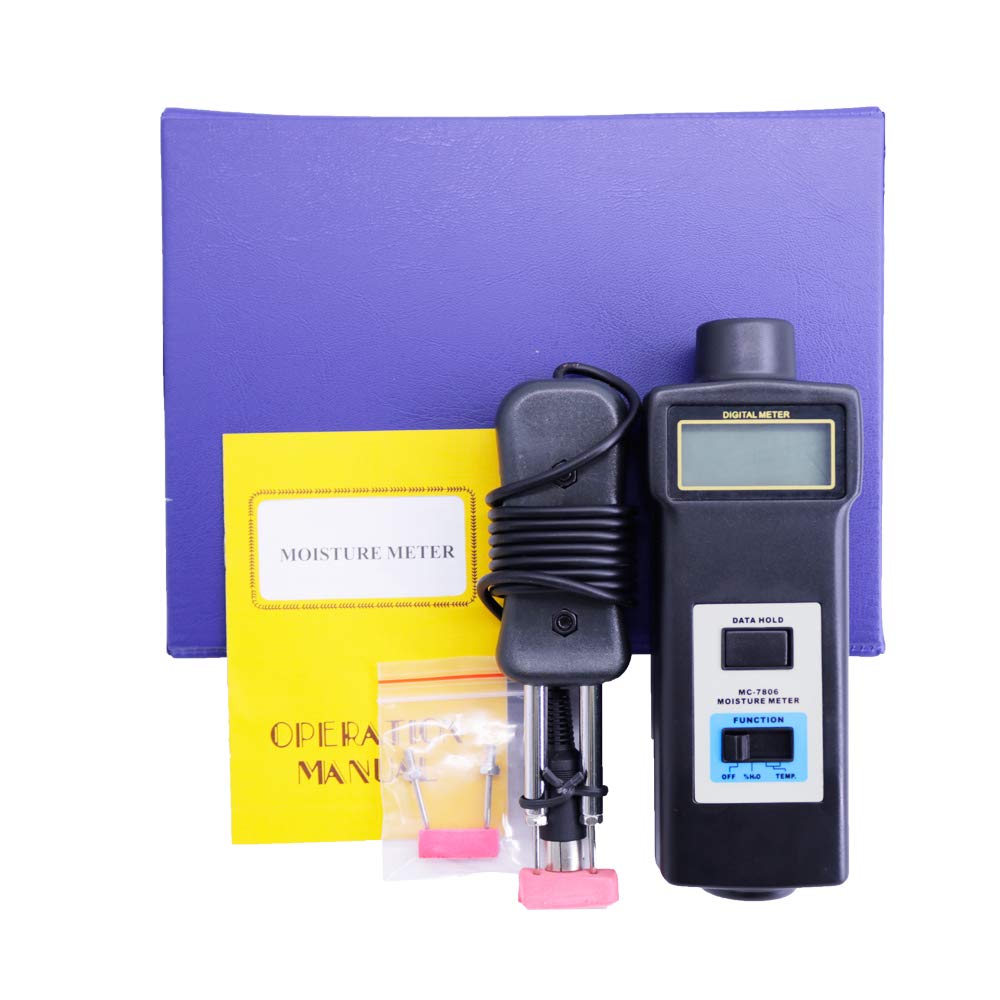

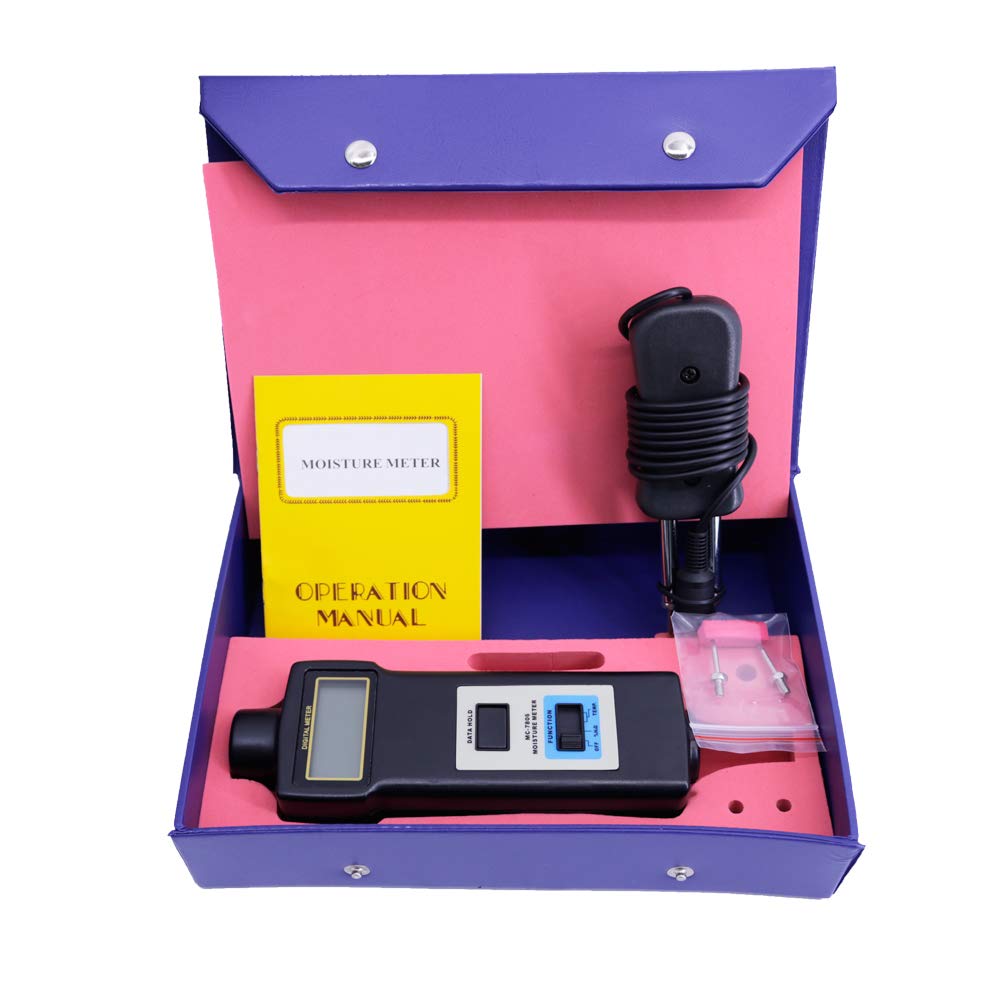

Standard Accessories
Main Unit

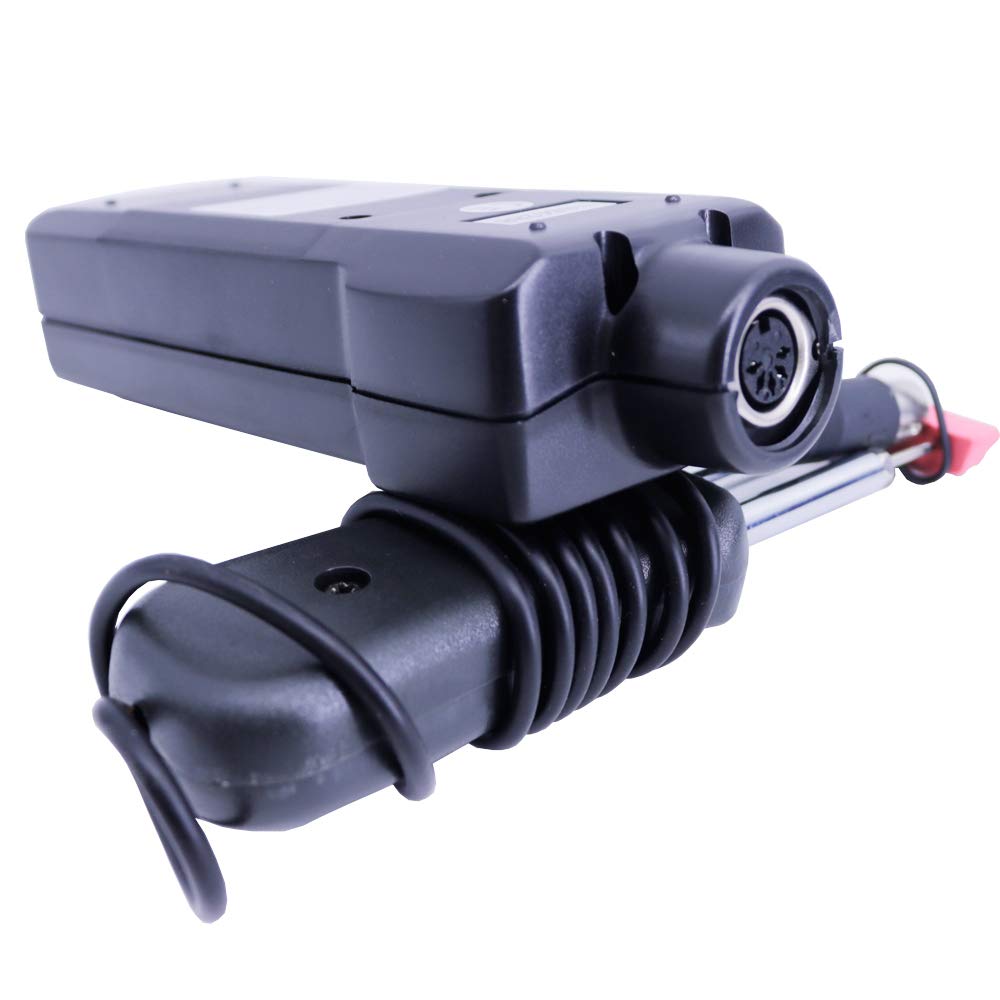

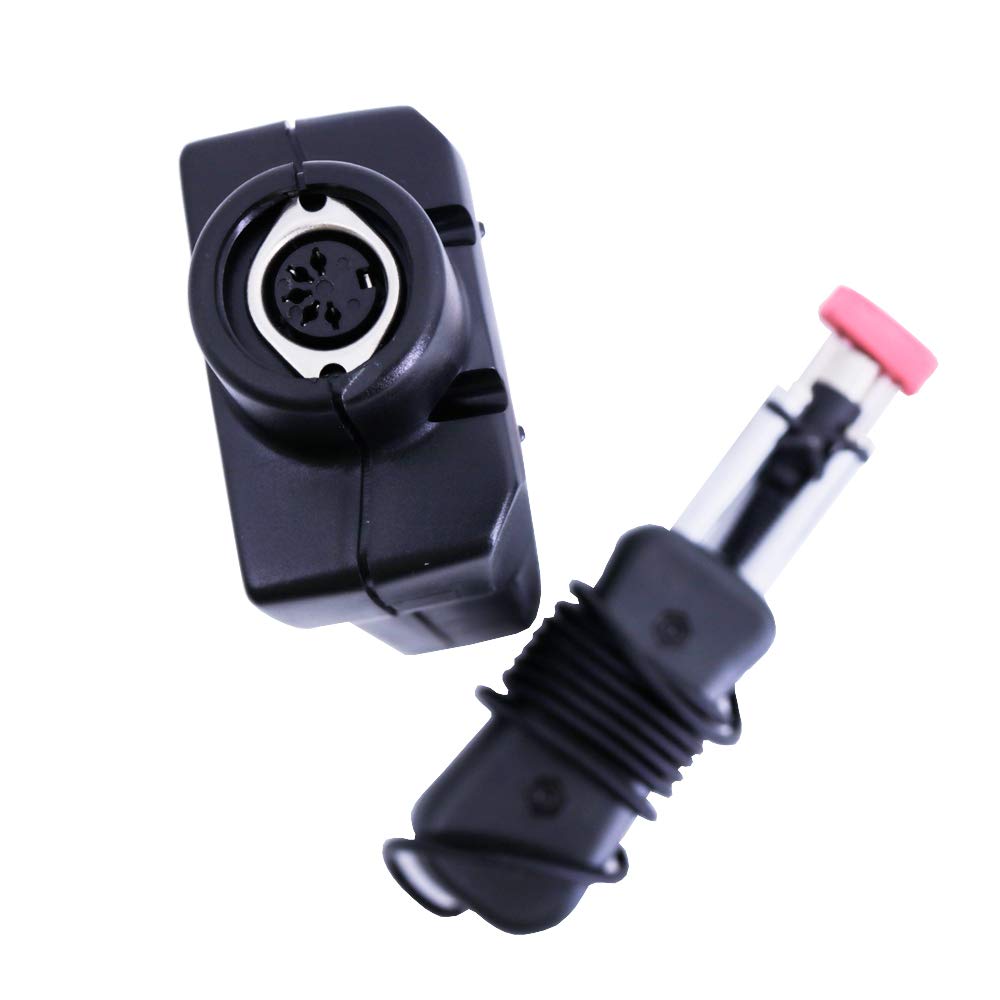

Probe Sensor(P06)

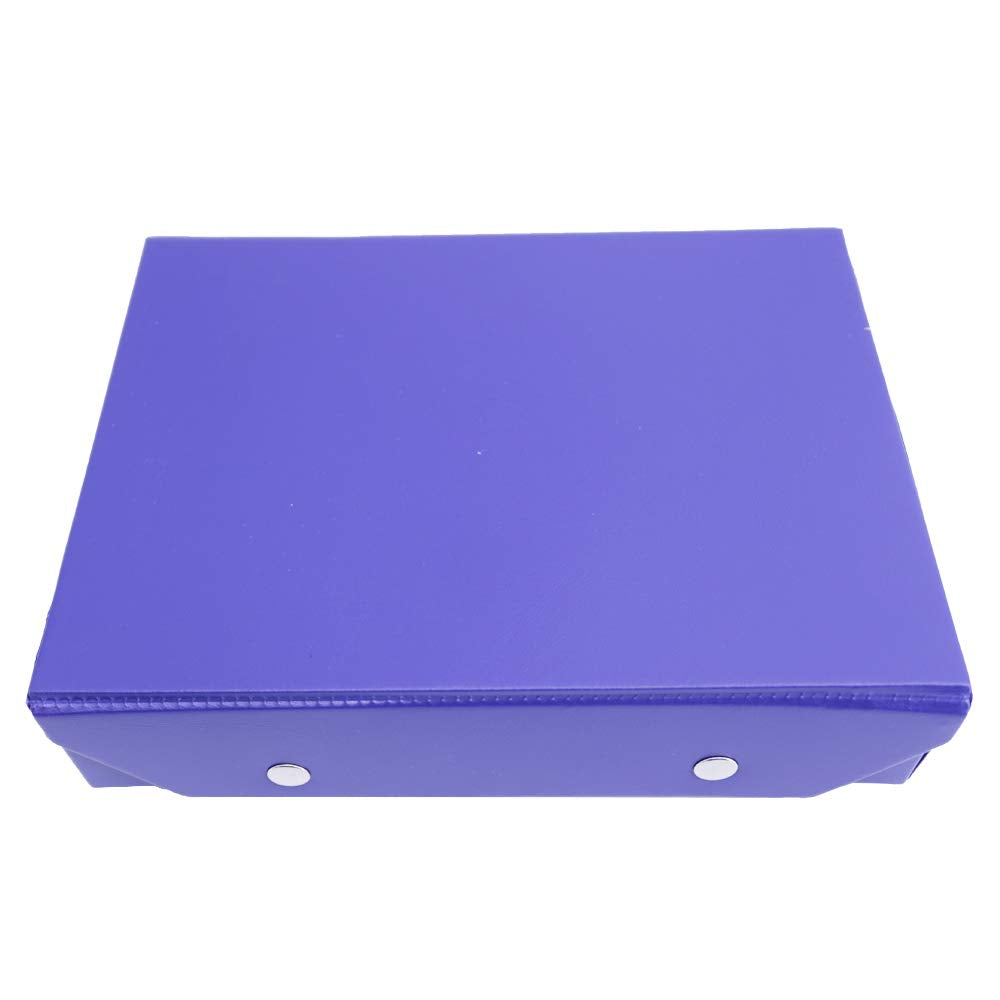

Carrying Case(B02)
Operation Manual
