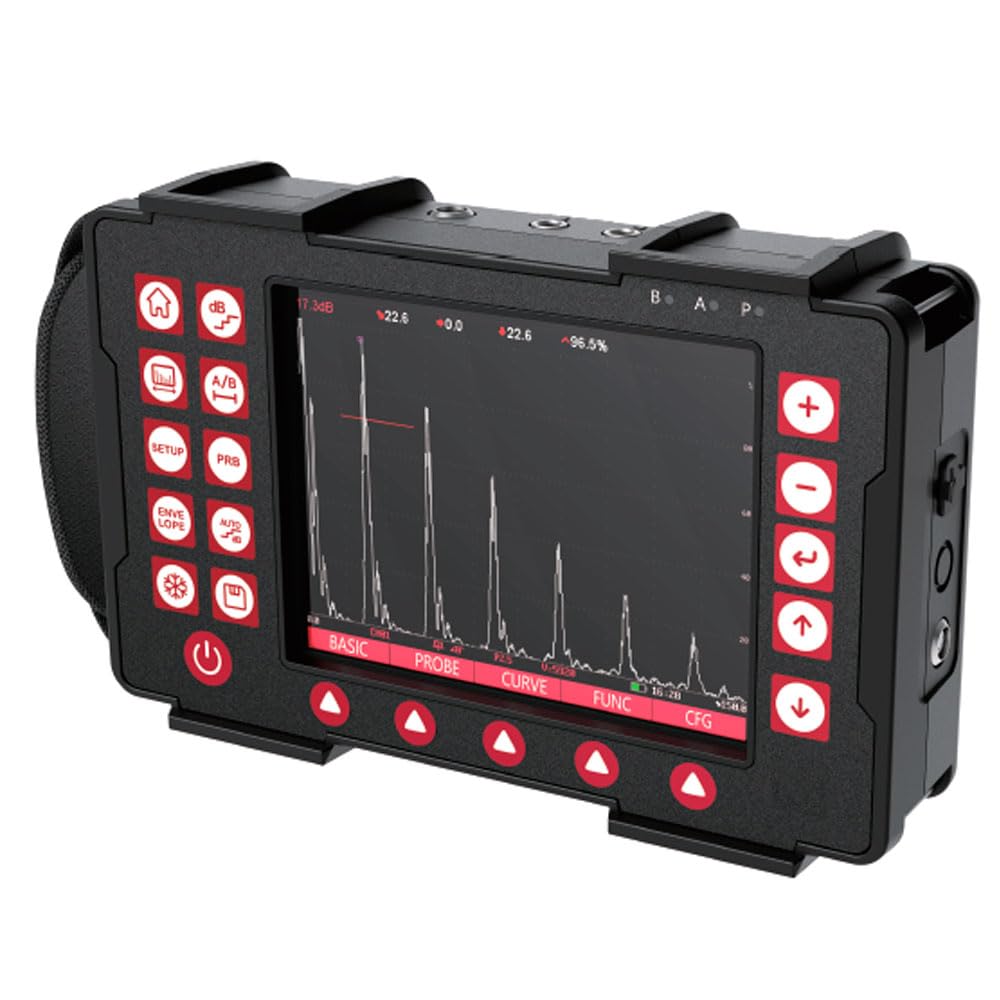

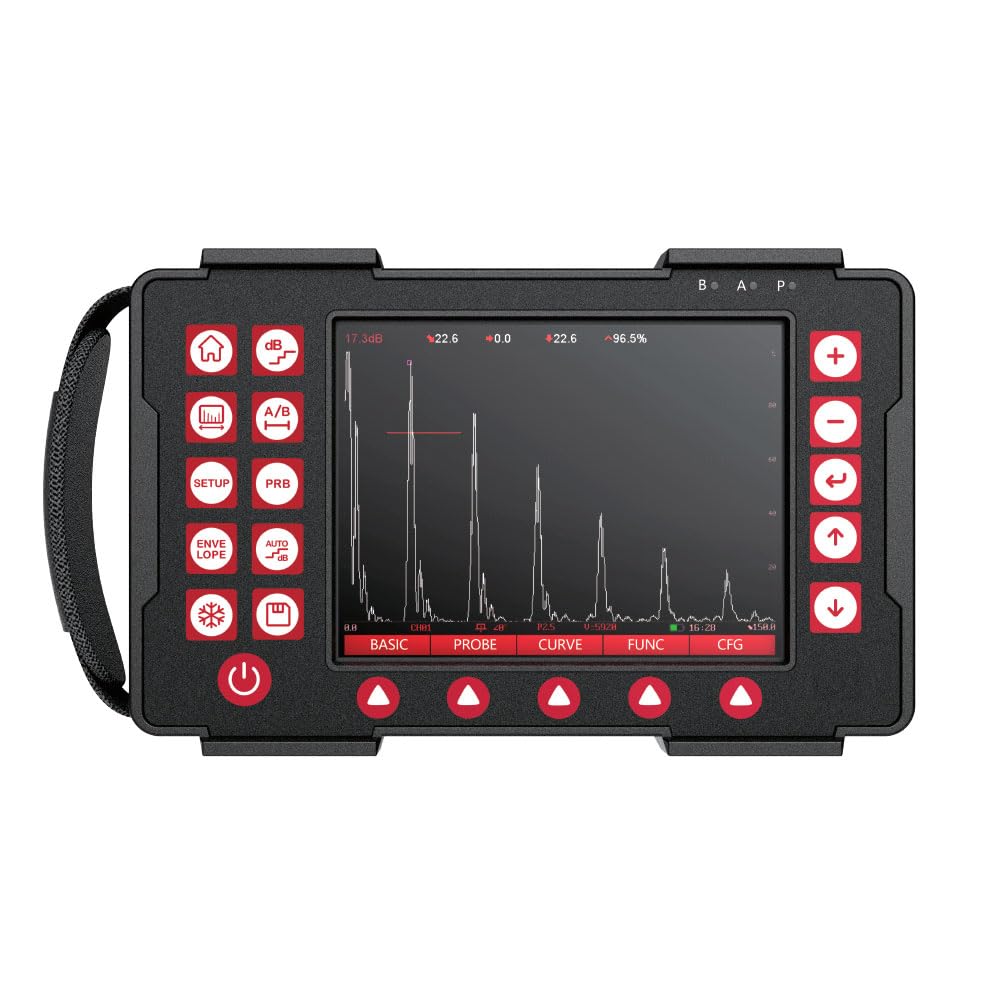

MFD100S Horizontal Version Intelligent Digital Ultrasonic Flaw Detector NDT Detector with Data Storage and Video Function

Brand: Graigar

Color: Black and Red

Features:

• Gate alarm:Gate start, gate width, gate height arbitrarily adjustable; A gate fixed position into the wave alarm; B gate can be selected to set up for the wave alarm or loss of wave alarm; gate beeps and LED lights suitable for noisy environment alarm and shutdown; capture marking function can be intuitively displayed in the gate to capture the characteristics of the echo.
• Data Storage:*1000 channels , can be pre-calibrated with various types of probes and instrument combination parameters and stored in the channels that is convenient to retrieve at any time;It can lock, unlock and change the channel name of each channel;It can freely set the standards of various industries for flaw detection;Built-in 16G memory card (microSD), can store massive flaw detection information (waveform,parameters, video, etc.), can store 20,000 waveform files, or store at least 200 hours of video files.
• Video Function:The instrument supports for saving the inspection process as video file and save it to the internal storage card. Video file can be replayed through the instrument. It can also be uploaded to a computer for playback through specialized software. Maximum support for 150 video files, the total length of the video about 200 hours. Playback the inspection process video makes great convenience for learning detecting but also saved for the future analysis to the inspecting process.
• Battery module:Capacity dedicated lithium battery module, online charging, convenient for probing personnel to use. Continuous working time reaches more than 8.5 hours.
• Hand replacement operation:The hand strap can be installed on the right or left side of the instrument, and it is easy to change to adapt to right-handed or left-handed operation.
• Display:Unique splash-proof sealing design, waterproof, oil-proof, can withstand rain, humidity, wind and sand, dust, oil and other pollution in various harsh environments.Adopting TFT full digital true color LCD display, the screen brightness is clear, the background color can be selected according to the environment and the LCD brightness is adjustable, which is suitable for a variety of operating environments.

model number: MFD100S

Part Number: MFD100S

EAN: 0707457580825
