MG-3002 Digital Gauss Meter Electromagnetic Field Tester Electronic Power Battery Use Strength Tester

Name: MG-3002 Digital Gauss Meter Electromagnetic Field Tester Electronic Power Battery Use Strength Tester
Brand: Graigar
SKU: B0DT4DMRFH
Price: 449.00 USD
Availability: InStock

$449.00 USD

促销售罄

数量

MG-3002 Digital Gauss Meter AC/DC Electromagnetic Field Tester with Data Hold Function

Features:
Wide range, general purpose magnetic measurement. for industrial, mechanical, material, electrical, laboratory field usage.
Unit : G ( Gauss ), mT ( milli Tesla ).
DC and AC magnetic field measurement
DC Range : 300.00 mT/3000.0 mT. AC Range : 150.00 mT/1500.0 mT.
Resolution : 0.01/0.1 mT, 0.1/1 G.
N pole/S pole indicator.
Use Hall sensor with automatic Temp. compensation.
Zero button for DC magnetic function.
Separate probe, easy operation and convenient for remote measurement.
Data hold function for freezing the desired value on display.
Records Maximum and Minimum readings with Recall.
RS232/USB computer interface.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Auto shut off is available to save battery life.

Specification:

Circuit	Custom one-chip of microprocessor LSI circuit.
Display	• LCD size : 52 mm x 38 mm • Dual function LCD display
Measurement Unit	• MT : milli Tesla • G : Gauss
Measurement Range, DC	MT • Range 1 : 300.00 mT x 0.01 mT • Range 2 : 3,000.0 mT x 0.1 mTG • Range 1 : 3,000.0 G x 0.1 G • Range 2 : 30,000 G x 1 G
Measurement Range, AC	MT • Range 1 : 150.00 mT x 0.01mT • Range 2 : 1,500.0 mT x 0.1mTG • Range 1 : 1,500.0 G x 0.1 G • Range 2 : 15,000 G x 1 G
Sensor	Hall sensor
Field Direction	Uniaxial
Accuracy	• DC ± ( 5 % rdg. + 10 digit ) • AC ± ( 5 % rdg. + 20 digit )
Frequency Response	AC measurement : 50 Hz / 60 Hz
Temp Compensation for hall sensor	Probe head build the Temp. sensor f or useing the ATC ( automatical Temp. compensatioon )
Data Hold	Freeze the display reading
Memory Recall	Maximum & Minimum value
Display Sampling Time	Approx 1 second
Power off	Manual off by push button or Auto shut off to save battery life
Data Output	RS 232/USB PC serial interface • Connect the optional RS232 cable UPCB-02 will get the RS232 plug • Connect the optional USB cable USB-01 will get the USB plug
Operating Temperature	0 to 50 °C
Operating Humidity	Less than 85% R.H
Power Supply	• 006P DC 9V battery( Alkaline or Heavy duty type ) • DC 9V adapter input * AC/DC power adapter is optional
Power Current	Approx. DC 20.5 mA
Weight	• Approx. 270 g/0.60 LB • ( include battery & probe )
Dimension	• Main instrument :200 x 68 x 30 mm ( 7.9 x 2.7 x 1.2 inch ) • Probe :18 x 25 x 19 mm ( 7.8 x 1.0 x 0.7 inch )

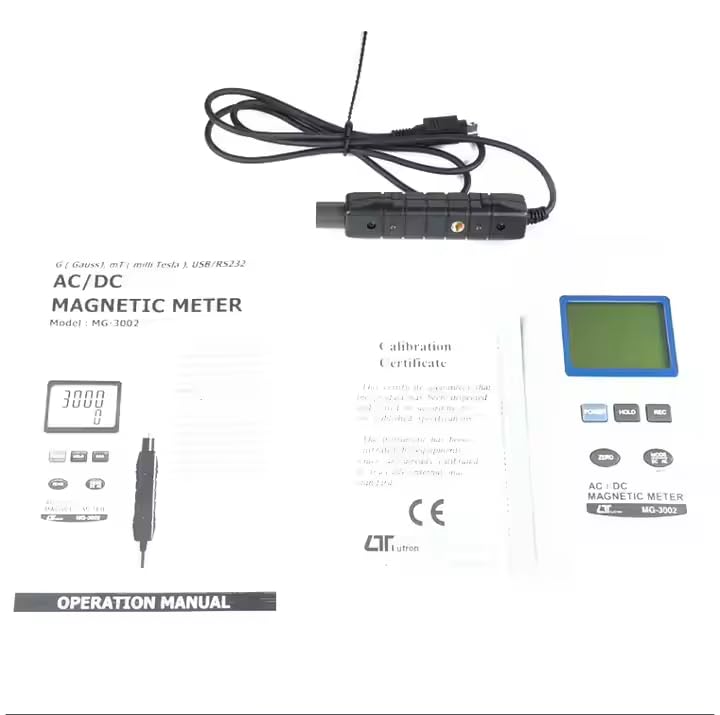

Accessories Included	• Instruction manual…………………………….. 1 PCS • Magnetic Probe……………………………….. 1 PCS • Hard Carrying case, CA-06………………. 1 PCS
Optiona Accessories	• RS232 cable, UPCB-02 • USB cable, USB-01 • Data Acquisition software : SW-U801-WIN, SW-E802
