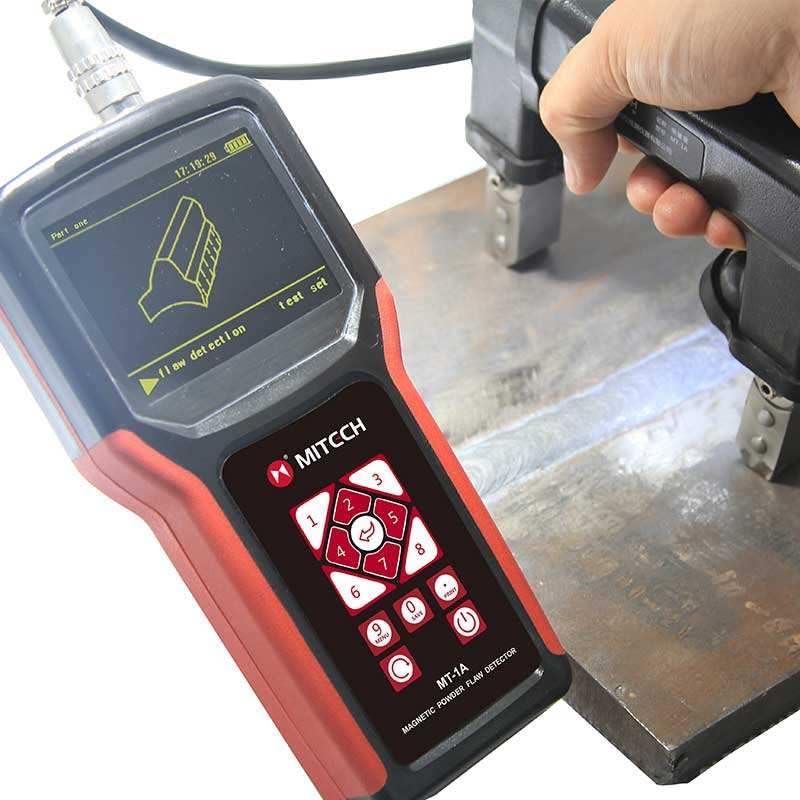

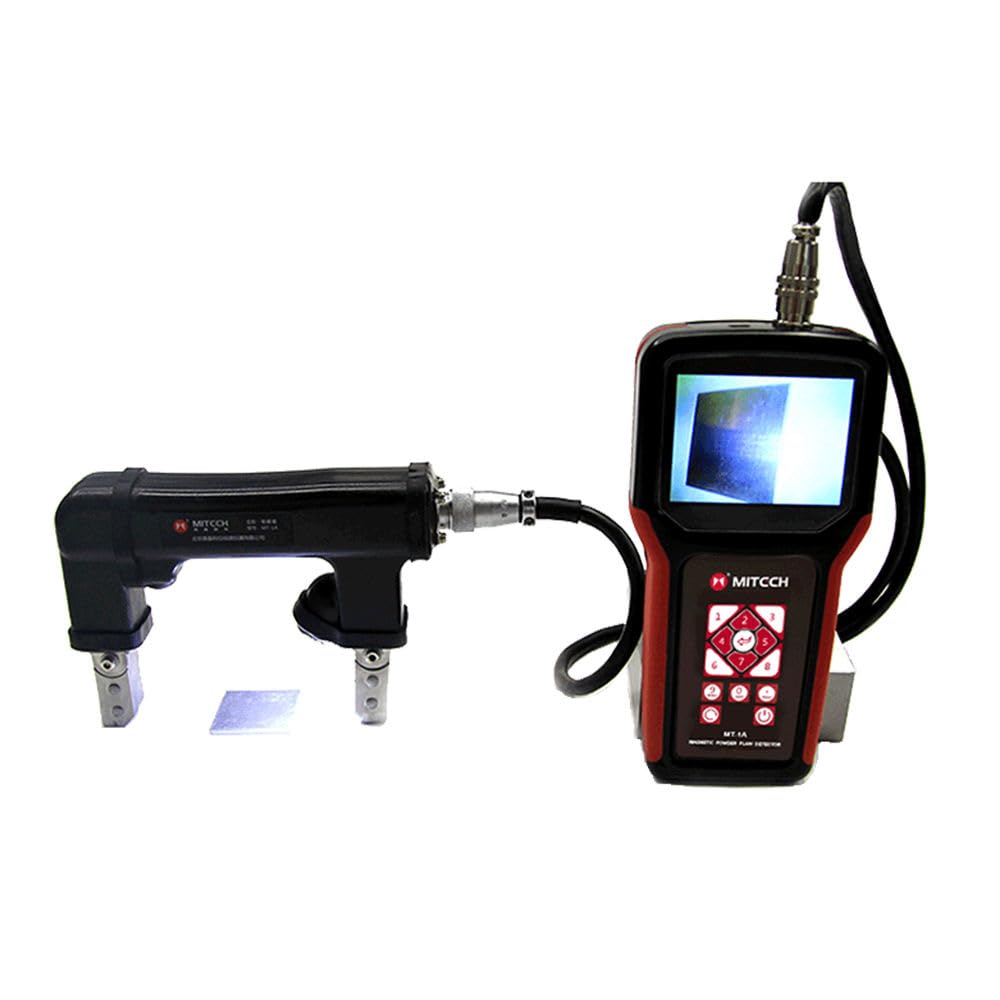

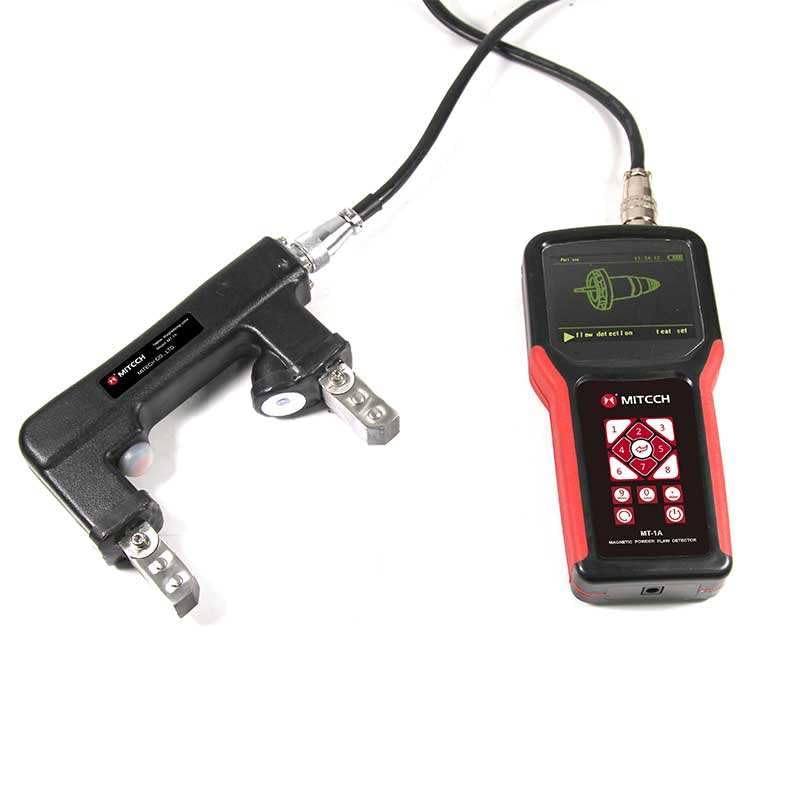

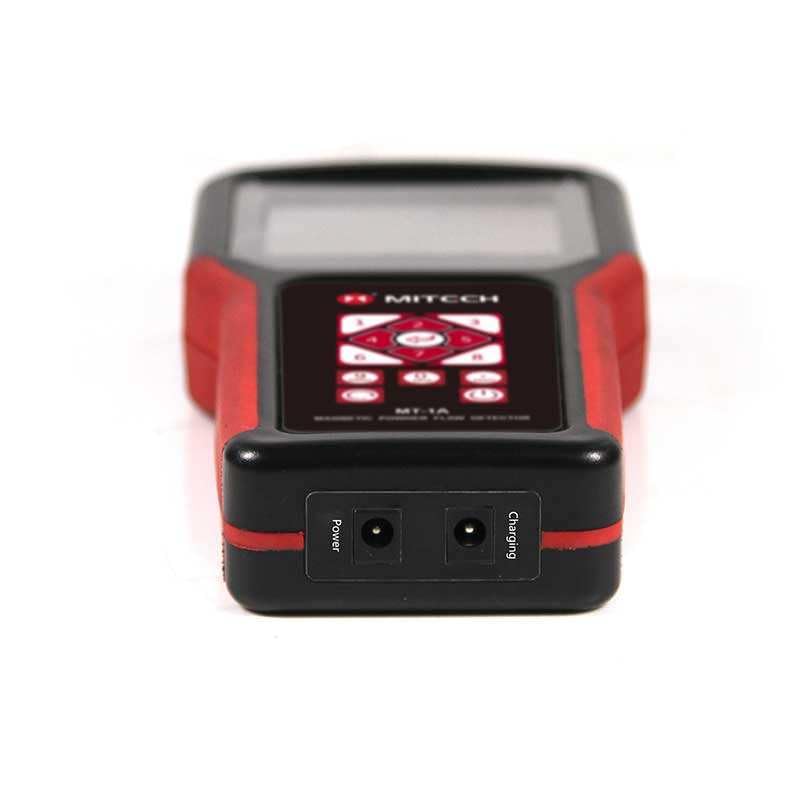

MITECH MT-1A Magnetic Particle Flaw Detector Digital Portable Magnetic Flaw Detector

Brand: Graigar

Features:

• l The large capacity lithium battery makes it portable, solves the drawbacks of traditional, magnetic particle detector relying on the 220V power supply, with low power consumption, small size, battery can be charged when the detector is on and off. It is especially suitable for testing in field or high altitude;
• l The brightness, power, lighting form of Mitech portable magnetic flaw detector series are adjustable, to meet the needs of different testing environment. l New power mode improves the sensitivity and accuracy of surface and depth detection.
• l Electromagnetic yoke adopts pulse power supply technology can continuous work without rest. l Combines the advantages of traditional electromagnetic yoke, can make fast, clear, correct test of the surface.
• l The brightness, power, polar distance are adjustable to meet the needs of different measurement conditions;
• l The product is equipped with portable package, operator can put it on the waist, greatly reduce the labor intensity, improve work efficiency.

model number: MT-1A

Details:

Lighting：white/fluorescent
Dimension：204mm×100mm×36mm
Main unit：0.75 kg(including battery)
Screen dimension：3.5 inch
Working voltage：DC 15V-21V
Output curvealter：nating curent pulse
Probe dimension：174mm×162mm×38mm
Polar distance：75-200mm
Yoke weight：1.5kg(including line)
Cable line length：1.2 m (can be customized)
Lifting force：>45N(more than 5Kg)
Complex sensitivity：Notch clear on A1 15/100 standard specimen
Continuous working hours：>4h
Battery dimension：79mm×58mm×18mm
Li-battery weight：0.52kg
Battery voltage：18V
Battrey capacity：8400mAh
Charging limited voltage：21V
Power supply：220V 50HZ
White light illumination：>1000lx
Distance between light and workpiece：100mm
Fluorescence center wavelength：365mm
Fluorescence amplitude：>1000μw/square centimeter
