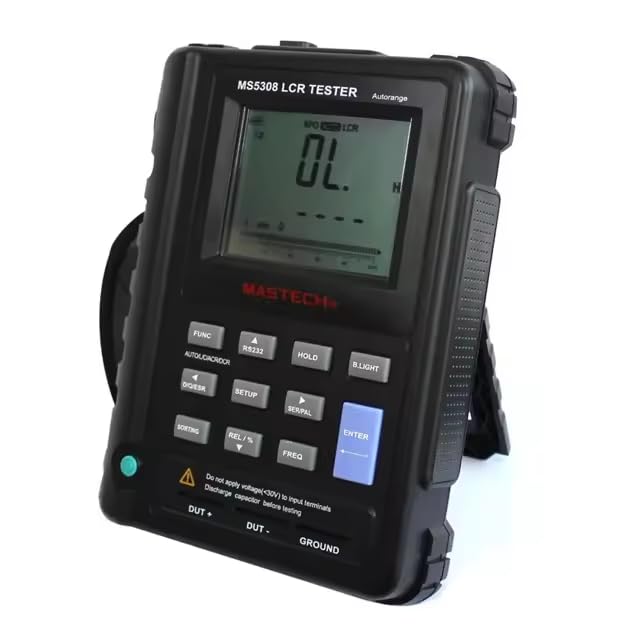

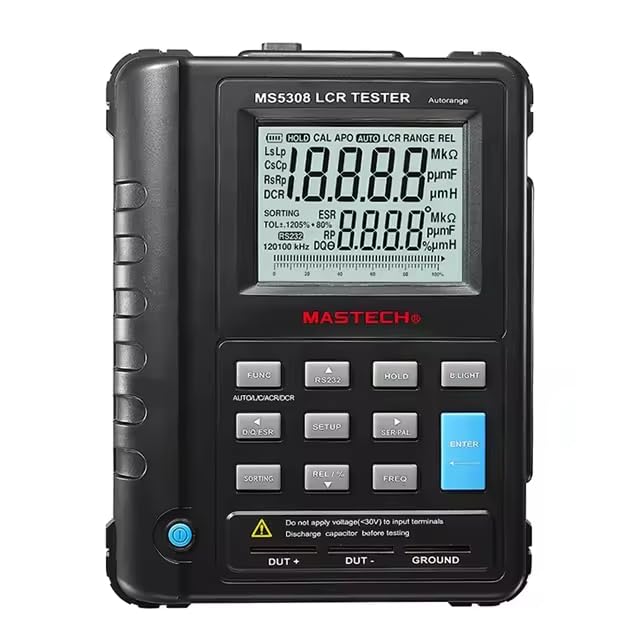

MS5308 Handheld Digital Auto Range LCR Meter 100KHz RS232 Dual LCD Display

MS5308 Handheld Digital Auto Range LCR Meter 100KHz RS232 Dual LCD Display

$347.00 USD
$347.00 USD
促销 售罄

MASTECH MS5308 Handheld AutoRange LCR Tester,Fast shipping

 This MS5308 LCR digital bridge meter is a professional instrument for measuring inductance, capacitance and resistance. It has many features, such as automatic identification, automatic measurement range, high measurement accuracy and speed, wide measuring range and so on.
An ordinary multimeter only provides DC mode for resistance measurement, while this MS5308 provides both AC and DC measurement modes. A variety of test frequencies up to 100Khz can be provided for inductance, capacitance and resistance in AC mode to meet the actual needs better.

 Specifications:

Auto LCR smart check and measurement

19,999/1,999 dual LCD display

Series/Parallel modes are selectable

LsLp/Cs/Cp with D/Q/θ/ESR parameters

Support DCR mode

Five different test frequency are available

100/120/1k/10k/100k Hz

Test rang( ex.F=1K Hz)

L: 200uH~~2000H<br/>C:2000pF~~2.0mF

R:20.000Ω~~200.0MΩ

PowerSupply:1.5×8 AA battery and 1×1604A6LR6(9V) (not included)

Dimension: 224mm×172mm×59mm

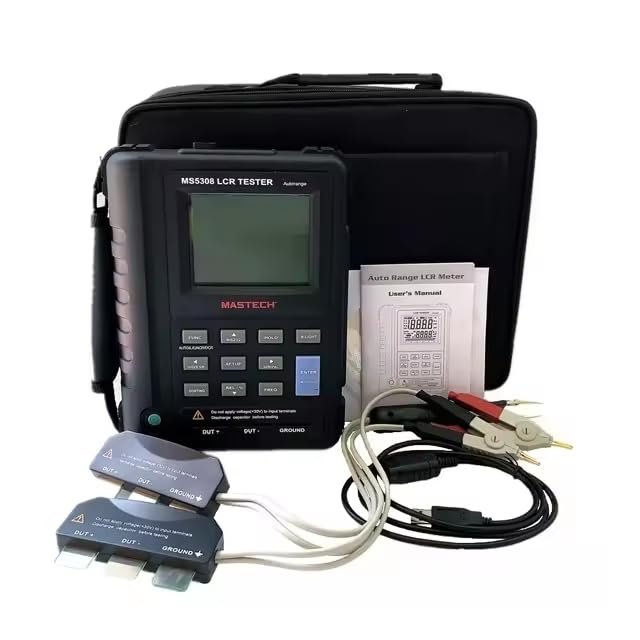

Package Contents:



MS5308 LCR digital bridge meter

Kelvin test clip (one pair)

Upper computer program CD

External power supply

SMD test probe

IR data line

Brand: Graigar

Color: black

Features:

  • MS5308 professional Autorange LCR digital bridge Meter 100Khz High-Performance With Infrared Interface
  • This MS5308 LCR digital bridge meter is a professional instrument for measuring inductance, capacitance and resistance. It has many features, such as automatic identification, automatic measurement range, high measurement accuracy and speed, wide measuring range and so on
  • An ordinary multimeter only provides DC mode for resistance measurement, while this MS5308 provides both AC and DC measurement modes.
  • .A variety of test frequencies up to 100Khz can be provided for inductance, capacitance and resistance in AC mode to meet the actual needs better.
  • Low Battery Display ,Data hold , RS232 interface

model number: MS5308
