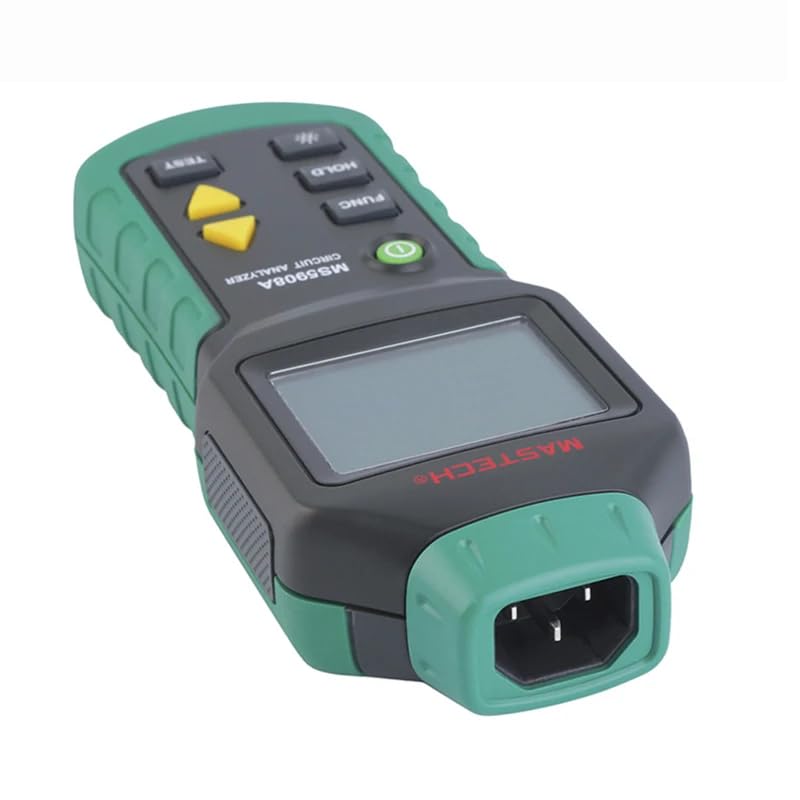

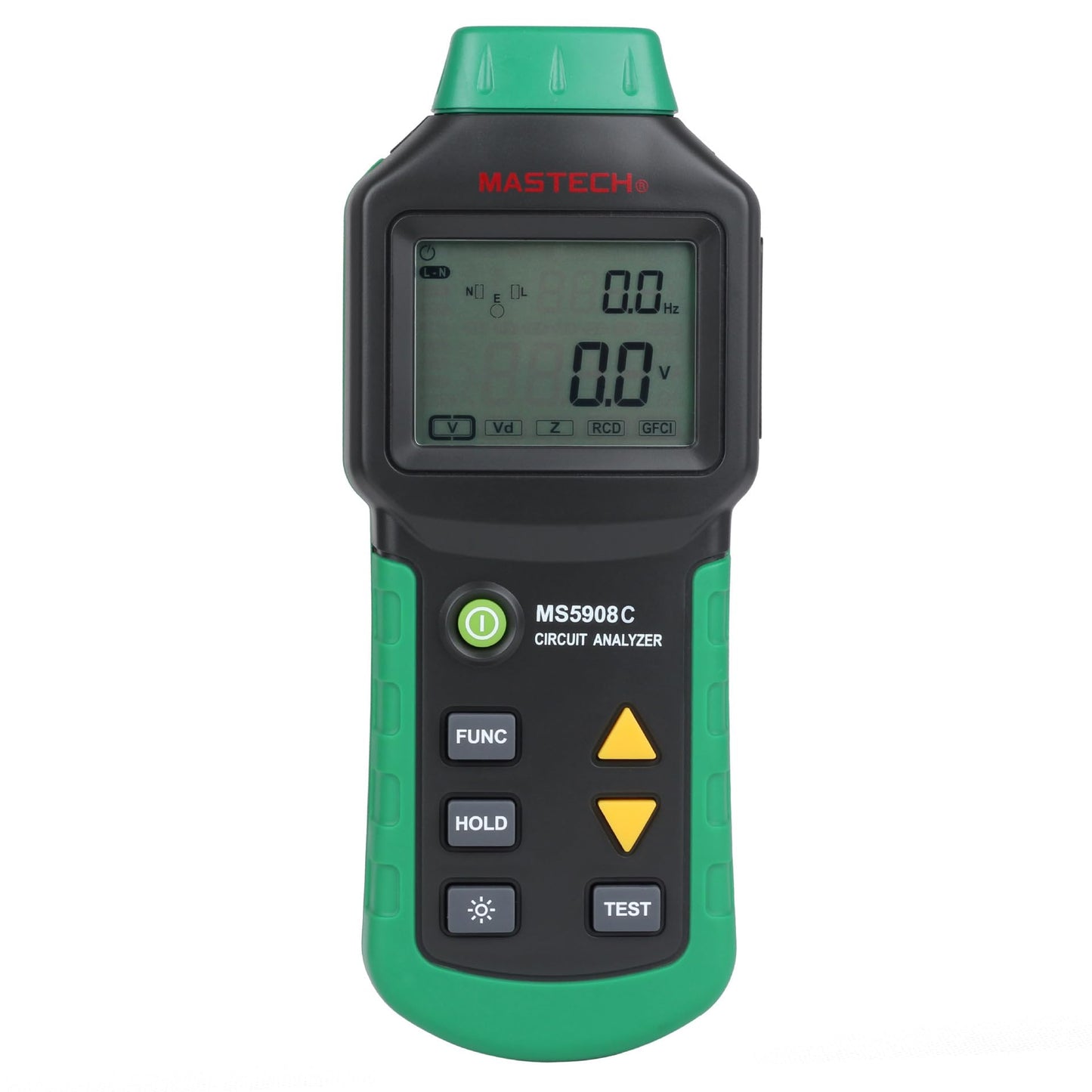

MS5908A MS5908C Digital Circuit Analyzer Line Voltage Tester Range 85.0~265.0V RCD Trip Current Meter

Brand: Graigar

Color: Black&Green

Features:

• MS5908C and MS5908A are the same product. The A means US Plug,voltage 85.0~135.0V； The C means EU Plug, voltage 85.0~265.0V; we will ship the plug type according to your using country.
• Auto Power Off; Data Hold;
• Low Battery Display;

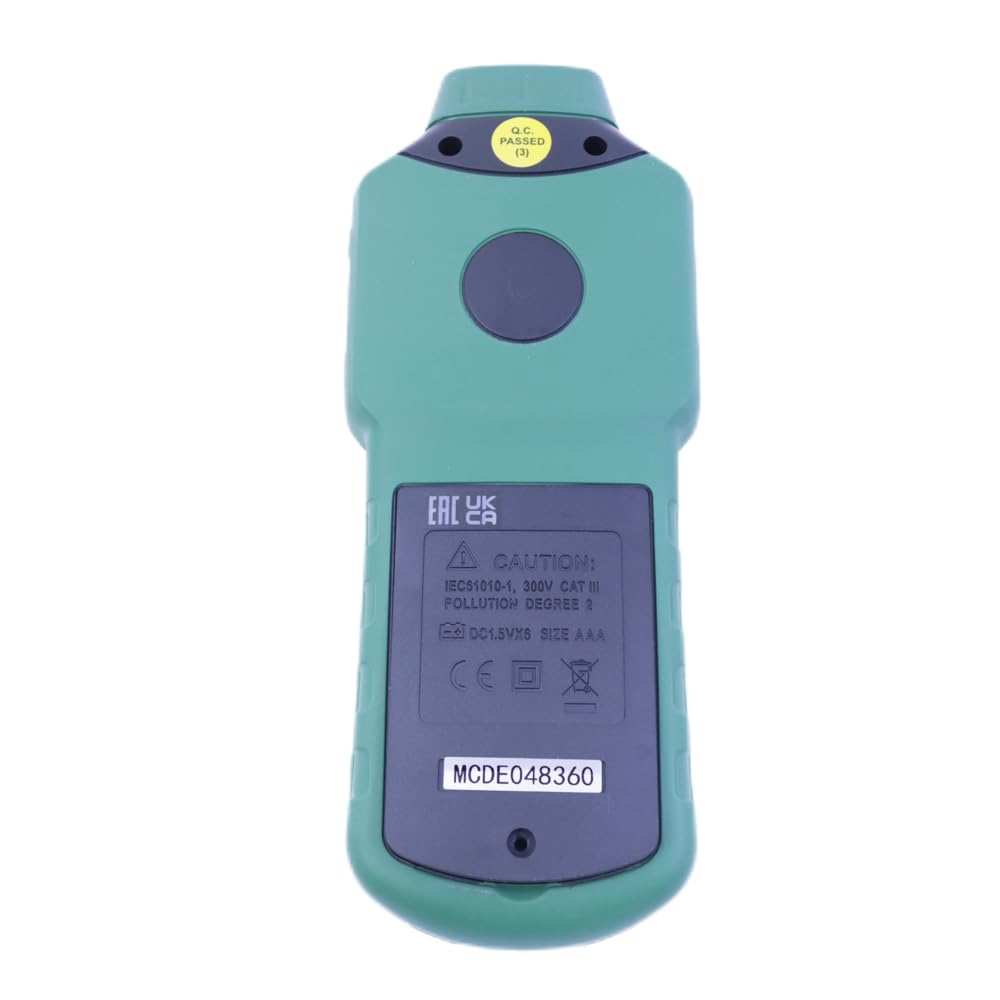

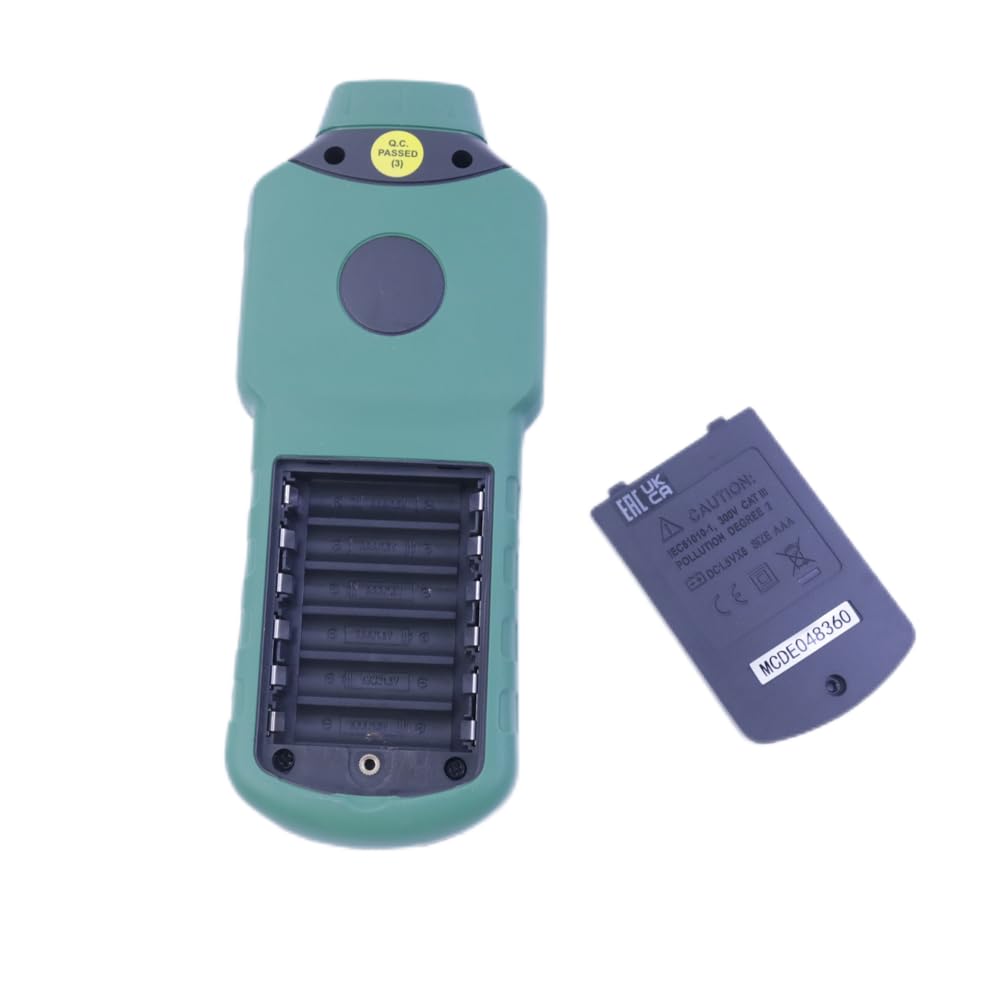

• Power Supply : 6x1.5V AAA Batteries Product Size : 194mmx78mmx37mm/7.64"x3.07"x1.46" Product Weight : 254g/0.56lb
• Certificate : CE / ETL / RoHS Safety Rating : CAT III 300V

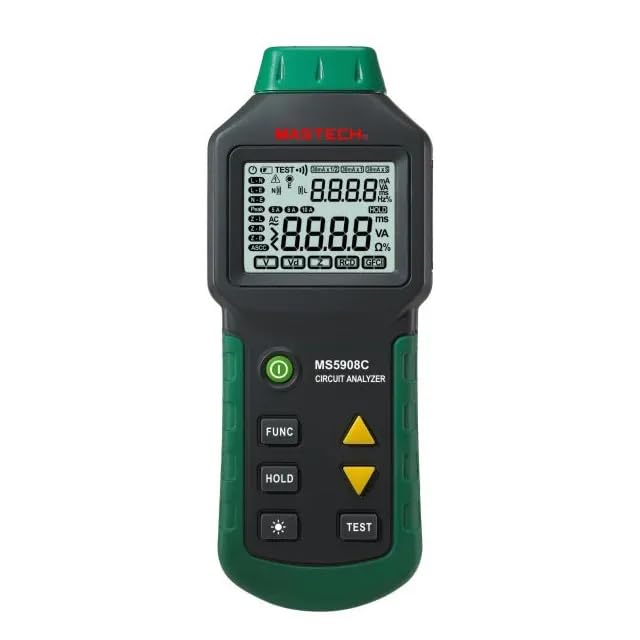

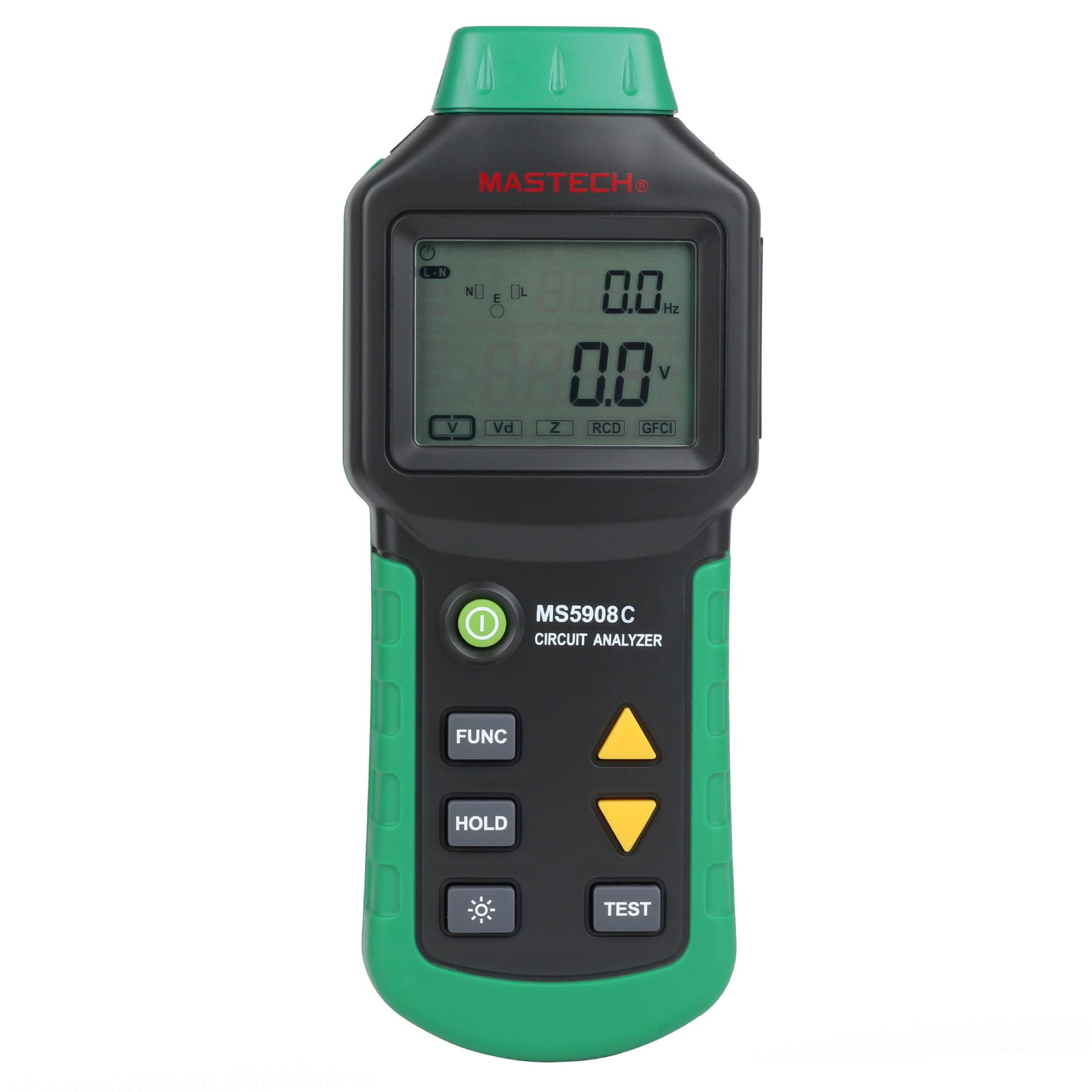

model number: MS5908C

Part Number: MS5908C

Details: MS59085C
Specifications:
Line Voltage Range: 85.0~265.0V; Resolution:0.1V; Accuracy:±(1.0%+2).
Peak Line Voltage Range: 120.0~375.0V; Resolution:0.1V; Accuracy:±(1.0%+2).
Voltage With/Loading Equipments Range: 10.0~265.0V; Resolution:0.1V; Accuracy:±(2.5%+2).
Line Frequency Range:45.0~65.0Hz; Resolution:0.1Hz; Accuracy:±(1.0%+2).
Impedance-live Range: 0.00~3.00Ω; Resolution: 0.01Ω; Accuracy: ±(2.5%+2).
Neutral & Earth Range: >3.00Ω; Resolution: 0.01Ω; Accuracy:No ensure.
Neutral-Ground Voltage Range:0.0~10.0V; Resolution:0.1V；Accuracy: ±(2.5%+2).
RCD Trip Time Range: 1ms~6.5S; Resolution: 1mS; Accuracy: ±(1.0%+2).
RCD Trip Current Range: 30mA~37mA; Resolution:0.1mA; Accuracy:±(1.0%+2).
GFCI Trip Time Range:1ms~6.5S; Resolution:1mS; Accuracy:±(1.0%+2).
GFCI Trip Current Ragne:6mA~9mA; Resolution:0.1mA; Accuracy:±(1.0%+2).
Voltage Drop Range:0.1~99.9%; Resolution:0.10%; Accuracy:±(2.5%+2).
Voltage Drop/Load Current Range: 5/8/10A

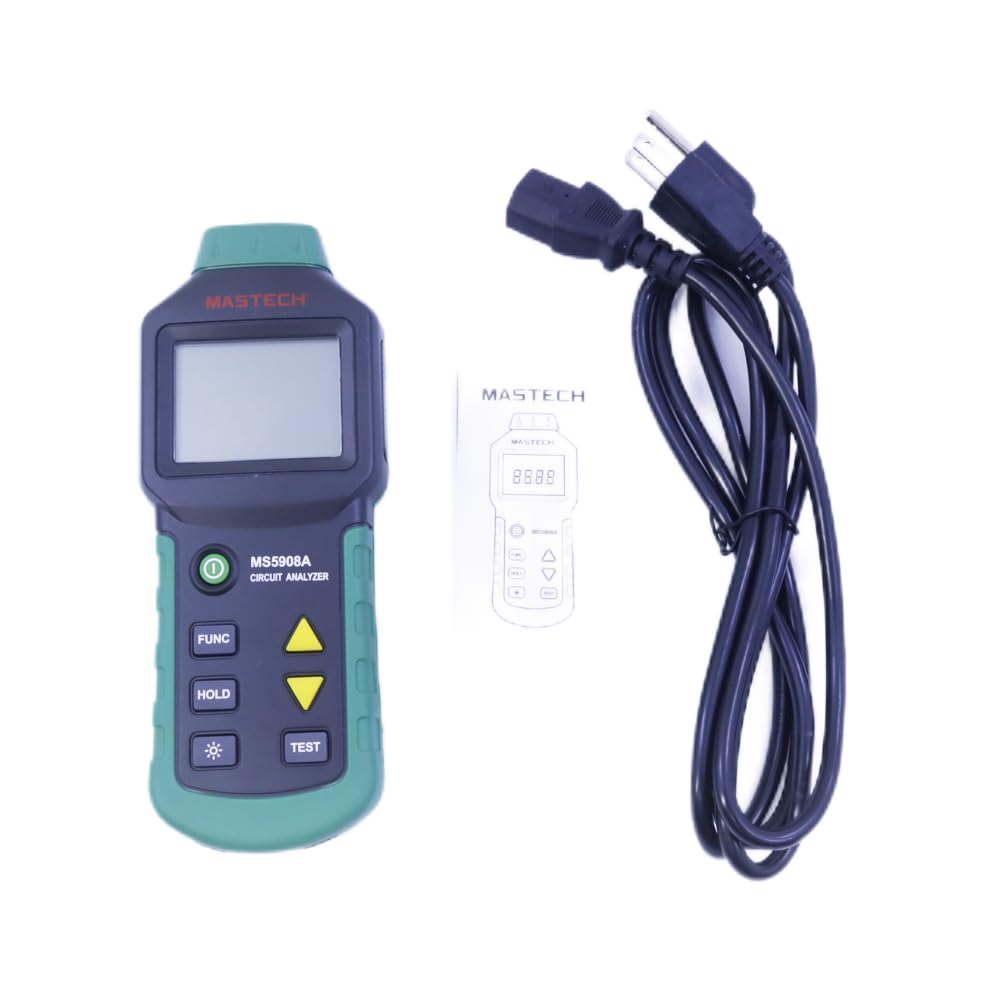

Accessories:
Power Cord
Carry bag
User's manual

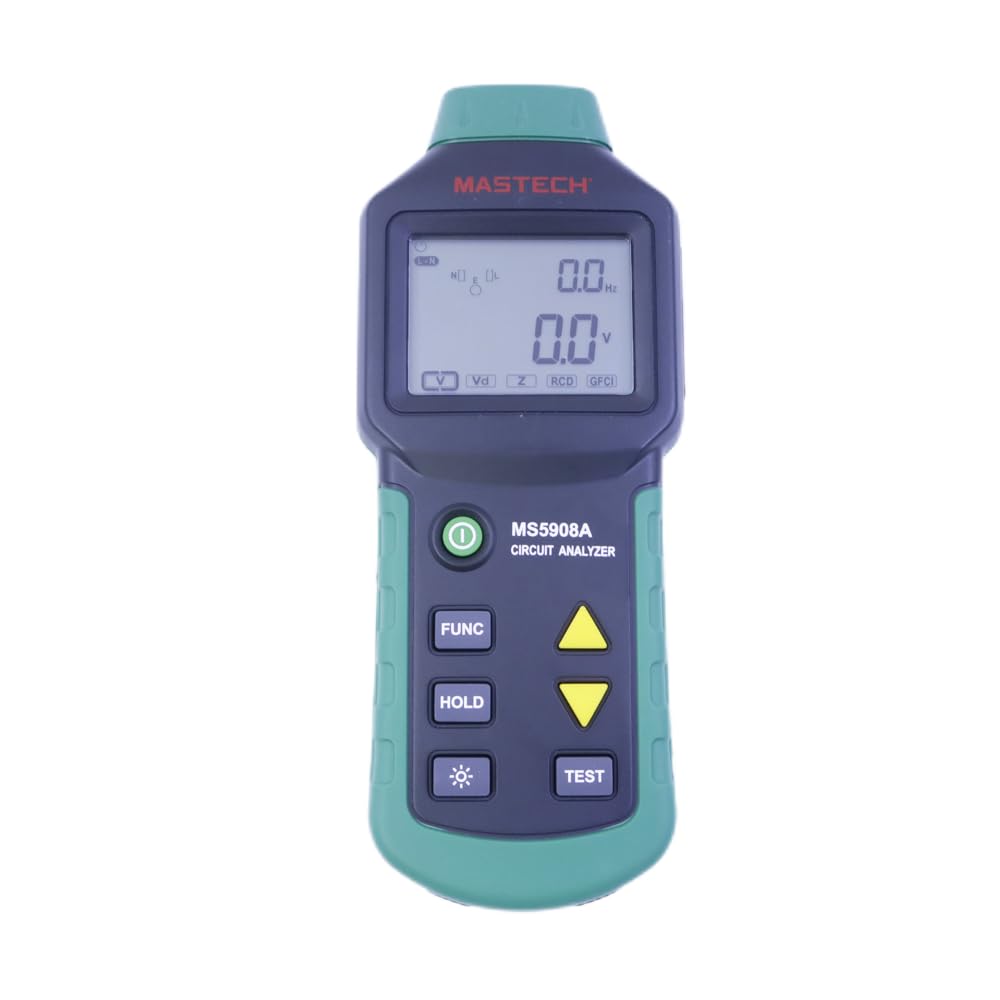

MS5908A:
Specifications:
Line Voltage: 85.0~135.0V
Peak Line Voltage: 120.0~190.0VVoltage With Loading Equipments: 0~135.0VLine Frequency: 45.0~65.0Hz
Impedance-Live, Neutral & Earth: 0.00~3.00Ω / >3.00Ω
Neutral-Ground Voltage: 0.0~10.0V
RCD/GFCI Trip Time: 1ms~6.5S
RCD Trip Current: 30mA~37mA
GFCI Trip Current: 6mA~9mA
Voltage Drop: 0.1~99.9%
Voltage Drop Load Current: 12/15/20A

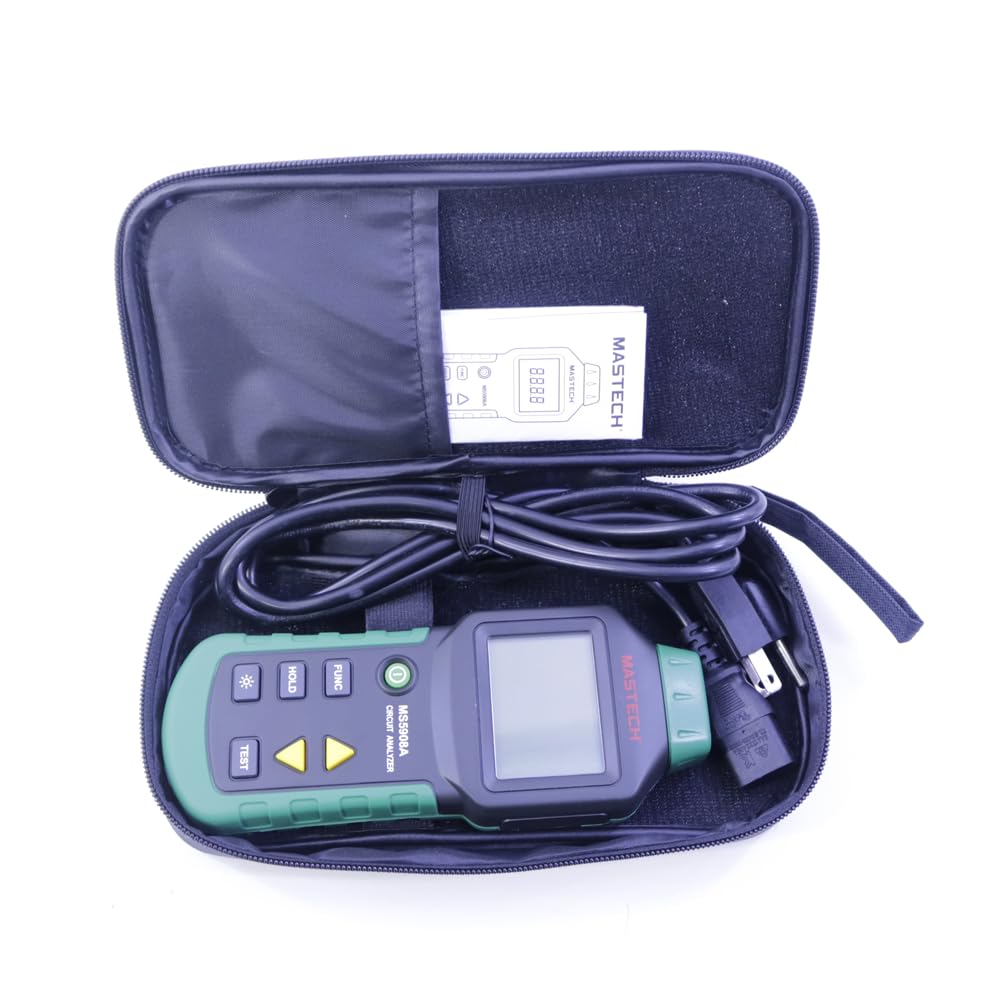

Accessories:
Power Cord
Carry bag
User's manual

EAN: 0707457580283
