1. An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen; 2. Automatic shooting crack photos, real-time image display; 3. Stored photos, data can be playback viewing;
4. the option of using a variety of magnification probe test range can reach 0-8mm; 5. probe (camera) comes with lighting fixtures, work around the clock, from the light changes;
6.Handheld host of engineering plastic, lightweight and beautiful, strong and durable; 7.Simple alignment of cracks can be automatically reading, without any set up, fool operation;

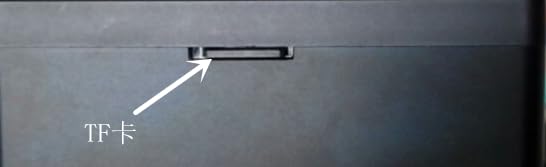

8.Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card;

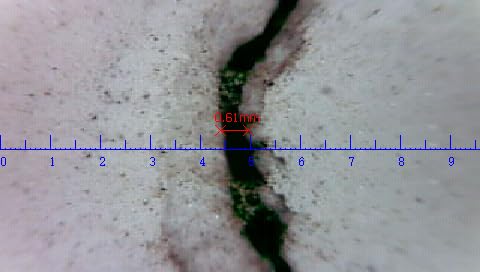

9.The only in the cracks in the photo while preserving fracture images, the width of the data, scales, zoom factor and the crack number.

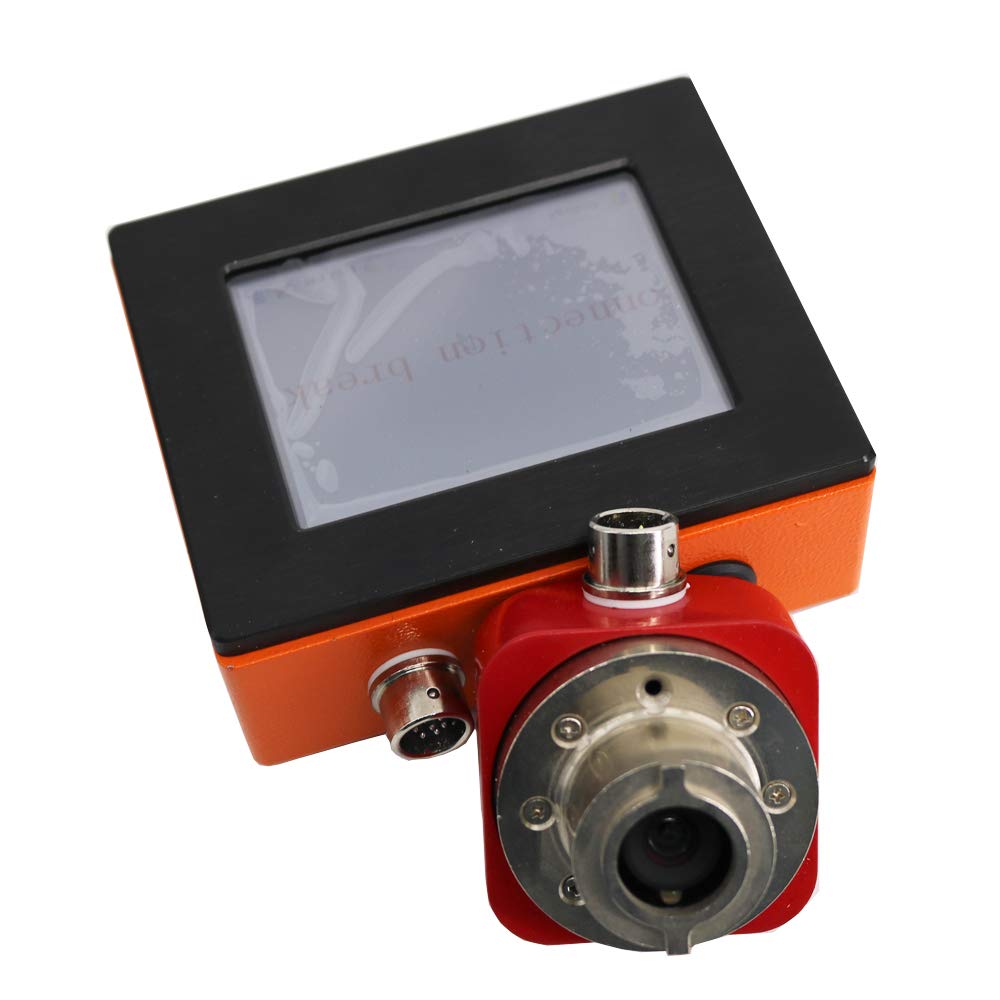

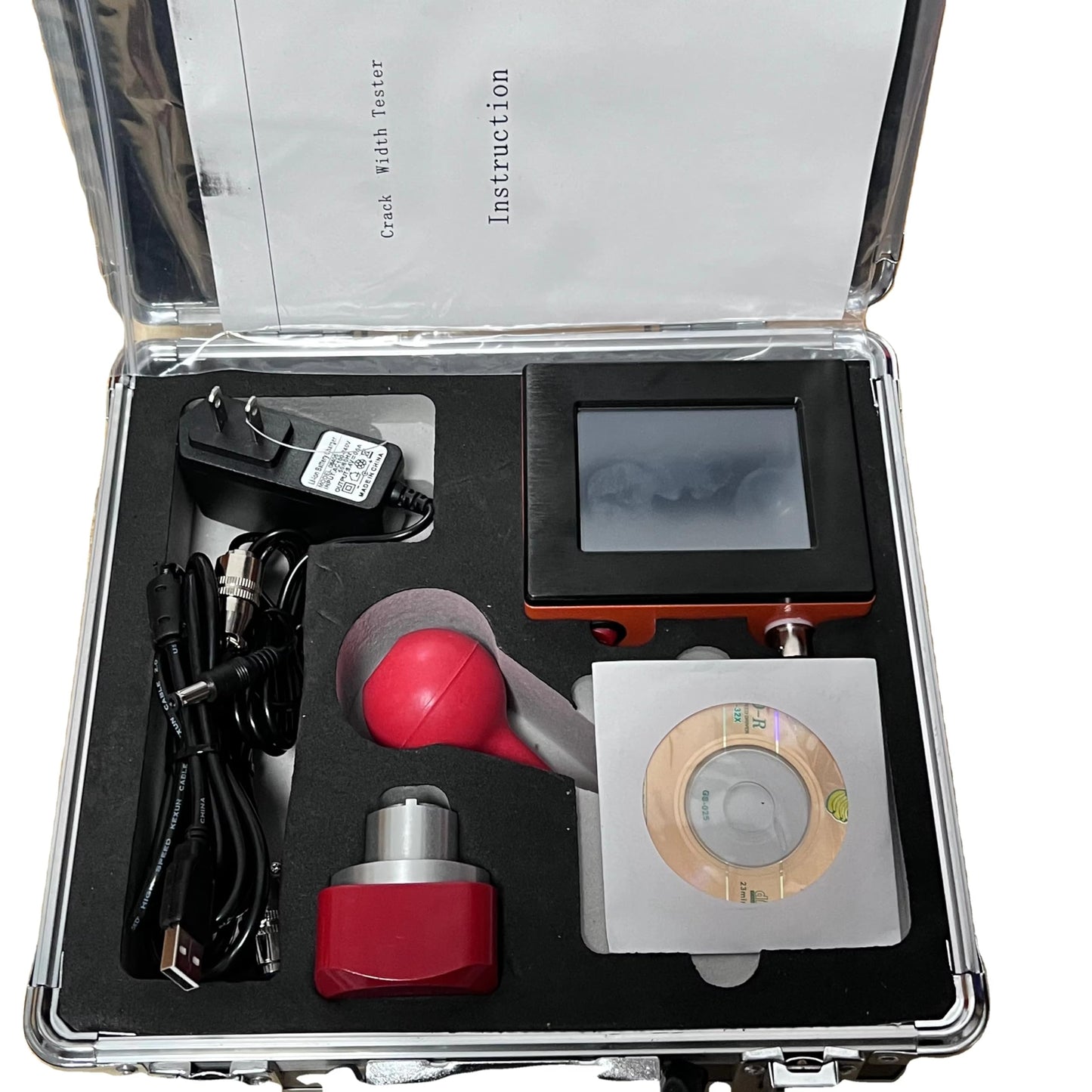

model number: JW-CK102
Part Number: JW-CK102
Details: 1. The Max Detection range: 0-6mm;
2. Accuracy: 0.02mm;
3. Use 40 times probe:
Automatic reading measurement range: 0.01-6mm;
Automatic reading accuracy: 0.02mm
4. Working temperature: -20 ～ + 60 ℃

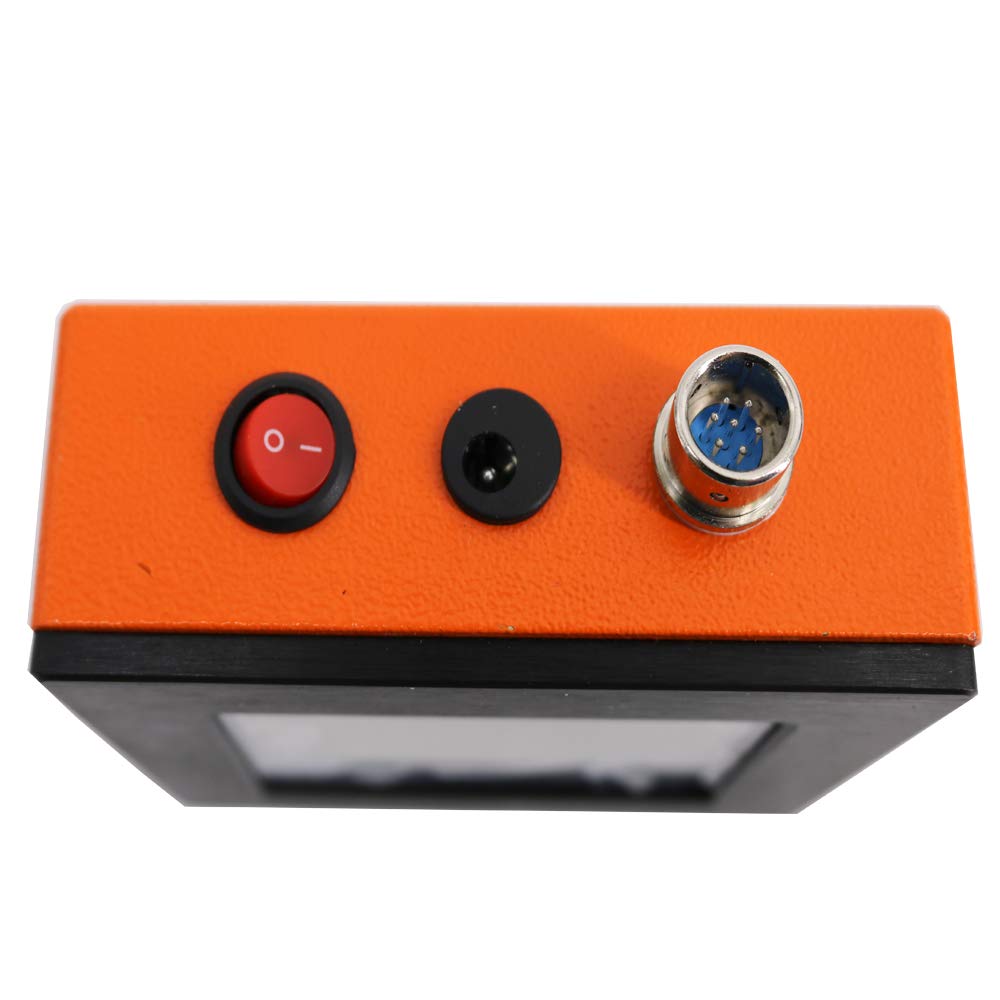

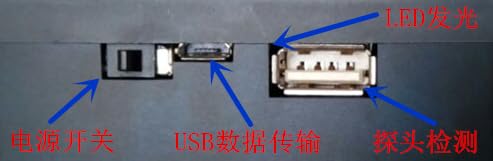

5. Host interface: standard Micro USB;
6. Storage medium: 20,000 photos can be saved (expandable);
7. Image storage format: BMP format, 24-bit color / 480 * 272;
8. Power supply: 5000mAh built-in lithium battery;

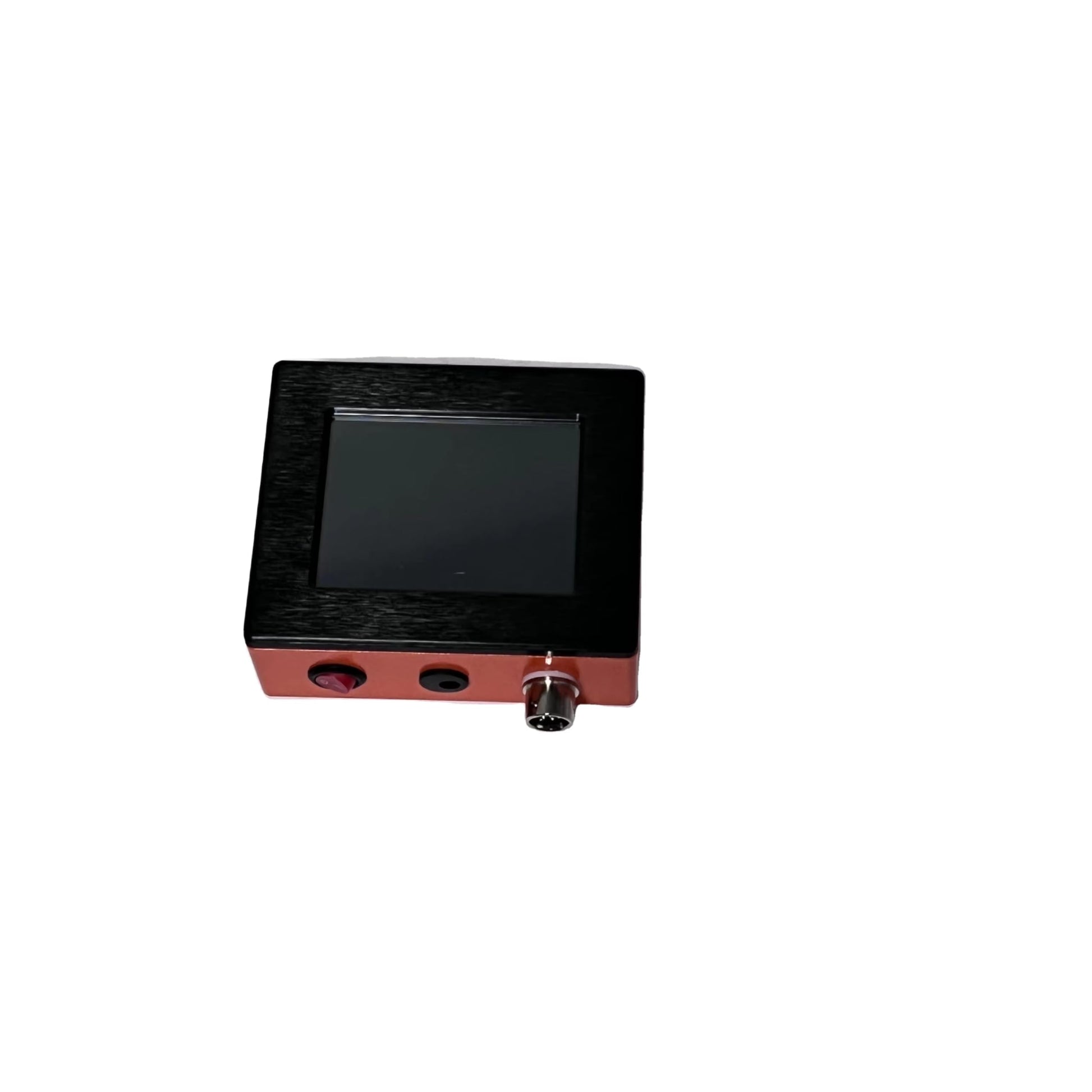

9. Host size: 122x77x28mm;

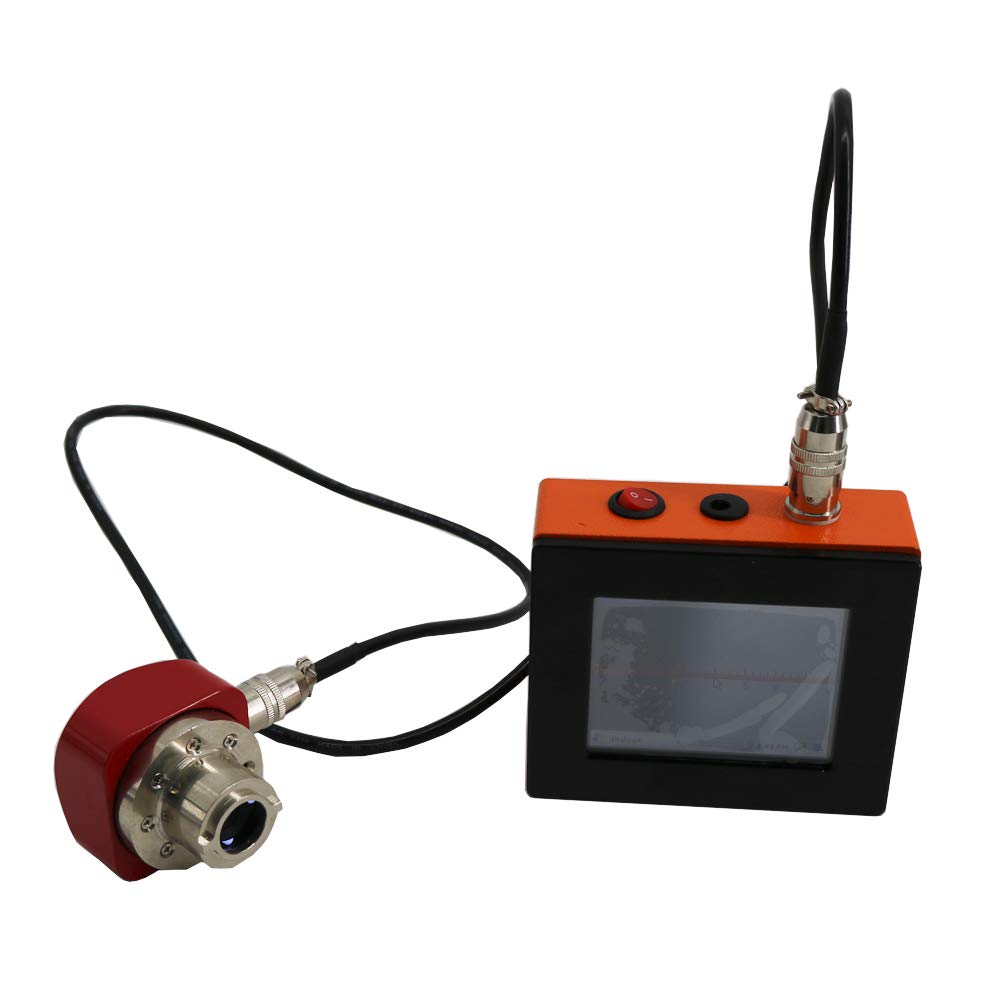

10. Probe size: 50x50x55mm;
11, weight: 265 grams of host, 80 grams of probe.
