New AI-8C Automatic Optical Fiber Fusion Splicer Intelligent FTTH Optic Fiber Welding Splicing Machine

Brand: Graigar

Features:

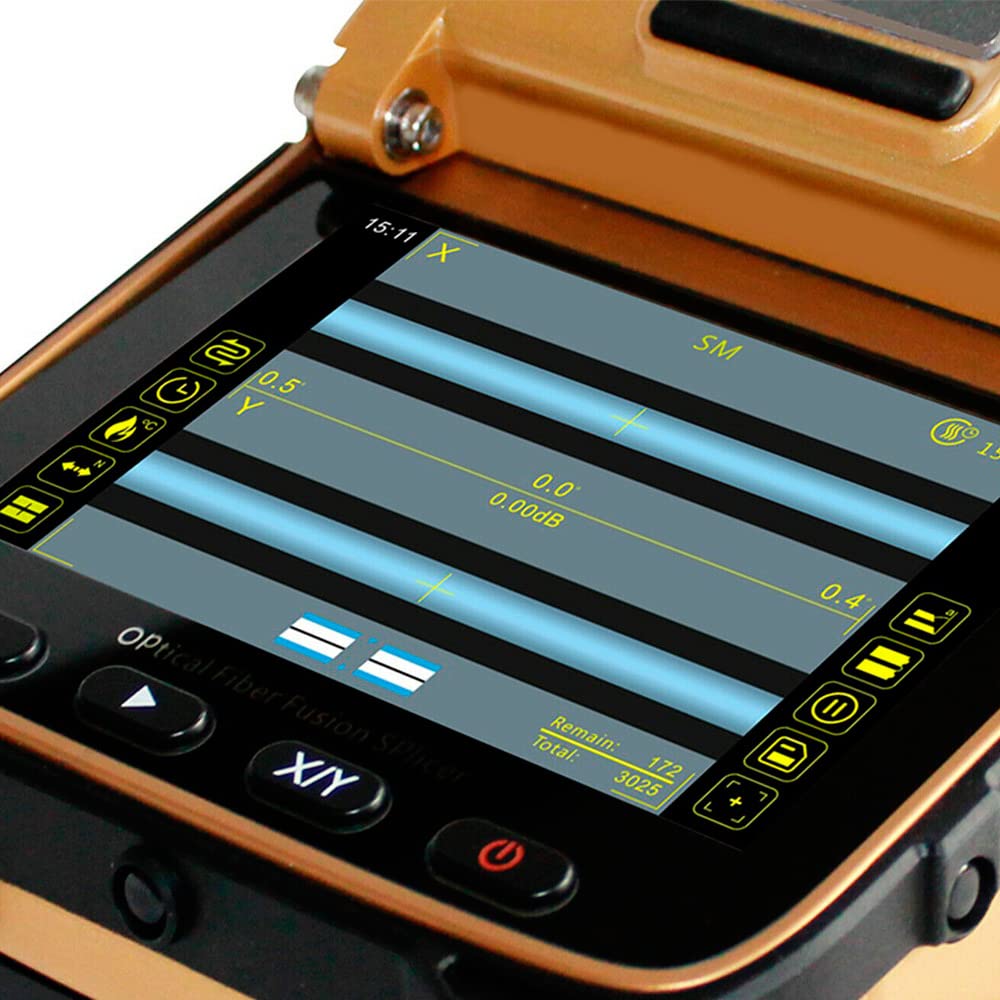

• With 5-inch high-resolution screen, the handheld fiber fusion splicer can get up to 300 times the focus magnifications when X/Y Axis is displayed separately. Due to the 7800 mah battery, the charging time is less than 3.5 hours. The fusion machine is especially suitable for optical fiber and cable projects, maintenance scientific research, electric power, and other communications.

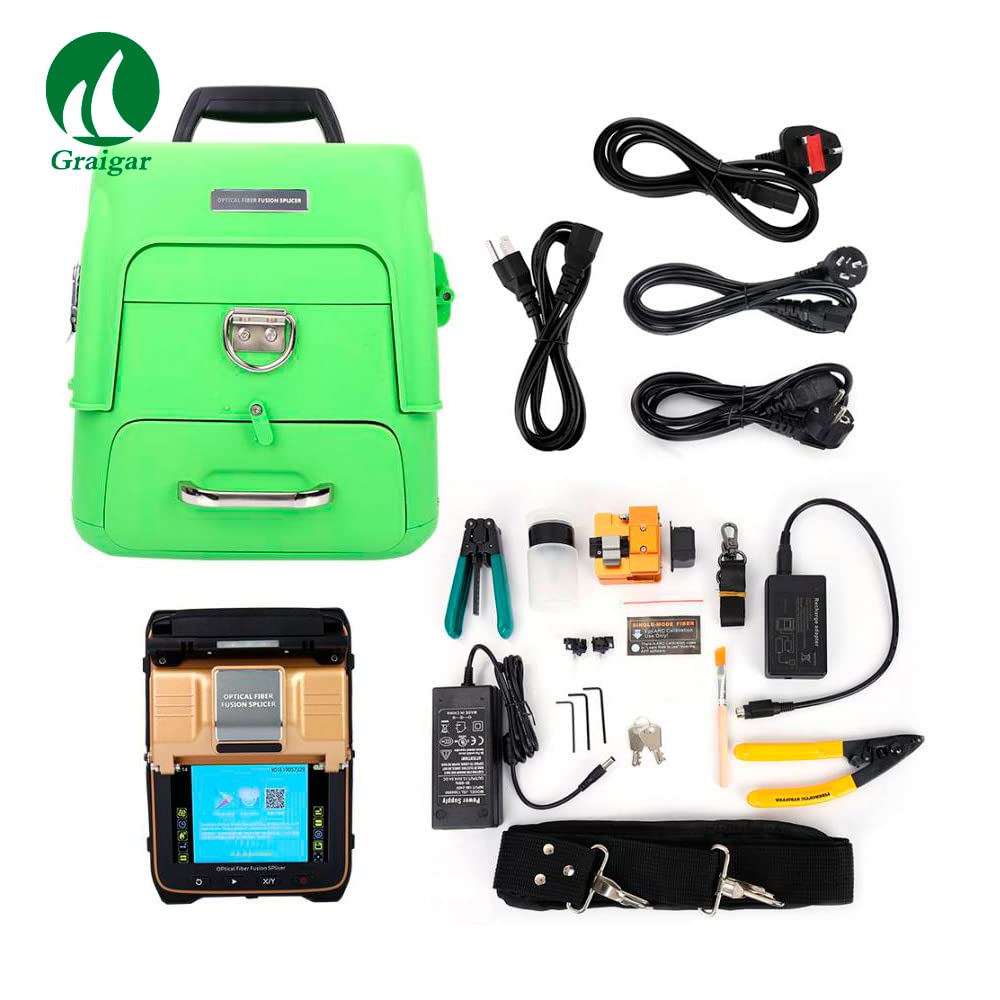

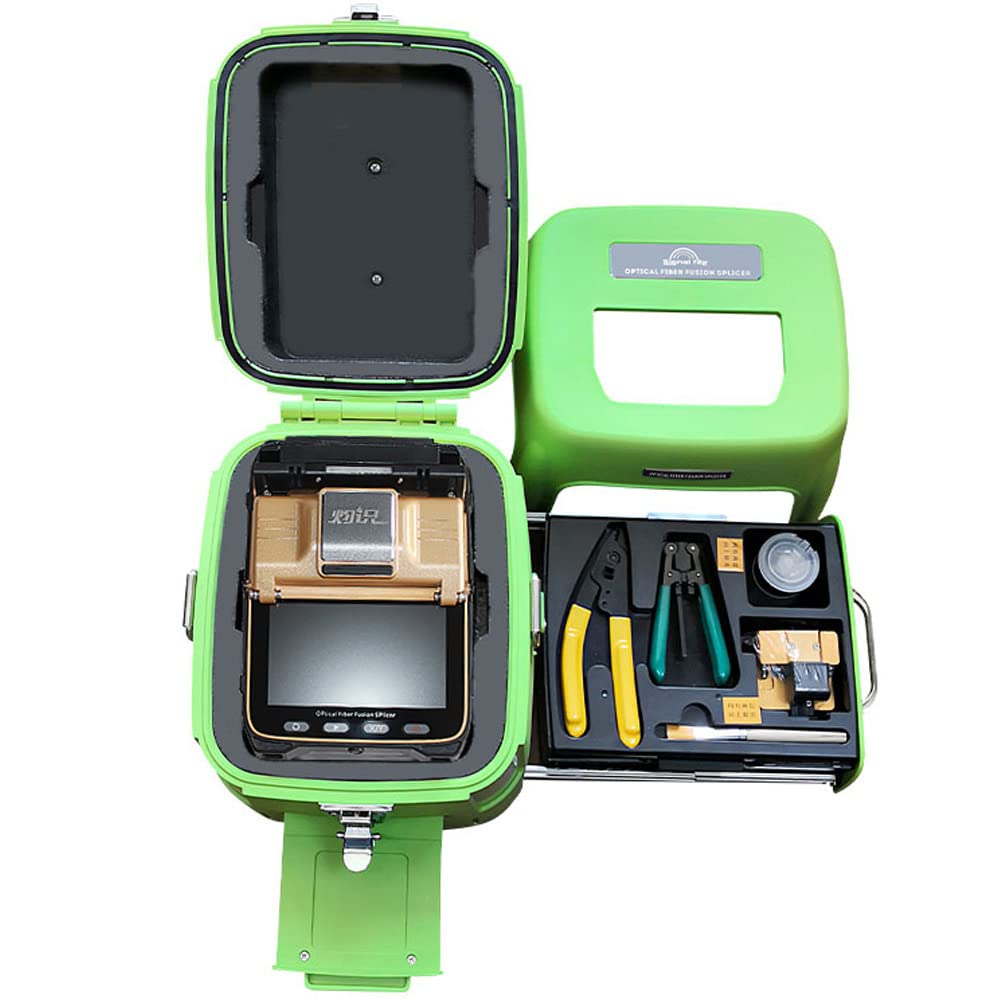

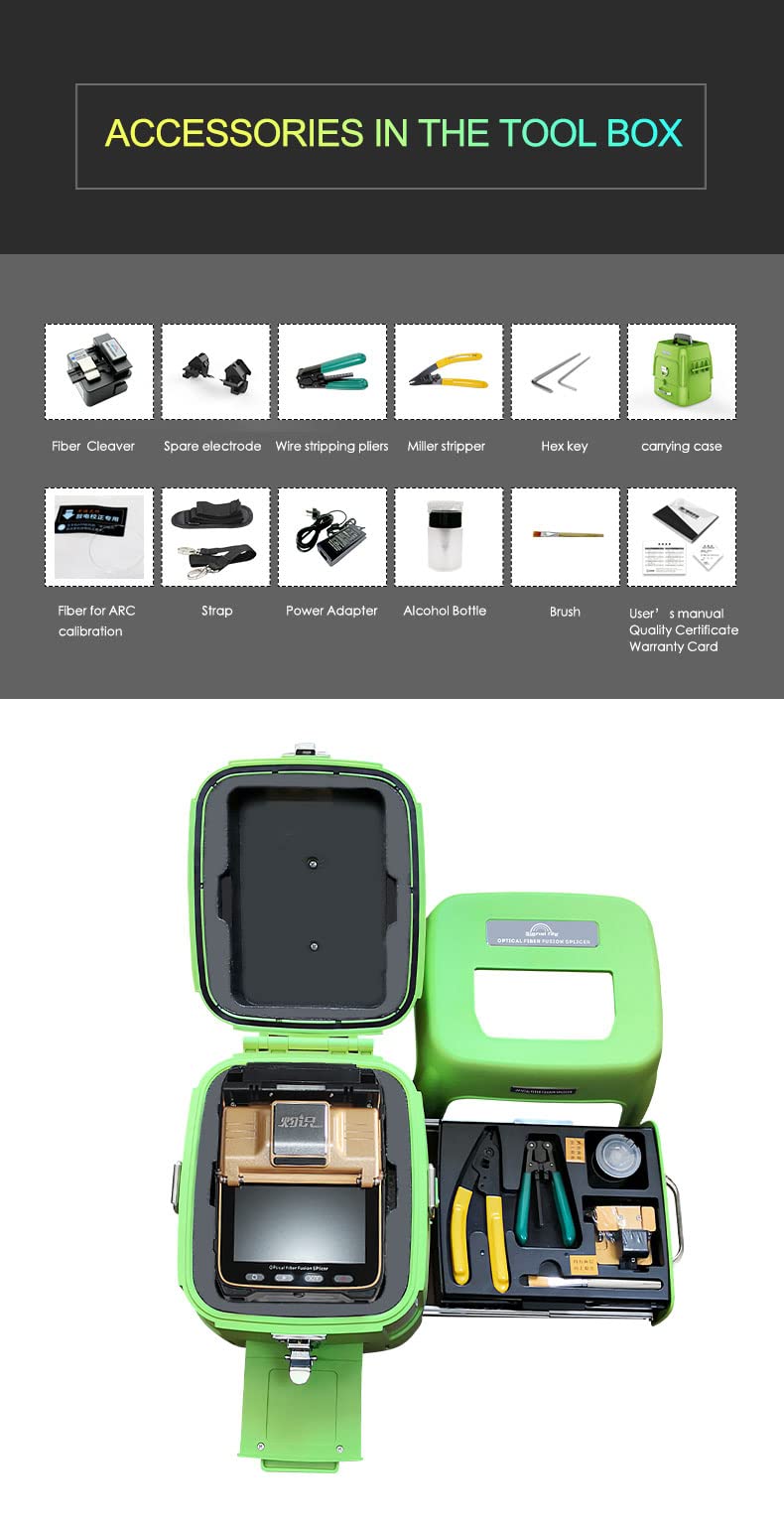

• Our AI-8C fiber fusion splicer also gives a separable toolbox, which can take out a stool for relaxing during work. And the box has two layers, featuring a large capacity. In addition, it provides excellent accessories, including a fusion cleaver, lithium battery, charger, and so on.
• The fiber fusion splicer machine is equipped with a multi-functional port, and you can use the external LED light at night for precise operation. You can also use it to charge your phone. The charging voltage: DC 13.5V/4A.
• Our fiber fusion splicer machine is equipped with 3 in 1 fiber holder, suiting for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable. Applicable fibers:SM(G.652&G.657);MM(G.651);DS(G.657);NZDS(G.655).
• 6 second splice time and 15 second heat time, continuous splice, and heats about 200 times. It is time-saving in operation.

model number: AI-8C

Part Number: AI-8C

Details: This fiber fusion splicer machine is mainly used to connect optical fibers with high performance and reliable quality, which can be further connected with ordinary optical fiber cables, jumpers, multiple-mode, and dispersion-shifted quartz optical. It features 6 second splice time and 15 second heat time, 200 heating time due to the high-capacity battery.
Faster Splicing & Heating
3-in-1 Fiber Holder
Charging Functional Port

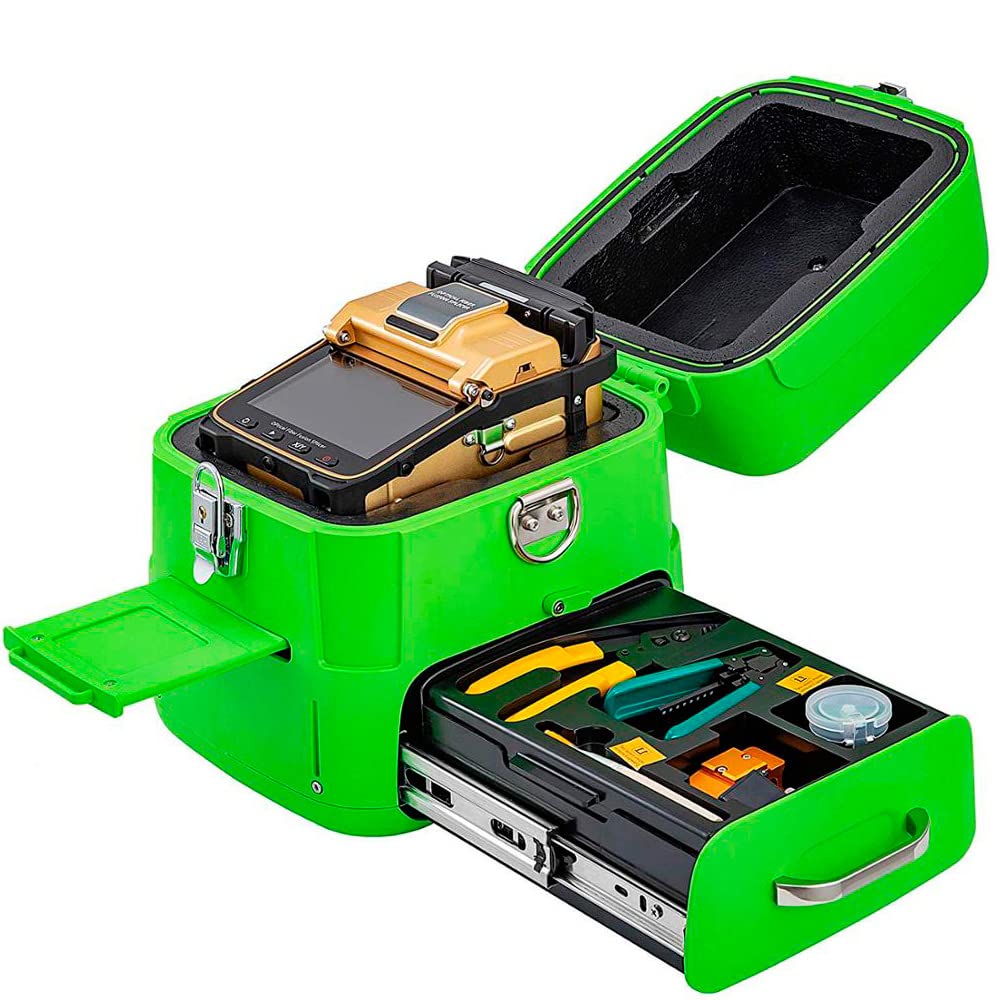

Separable and Portable Design
Clear LCD & Long Time Standby
Specifications
Fiber alignment: Core/cladding alignment / Manual alignment
Splicing time: 6s
Heating time: 15s
Heating mode: Automatic heating (Preheating)
Focus mode: Six motors Auto focus
Applicable fibers: SM(G.652&G.657) / MM(G.651)DS(G.657) / NZDS(G.655)
Splice Loss: 0.025dBm (SM) / 0.01dB (MM) / 0.04dB (DS/NZDS)
Control technology: Real-time control and calibration of fusion ARC
Return loss: Better than 60dB

EAN: 0707457579867
