New Hantek 6074BE 4 Channels 70 Mhz Bandwidth Automotive Oscilloscope Digital USB Portrait Osciloscopio Diagnostic-Tool

New Hantek 6074BE 4 Channels 70 Mhz Bandwidth Automotive Oscilloscope Digital USB Portrait Osciloscopio Diagnostic-Tool

$275.00 USD
$275.00 USD
促销 售罄

New Hantek 6074BE 4 Channels 70Mhz Bandwidth Automotive Osiclloscope Digital USB Portrail Osciloscopio Diagnostic-Tool



Feature:

· Standard equipped over 80 types of automotive measurement function;

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition

Ignition: primary and secondary

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starter and charging circuits

·         Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.

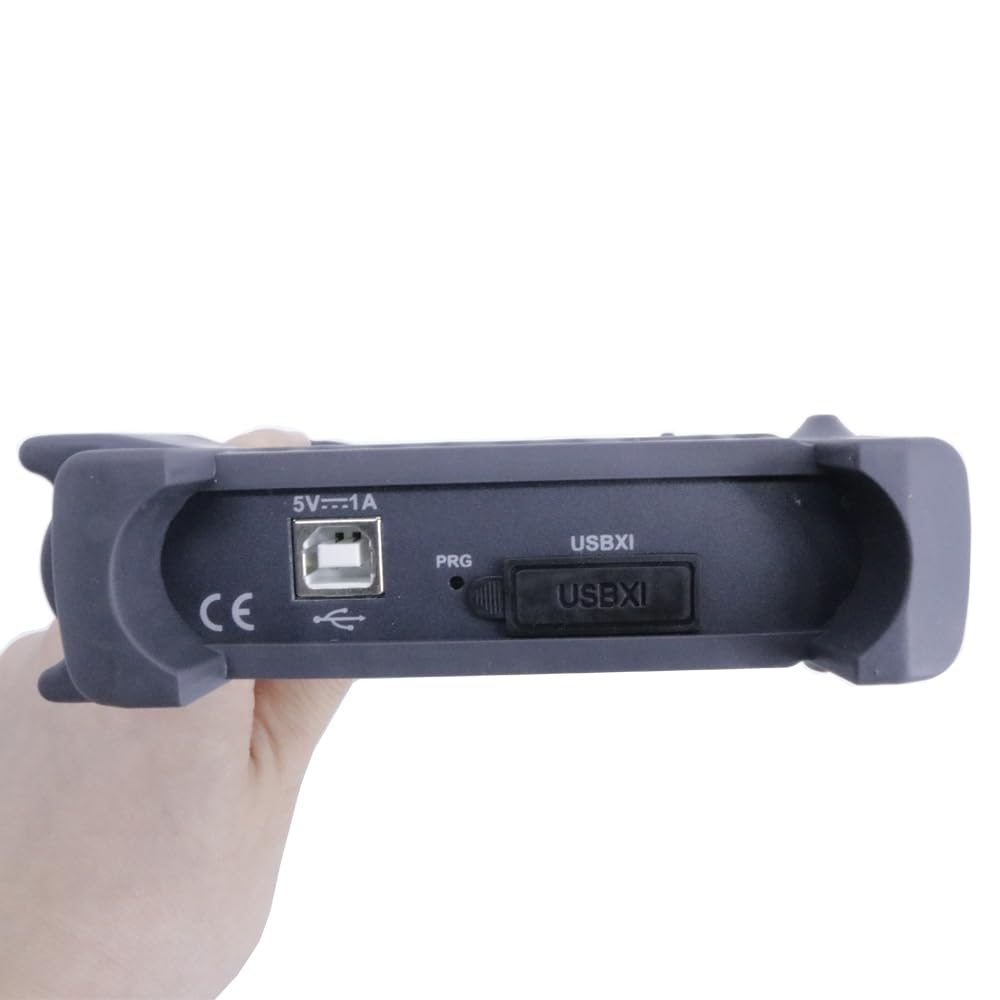

·         USB 2.0 interface plug and play, and no need extra power supply;

·         Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

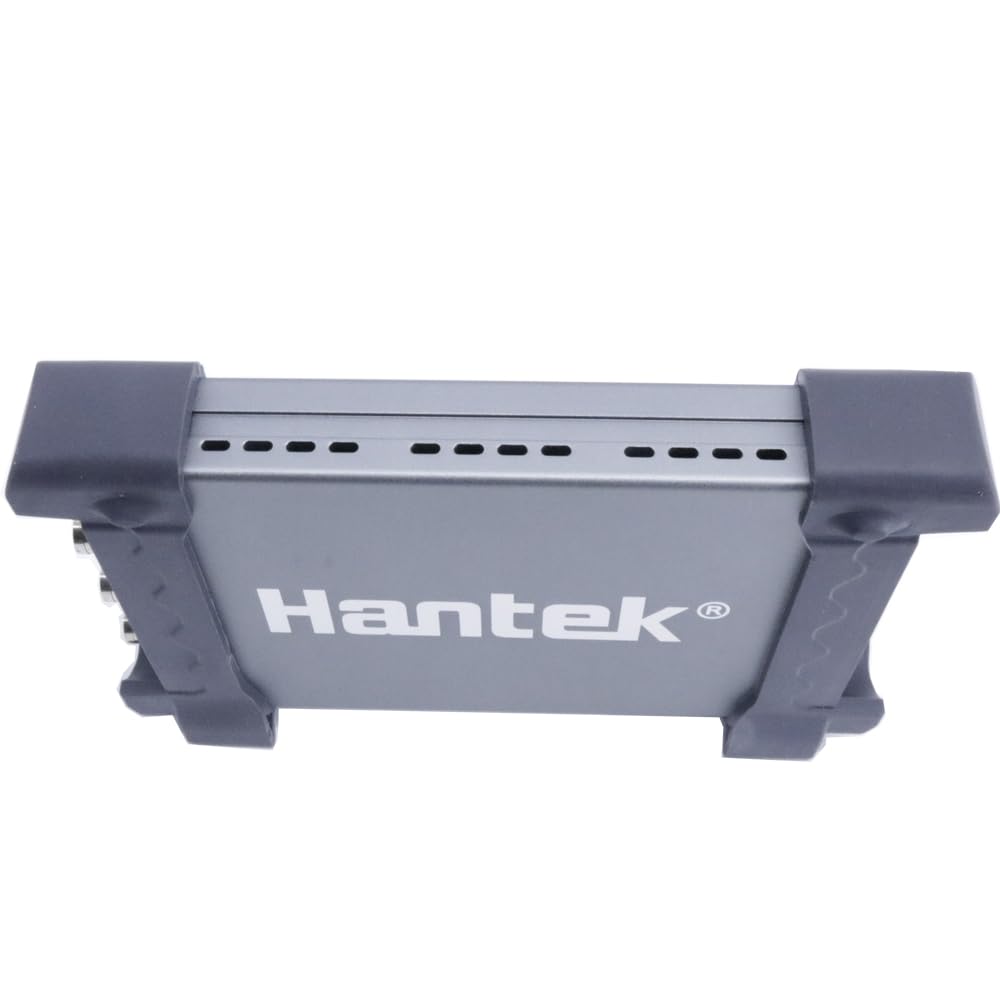

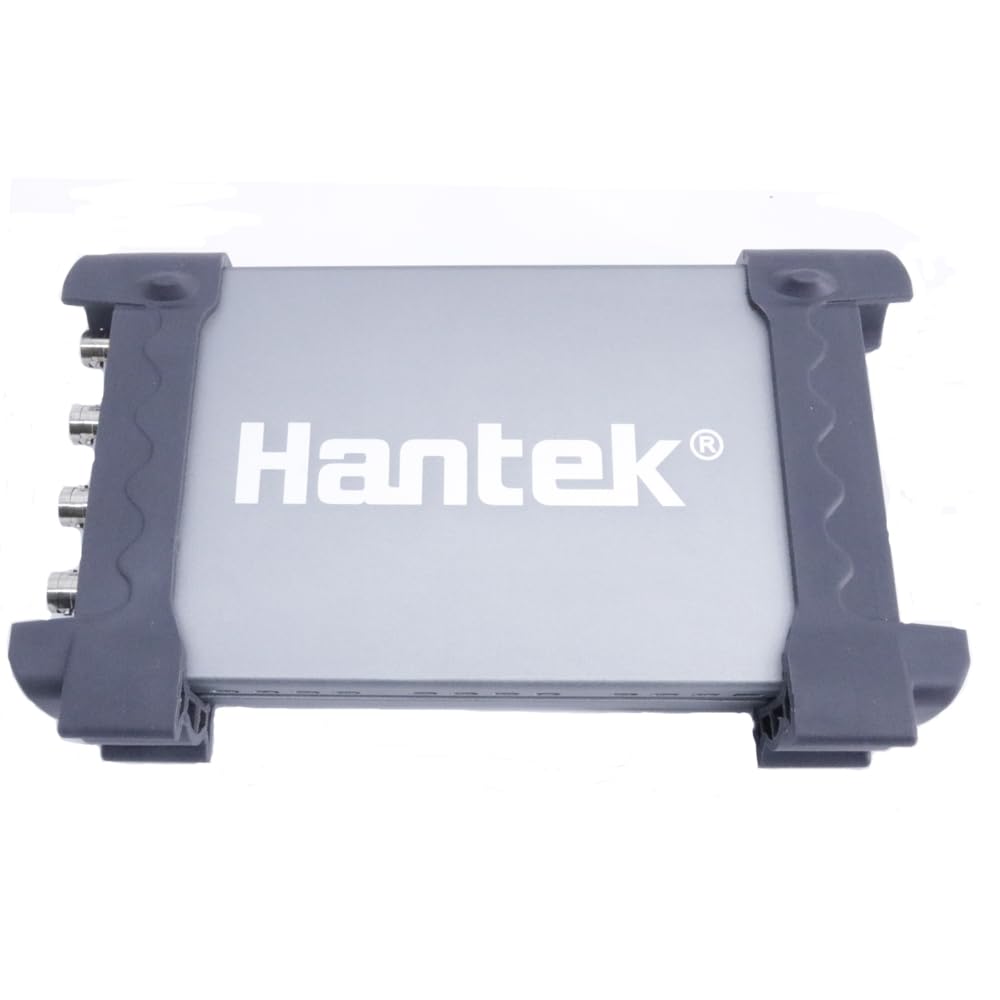

·         Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

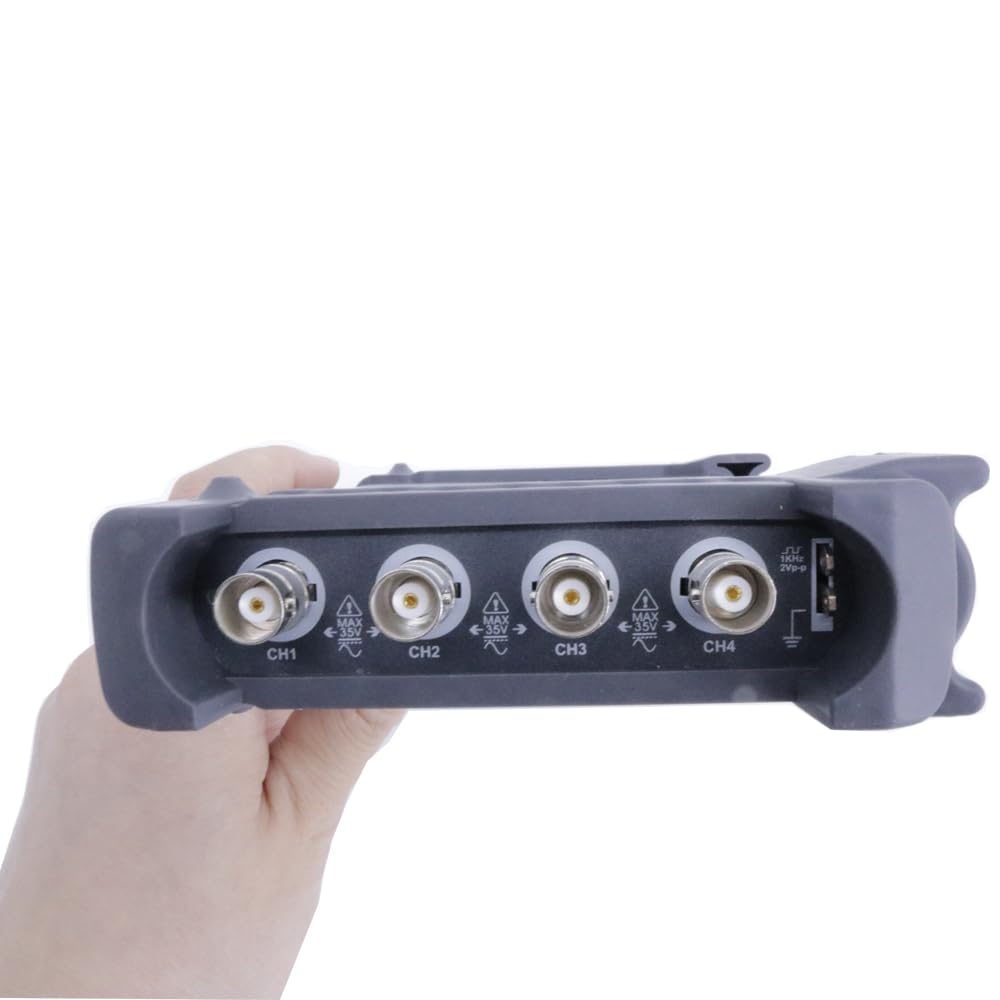

·         4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,

·         The waveform data could be output to EXCEL,BMP,JPG.

·         Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

·         FFT spectrum analyzer

·         One computer could connect with multiple oscilloscopes, expand the channel number easily.

·         Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples.

Characteristic:

Bandwidth

70MHz

Automotive  Measurement Function

Intake manifold vacuum &  ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust  ignition, Starting exhaust ignition;

Sensor: Air Flow Meter,  Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;

CAN bus data examine, CAN bus  signal integrity, CAN bus LH long time acquisition, LIN bus;

Performer: Petrol/Diesel;

Starter and charging circuits

Channel

4 CH

Real-time  Sampling Rate

1GSa/s

Memory Depth

64K

Time Base Precision

±50ppm

Time Base  Range

2ns/div-1000s/div (1-2-4 sequences)

Input  Impedance

1MΩ 25pF

Input  Sensitivity

2mV/div~10V/div

Vertical  Resolution

8Bit

Vertical  Displacement Range

2mV ~ 10V/div @ x1 probe;  20mV ~ 100V/div @ x10 probe;
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe

DC Gain  Accuracy

±3%

Bandwidth

20MHz

Trigger Mode

Edge, Pulse,  Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform  Signal Process

+,-,x,÷,FFT,  Invert

Cursors  Measurement

Cross, Trace,  Horizontal, Vertical

Auto  Measurement

Vpp, Vamp,  Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,  Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty  Cycle

Volume

175mm * 105mm  * 25mm

Weight

0.9KG

Accessory

2 passive  probes, 2 gator clip lines

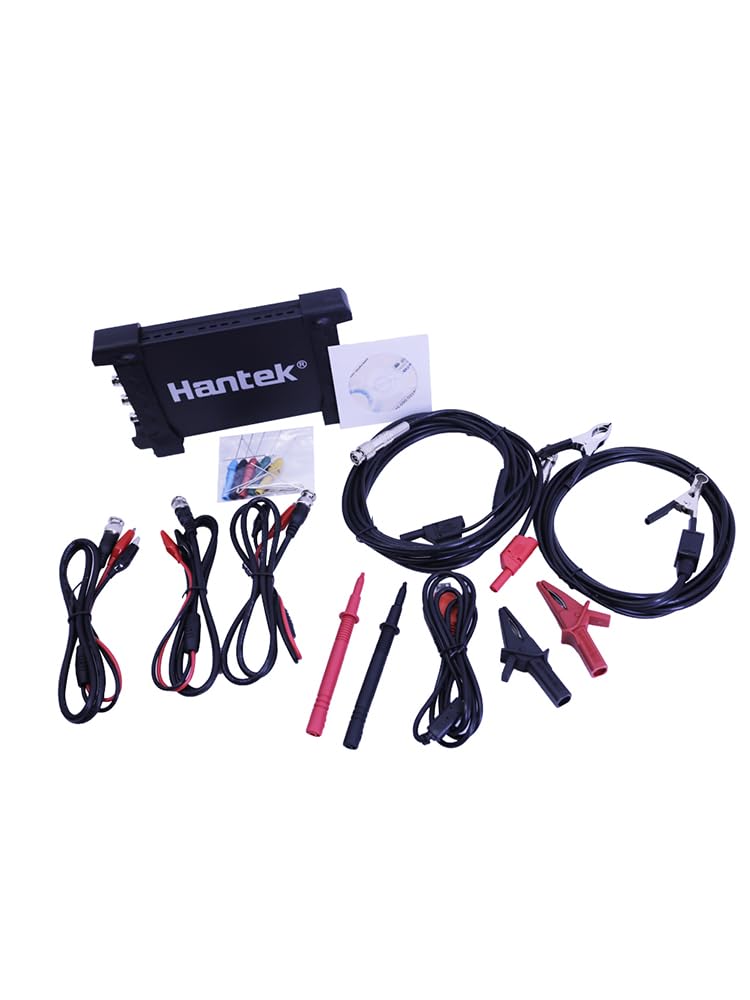

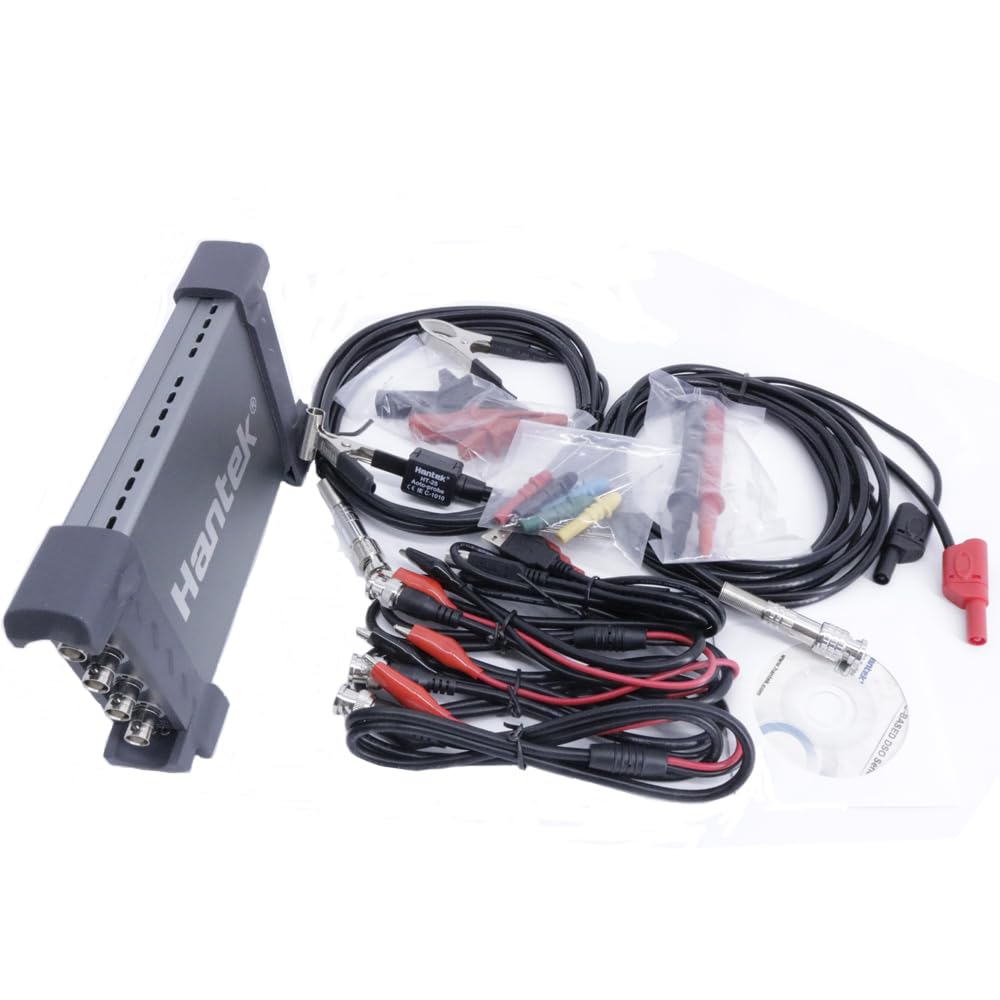

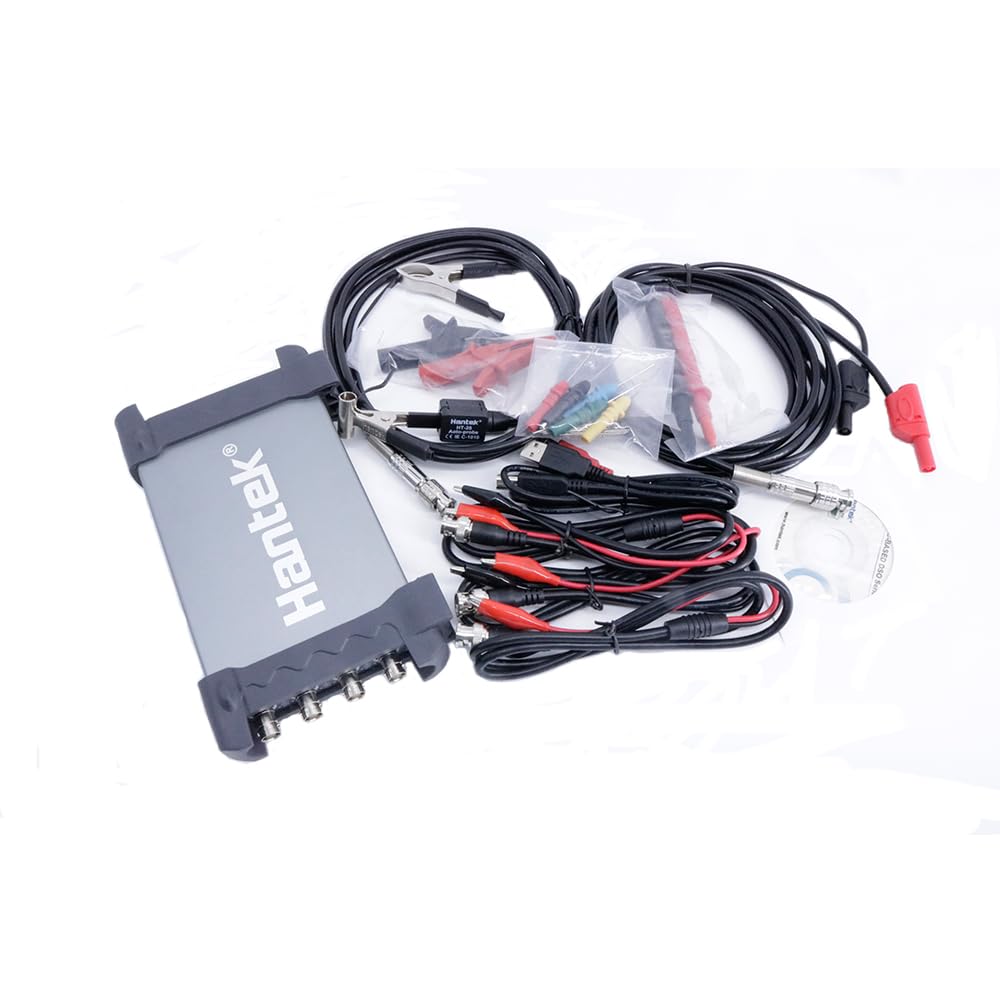

Package List:

1 * Car Diagnostic Oscilloscope
1 * Large Dolphin/Gator Clip
1 * Multimeter Probe
1 * Auto High-Pressure Ignition
1 * Auto Test Cable
1 * Acupuncture Probe Set
3 * Dolphin/Gator Clip Cable
1 * USB Power Line
1 * Upper-computer Software CD with User Manual

Brand: Visit the Hantek Store

Features:

  • · Standard equipped over 80 types of automotive measurement function; First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition Ignition: primary and secondary Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus Performer: Petrol/Diesel Starter and charging circuits
  • · Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc. · USB 2.0 interface plug and play, and no need extra power supply; · Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
  • · Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
  • · 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, · The waveform data could be output to EXCEL,BMP,JPG. · Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
  • · FFT spectrum analyzer · One computer could connect with multiple oscilloscopes, expand the channel number easily. · Provide secondary development library DLL; Provide LabviewVBVCQT developing examples.

Part Number: ‎Hantek 6074BE
