Ra, Rz, Rq, Rt 4 testing parameters, suitable for more applications.

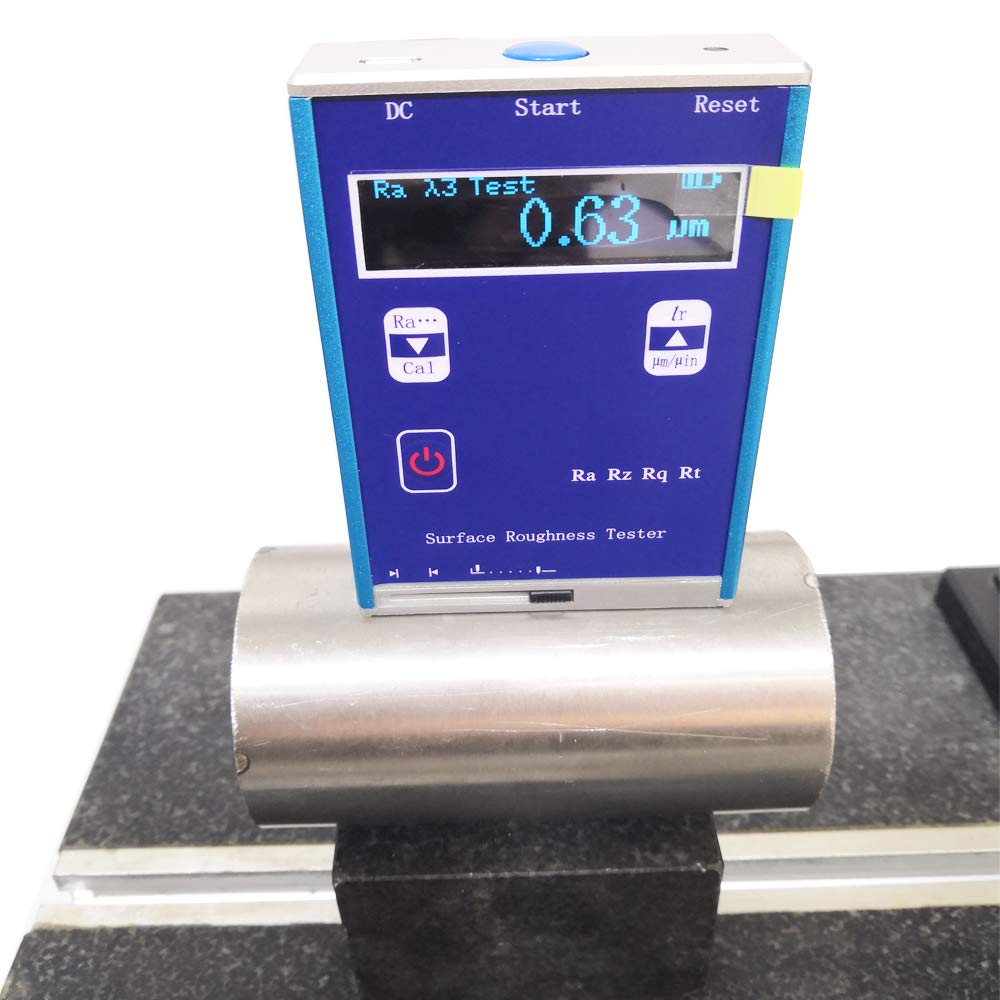

It could test ex-circle, flat surface, conical surface and also test groove larger than 80*30mm;
Large measuring range suitable for most materials, both metal and non-metallic surface;
Using high-speed DSP processor for data processing and calculation, quick measurement and computation speed;
Shell used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly;

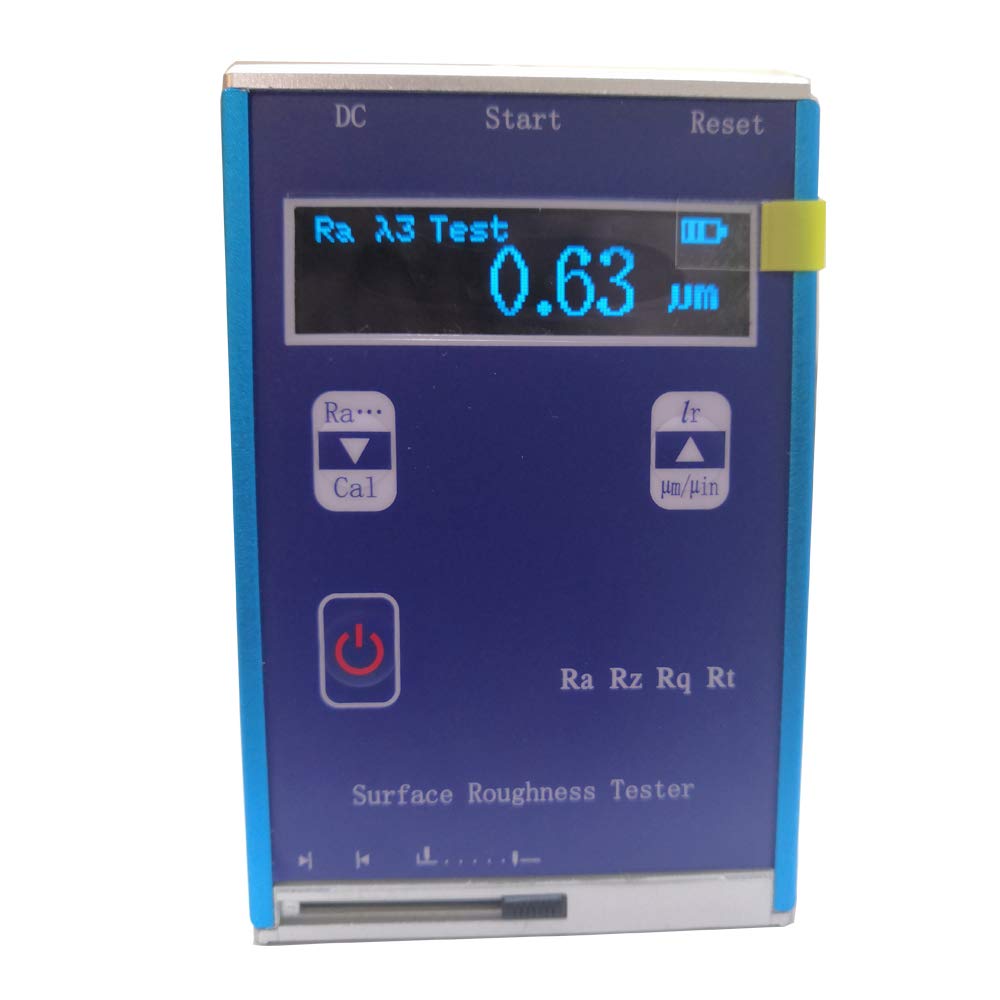

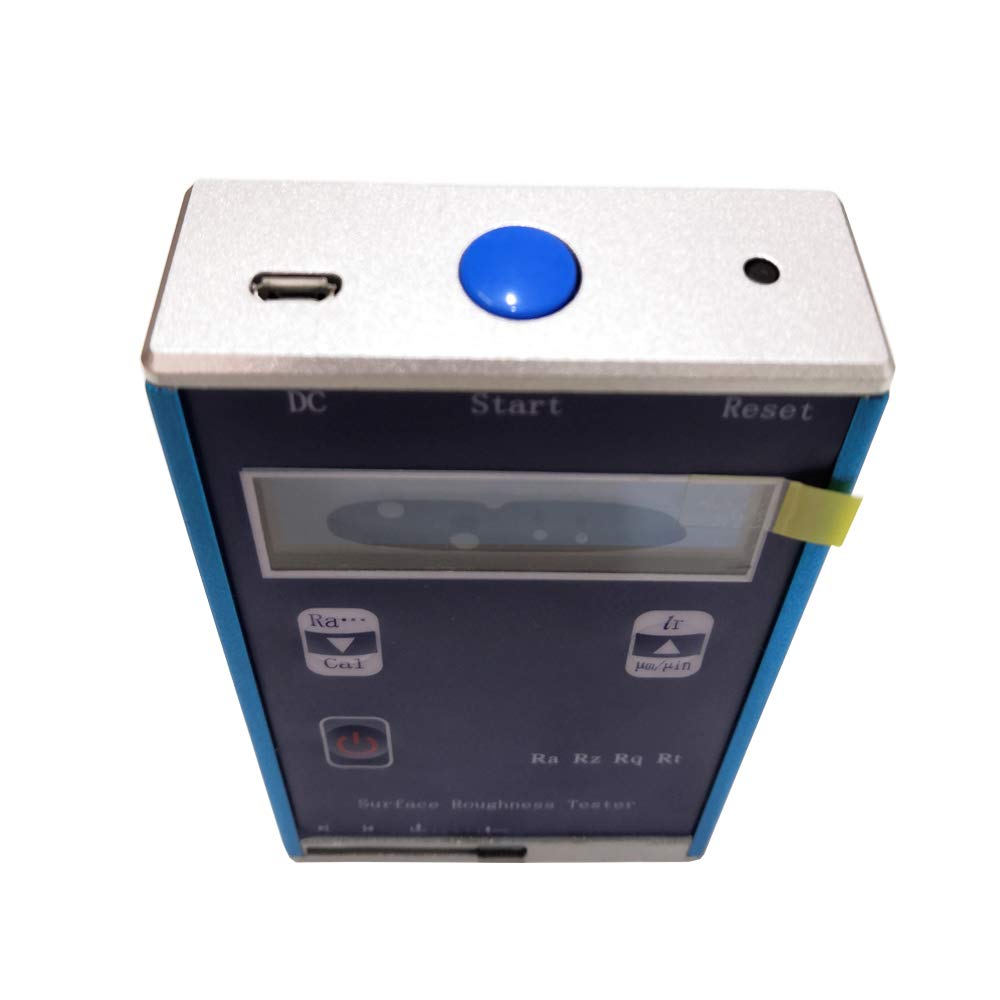

Part Number: KR110B
Details: Liquid crystal display wide temperature using OLED display, high brightness, suitable for various occasions;
The lithium ion rechargeable battery, can work for a long time, no memory effect, long battery life;
Using a dedicated charger or computer USB port for charging, can work during charging, quick and convenient;
Real-time monitoring of lithium battery power and display, remind users to charge;
Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use.
TECHNICAL DATA
4 Testing Parameters:Ra, Rz, Rq, Rt;
Measuring Range: Ra, Rq: 0.05~15.0μm Rz,Rt: 0.1~50.0μm
Sample Length:0.25, 0.80, 2.50mm
Evaluation Length:1.25, 4.0, 5.0mm
Stroke Length:6mm
Indication Accuracy:0.01μm
Indication Error:≤±15)%
Variability:<12%
Stylus Static Force:≤ 0.016N
Force Measuring Rate of Change:≤ 800N/m
Power:Rechargeable Li-battery
Relative Humidity:<90%
Working Temperature:-20°C~40°C
Size:106mmx70mmx24mm
Weight of Host:200g

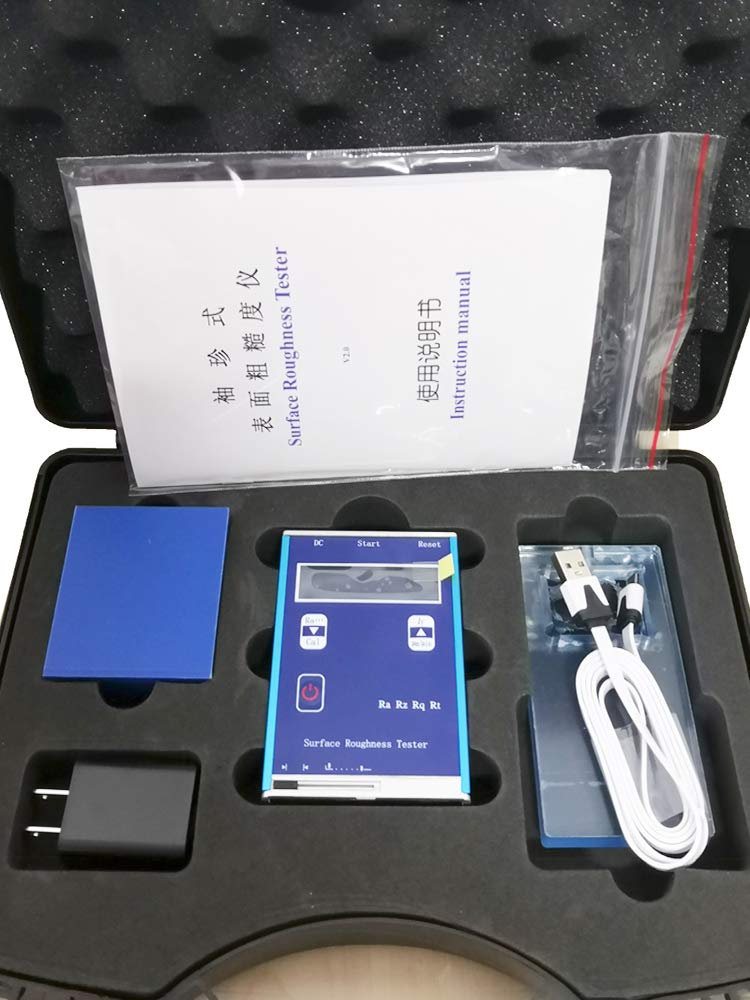

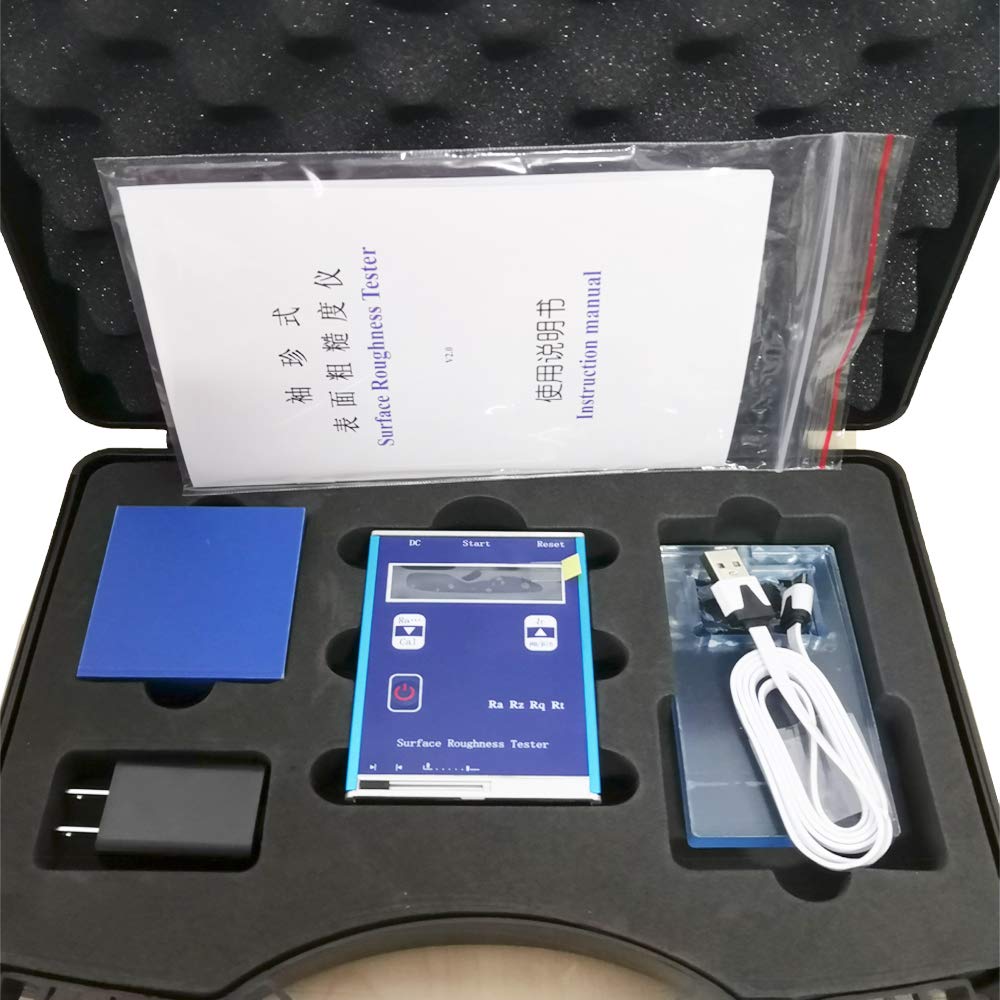

STANDARD DELIVER
KR110B Host 1 PC
Standard Calibration Block 1 PC
Bracket for Calibration Block 1 PC
Power Charger 1 PC
Charging Cable 1 PC
User Manual 1 PC
Instrument Case 1 PC
