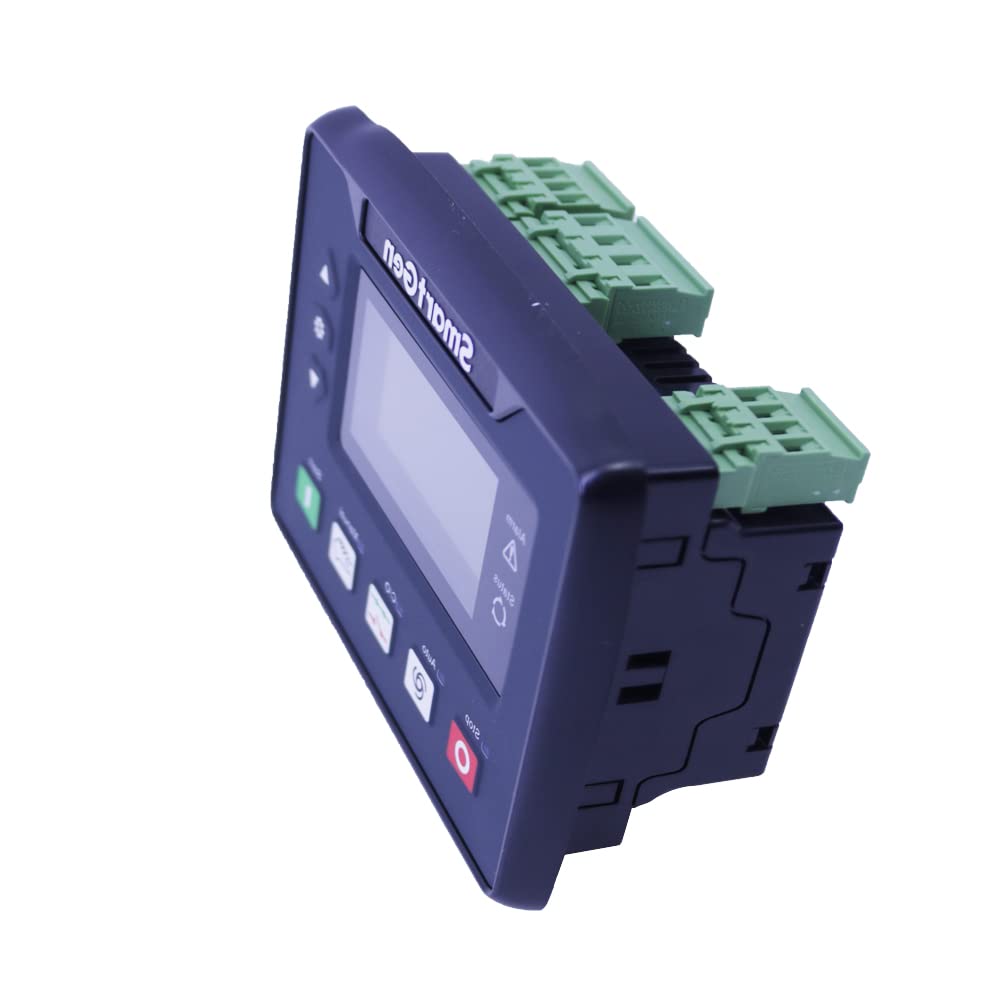

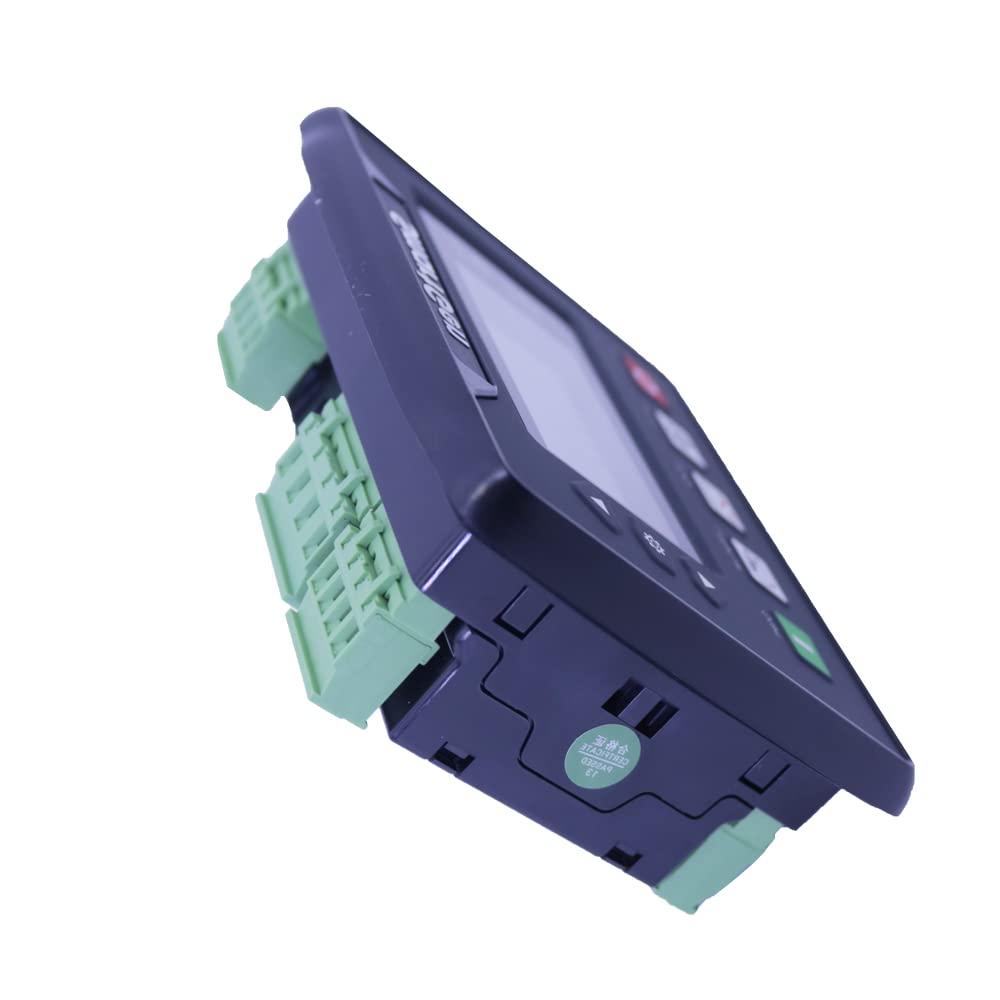

New Smartgen HGM4010N Single Unit Genset Generator Controller Remote Monitoring Automatic Start Module ASM Panel

Brand: Graigar

Color: Black

Features:

• 132x64 LCD with backlight, selectable language interface (Chinese, English, Spanish, Russian, Turkish, French, Portugal, and Polish), push-button operation.
• Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions.Silicone panel and pushbuttons can be used in extreme temperature environment.
• RS485 communication interface enable “Three remote functions” (remote control, remote measuring and remote communication) according to MODBUS protocol.
• Equipped with CANBUS port and can communicate with J1939 genset. Not only can monitor frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown , raising speed and speed droop via CANBUS port (need controller with CANBUS interface).
• Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;

model number: HGM4010N

Part Number: HGM4010N

Details: HGM4000N series genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measurement, alarm protection and etc. functions. It fit with LCD display, optional languages interface (Chinese, English, Spanish, Russian, Turkish, French, Portugal, and Polish), and it is reliable and easy to use.
HGM4000N series genset controllers adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. All parameters can be configured from front panel or through programmable interface (USB or RS485 interface) via PC. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.

HGM4010N/HGM4010NC/HGM4010CAN: ASM (Automatic Start Module)，it controls generator to start/stop by remote signal;

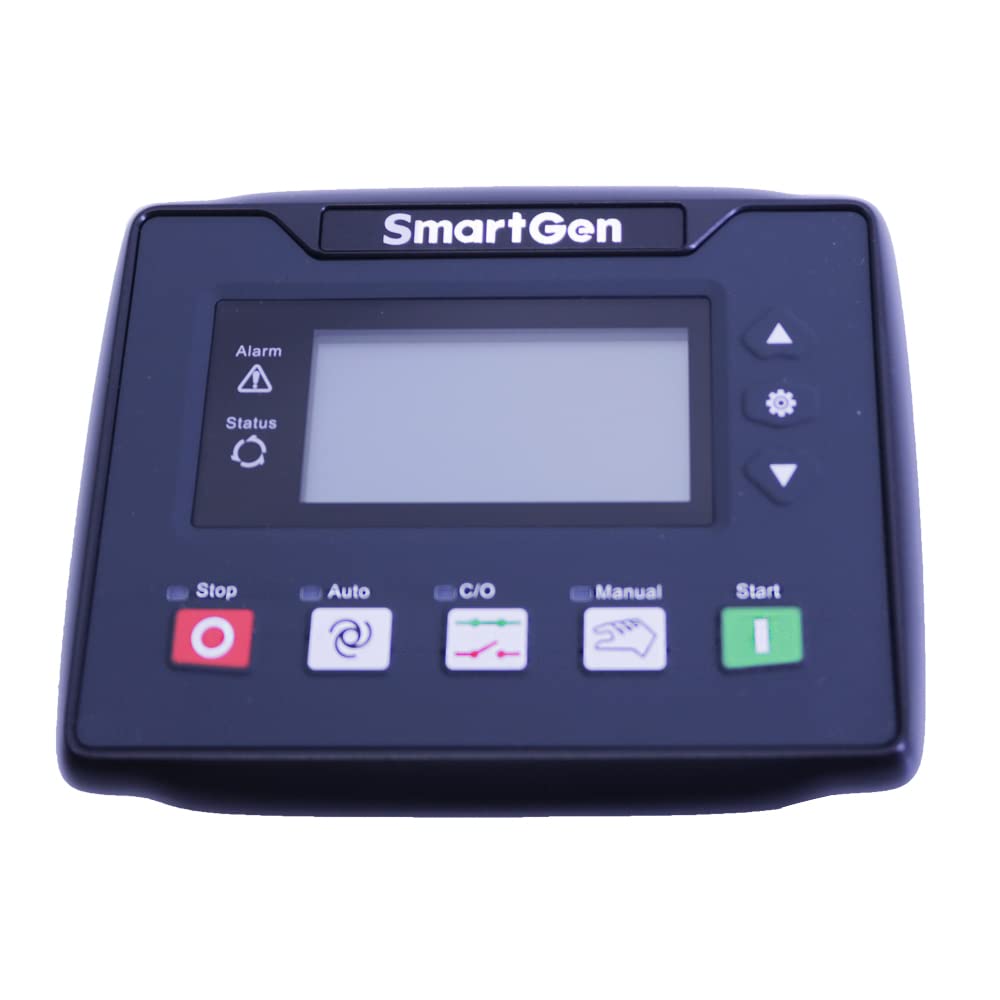

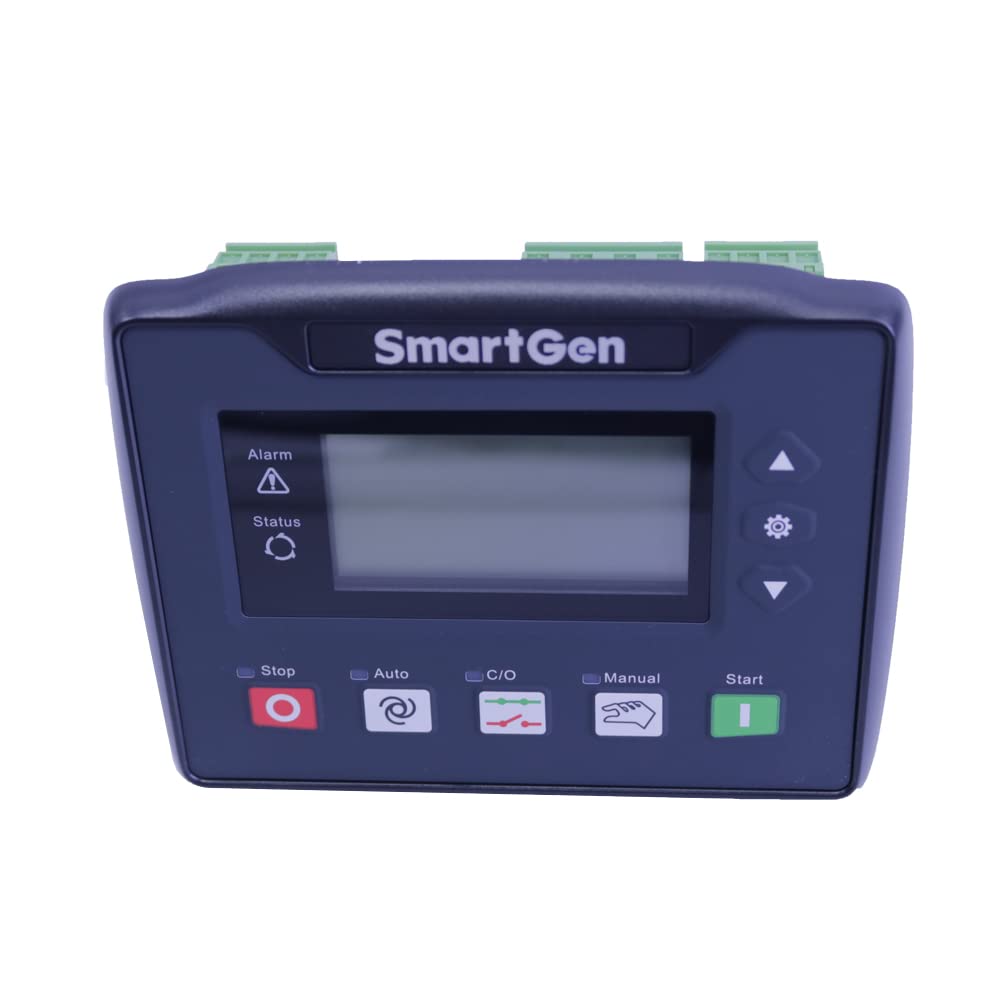

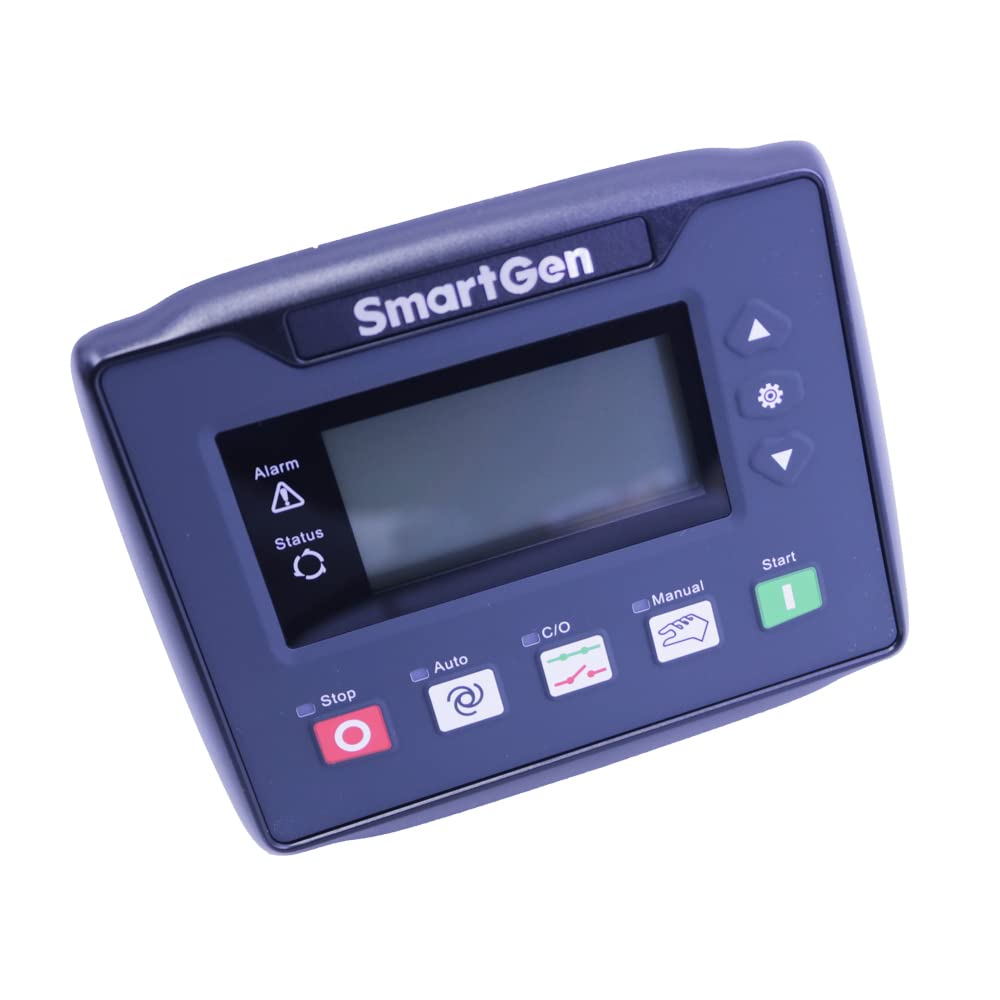

Display:LCD(132*64)
Operation Panel:Silicon Rubber
Language:Chinese & English & Others(A total of eight languages)

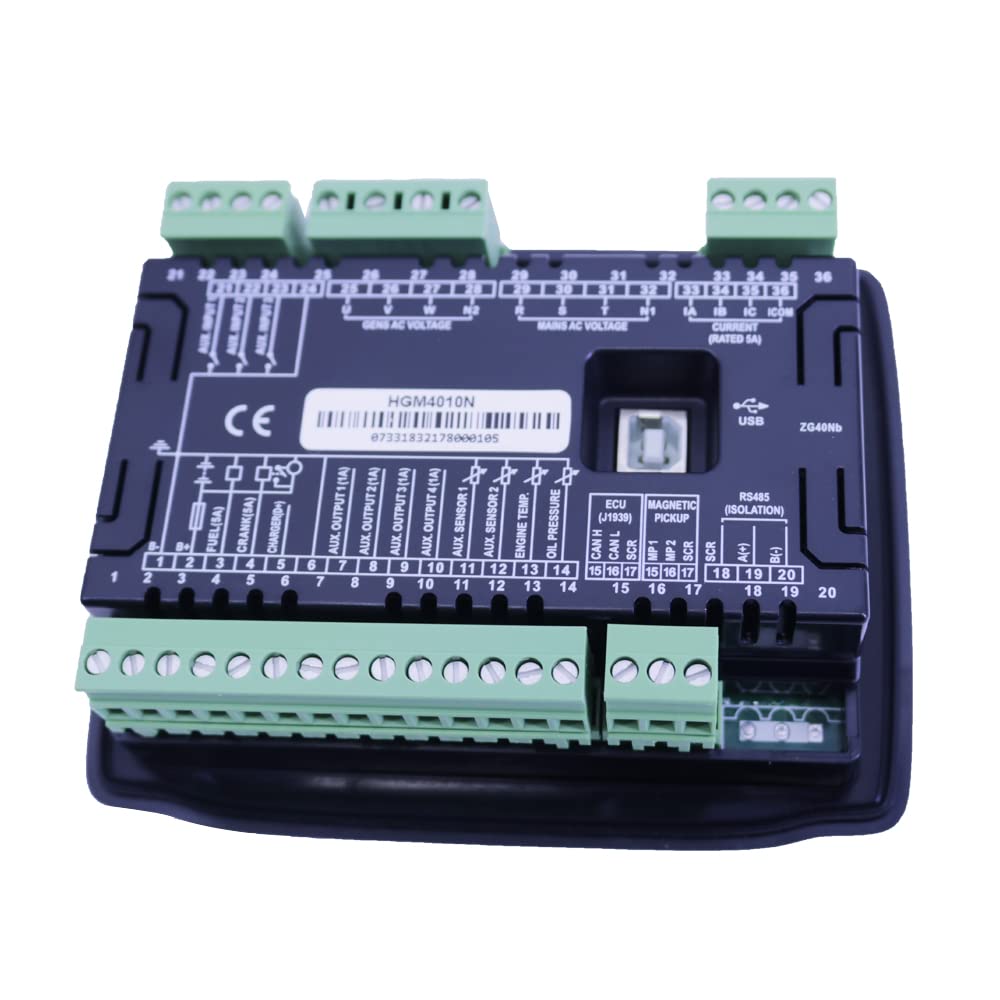

Digital Input:5(Two Multi-function)
Relay Output:6
Analogue Input:4
AC System:1P2W/2P3W/3P3W/3P4W
Alternator Voltage:(15～360)V(ph-N)
Alternator Frequency:50/60Hz
kW/Amp Detecting & Display:●
Monitor Interface:RS485
Programmable Interface:USB
RTC & Event Log:●
Scheduled Start Genset:●
Maintenance:●
DC Supply:DC(8～35)V
Case Dimensions(mm):135*110*44
Panel Cutout(mm):116*90
Operating Temp:.(-25~+70)℃

EAN: 0707457580351
