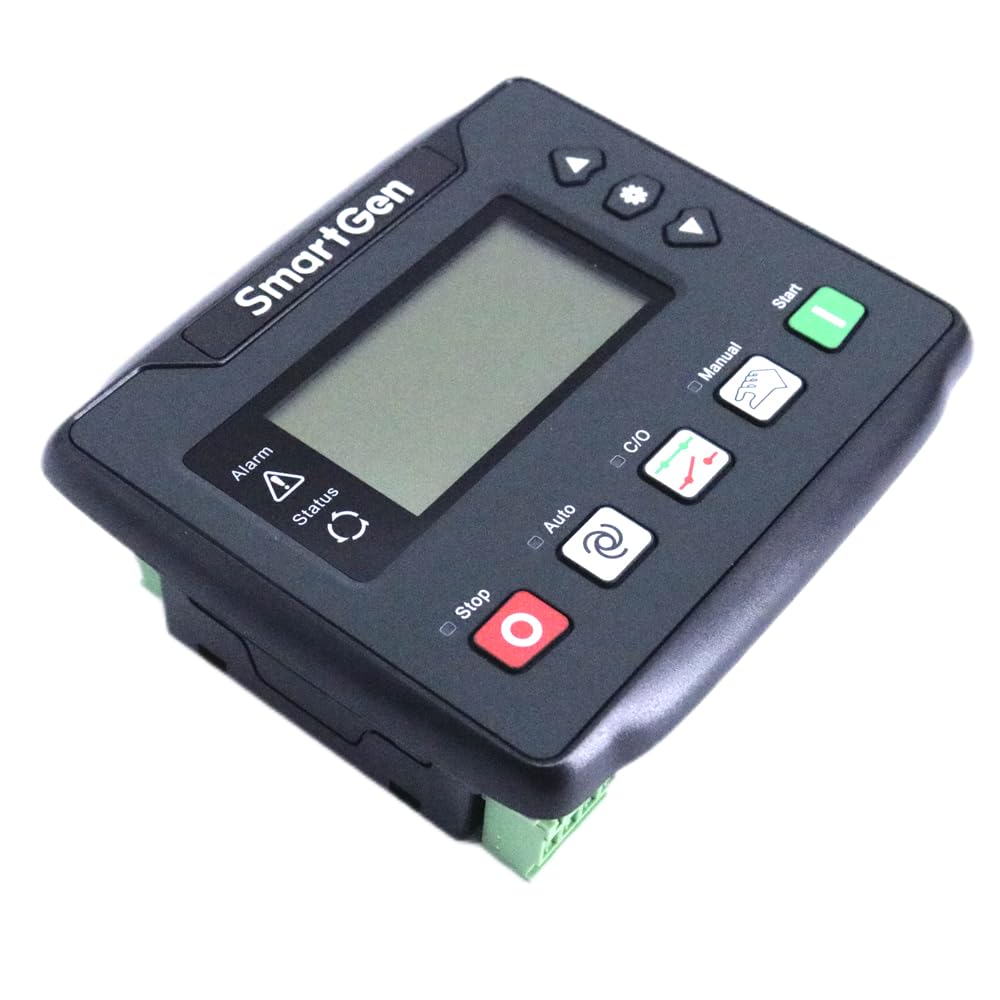

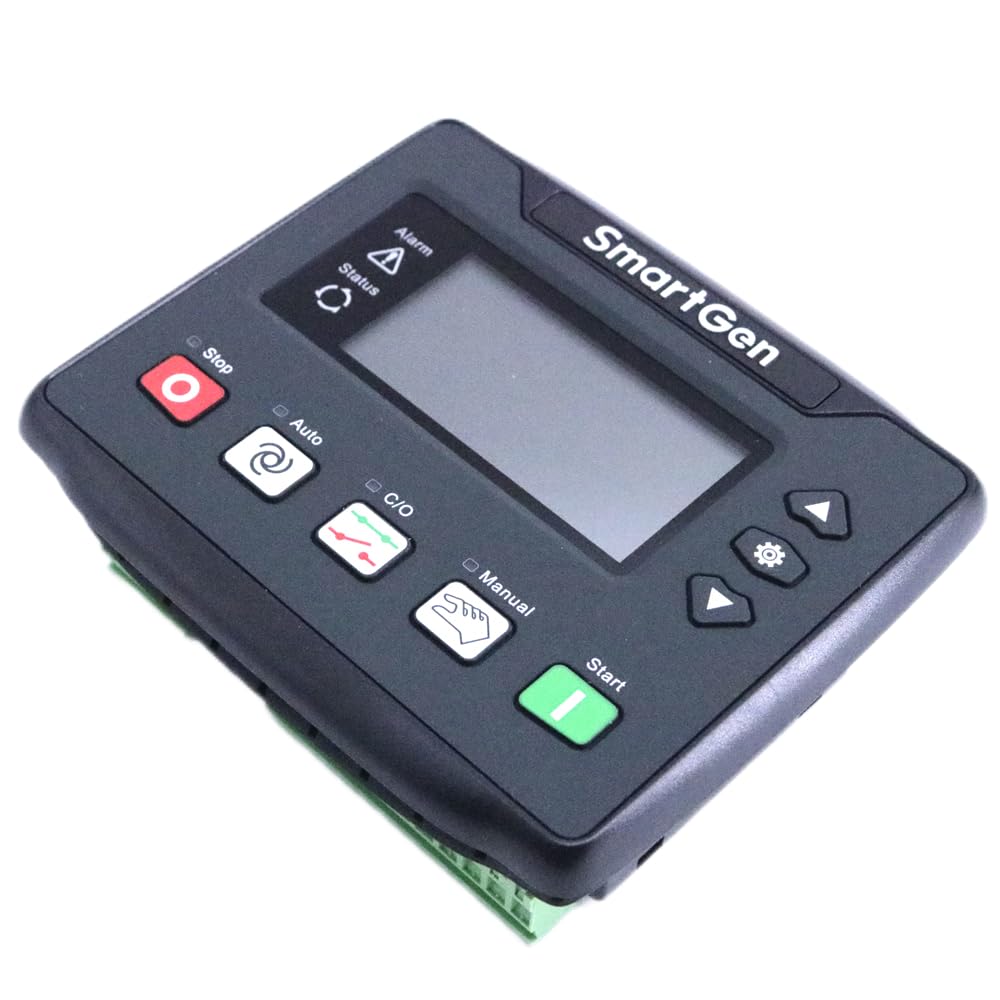

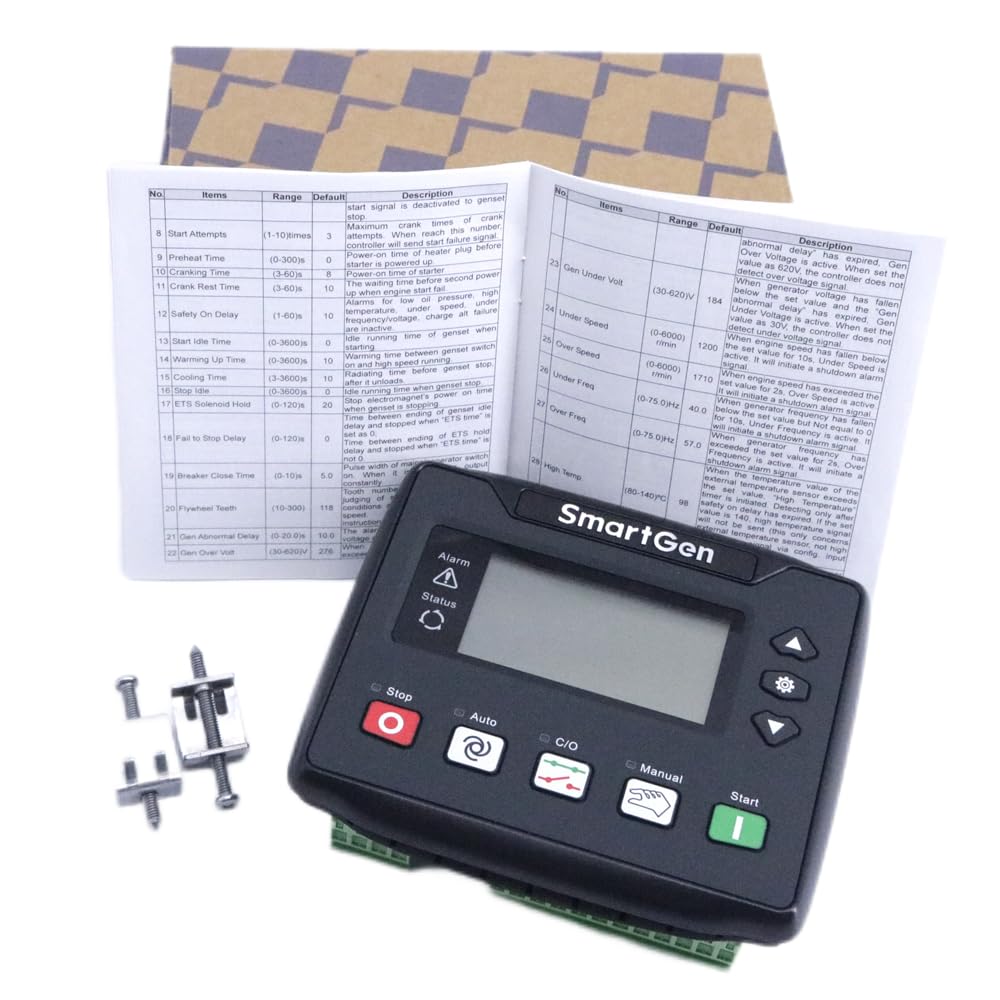

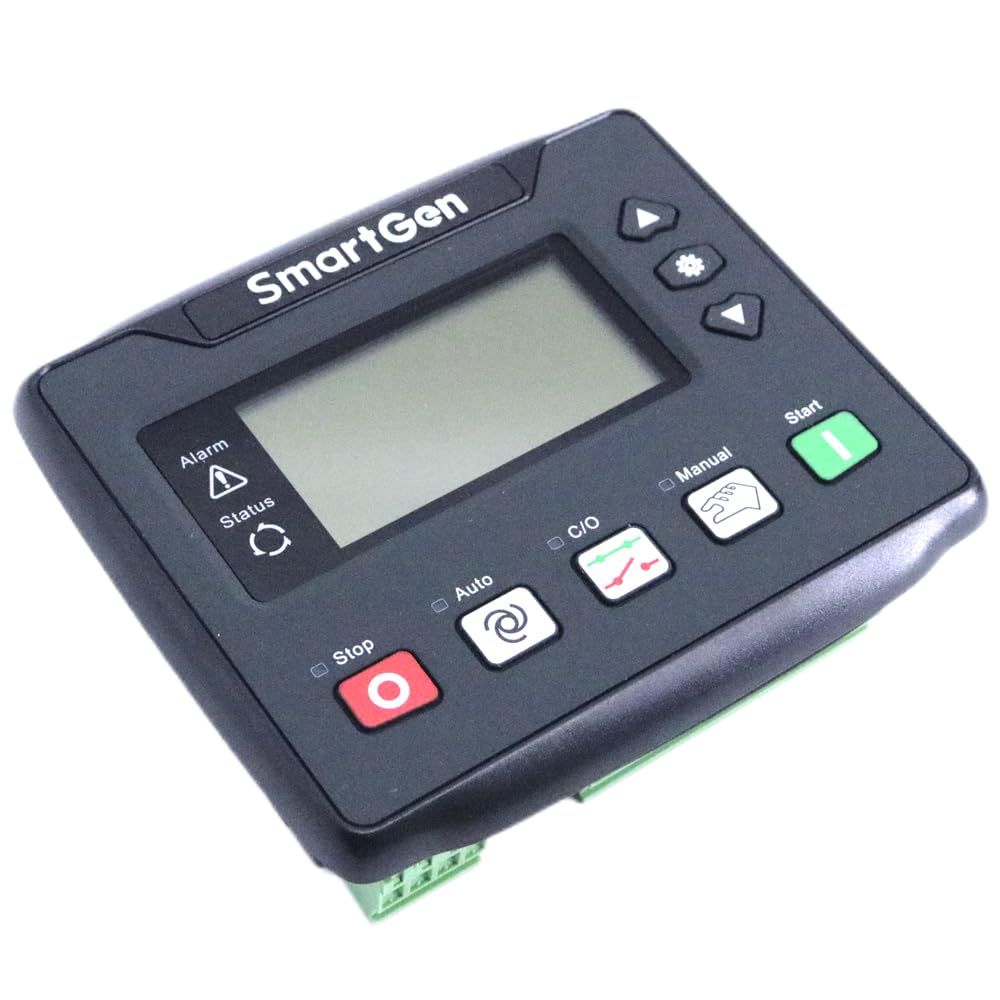

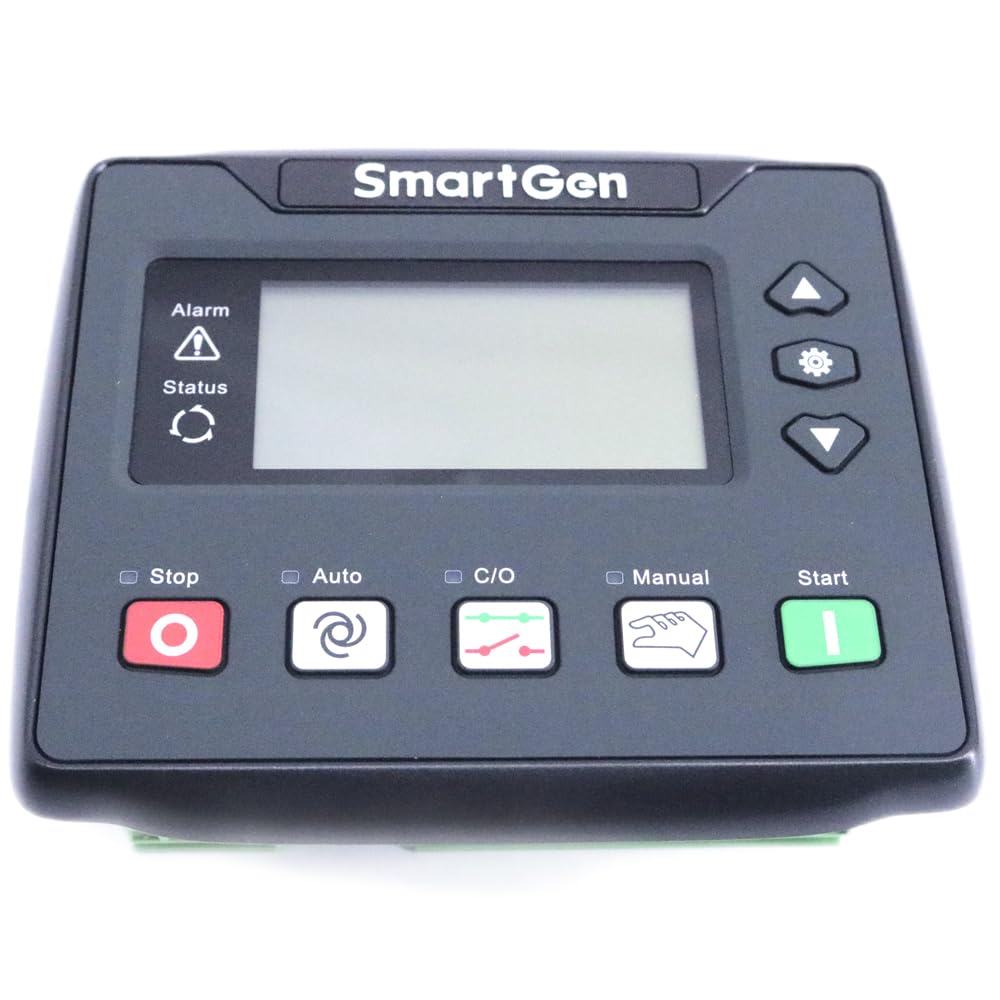

New Smartgen HGM4020N Single Genset Controller AMF Auto Mains Failure Control Panel Module

New Smartgen HGM4020N Single Genset Controller AMF Auto Mains Failure Control Panel Module

$199.00 USD
$199.00 USD
促销 售罄

Smartgen HGM4020N Single Genset Controller AMF Auto Mains Failure Control Panel Plastic Diesel Generator 240V Speed Sensor





HGM4000N series genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measurement, alarm protection and etc. functions. It fit with LCD display, optional languages interface (Chinese, English, Spanish, Russian, Turkish, French, Portugal, and Polish), and it is reliable and easy to use.

HGM4000N series genset controllers adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. All parameters can be configured from front panel or through programmable interface (USB or RS485 interface) via PC. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.

PERFORMANCE AND CHARACTERISTICS

HGM4000N series controller has six types:

HGM4010N/HGM4010NC/HGM4010CAN: ASM (Automatic Start Module),it controls generator to start/stop by remote signal;

HGM4020N/HGM4020NC/HGM4020CAN: AMF (Auto Mains Failure), updates based on HGM4010N/HGM4010NC/HGM4010CAN, moreover, has mains electric quantity monitoring and mains/generator automatic transfer control function, especially for automatic system composed by generator and mains.

HGM4020N Genset Controller is used for the automatic control of single genset, which has AMF function. It is suitable for non-ECU engines.

Display:Multilingual LCD

Panel:Silicone Rubber

Comm. Ports:USB

Engine Type:MPU

Digital Outputs (DO):6

Digital Inputs (DI):5

Analog Inputs (AI):4

Sensor Type I/R/U:R

AC System:3P4W 15V-360V (ph-N)/3P3W 30V-620V (ph-ph)/1P2W 15V-360V (ph-N)/2P3W 15V-360V (ph-N)

IP Rating:IP65

Operating Temperature:(-25~+70)°C

Function:Auto Start/AMF

Load Percentage:Yes

Working Mode:Auto/Stop/Manual

Alarm Protection:Warning/Shutdown

ATS Control:Yes

Optional Successful Starting Conditions:Yes

Maintenance:Yes

Real-time Clock:Yes

Event Log:Yes

Custom Boot-up Screen:Yes

Overcurrent Protection:Yes

Overpower Protection:Yes

Custom Sensor:Yes

Custom Inputs:Yes

Custom Outputs:Yes

Start/Stop Timer:Yes

Gauge Mode:Yes

Fuel Tank Capacity Display:Yes

Heater Control:Yes

Cooler Control:Yes

Fuel Pump Control:Yes

Gas Genset Control:Yes

Flywheel Teeth Auto Identification:Yes

ECU Engine Data Display:Sensor

Brand: Graigar

Color: Black

Features:

  • 132x64 LCD with backlight, selectable language interface (Chinese, English, Spanish, Russian, Turkish, French, Portugal, and Polish), push-button operation.
  • Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions.Silicone panel and pushbuttons can be used in extreme temperature environment.
  • RS485 communication interface enable “Three remote functions” (remote control, remote measuring and remote communication) according to MODBUS protocol.
  • Equipped with CANBUS port and can communicate with J1939 genset. Not only can monitor frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown , raising speed and speed droop via CANBUS port (need controller with CANBUS interface).
  • Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;

model number: HGM4020N

Part Number: HGM4020N
