HGM420N: AMF (Auto Mains Failure), updates based on HGM410N, moreover, has mains electric quantity monitoring and mains/generator automatic transfer control function, especially for automatic system composed by generator and mains.
HGM400N series genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measurement, alarm protection and “three remote” (remote control, remote measuring and remote communication; SG485 module must be fitted).

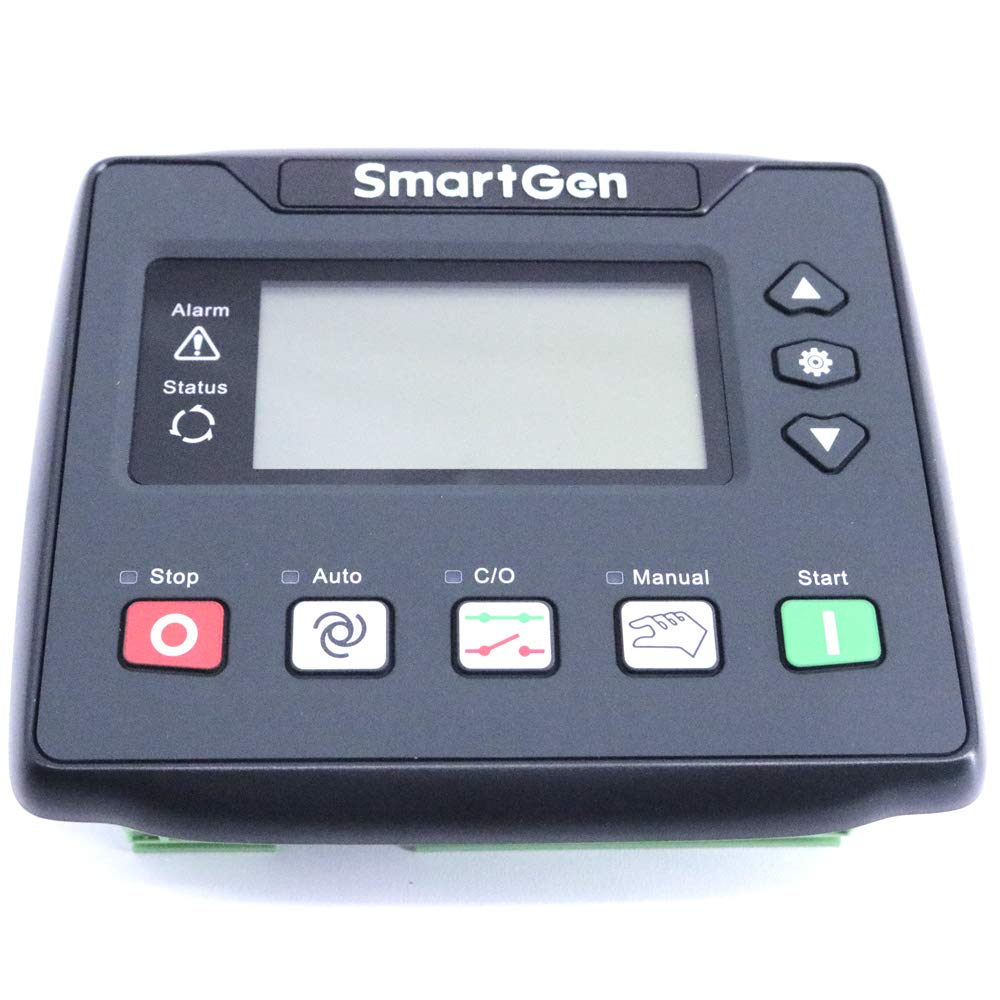

It fit with LCD display, optional languages interface (Chinese, English, Spanish, Turkish, Russian and French), and it is reliable and easy to use.
Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
Parameter setting: parameters stored in internal FLASH can be modified and cannot be lost even in case of power outage; all the controller parameters can be adjusted using front panel of the controller or via USB or RS485 interface by using PC.

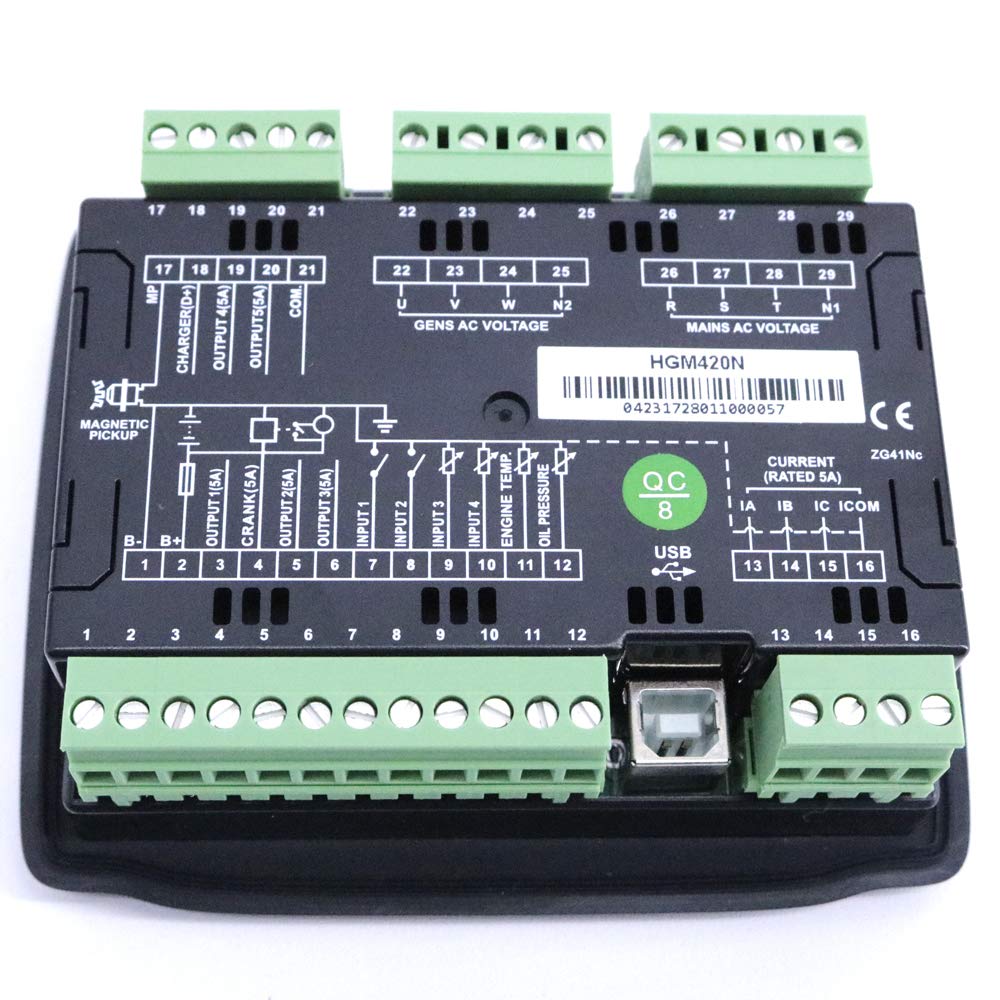

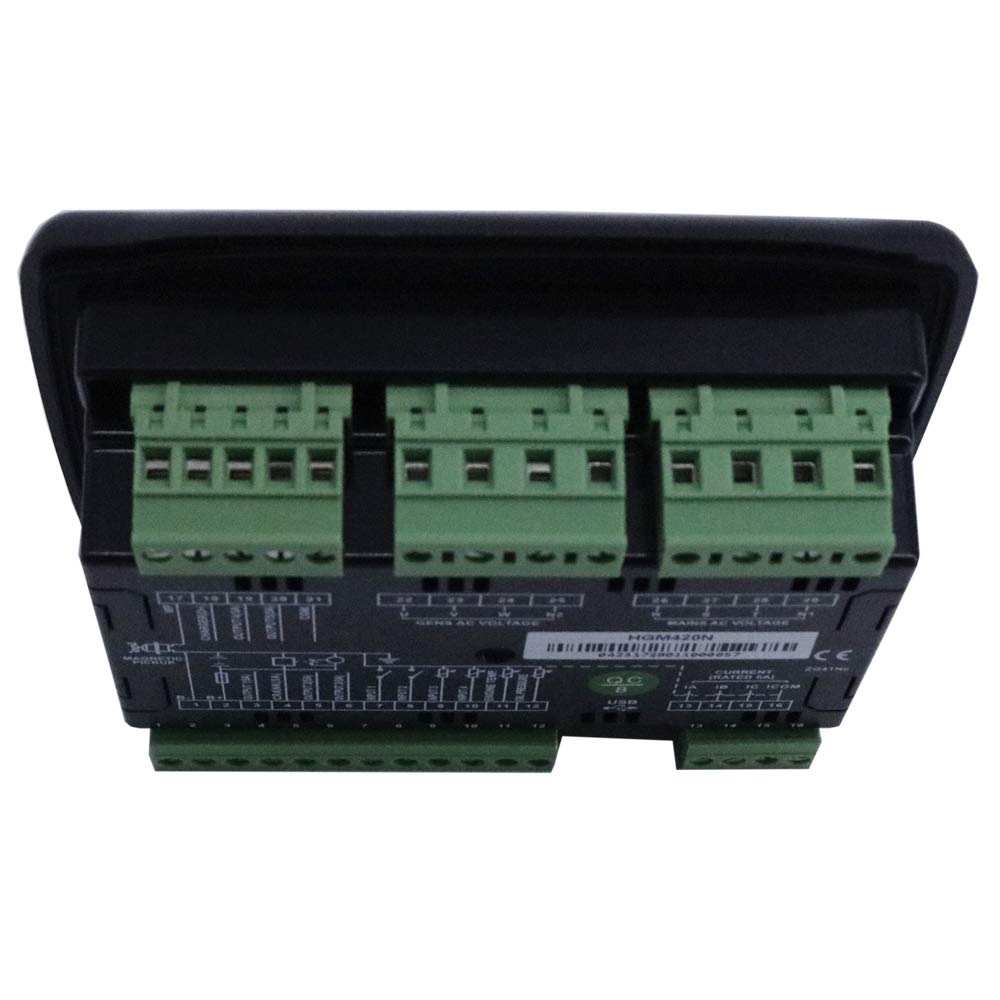

model number: HGM420N
Part Number: HGM420N
Details: Function Item:Parameter
Display:LCD(132*64)
Operation Panel:Silicon Rubber
Language:Chinese & English & Others
Digital Input:4
Relay Output:6
Analogue Input:4
AMF:●
AC System:1P2W/2P3W/3P3W/3P4W
Alternator Voltage:(15～360)V(ph-N)
Alternator Frequency:50/60Hz
kW/Amp Detecting & Display:●
Monitor Interface:USB
Programmable Interface:USB
RTC & Event Log:●
Scheduled Start Genset:●
Maintenance:●
DC Supply:DC(8～35)V
Case Dimensions(mm):126*109*44
Panel Cutout(mm):110*90
Operating Temp:.(-25～+70)℃
