W-B75/BB75 series is used for testing the hard brass and super-hard aluminum alloy materials,annealed brass,red copper materials.

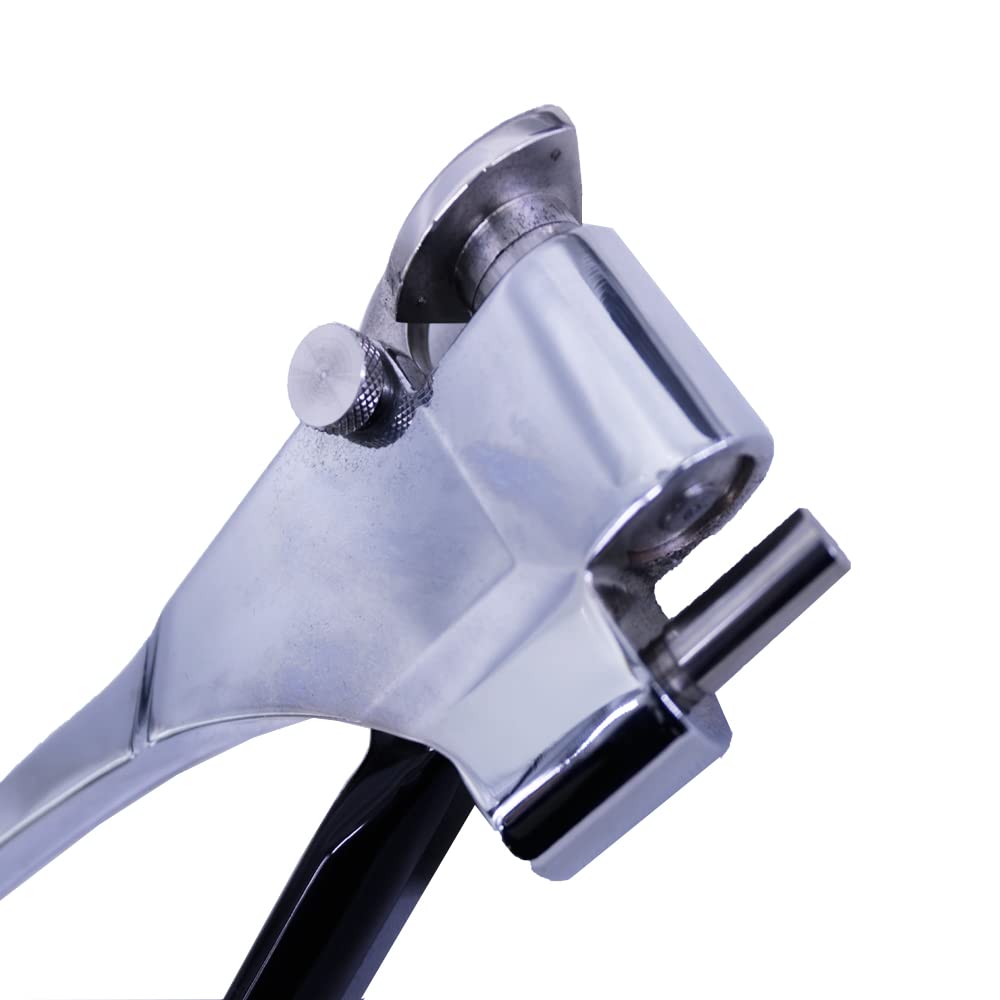

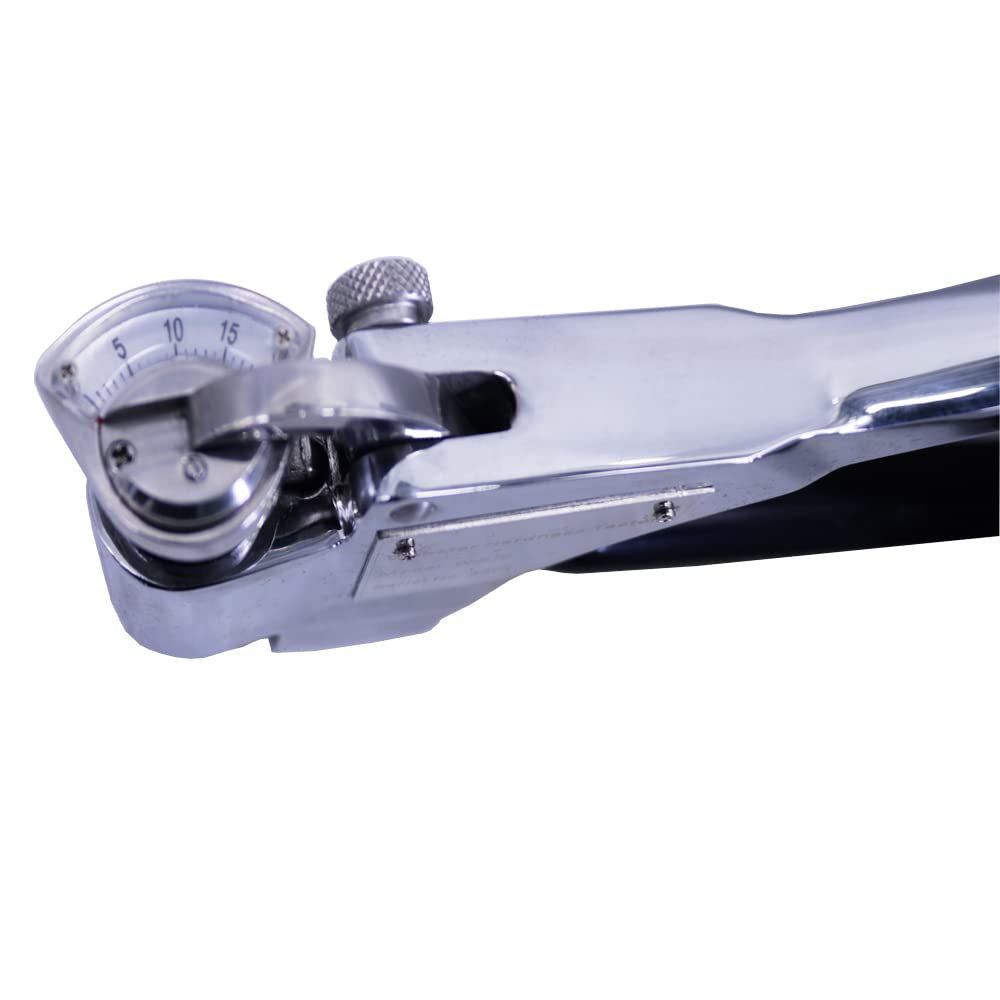

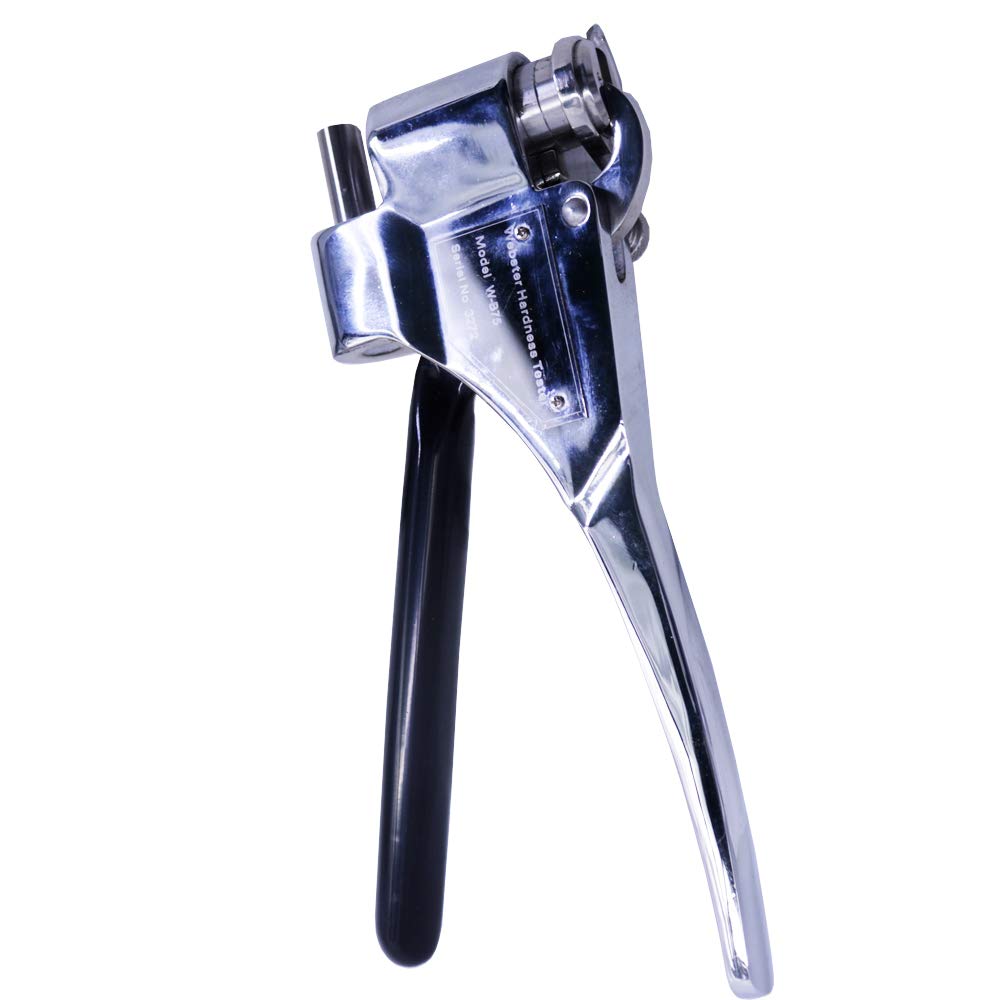

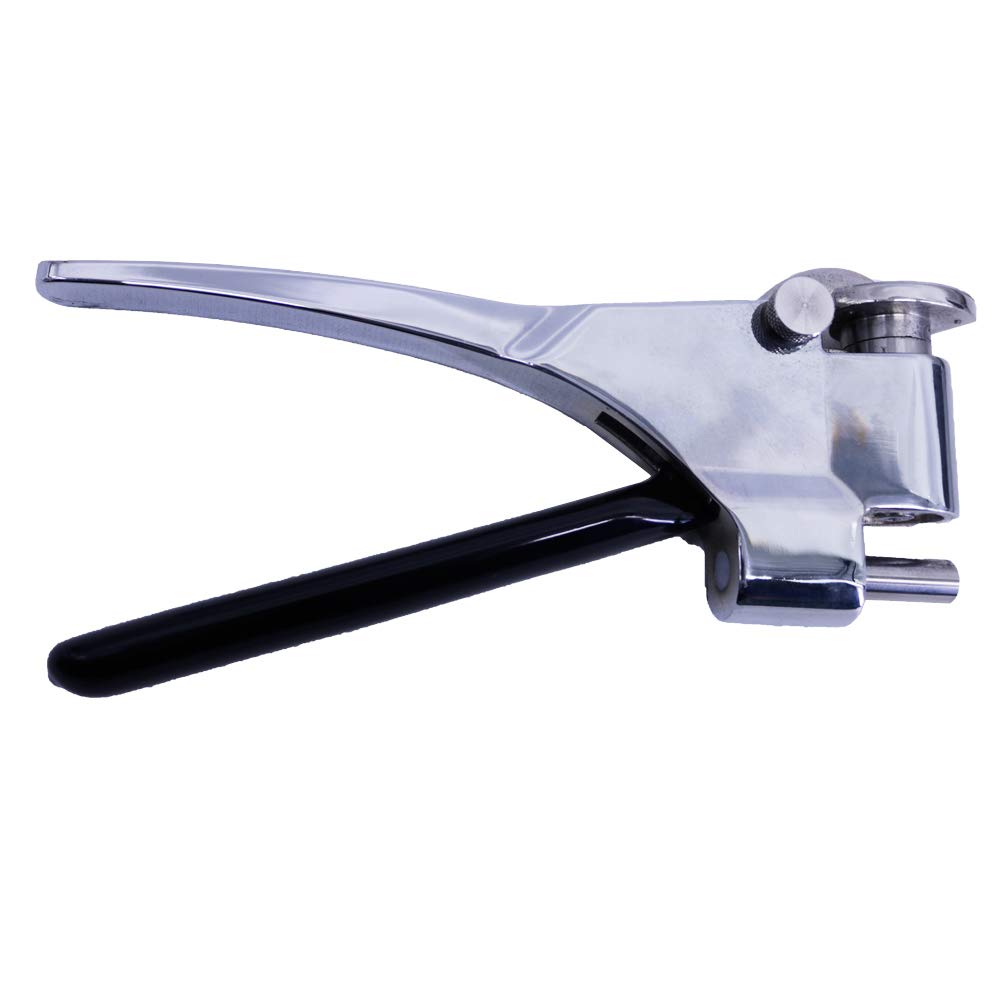

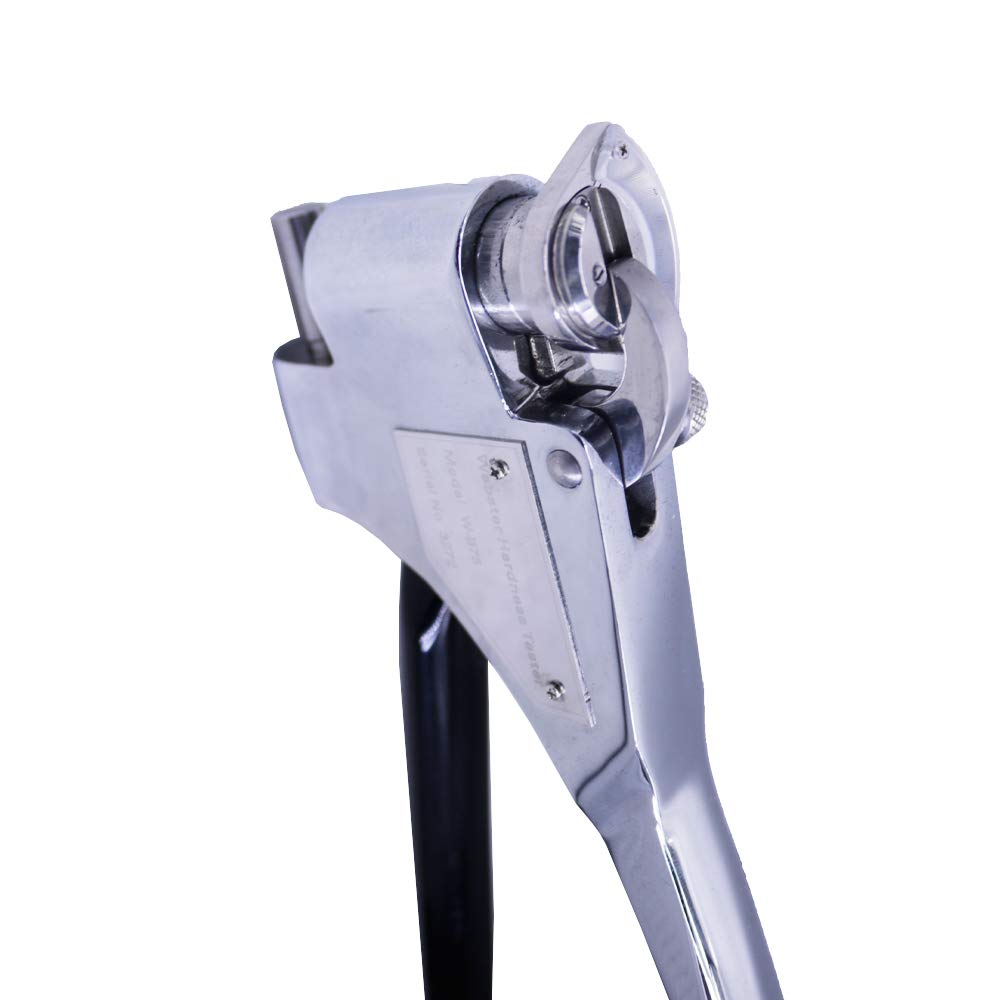

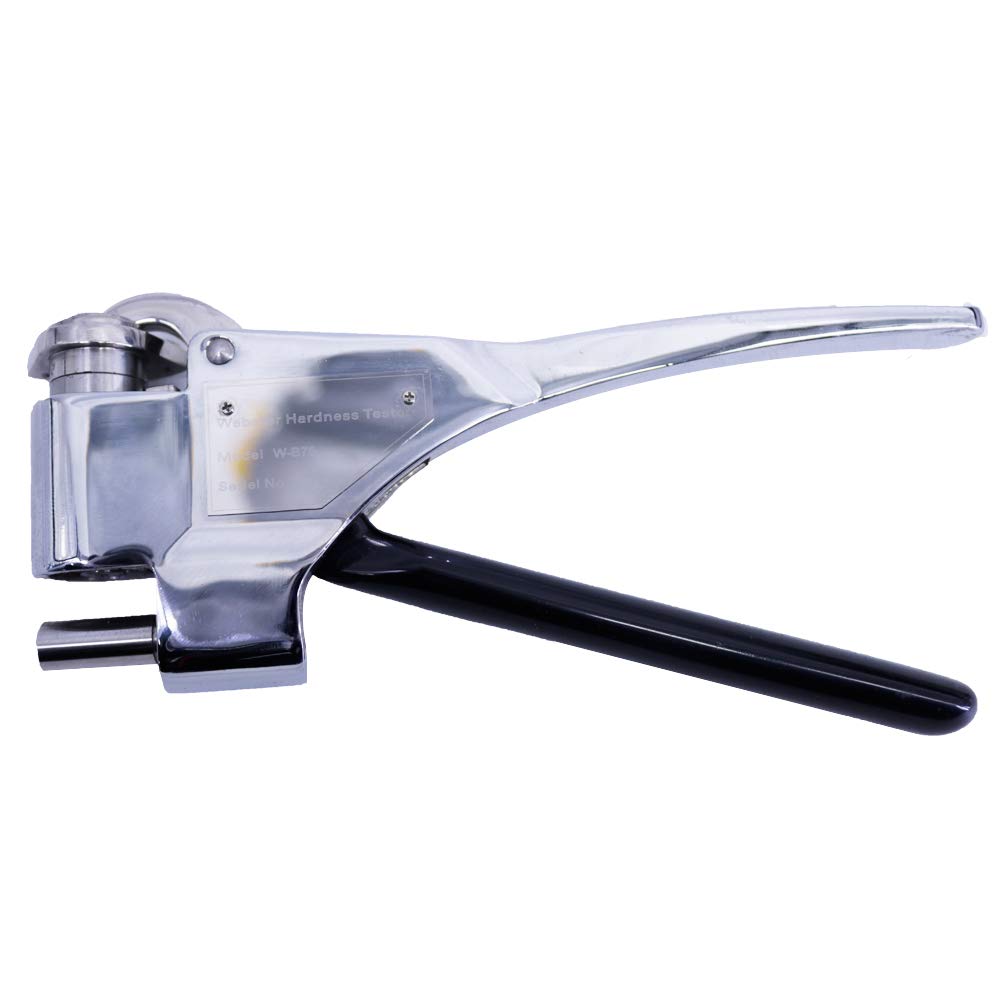

W-B75/BB75 Series Webster Hardness Tester for copper alloys is a portable instrument which can perform on-site hardness testing on copper and copper alloys. By a quick and easy test, the hardness value can be read out directly with a simple clamp, in accordance with American Standard ASTM B647.
Suitable for testing on profiles, tubings and sheets. During the test no sampling is needed and it can not damage the work pieces, especially suitable for a fast and nondestructive qualification inspection of the product hardness on the spot of production, sales and construction.
W-B75 series Webster hardness tester is used for testing the hard brass and super-hard aluminum alloy materials.
Measuring Scope:0-20HW, Accuracy:0.5HW.
model number: W-B75
Part Number: W-B75
Details: Application
Used to check the effect of heat treatment and determine if
the mechanical property of the work piece is qualified.
Used to ascertain if the work piece is made and processed by
improper alloys.
Used for testing the work pieces with overlength,
overweight or assemblies inconvenient to be sent to the labs.
Used to distinguish the material hardness levels and to decide
the heat treatment state of materials such as annealed, 1/8 hard, 1/4 hard, 1/2 hard or full hard etc.
Main Technical Parameters:
Measuring Scope:0-20HW
Accuracy:0.5HW
Weight:0.5kg

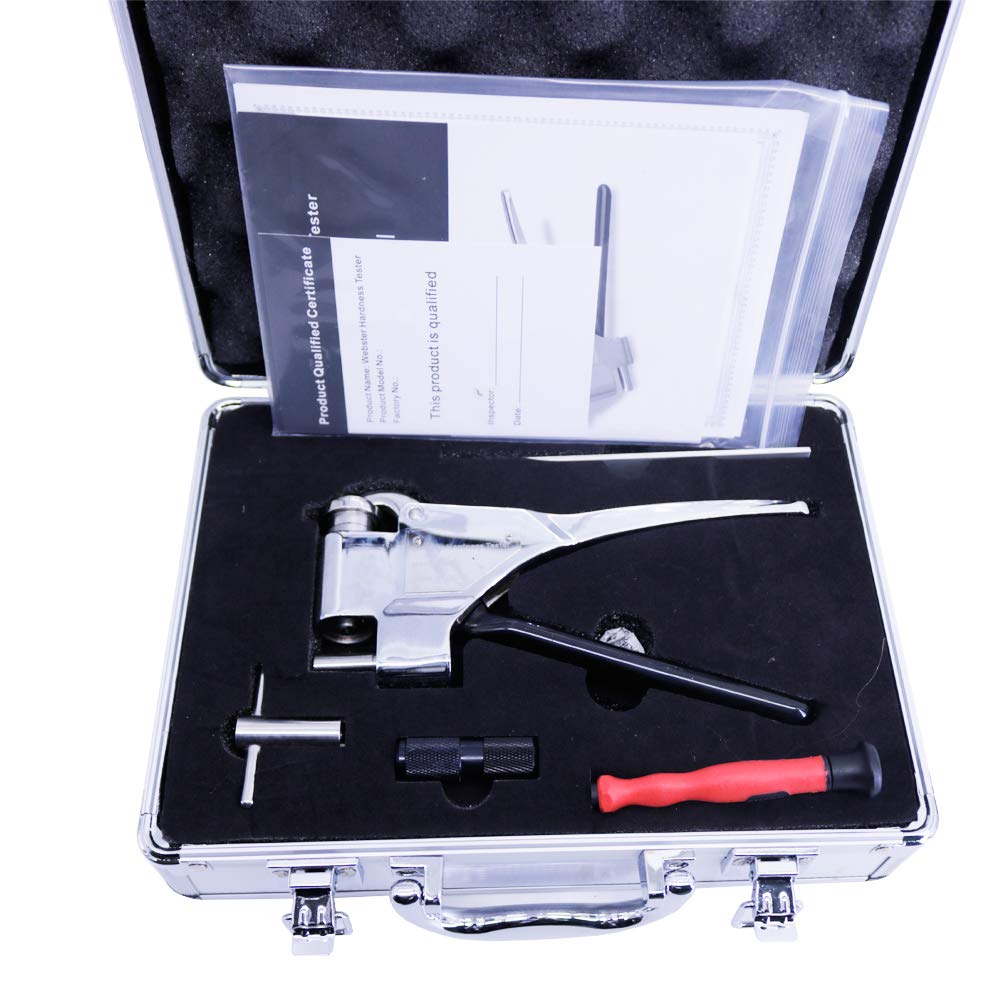

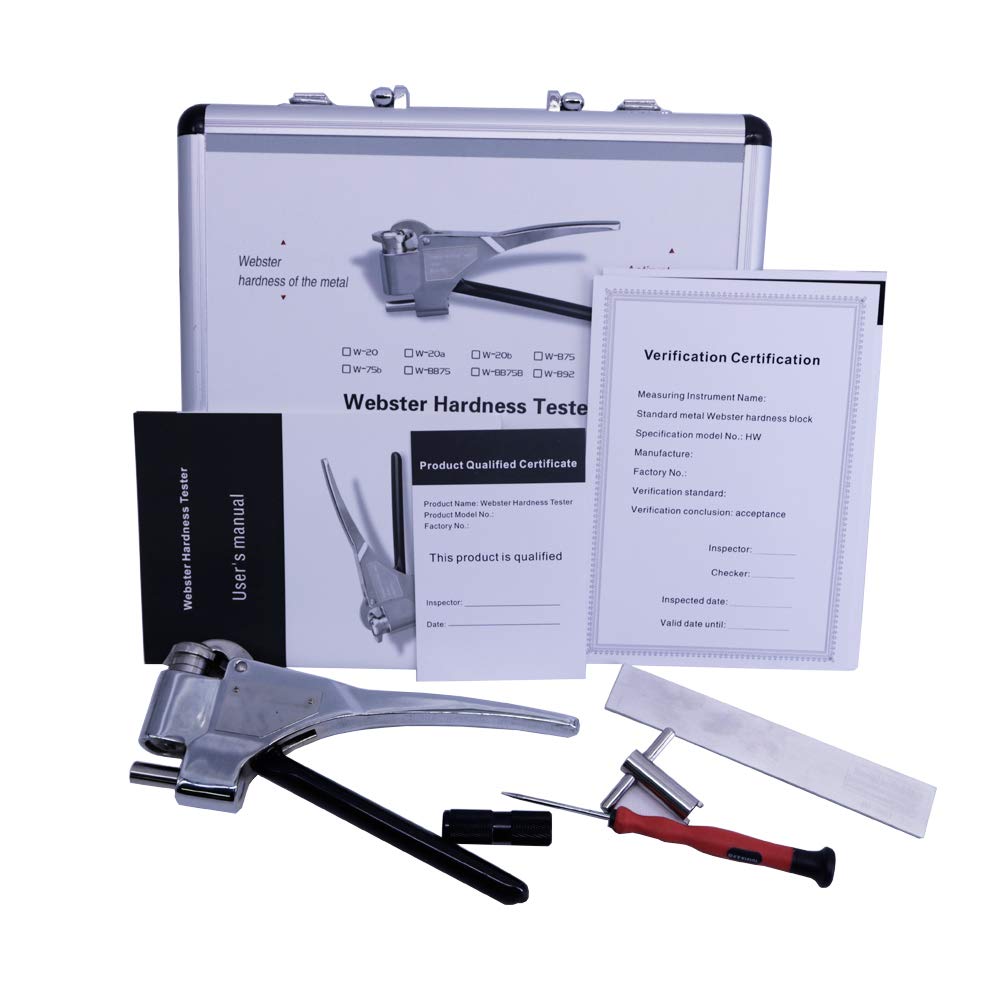

Standard Package:
1 Tester

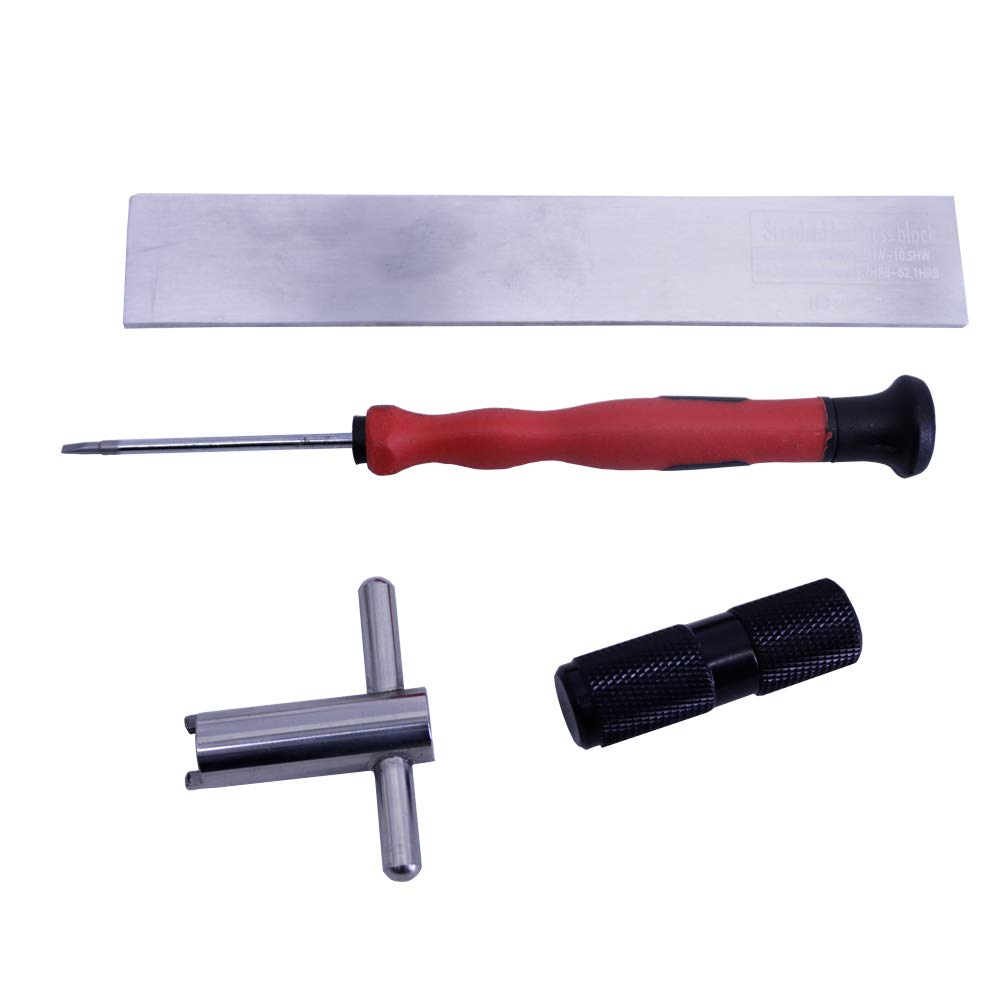

1 Standard hardness block
1 Spare indenter
1 calibration wrench
1 Small screwdriver
1 Carrying case
