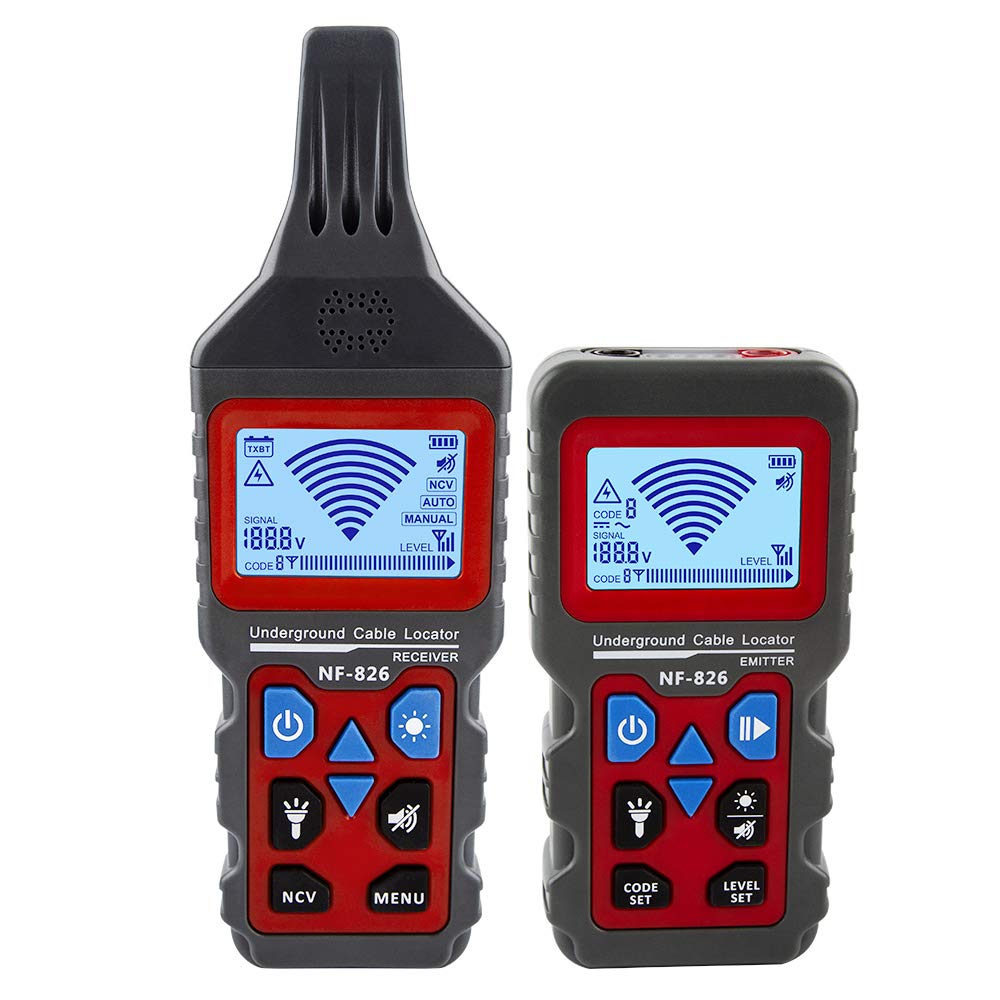

NF-826 Digital Underground Wire Tracker Cable Locator Portable Telephone Cable Finder Electrical Lines Detector

Brand: Graigar

Features:

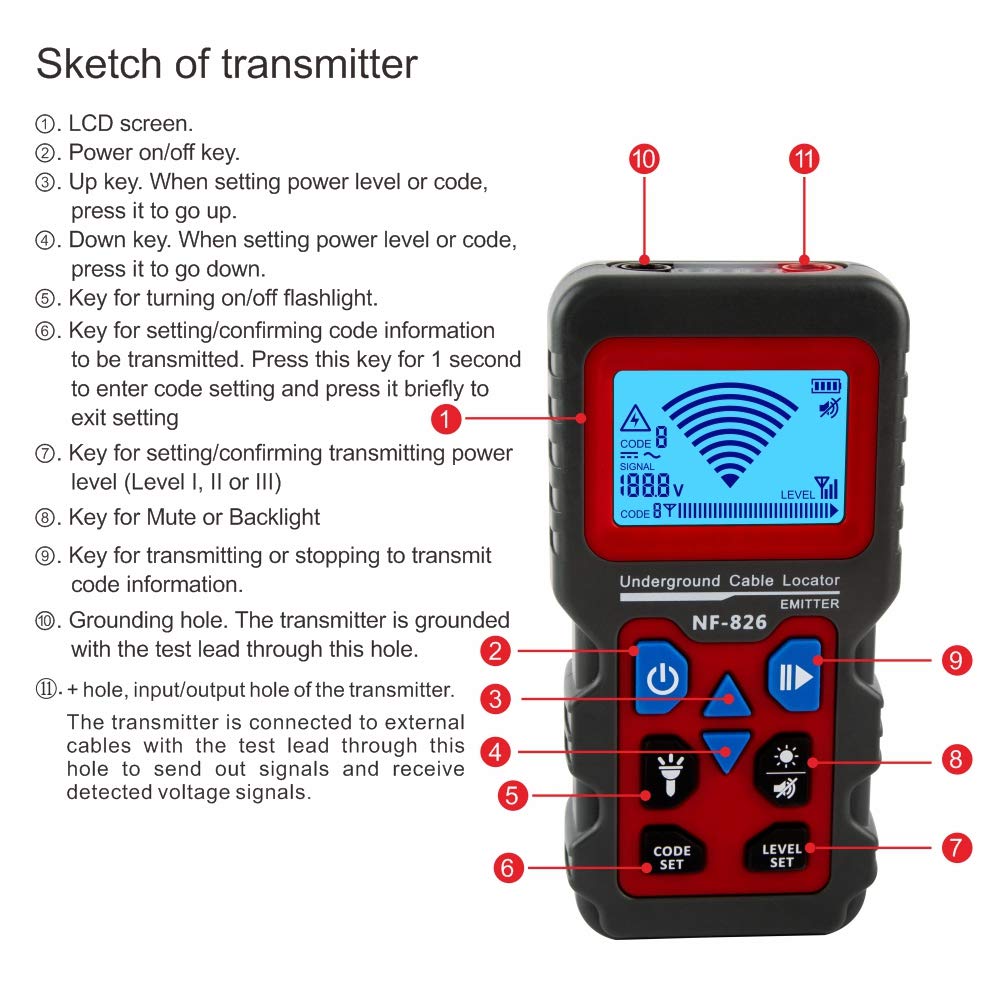

• The transmitter is integrated with the function of AC/DC voltmeter, which can measure 12 to 400V AC/DC voltage on a linear basis.
• The screen of the transmitter can display preset transmitting power, transmitted codes-its own battery energy-mains voltage detected-AC/DC status of mains voltage detected-and warning symbol for mains voltage.
• The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference

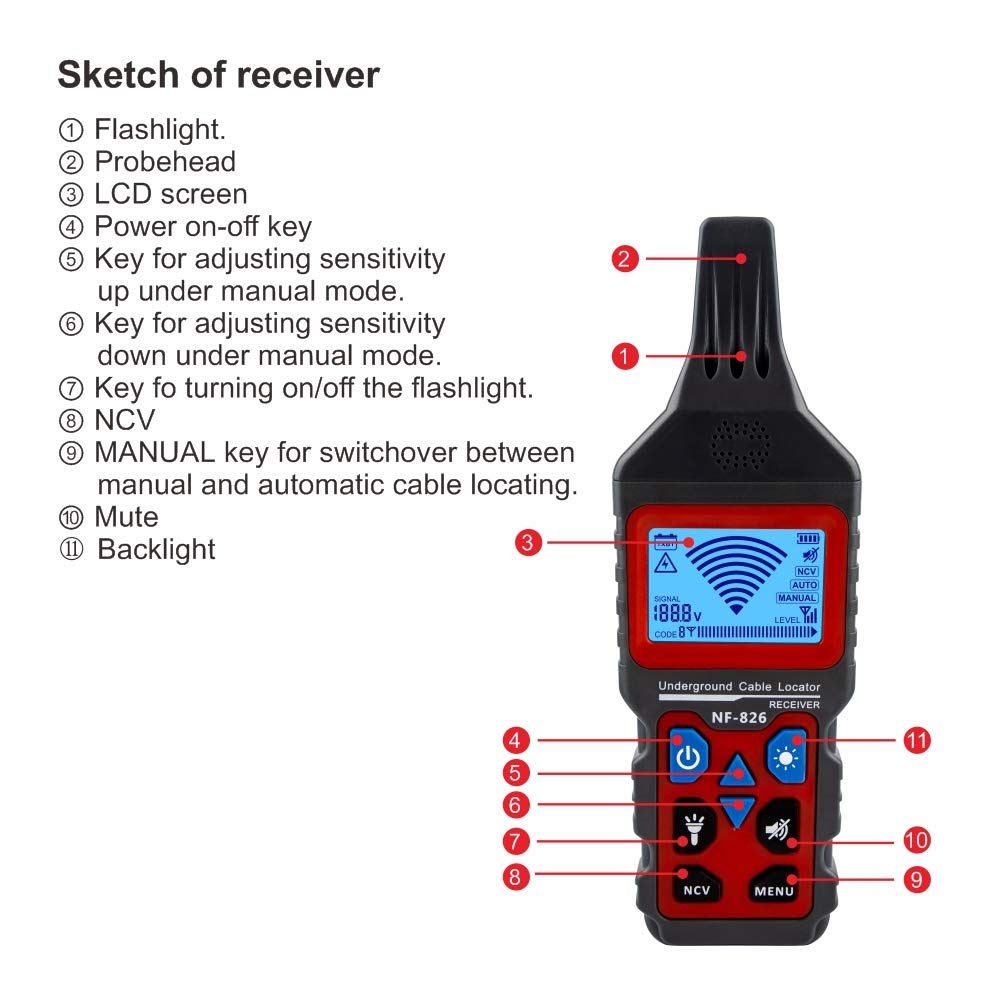

• The sensitivity of the receiver can be adjusted either manually or automatically
• The receiver can sweep frequency automatically

model number: NF-826

Part Number: NF-826

Details: Functions:
Detecting cables, electrical lines-water/gas supply pipelines buried in wall or earth
Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth
Feature:

Both the transmitter and the receiver can work under mute mode
Additional transmitters are available to extende or distinguish multiple signals.
Compactness-durability and portability
Auto power off within 10 minutes.
Flashlight Function.
Backlight Function.
Mute Function.

Specification:
Voltage Measurement Range: Transmitter: 12V-400V (AC / DC)
Output Signal: Transmitter: 125KHz
Voltage: Transmitter: maximum 400V (AC / DC)
Cable Depth Measurement :Receiver 0-2.5 m (wall / underground cable)
Main Voltage Measurement : Receiver 0-0.4m
Work Environment:Transmitter:0~40℃; Receiver:0~40℃
Storage Temperature: Transimiter:-20℃~60°c; Receiver:-20℃~60℃
Relative hamidity(no condensation):Transmitter Maximum:80%; Receiver Maximum:80%
Measuring Height: Transmitter Maximum:2000m; Receiver Maximum:2000m

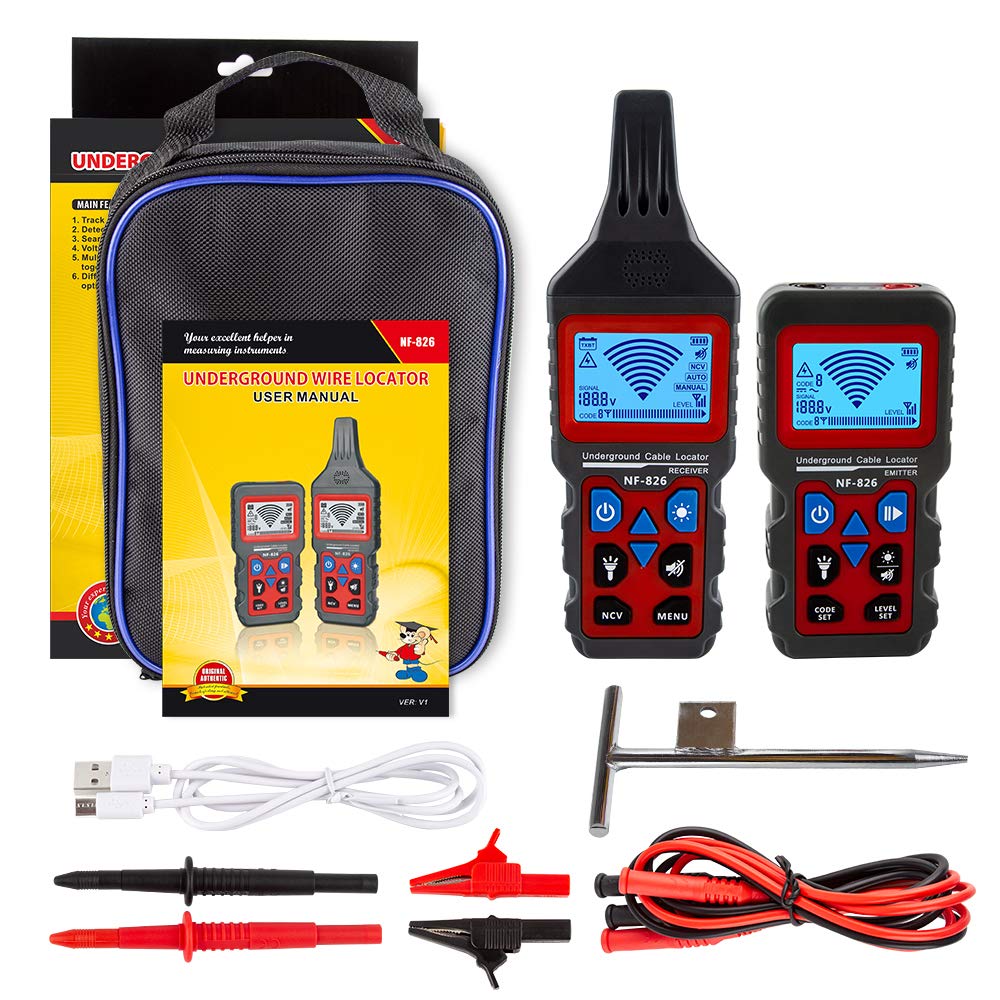

Package List:
1*Transmitter
1*Receiver
1*user Manual
2*Alligator Clips (black, red)
2*Test Leads (black, red)

EAN: 0761272051625
