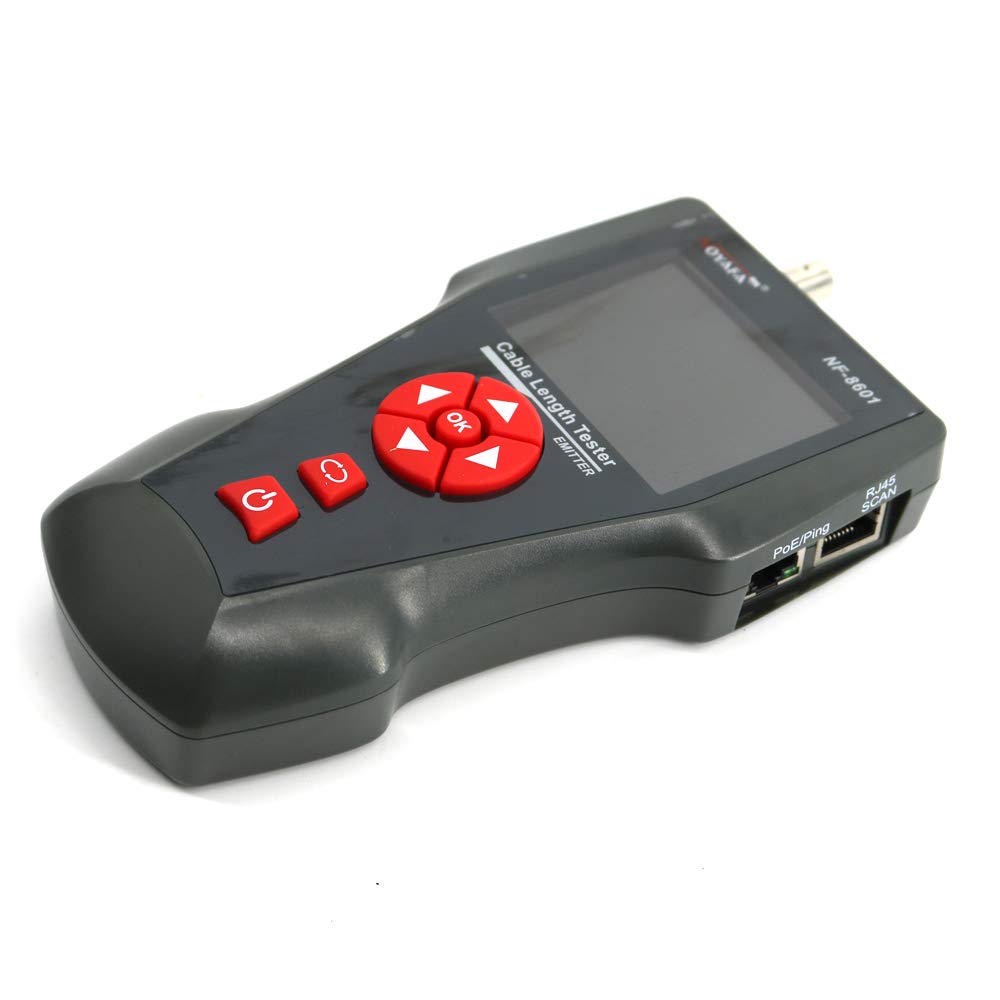

NF-8601W Multi-Functional Network Cable Length Tester LCD Breakpoint Tester POE

Brand: Graigar

Features:

• PoE / PING testing.Trace targeted cable among lots of unknown cables ;
• Memory and storage function, export or upload the data from PC.
• Locate faults for RJ11/RJ45/BNC Cable;
• Measure cable length accurately;Voltage detecting function.
• Built-in Lithium battery and color screen

model number: NF-8601W

Part Number: NF-8601W

Details: Application:
1. can save and export 160 groups of data to computer (txt format).
2. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.
3. 3.7V lithium battery power supply ,Convenient and durable.
 NF-8601W Transmitter specifications
 Indictor LCD 320x240 mm, with backlight
 Cable test types STP/UTP 5E,6E network , telephone , coaxial cable
 Max. distance of wiremap 2000 m
 Max. distance of tracing 2000m
 Max. distance of cable length  1000 m
 Min. distance of calibration 10 m
 Accuracy 3% ( after calibration )

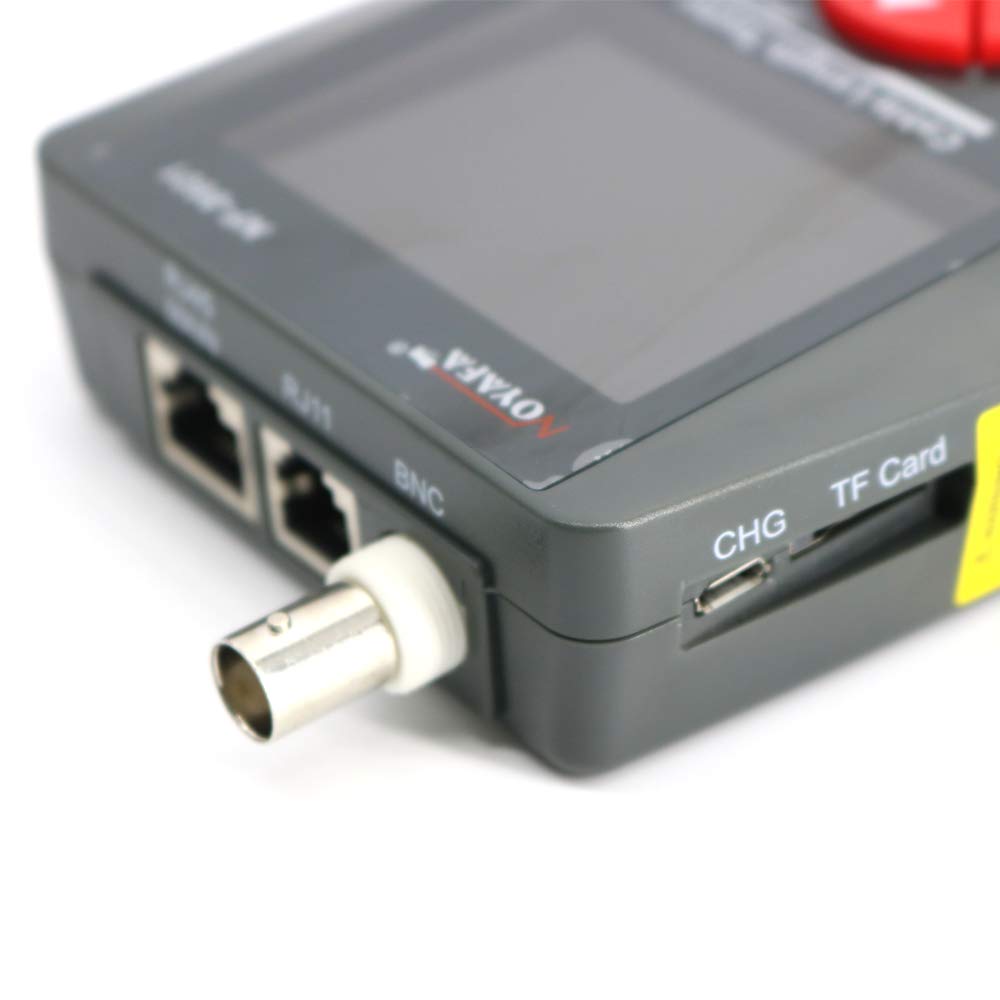

 Compatible connectors RJ11，RJ45 ,BNC, PING/POE
 Cable map indication LCD (#1-#8)
 Battery Type 3.7V lithium battery 1800mAh
 Work temperature / humidity 10℃ ~ -60℃ / 0℃~70℃
 Dimension(LxWxD) 173x92x34mm

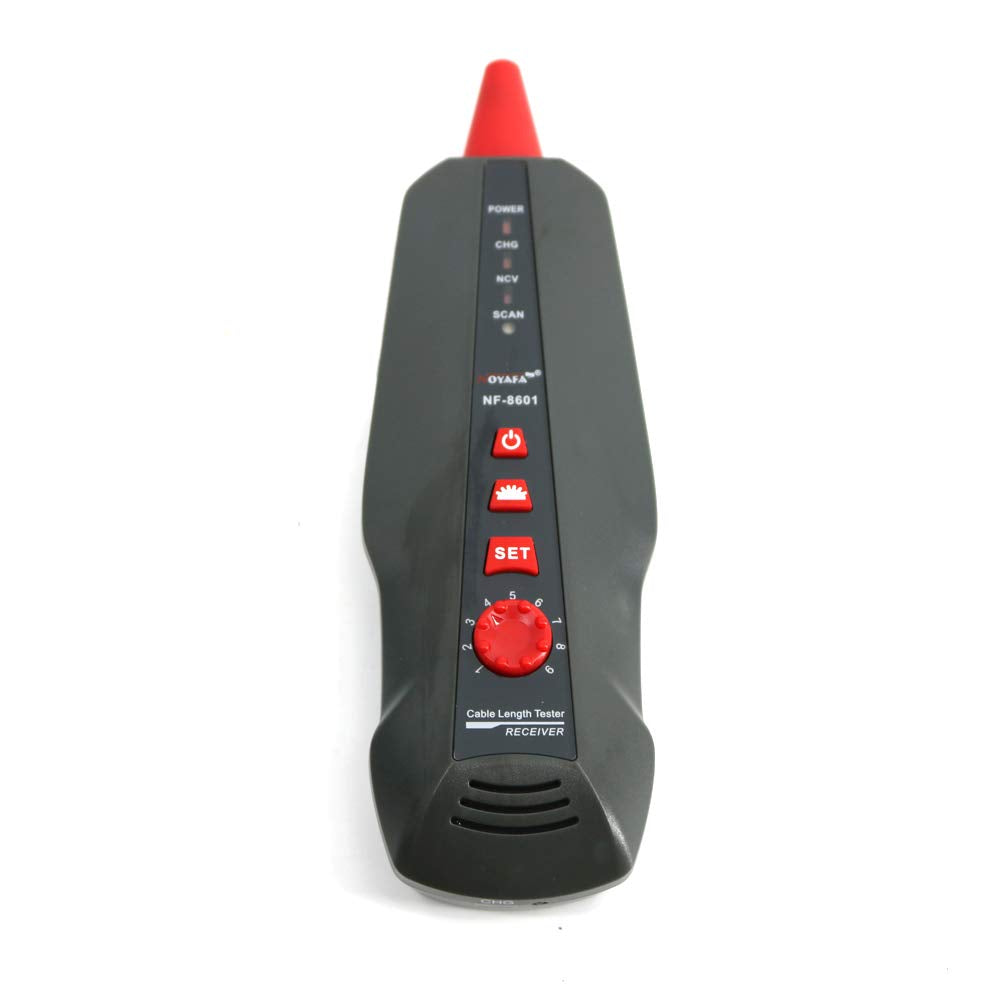

 NF-8601W Receiver specifications
 Cable hunting RJ11，RJ45, BNC
 Types of cable ≥ 2 cores
 Battery Type 3.7V lithium battery 1800mAh
 Dimension(LxWxD) 183x58x35 mm

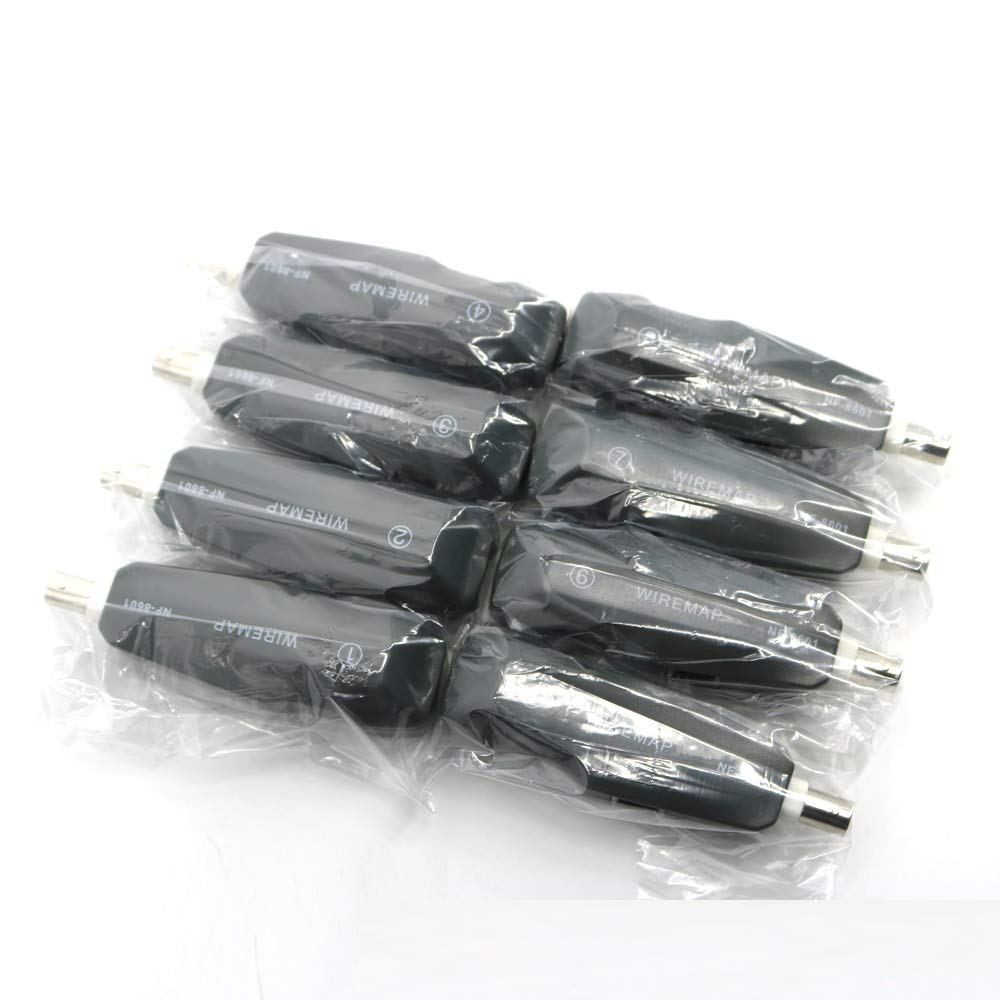

 NF-8601W Remote unit specifications
 Compatible connectors RJ11，RJ45, BNC
 Remote 8
 Dimension(LxWxD) 106x32x30mm

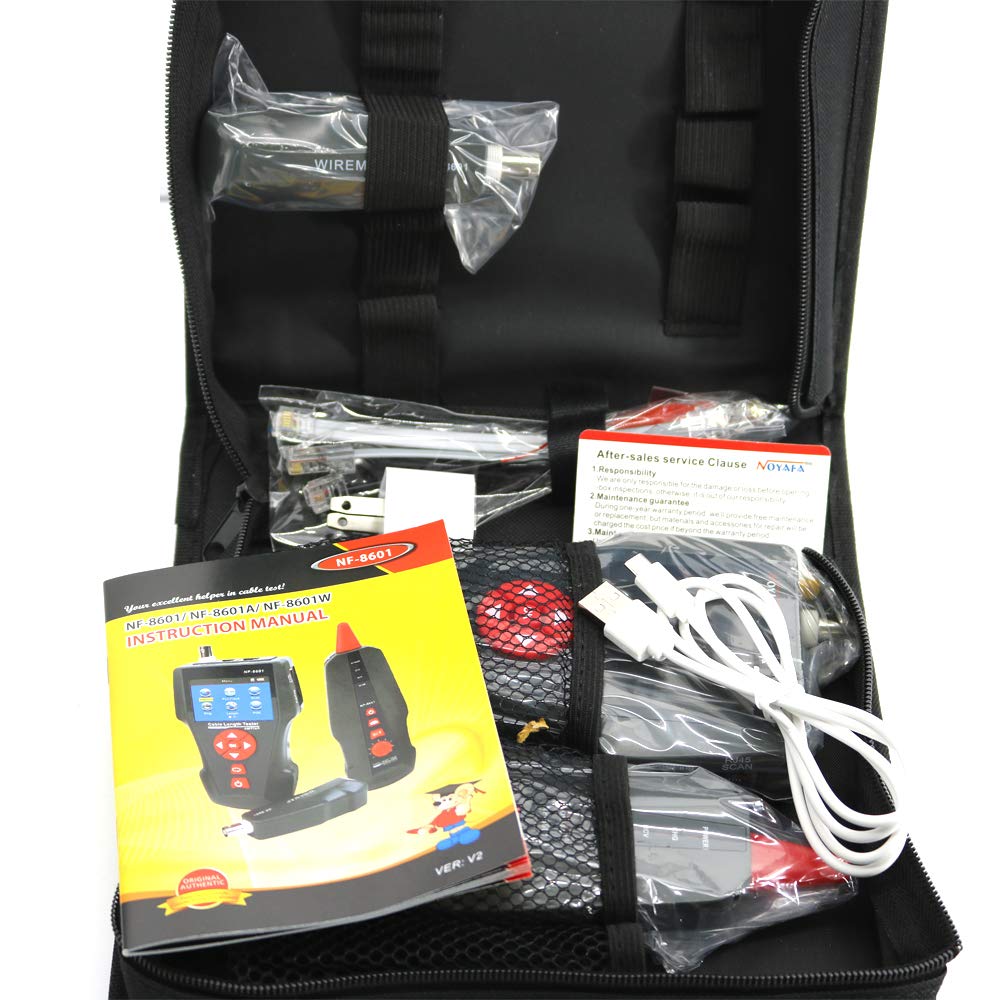

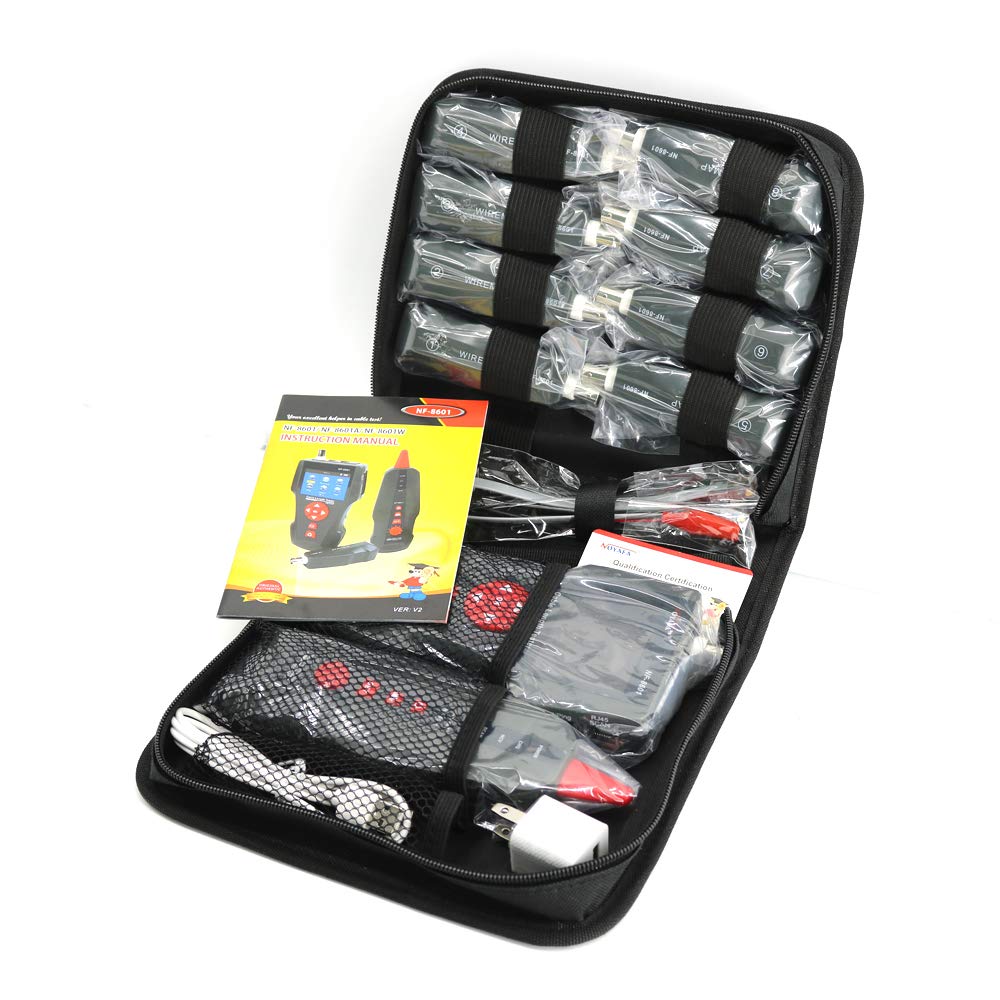

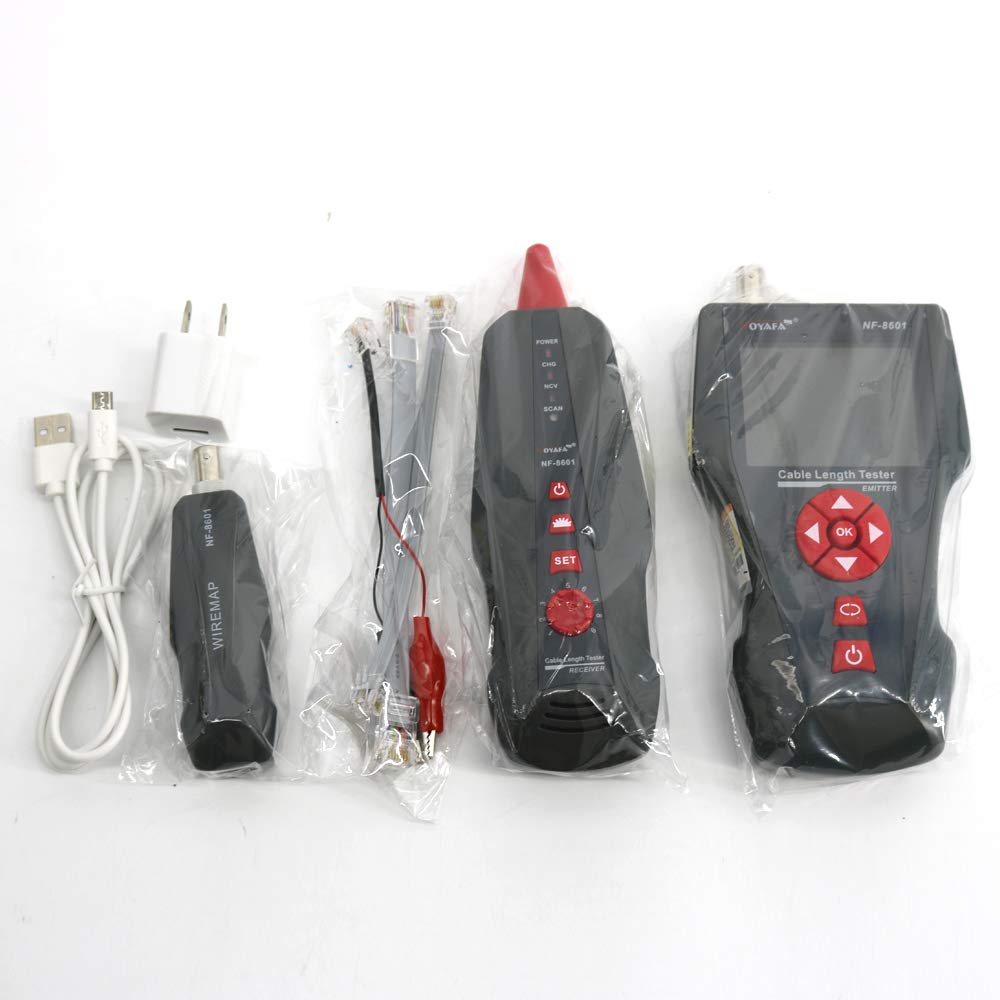

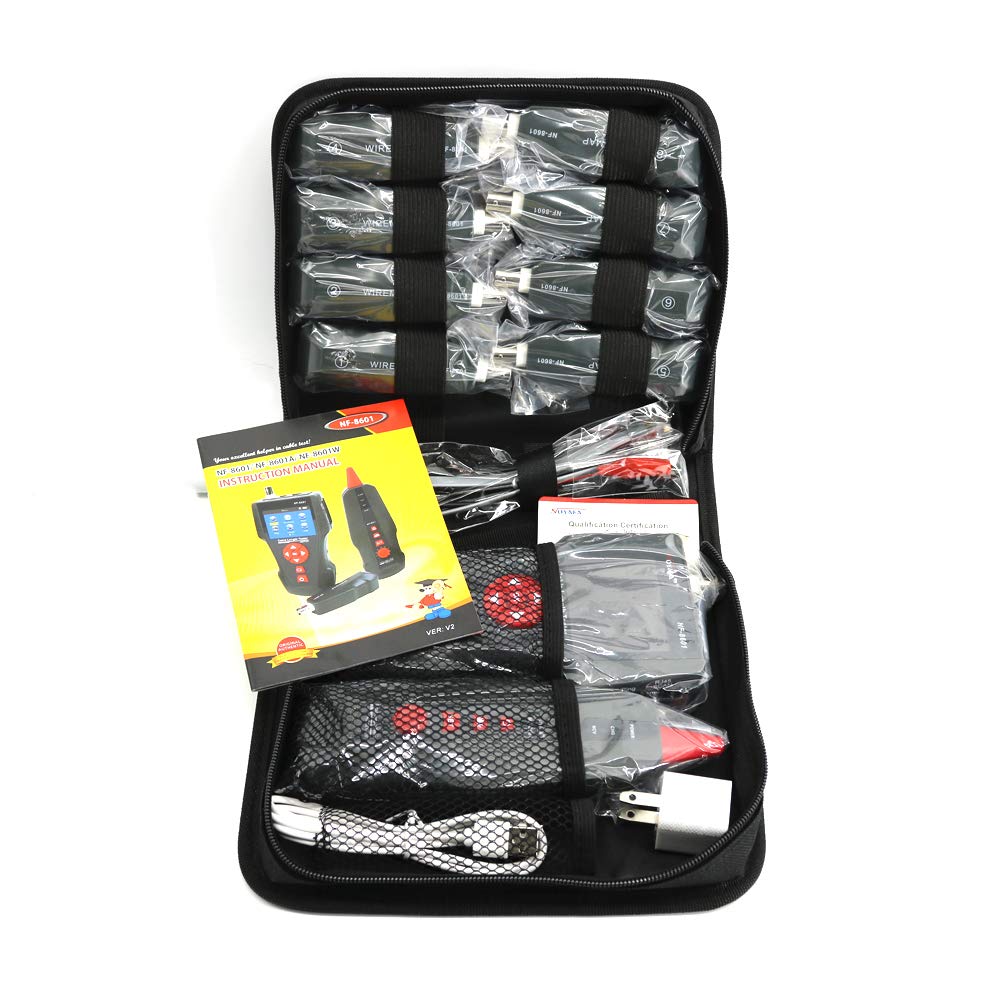

Accessories Included:
Earphone x 1 set
Telephone line adapter x 1 set
Network cable adapter x 1 set
Charging adaptor x 1 set
Cable clips x 1 set
Network cable adapter x 1 set
Charging adaptor x 1 set
Cable clips x 1 set

EAN: 0761272052745
