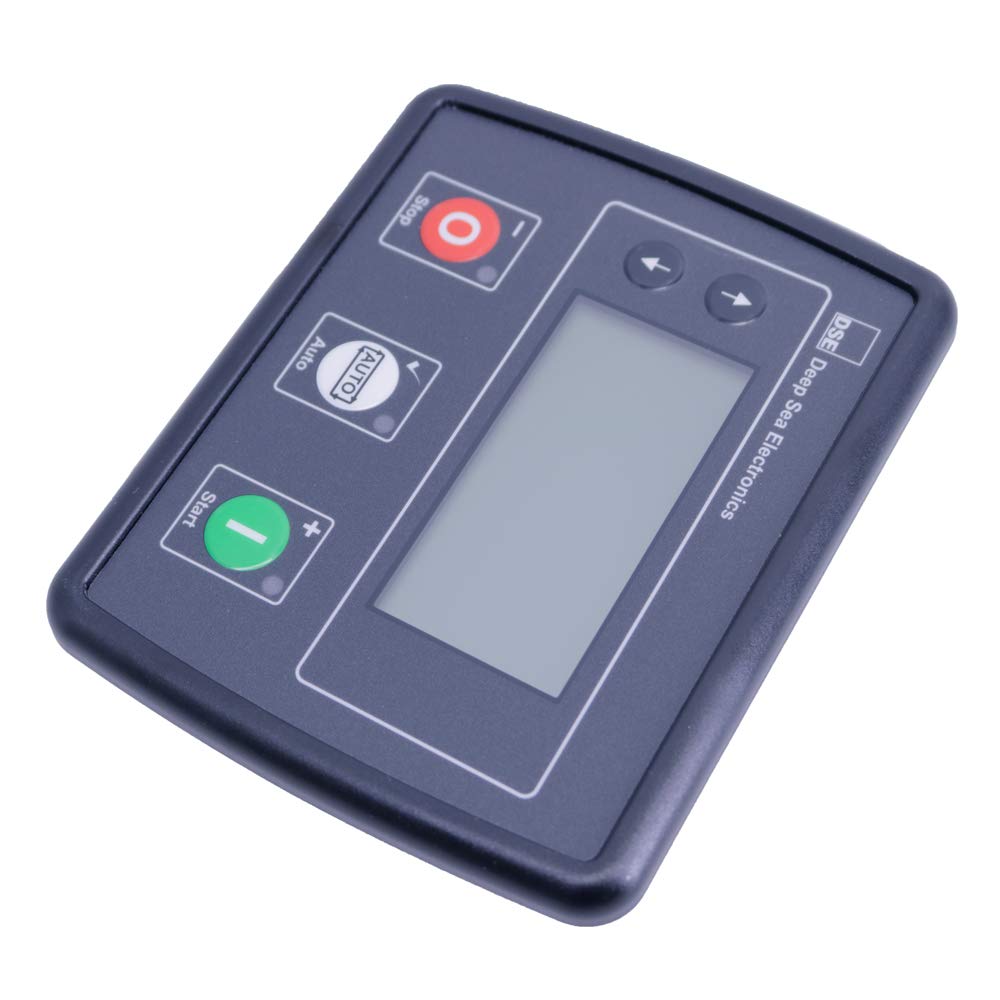

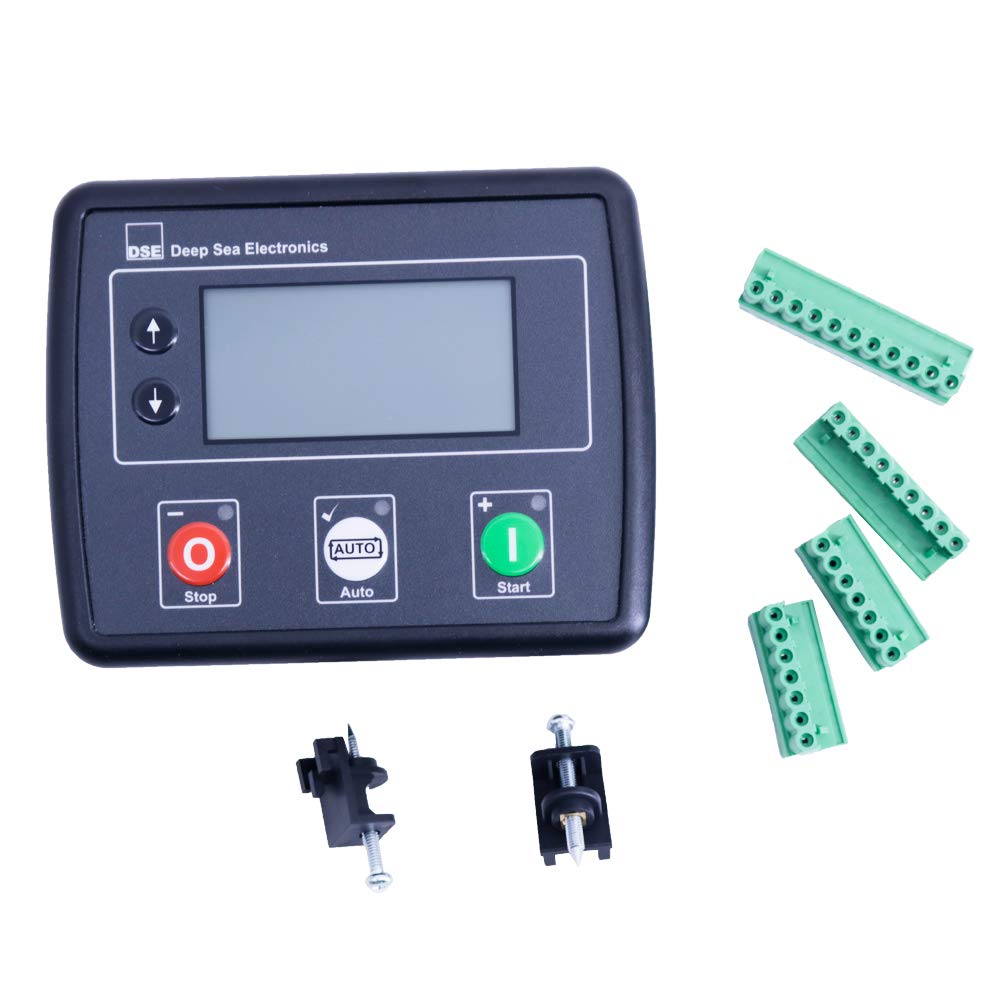

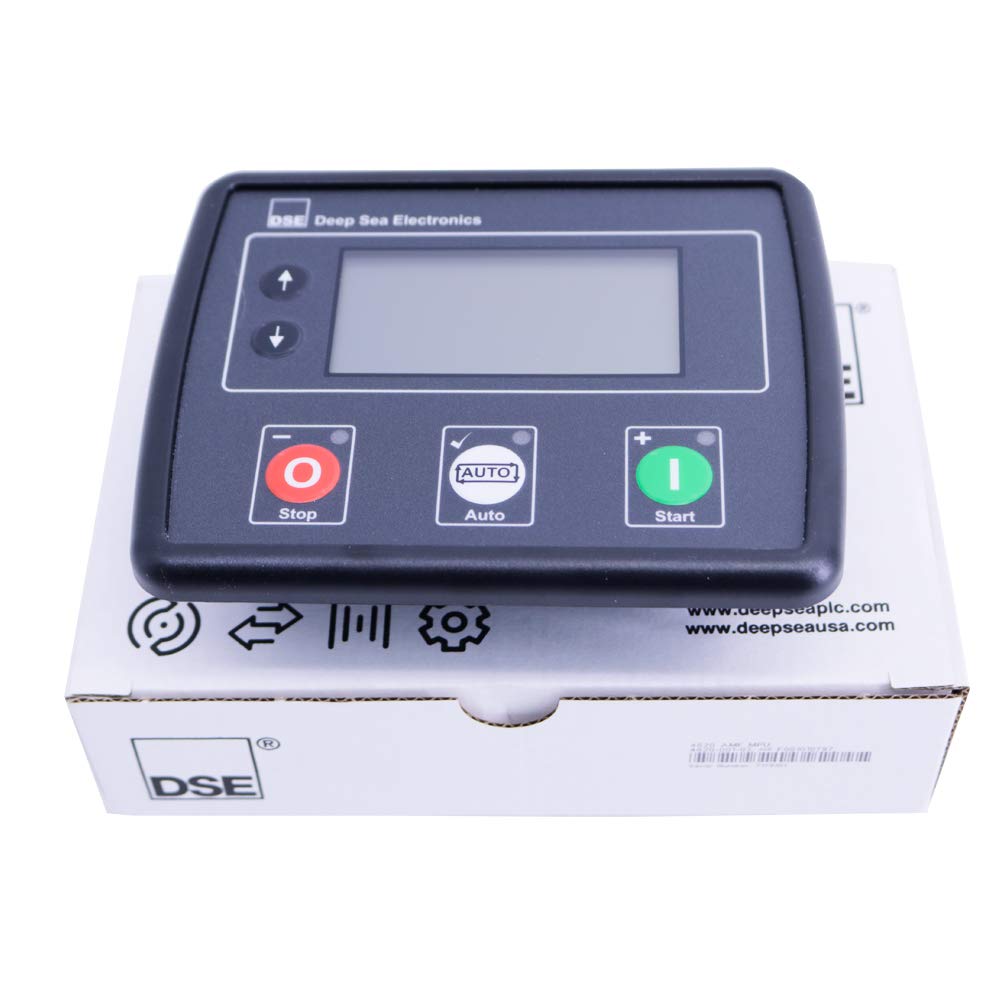

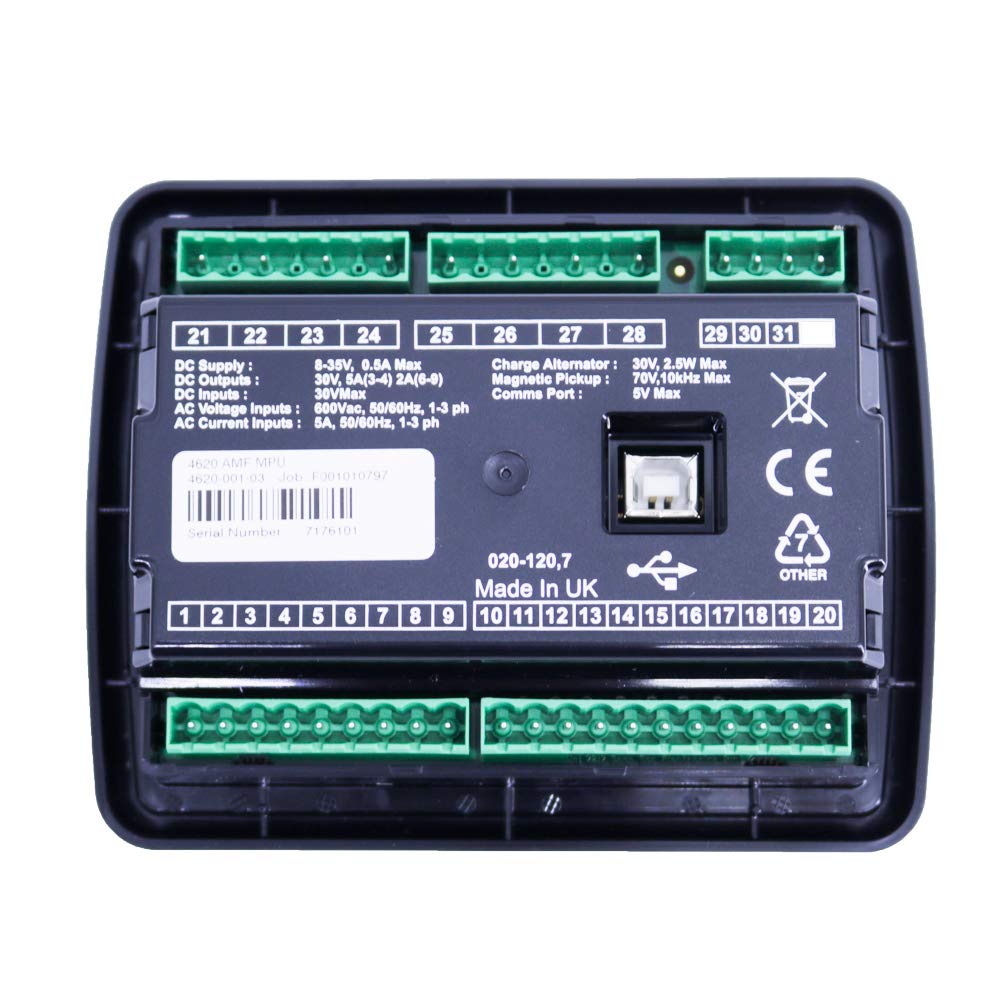

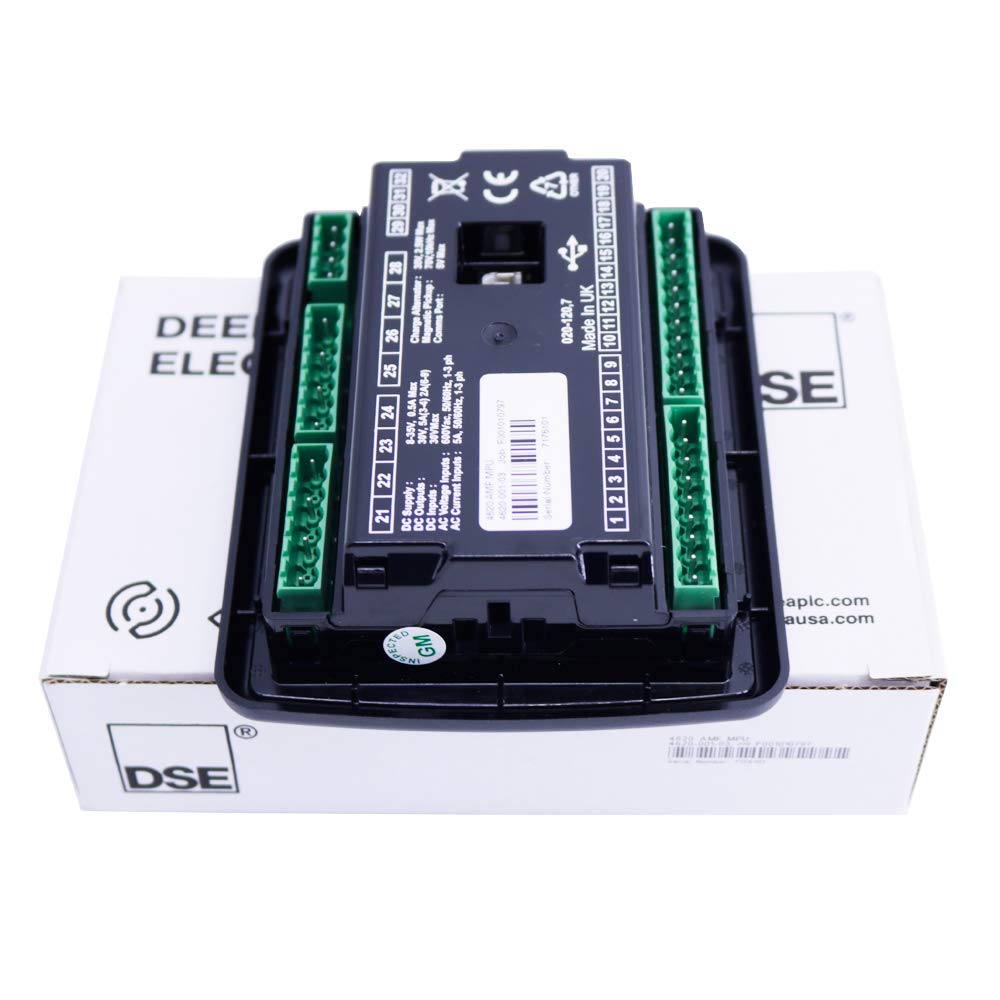

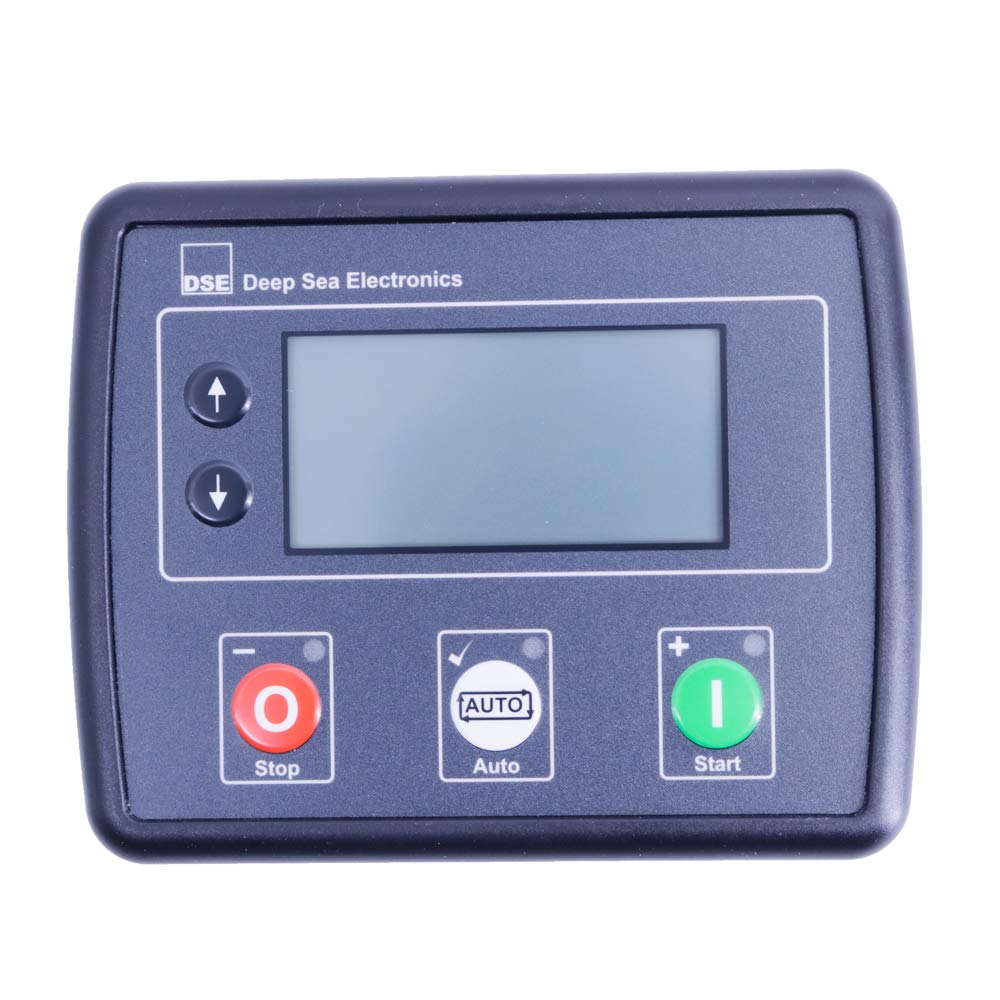

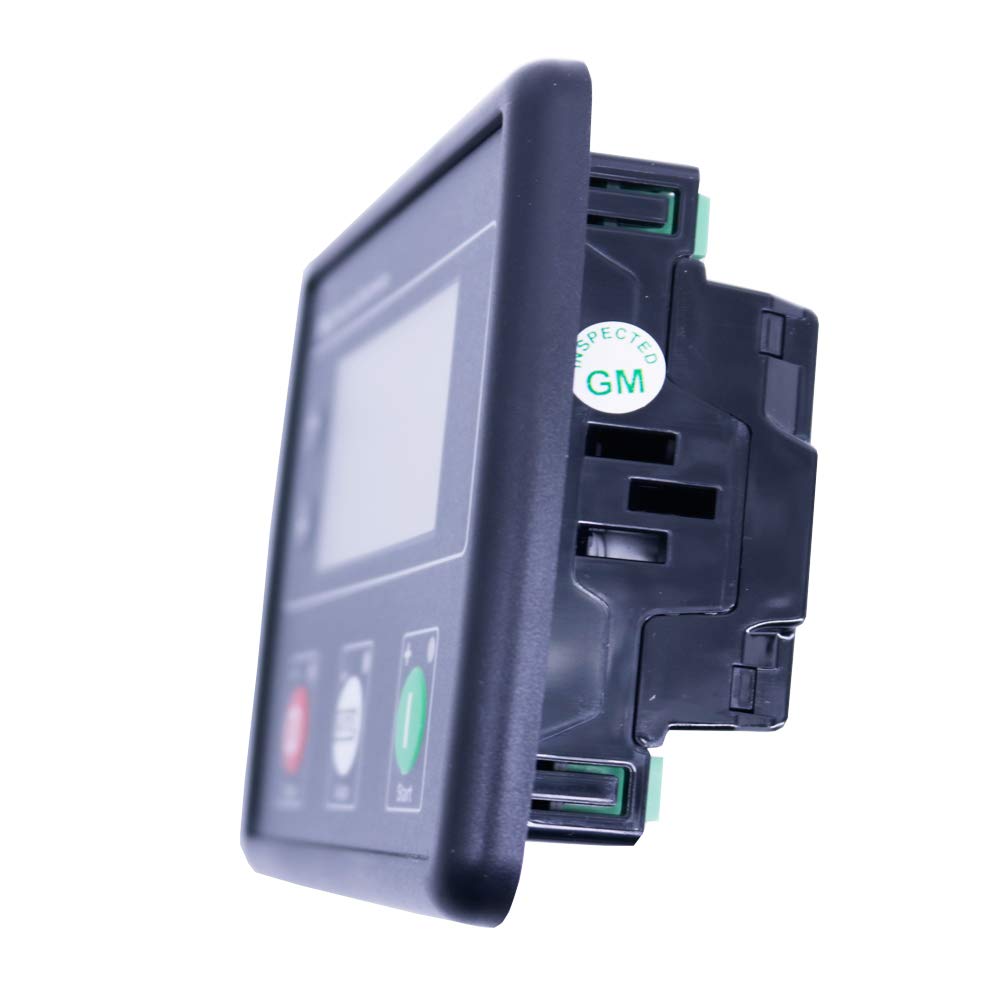

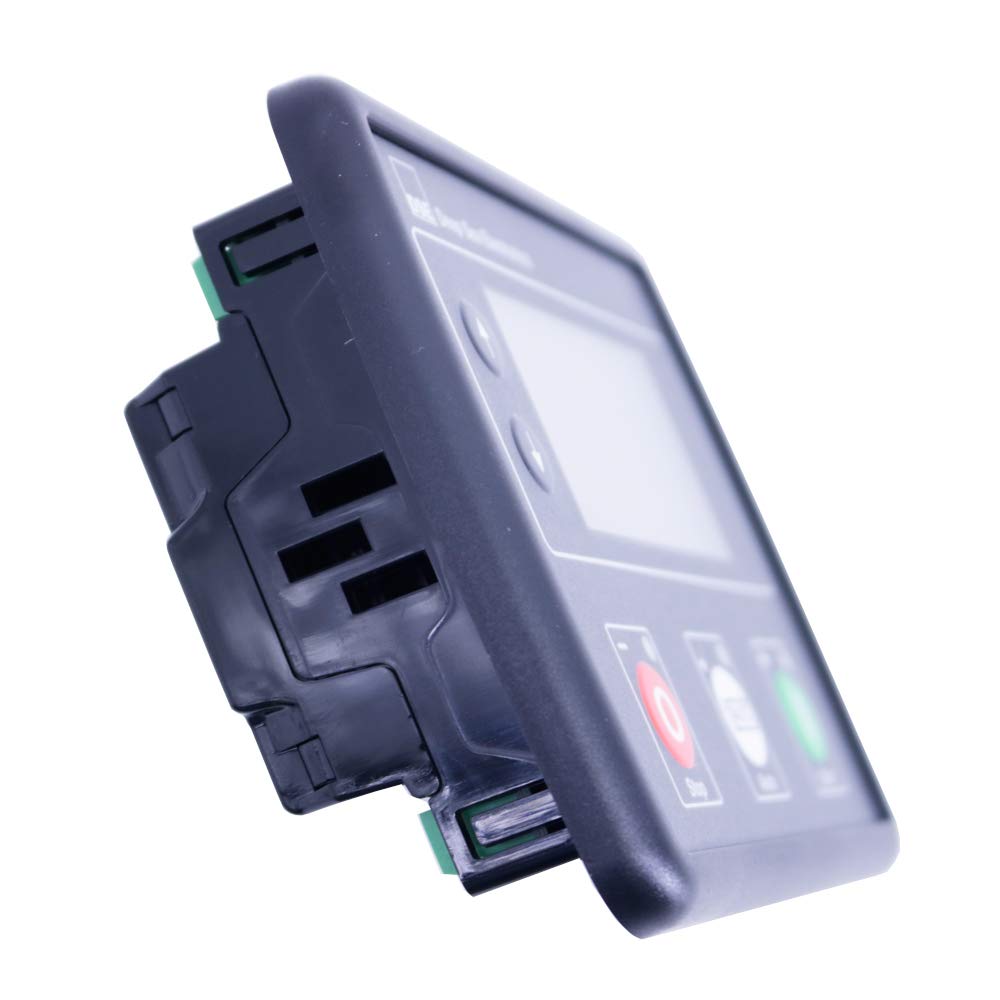

The DSE4620 is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.
Ultimate size to feature ratio；Automatically transfers between mains (utility) and generator
Hours counter provides accurate information for monitoring and maintenance periods
User-friendly set-up and button layout for ease of use；Multiple parameters are monitored simultaneously which are clearly displayed on the largest back-lit icon display in its class
The module can be configured to suit a wide range of applications；Compatible with a wide range of CAN engines, including tier 4 engine support
model number: DSE4620MKII
Part Number: DSE4620MKII
Details: KEY FEATURES
Largest back-lit icon display in its class
Current sensing, real time clock & heated display options available
Fully configurable via the fascia or PC using USB communication
Extremely efficient power save mode
3 phase generator sensing
3 phase mains (utility) sensing
Compatible with 600 V ph - ph nominal systems
Generator/load power monitoring (kW, kV A, kV Ar, pf)
Generator overload protection (kW)
Generator/load current monitoring and protection
Fuel and start outputs (configurable when using CAN)
4 configurable DCoutputs
3 configurable analogue/digital
inputs
4 configurable digital inputs
Configurable staged loading outputs
CAN and alternator speed sensing in one variant
3 engine maintainance alarms
Engine speed protection
Engine hours counter
Engine pre-heat
Engine run-time scheduler
Engine idle control for starting & stopping
Battery voltage monitoring
Start on low battery voltage
Configurable remote start input
1 alternative configuration
Comprehensive warning, electrical trip or shutdown protection upon fault condition
LCDalarm indication
Event log (15)
