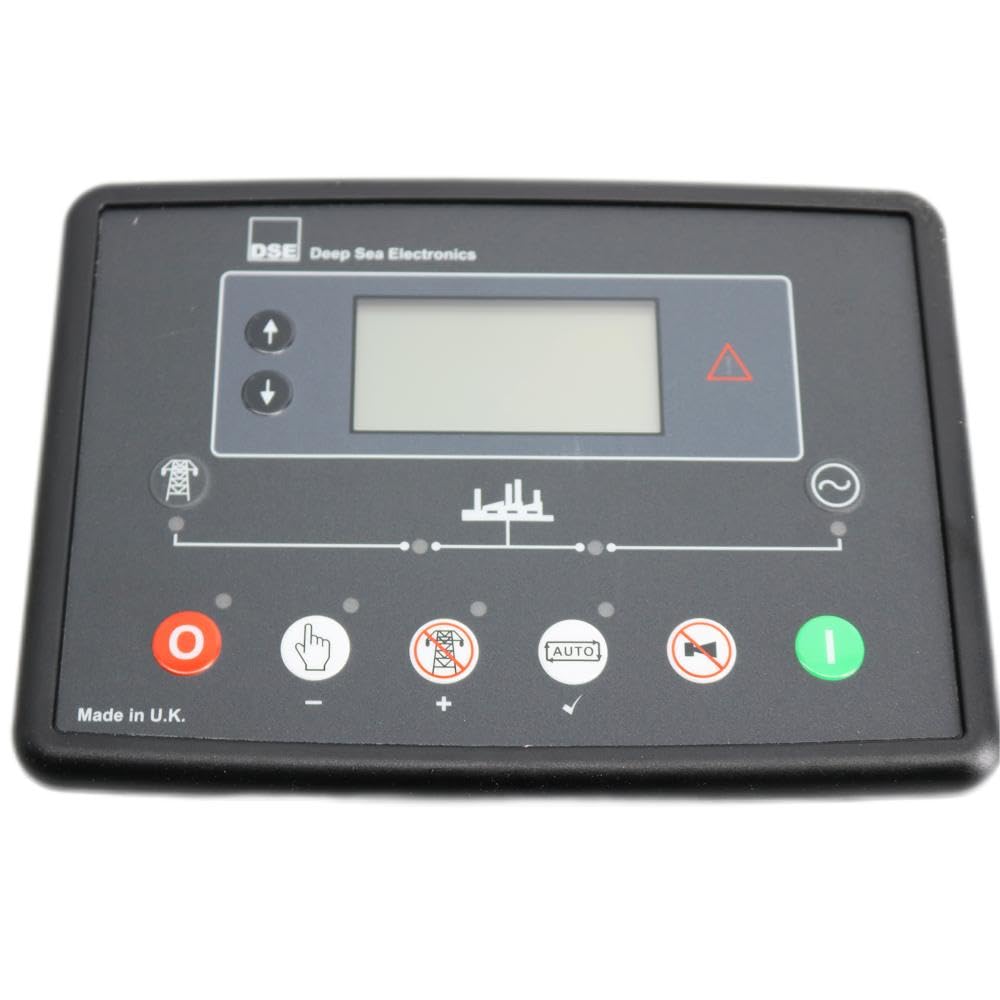

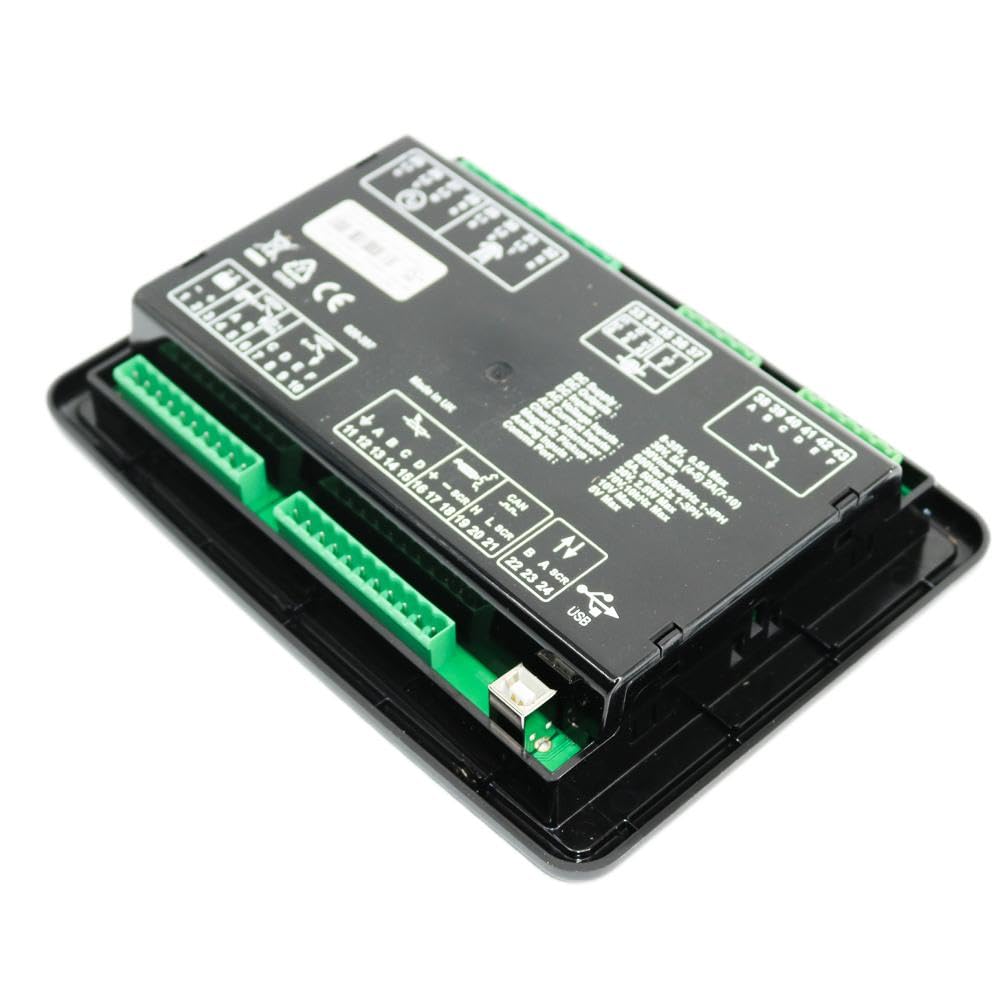

Original Deep Sea DSE6020MKII Auto Mains (Utility) Failure Control Module AMF Generator Controller Single Diesel and Gas Gen-sets Controller Panel

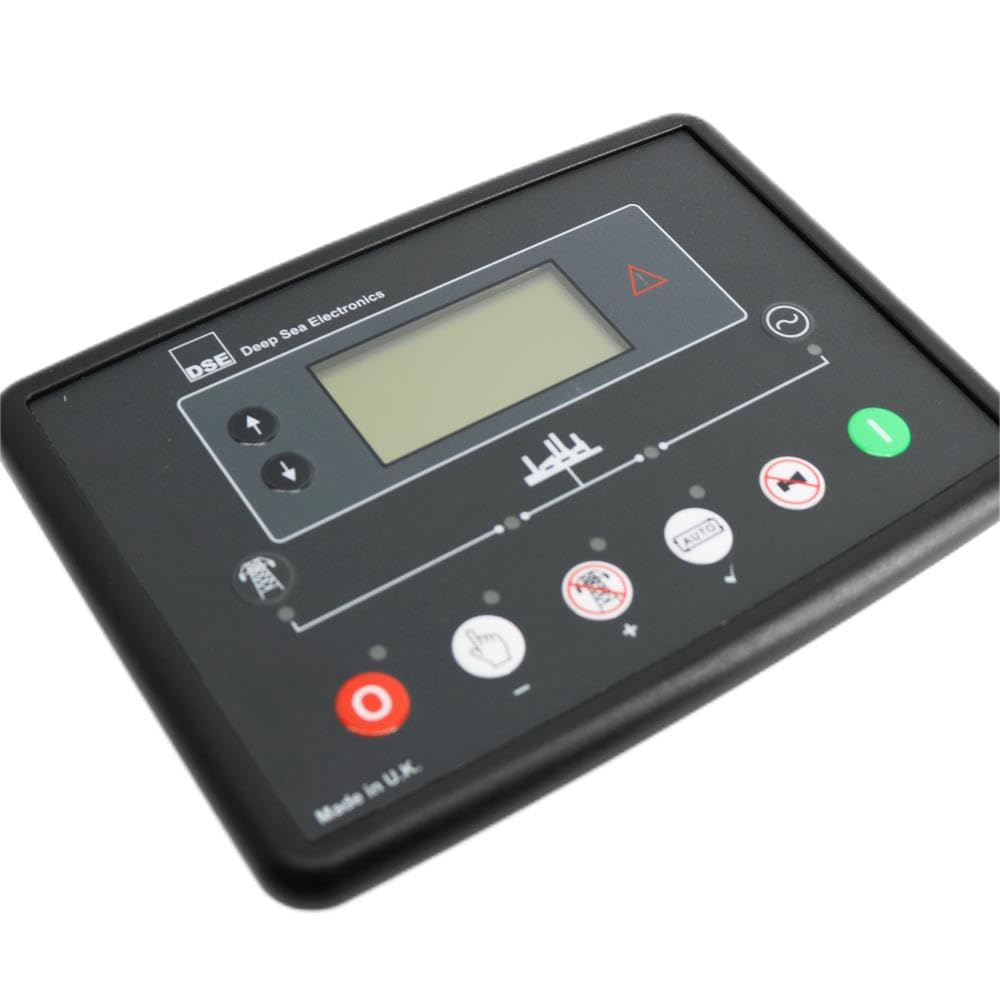

DSE 6020 AMF module,The control system is an integral part of the unit and also the heart of the unit. The application of the intelligent control system in the unit is helpful to improving the quality of the electric energy and the automation level of the diesel unit.

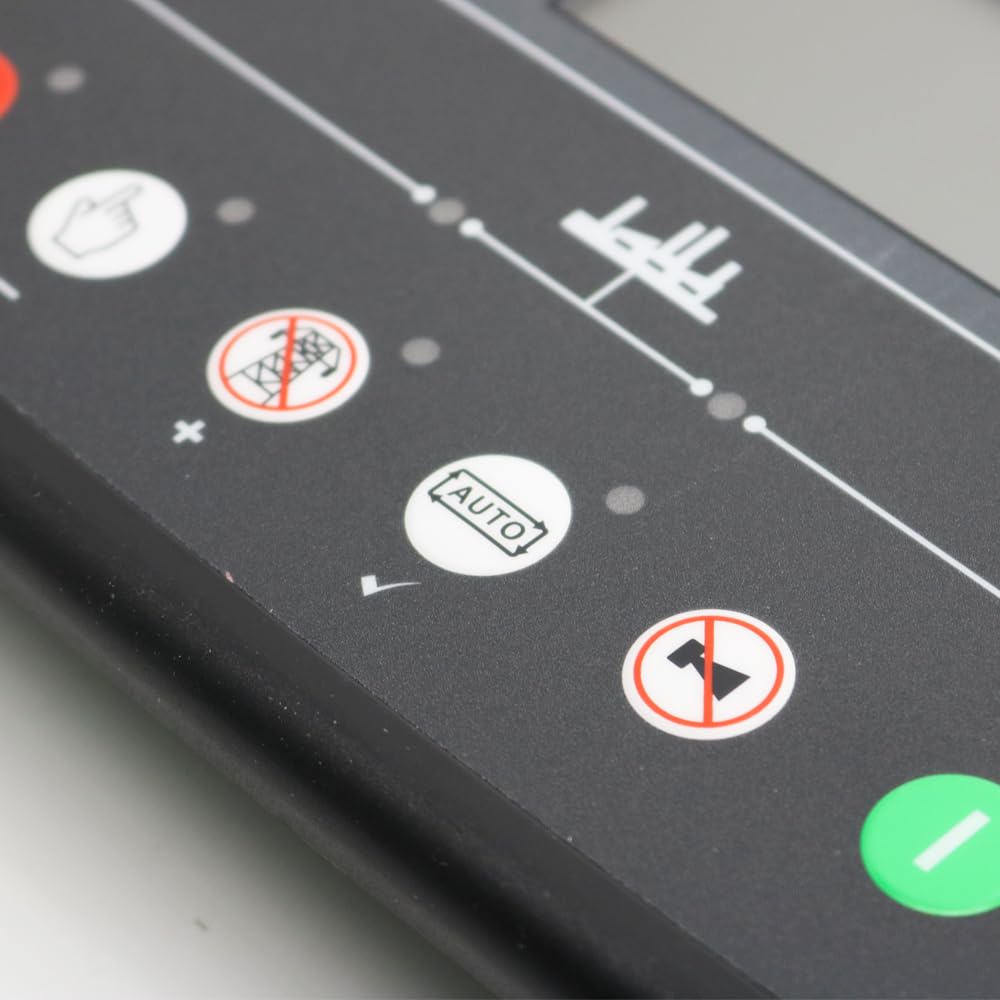

1:Standard screen: Namely manual control screen. You only need to connect the start battery to control the unit locally.

2:Self-start control screen: The unit can realize both local manual control and remote control (by the external signal line). You need to connect the signal control line to this screen correctly

3:“Three-remote” communication fully automatic control screen: On the basis of the “self-start control screen” function, it also has the communication mode

4:  It is used in the automation and monitoring system of single unit. It has many functions like automatic startup/shutdown, data measurement, alarm protection and “three-remote". The controller has large LCD display and Chinese/English interface, realizing simple operation and reliable running;

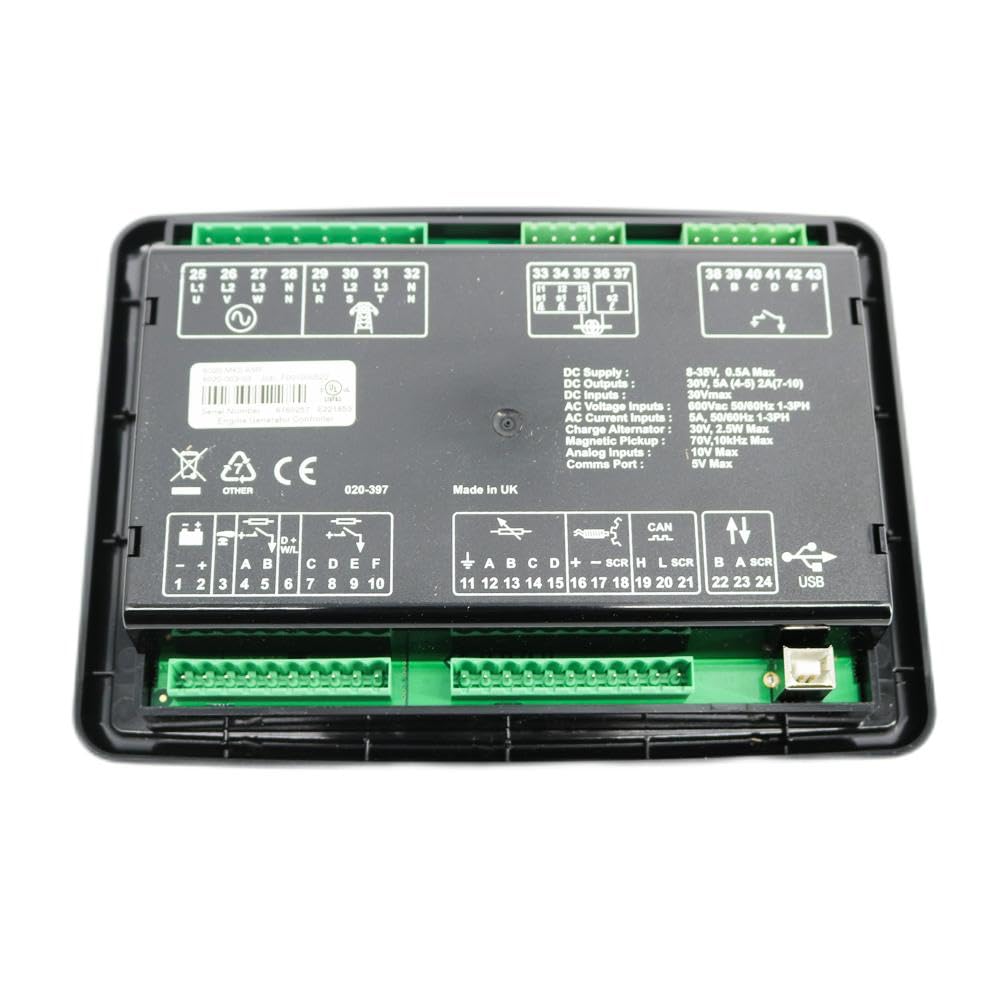

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained
during cranking.

MAXIMUM OPERATING CURRENT
100 mA at 12 V, 105 mA at 24 V

MAXIMUM STANDBY CURRENT
60 mA at 12 V, 55 mA at 24 V

MAXIMUM SLEEP CURRENT
40 mA at 12 V, 35 mA at 24 V

GENERATOR & MAINS (UTILITY)

VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE
3.5 Hz to 75 Hz

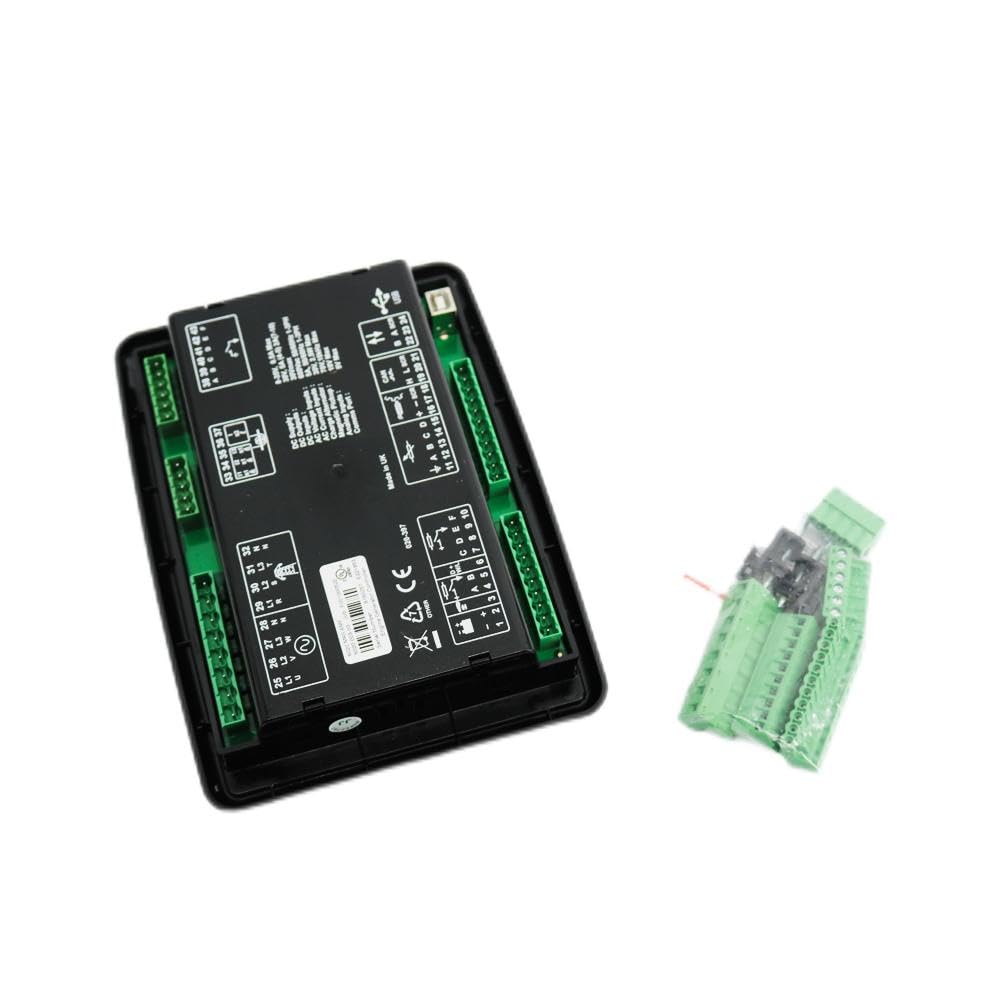

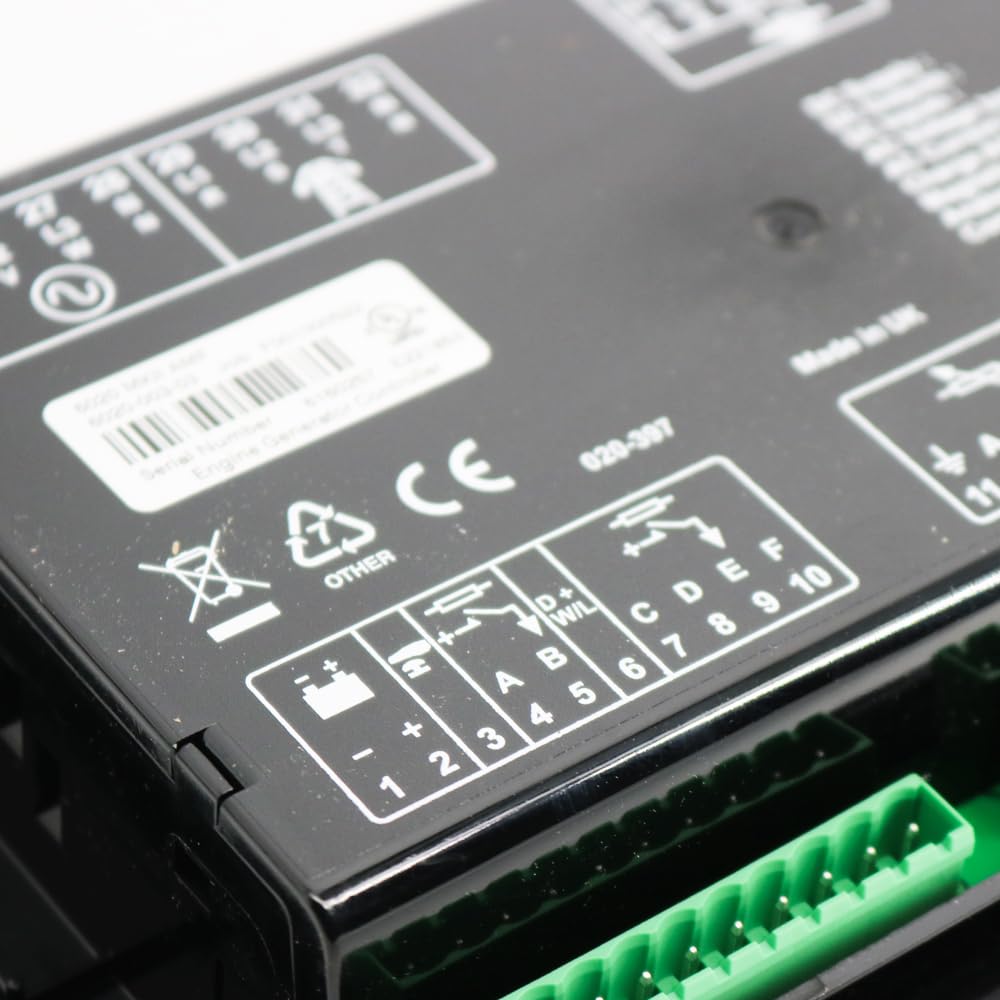

INPUTS

DIGITAL INPUTS A to F
Negative switching

ANALOGUE INPUTS A to C
Configurable as:
Negative switching digital input
0 Ω to 480 Ω

ANALOGUE INPUT D
Configurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 480 Ω

OUTPUTS

OUTPUT A (FUEL)
10 A short term, 5 A continuous,
at supply voltage

OUTPUT B (START)
10 A short term, 5 A continuous,
at supply voltage

AUXILIARY OUTPUTS C, D, E & F
2 A DC at supply voltage
