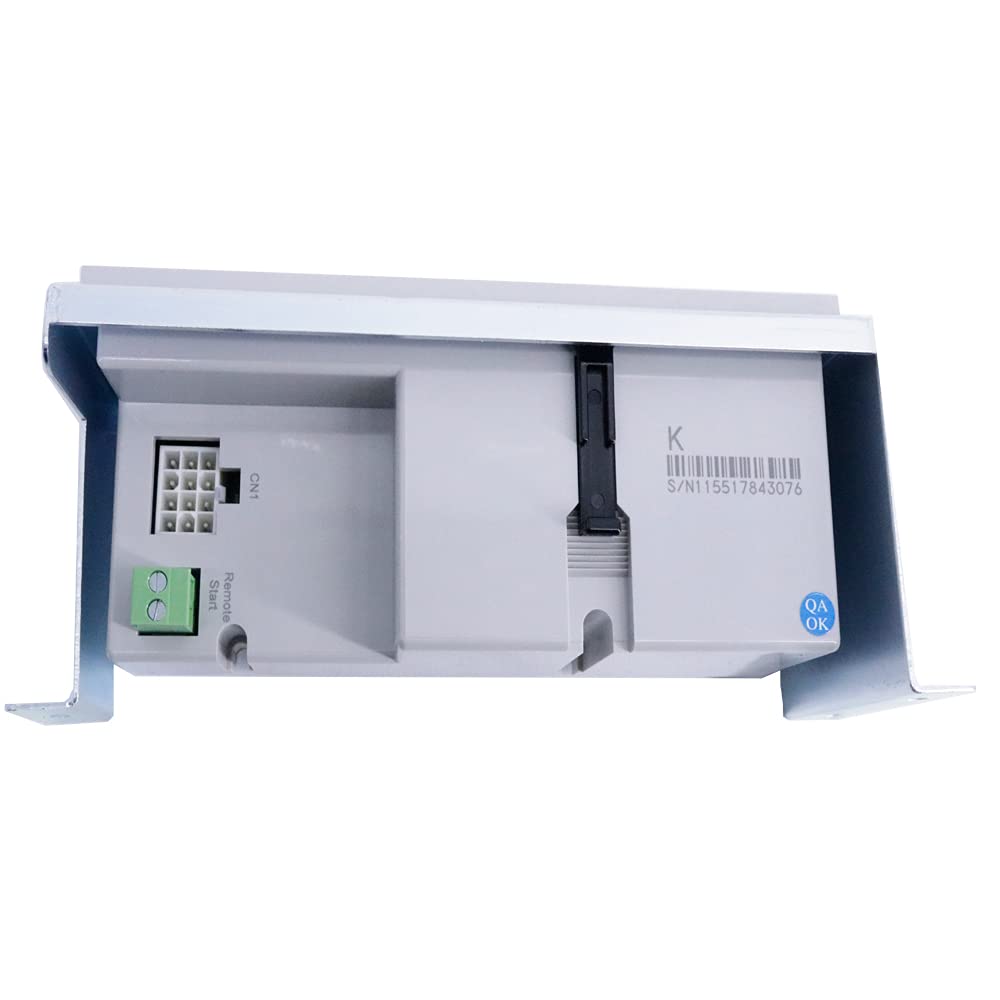

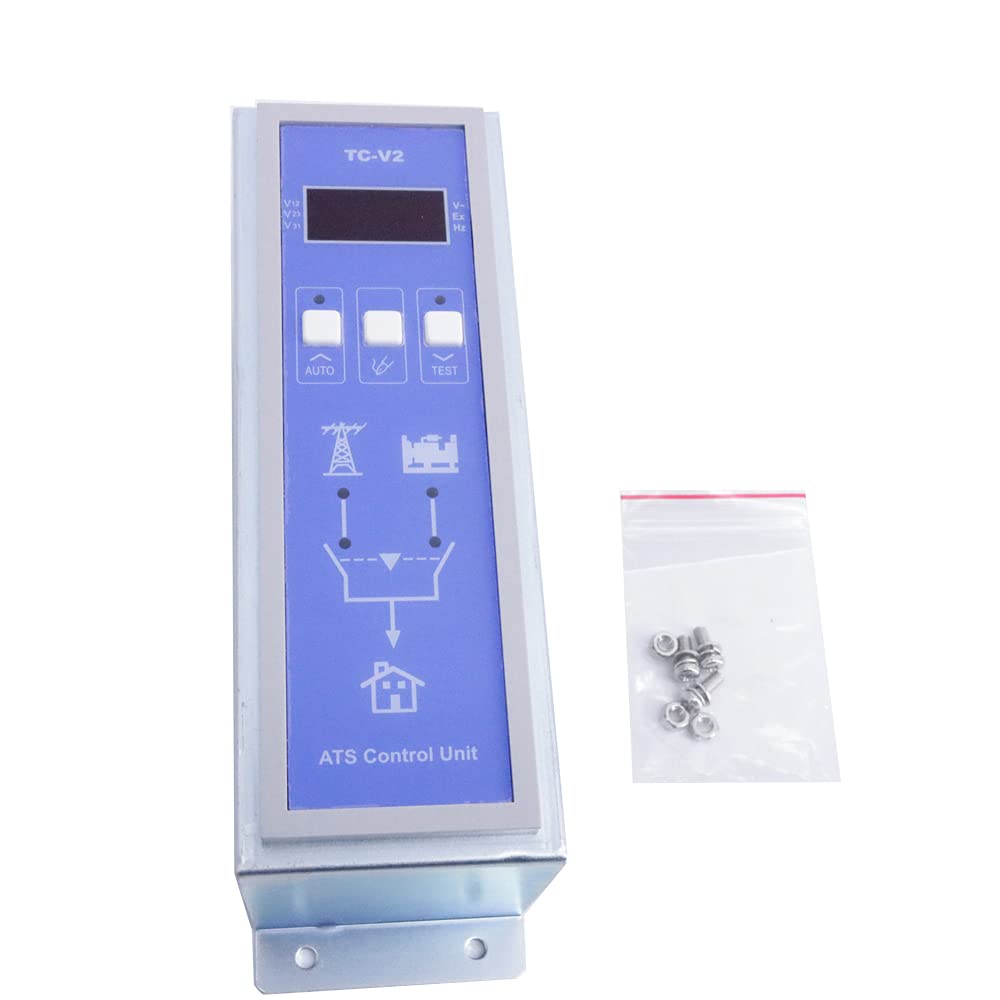

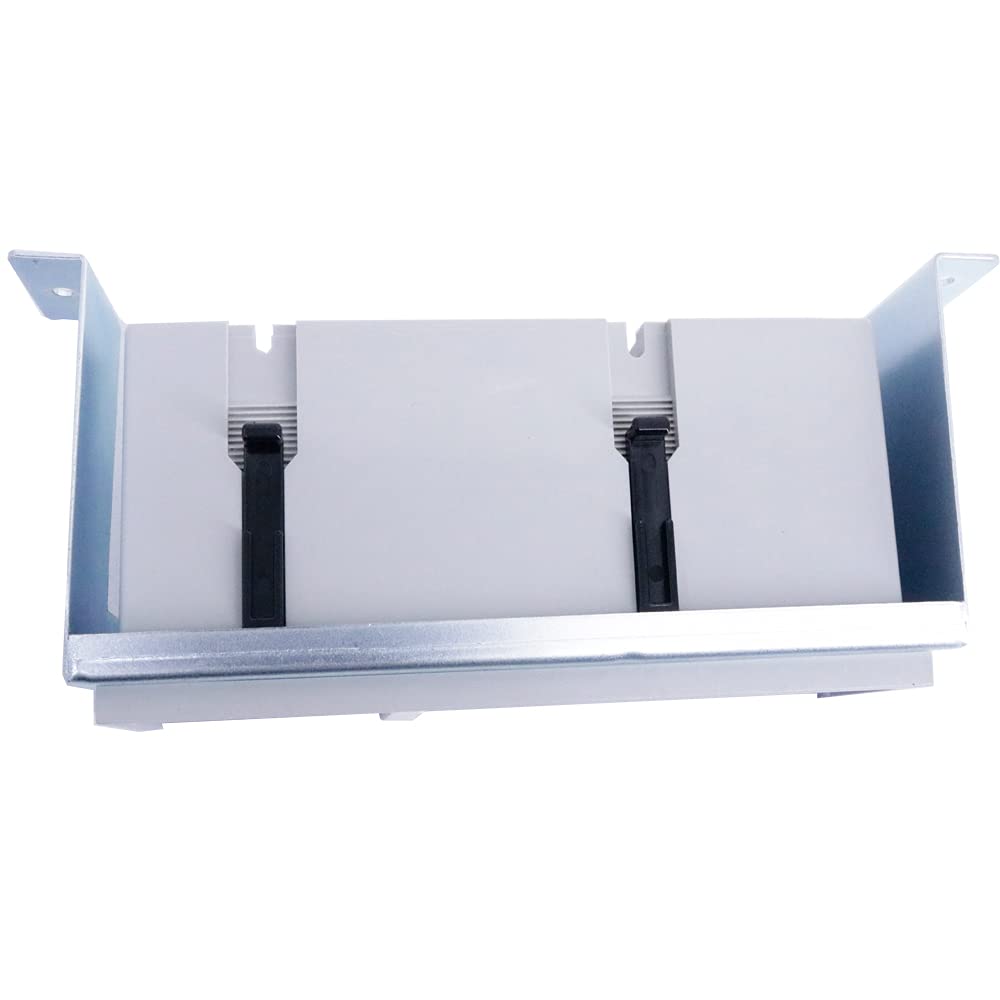

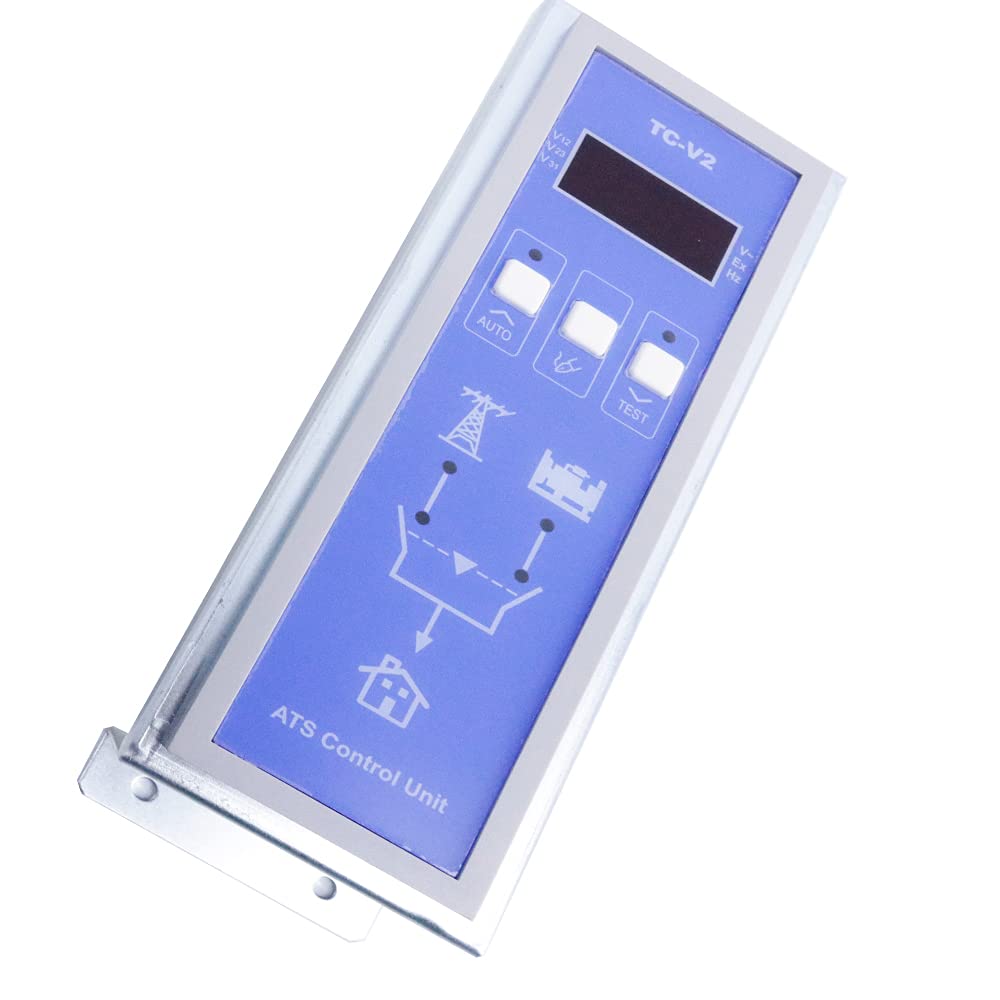

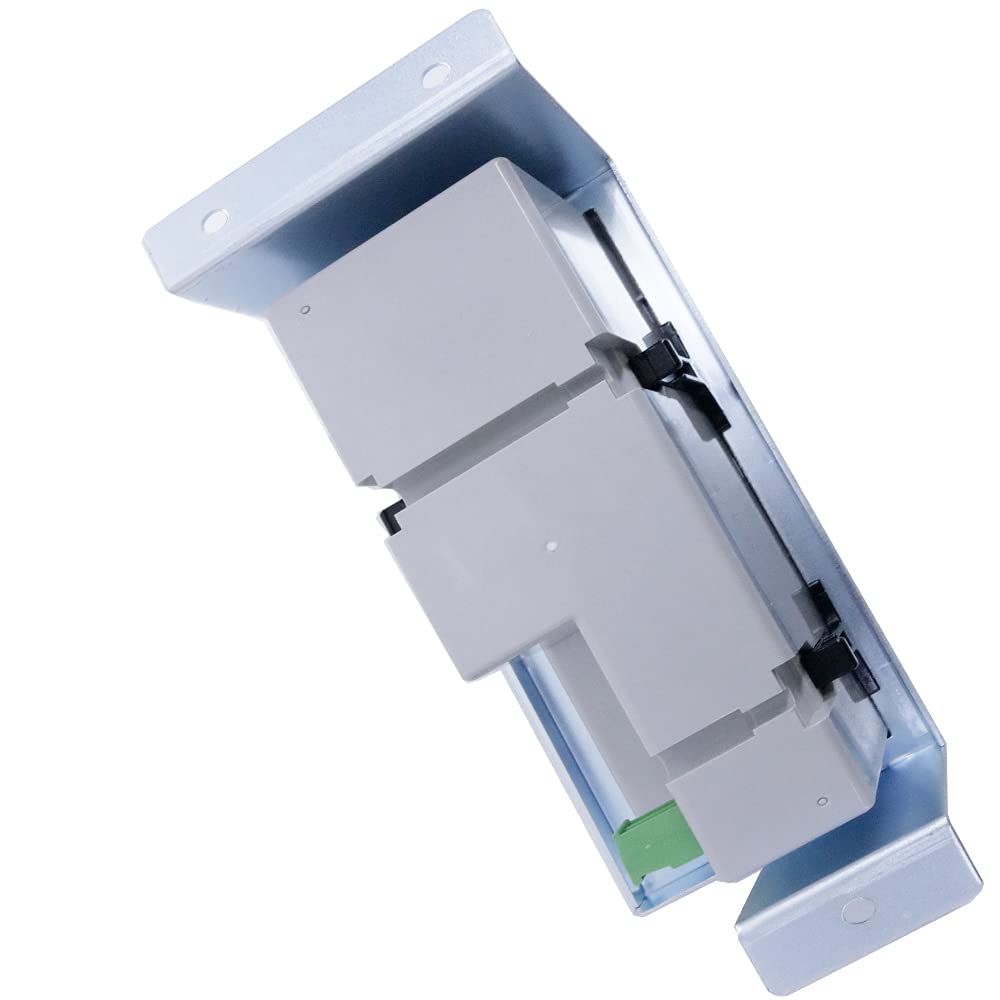

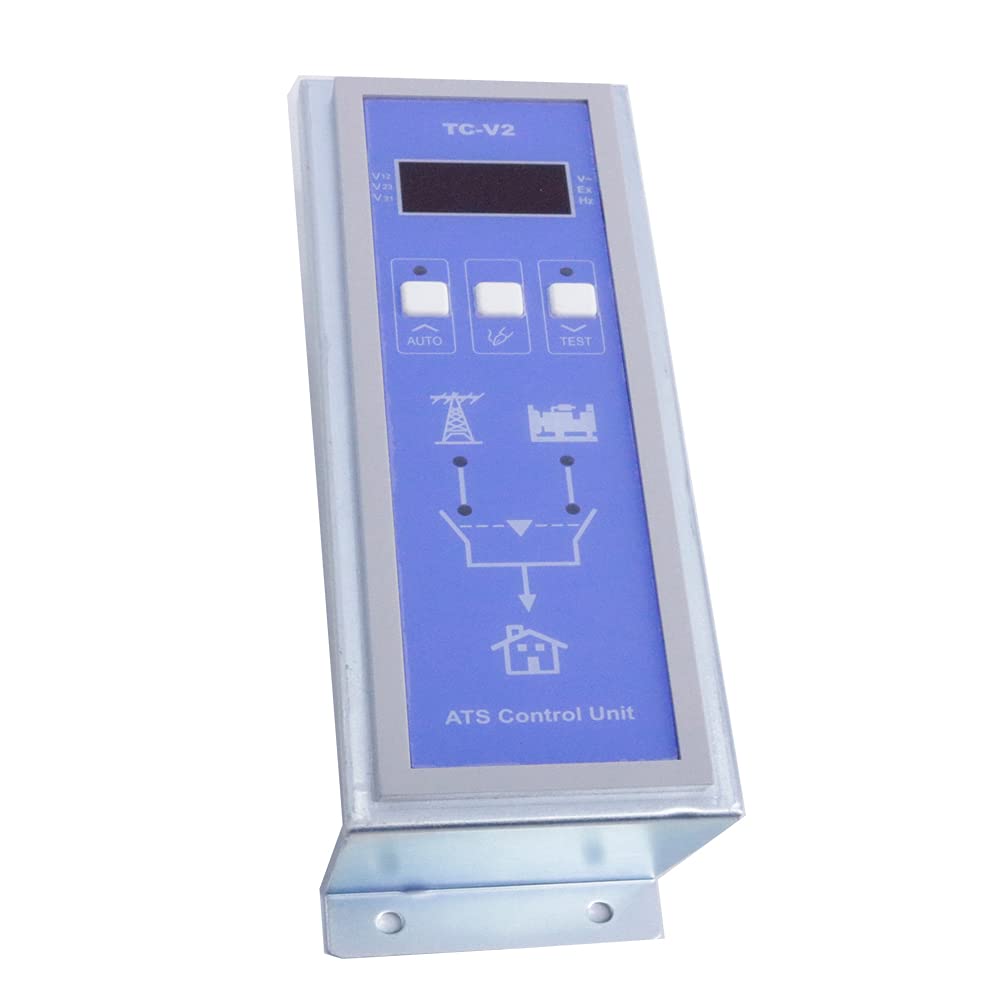

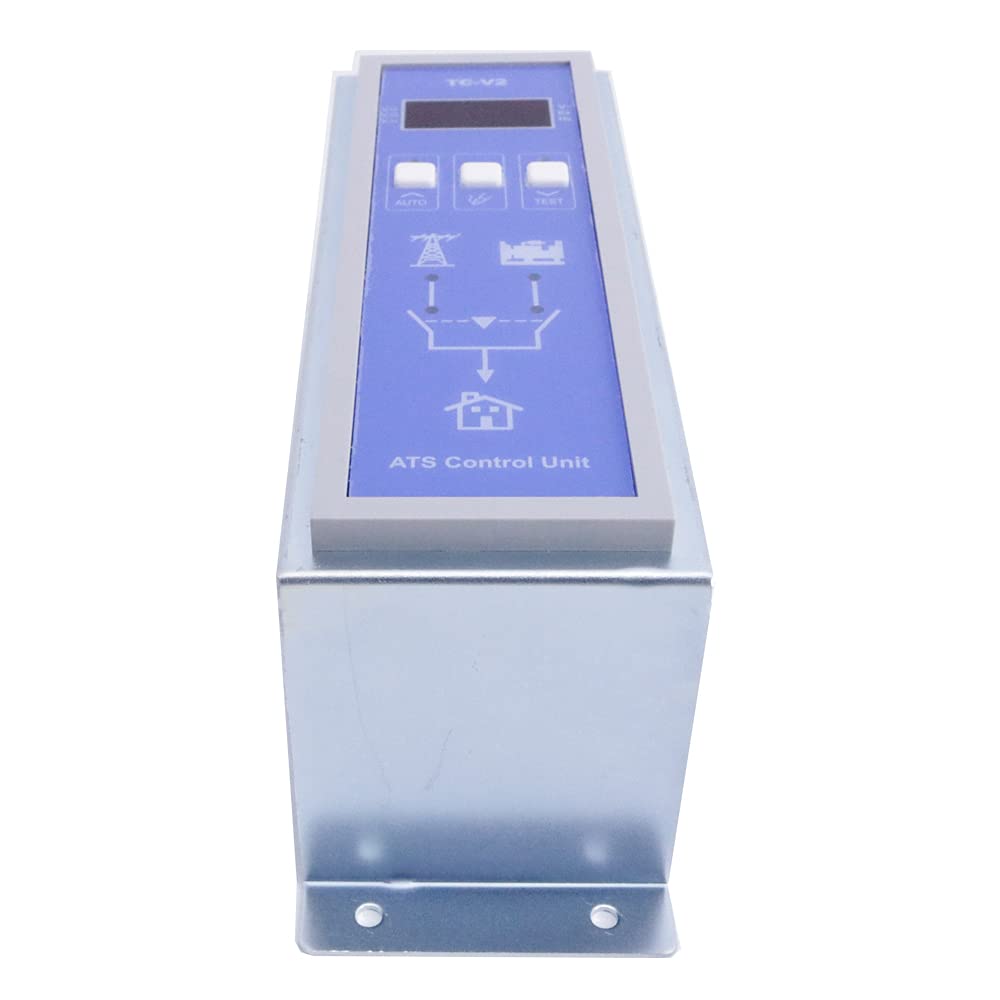

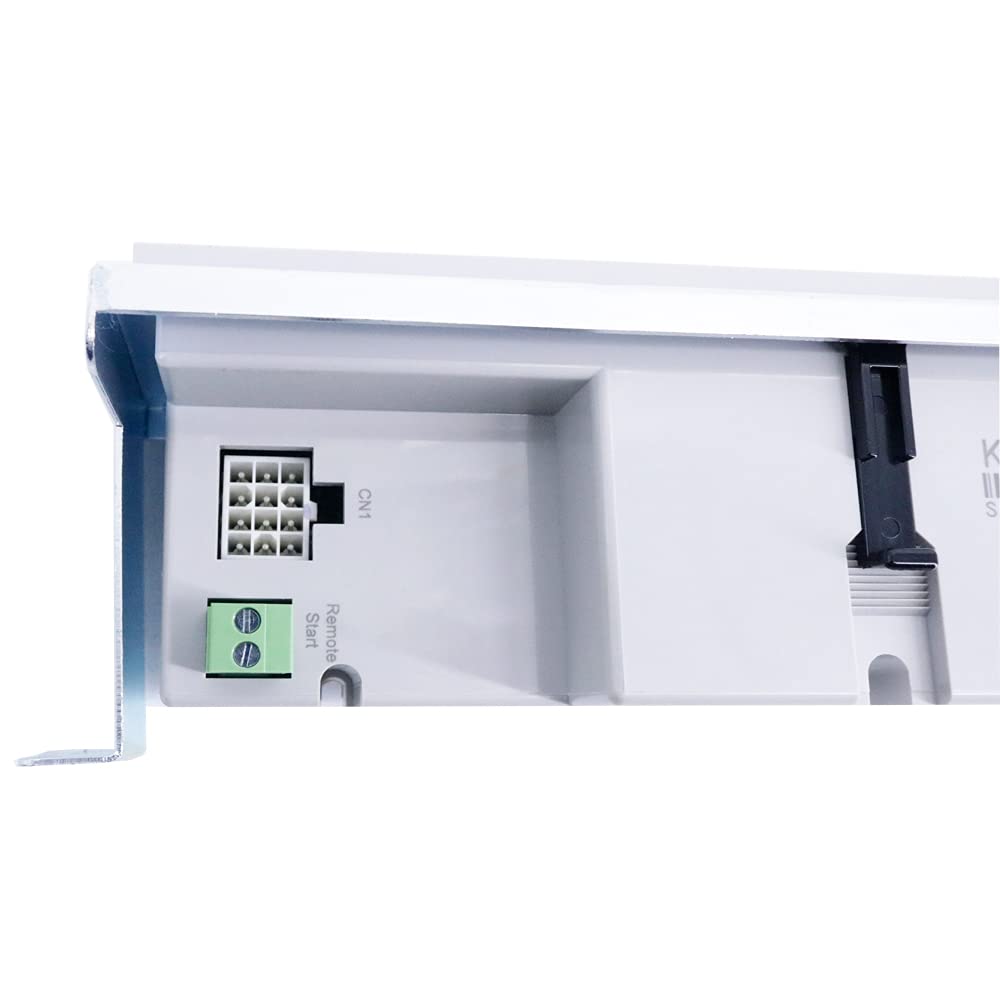

Original KUTAI TC-V2 Automatic Transfer Switch Controller Module Digital 110V to 280V ATS Controller Unit for TCS2P125/TCS3P125/TCS4P125 Generator Genset Parts

Brand: Graigar

Features:

• TC-V2 is made by KUTAI factory,100% original.
• Over Volt Setting:110 – 280 Vac (adjustable)
• Over Volt Reset:Below 10 Vac of the OV setting
• Under Volt Setting:80 – 230 Vac (adjustable)
• Under Volt Reset:Exceed 10 Vac of the UV setting

model number: TC-V2

Part Number: TC-V2

Details: Specification:
Over Volt Setting:110 – 280 Vac (adjustable)
Over Volt Reset:Below 10 Vac of the OV setting
Under Volt Setting:80 – 230 Vac (adjustable)
Under Volt Reset:Exceed 10 Vac of the UV setting
Adjustable Time Delay:
TDEN : 0 – 99 seconds
TDNE : 0 – 99 seconds
TDEC : 0 – 99 seconds
TDES : 0 – 30 seconds
TDOFF : 1 – 20 seconds
Normal ON Capacity:7A @ 250 Vac Max.
Standby ON Capacity:7A @ 250 Vac Max.
Remote Start Capacity:6A @ 277 Vac,6A @ 28 Vdc Max.
Power Consumption:Less than 1W
Panel Cut-Out:47.0 x 162.0 +/-0.5 mm
Dimensions:208.0 (H) x 63.0 (W) x 76.0 (D) mm
Weight:412 g +/-2%
Environment:
Operating Temperature:-10 to +70 °C
Storage Temperature:-20 to +80 °C
Relative Humidity:Max. 95%

EAN: 0761272052462
