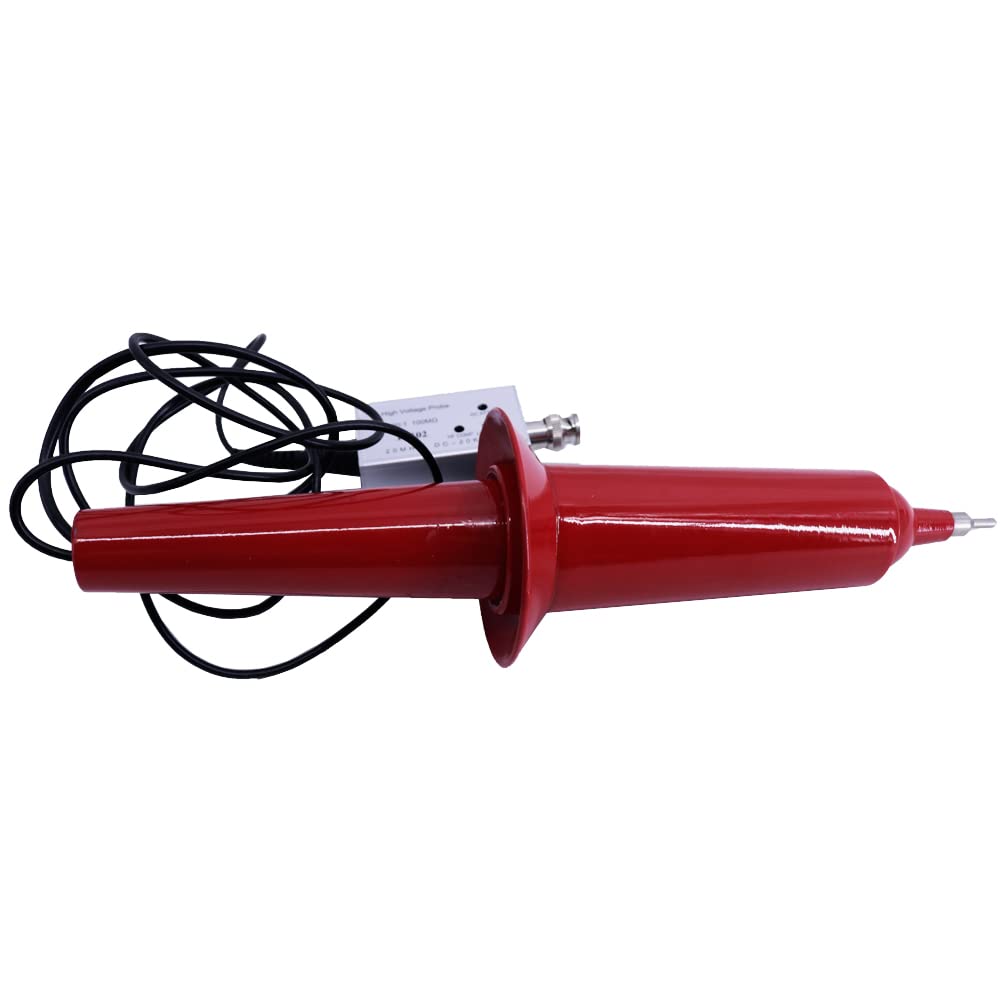

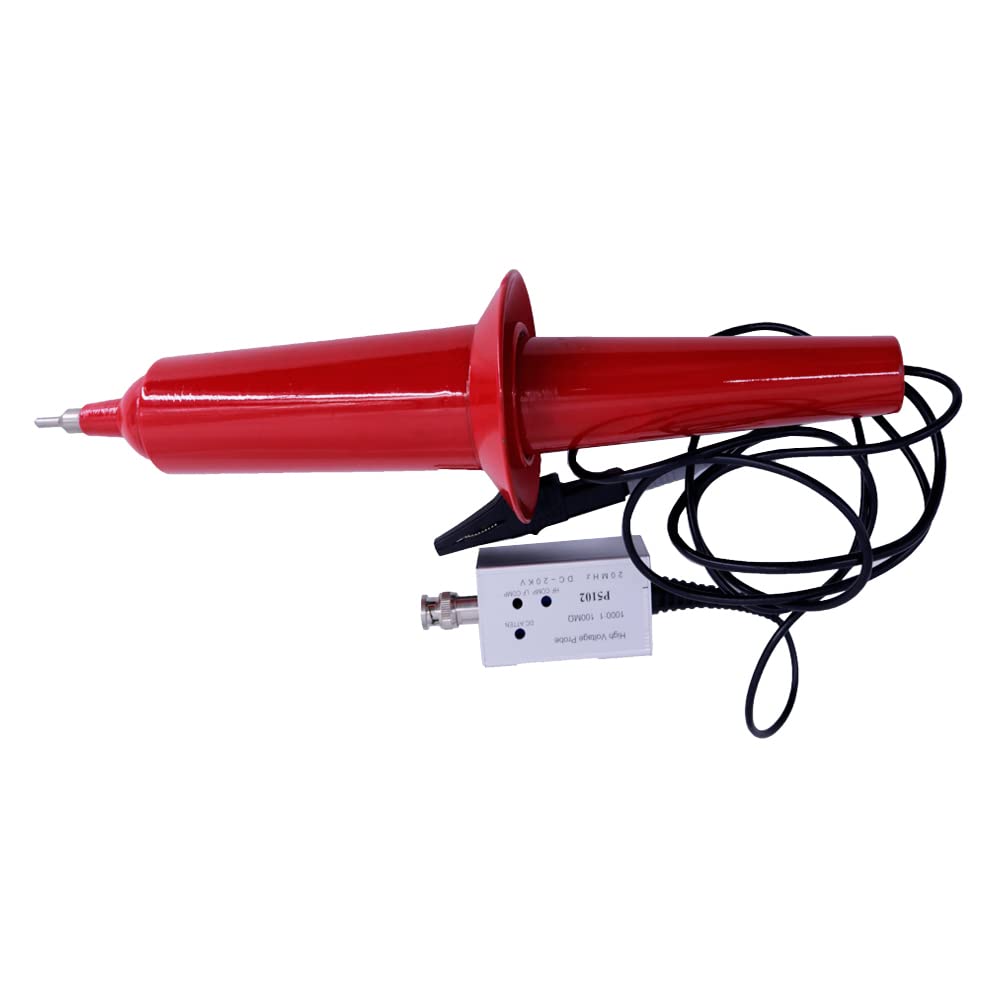

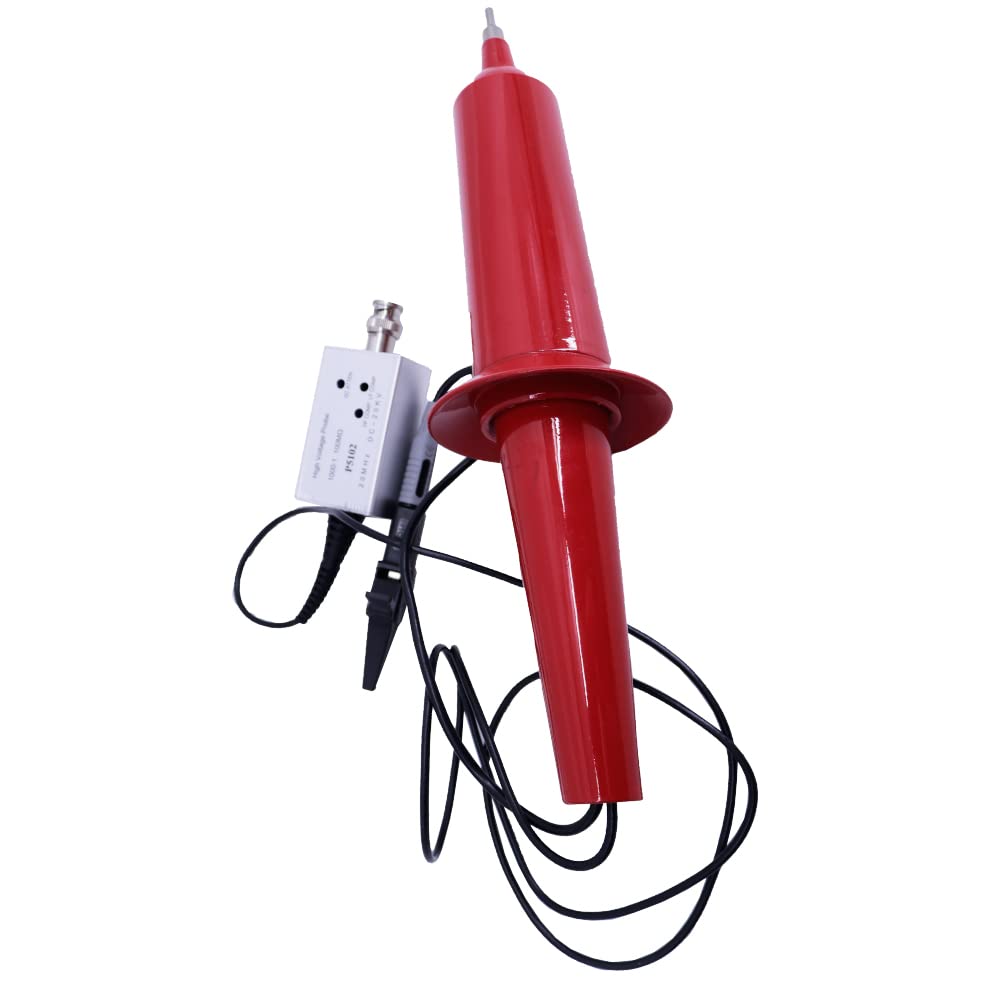

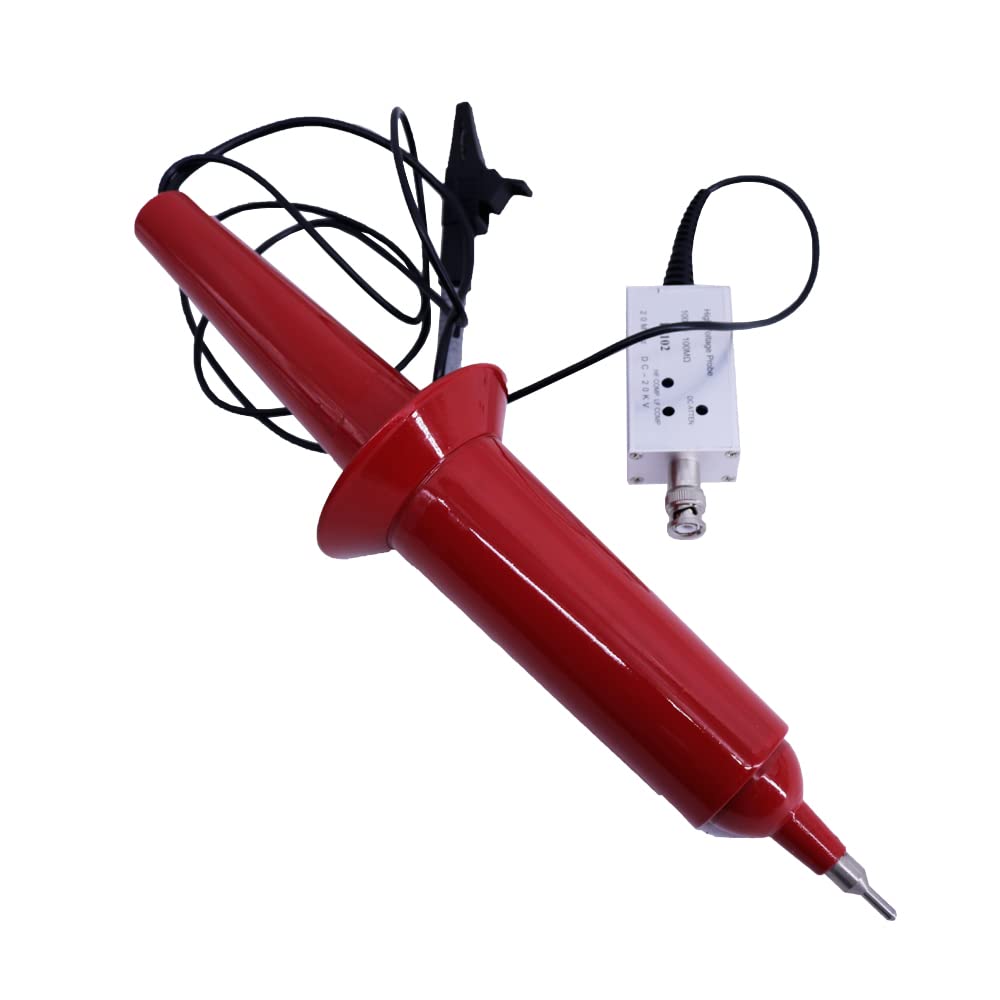

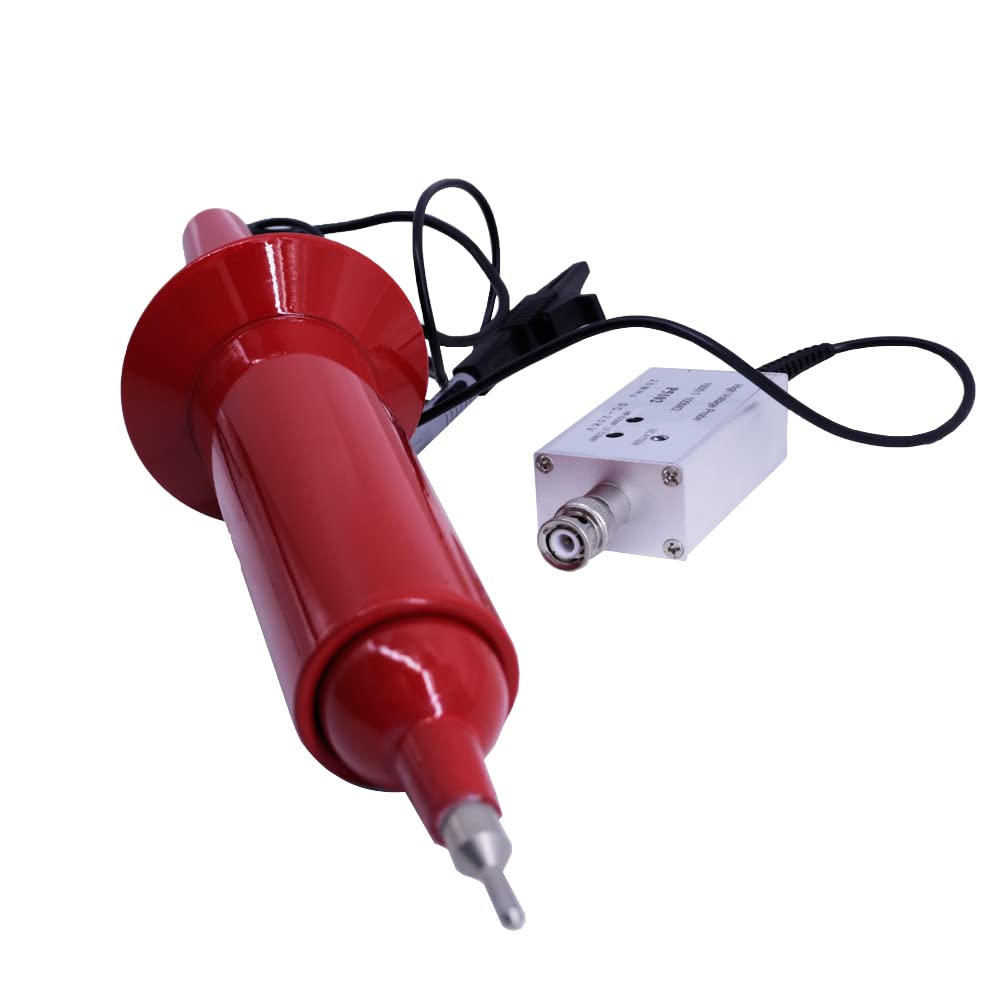

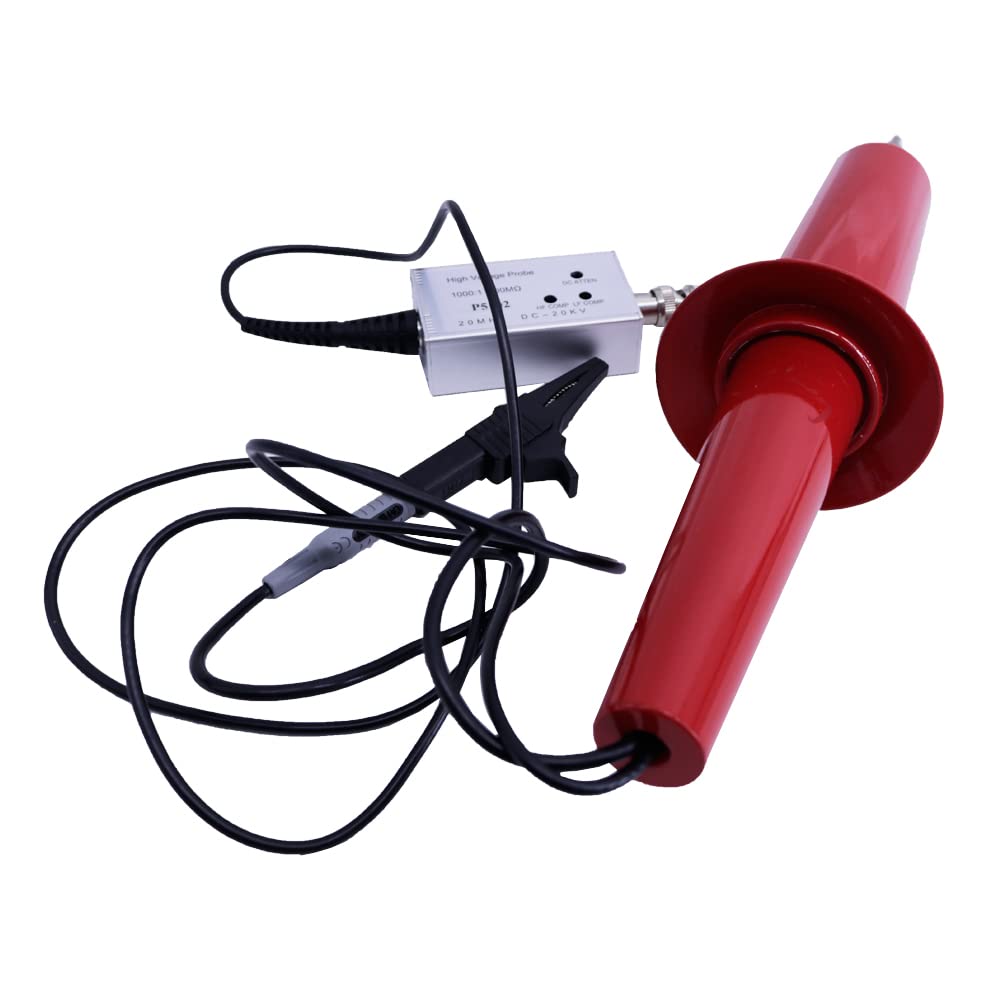

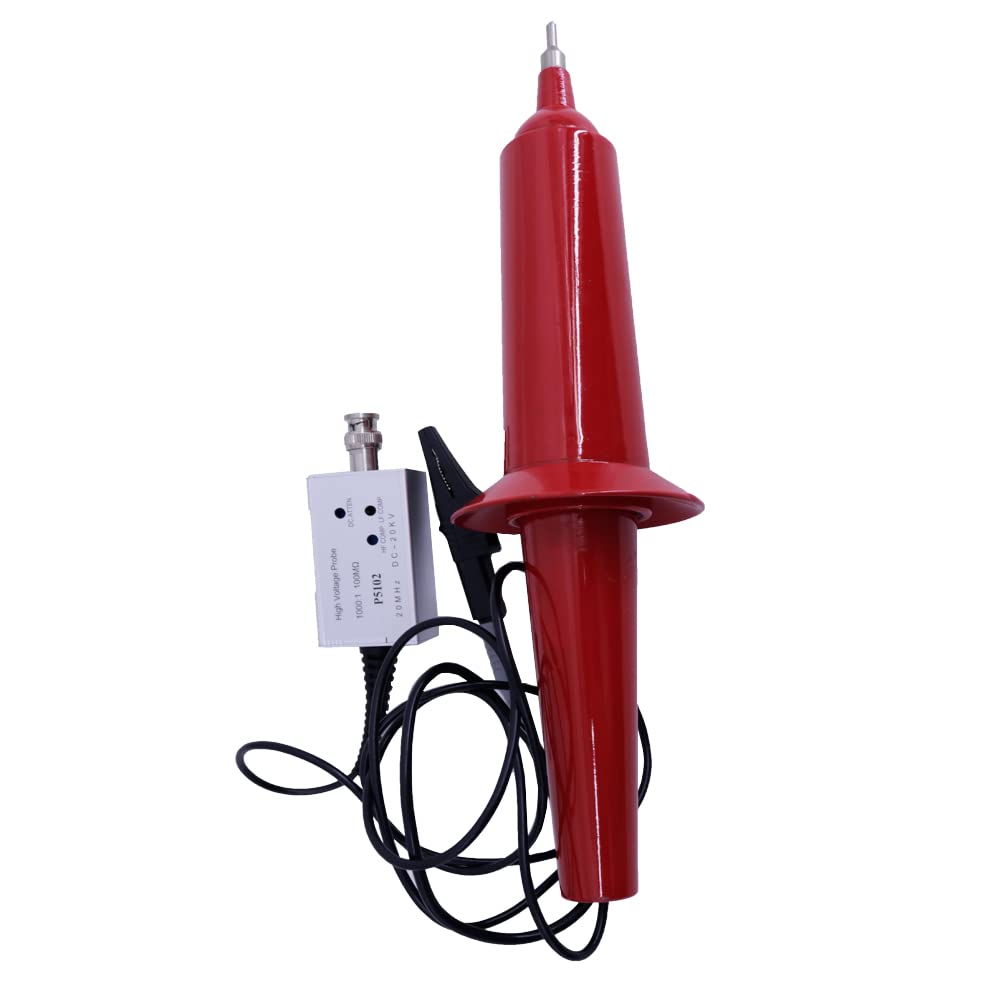

P5102 High Voltage Probe 20MHz DC-20KV Portable Oscilloscope Probe

Main fetures:

      Scope:                                       The scope for all to use.
     Attenuation ratio:                        100:1 fixed
     Attenuation ratio error:                +-1%
     1KHz Square Wave Distortion:       ≤ 1%
     Bandwidth:                                 20MHz-3dB
     Rise time:                                   ≤ 3.5ns
     1MHz square wave on impulse:      ≤ 5%
     Maximum input voltage:                ≥20000V (DC + ACp-p)
     Input Resistance:                         100MΩ
     Input capacitance :                      4-6 P
     Compensation range :                   8-35P

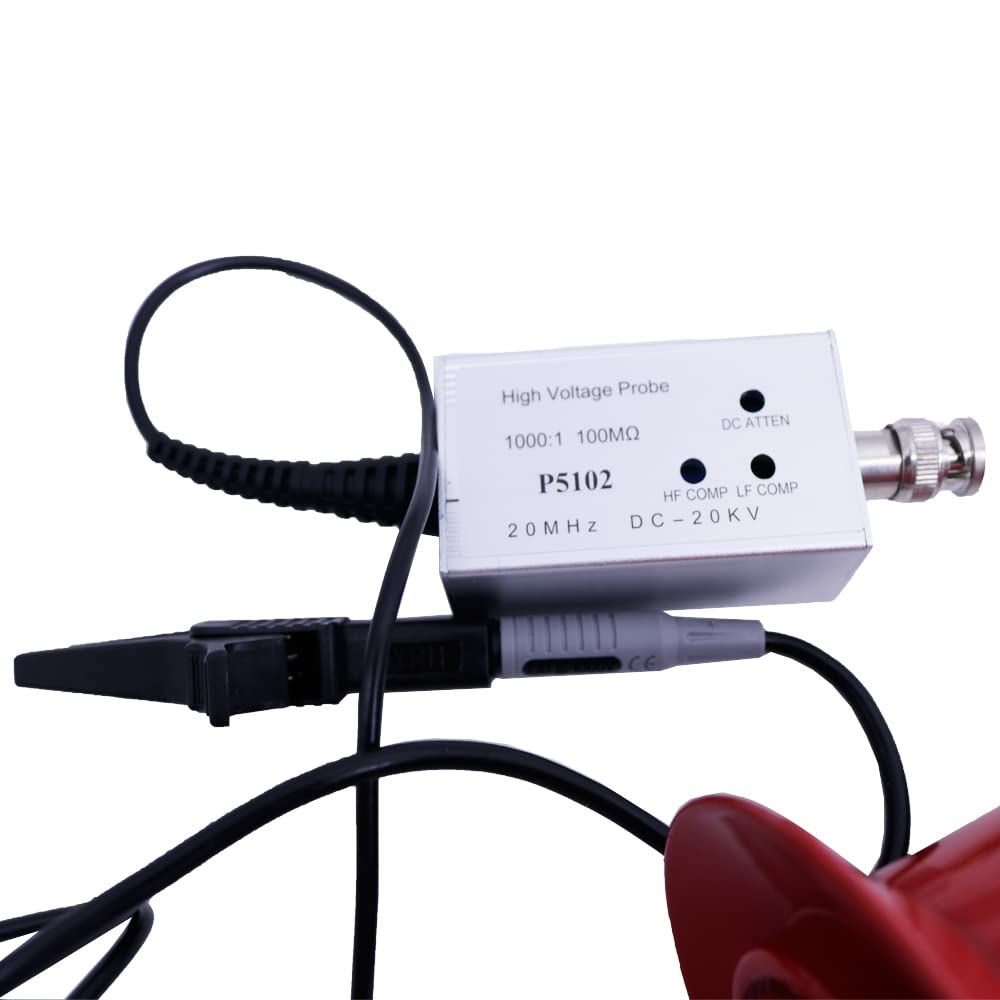

     Compensation adjustment method: BNC terminal capacitor to adjust
     Length:                                       1.3m
     Accessories:                                 Gray-type attachment plug
     Color:                                          Black
     Weight:                                       65g
     Operating temperature:                 -15 ~ 75 *C
     Storage Temperature:                   -20 ~ 60 *C

      Relative humidity:                         ≤ 85%
