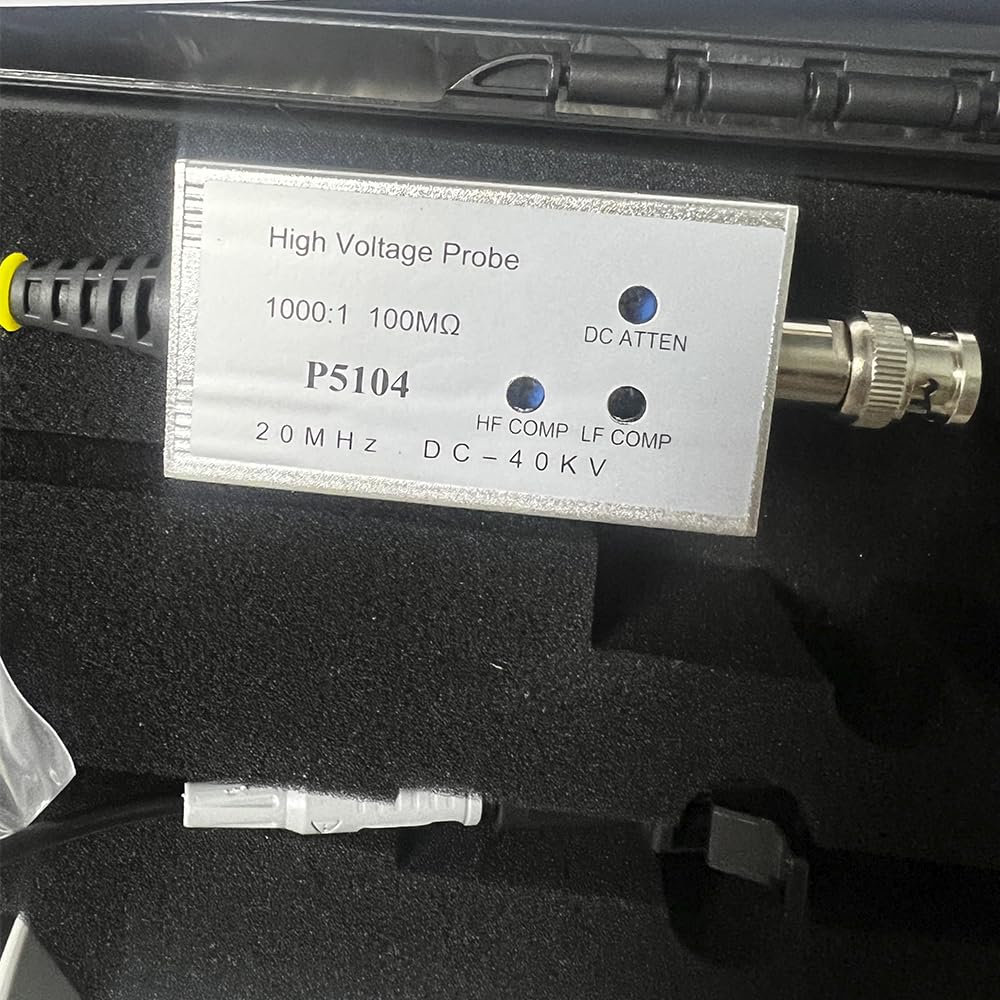

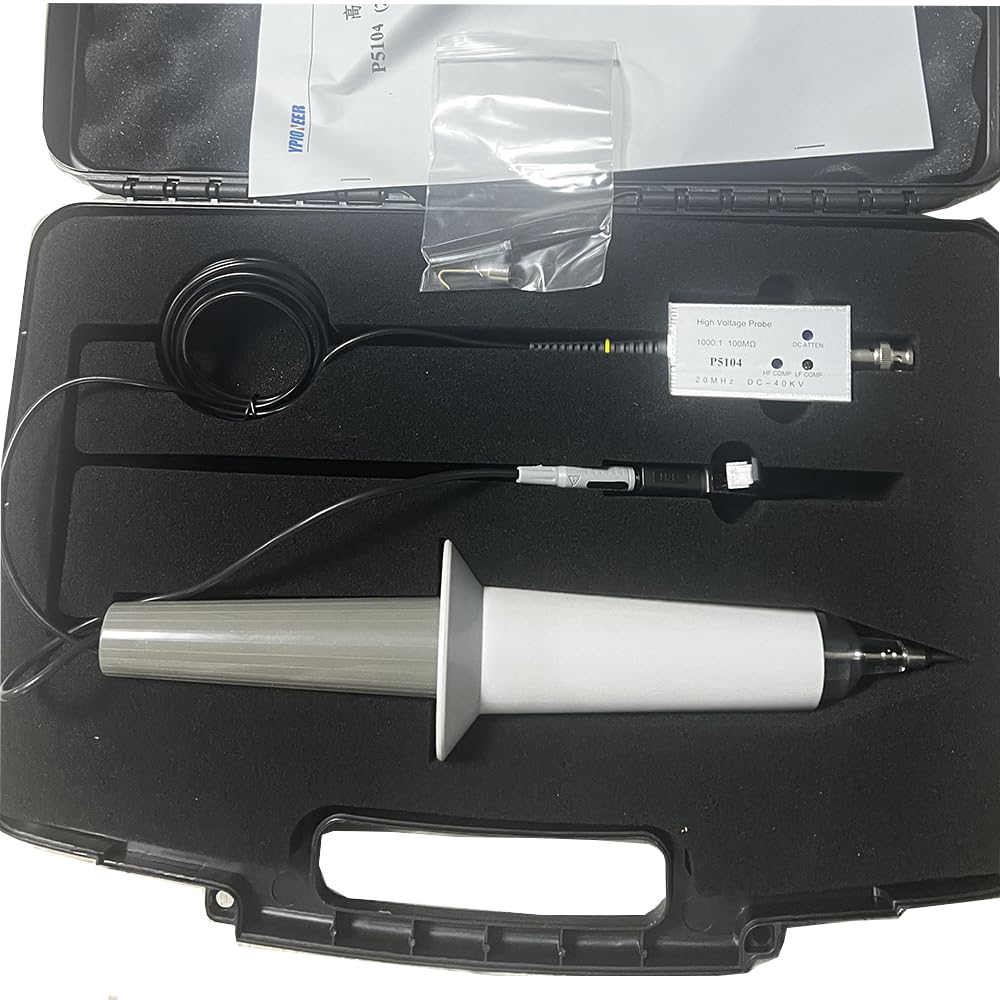

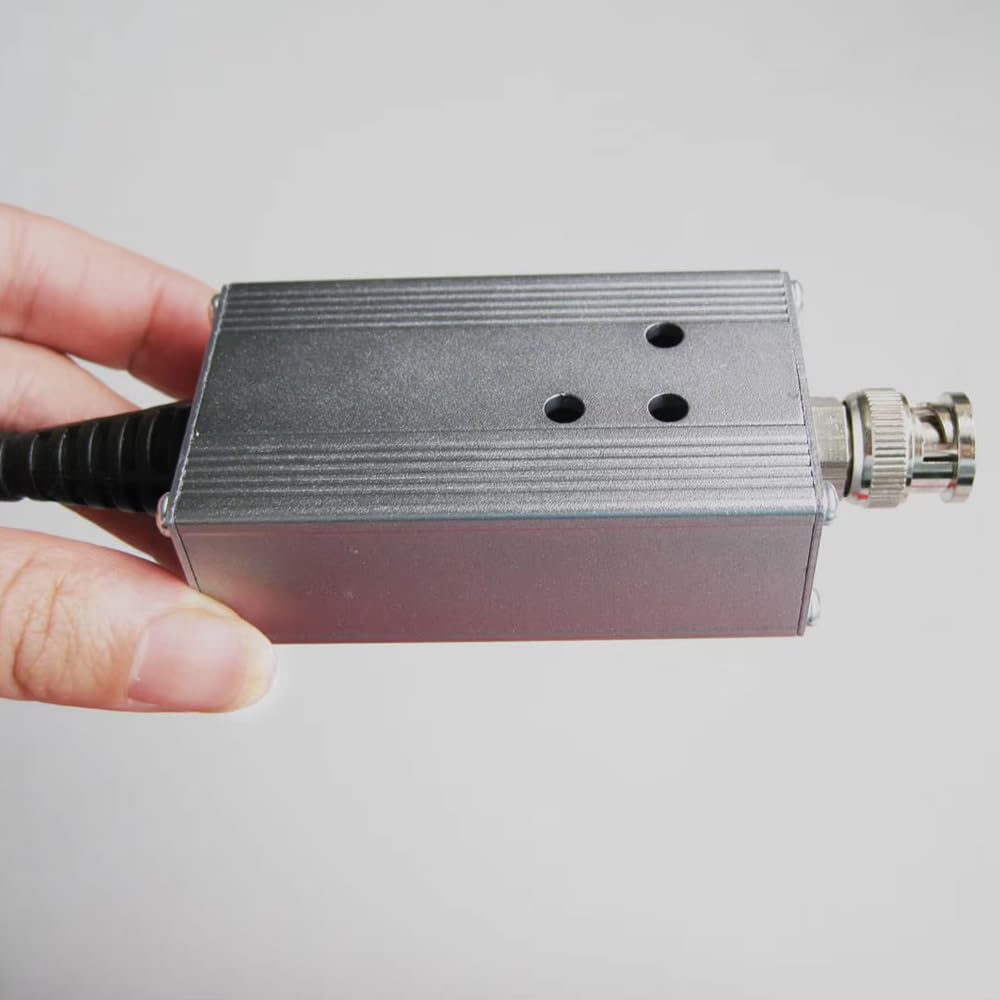

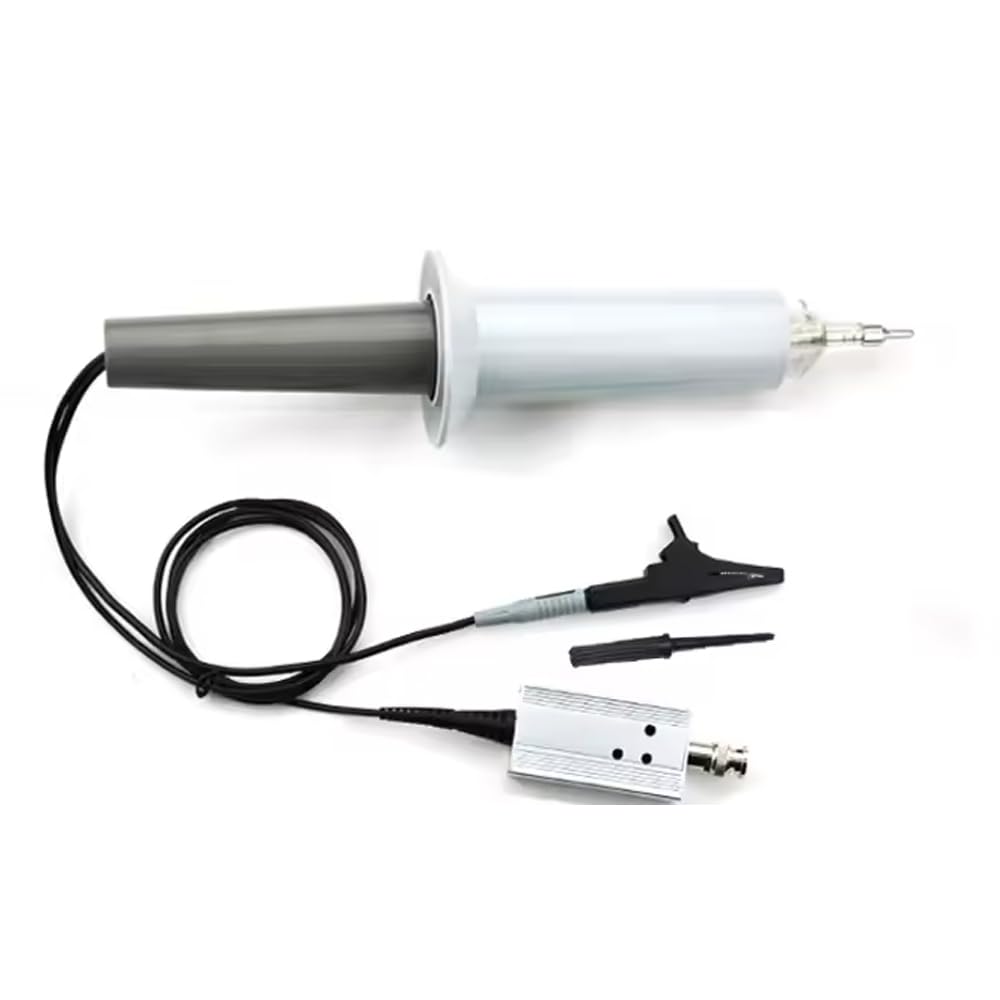

P5104 High Voltage Probe Oscilloscope Probe DC Working Voltage 20KV Bndwidth BC-75MHz

Brand: Graigar

Features:

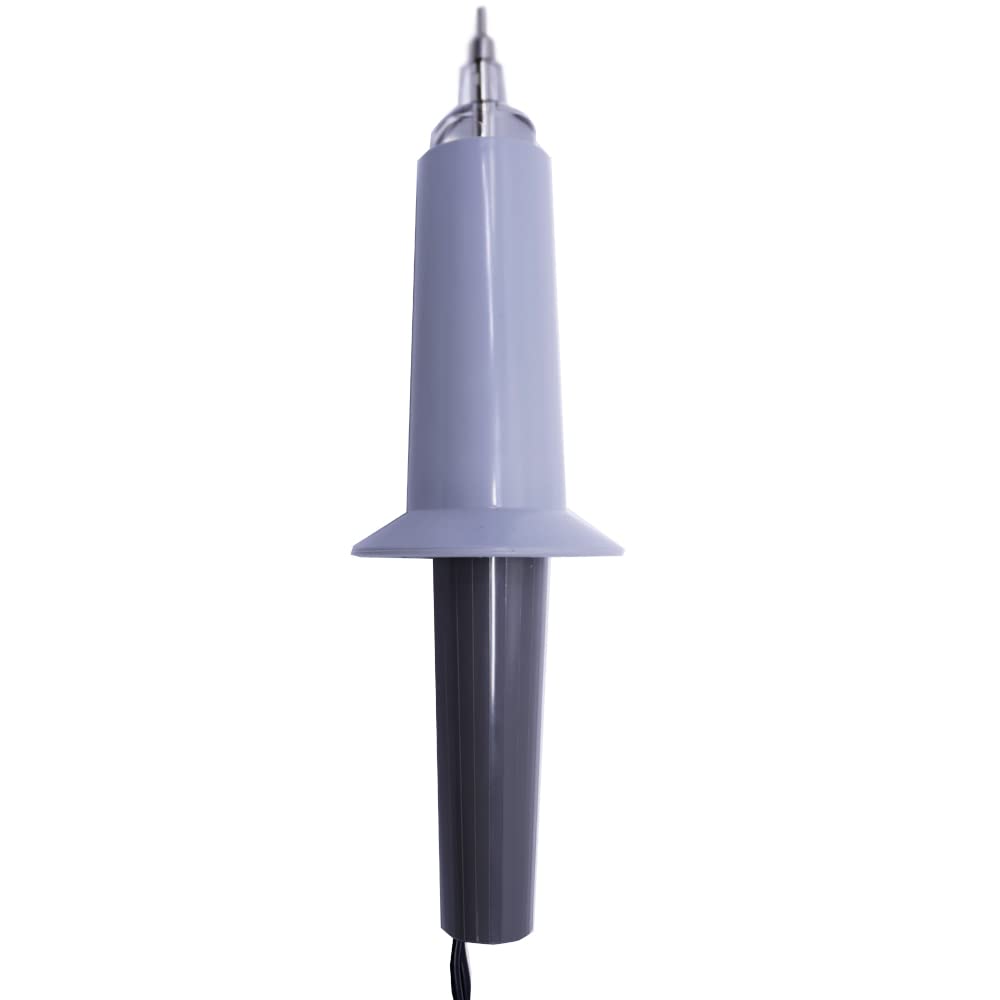

• Contractive-type acuminate hook
• P5104 High Voltage Probe Oscilloscope Probe
• DC Working Voltage 20KV Bndwidth BC-75MHz
• 12cm earth wire with alligator clip
• Locating sleeve adapts to ic testing

model number: P5104

Part Number: P5104

Details: Specifications:
Model:P5102
Max.working voltage:DC:0-20KV
Signal-to-noise ratio:DC 60dB(1KHz),≥ 50dB(1MHz)
Bndwidth:BC-75MHz
Attenuationmultiplier:1000：1
Rise time:≤17.5ns
Input impedance:100MΩ±10%
Input capacitance:3.0pF±0.5pF
Compensation range：10pF~50pF
Cable length:150cm
Temperature drift:≤300ppm/℃
DC Accuracy：±3%(DC-10kV)
AC Accuracy：±2%(1kHz/1KV),-3dB,20MHz
Operating temperature:0-50℃
Storage temperature：-20℃~+70℃
Net weight:700g

EAN: 0761272051229
