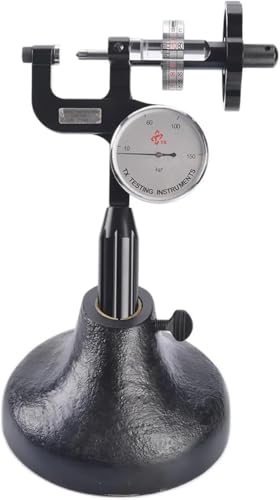

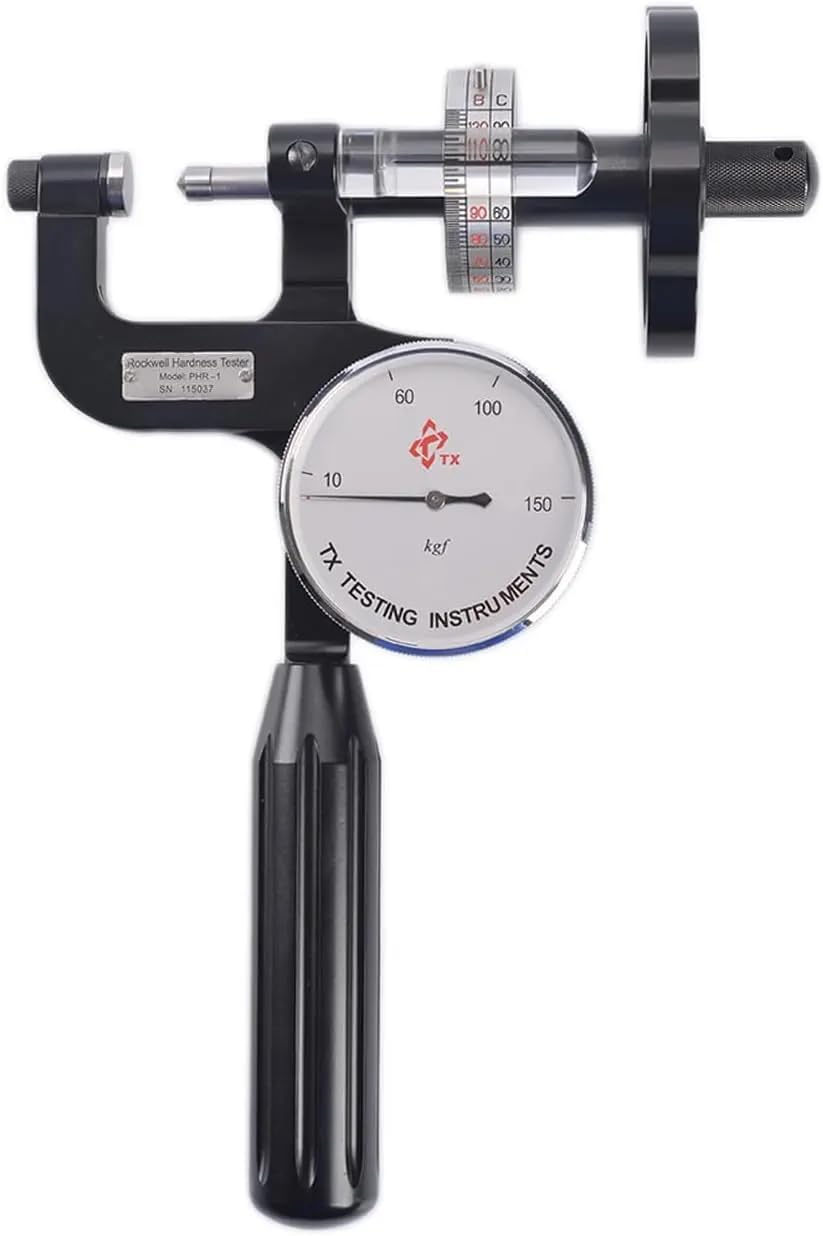

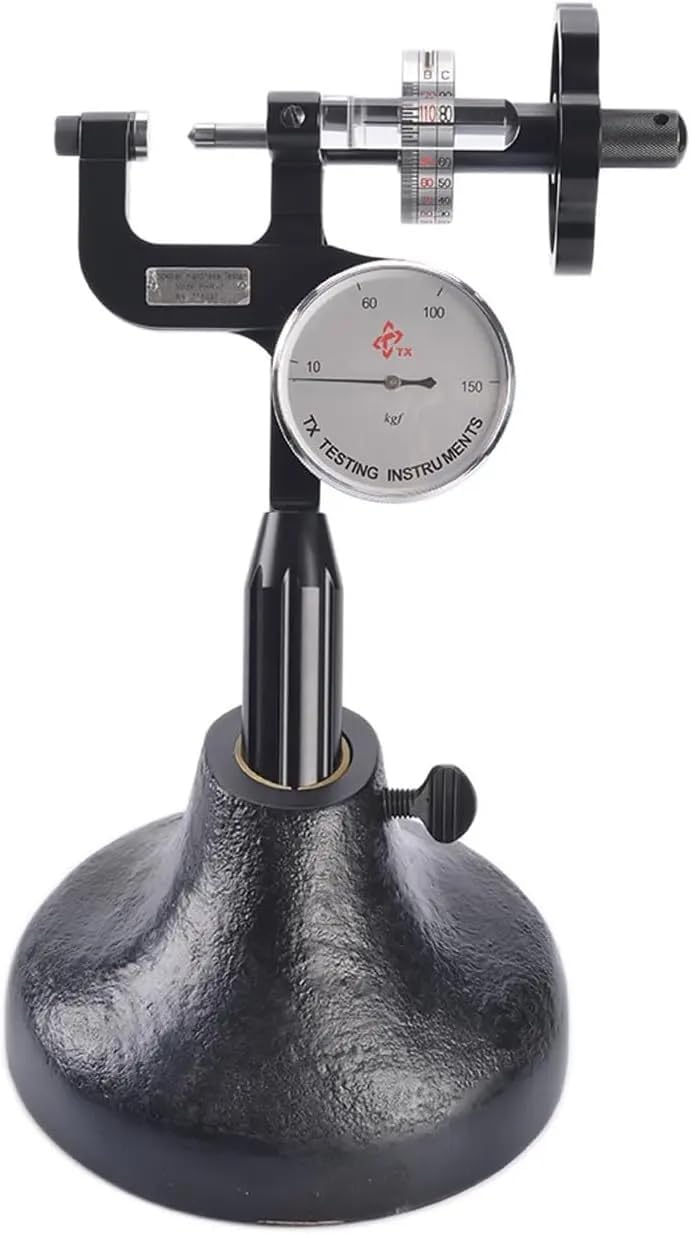

PHR-1 Portable Rockwell Hardness Tester Metal Hardness Gauge Alloy Iron Hardness Meter

PHR-1 Portable Rockwell Hardness Tester Metal Hardness Gauge Alloy Iron Hardness Meter

Application range:Commom metal including iron and steel, Cu,Al,Ni,Ti,Pb,carburized layer and hard alloy,etc.

PHR series portable Rockwell hardness tester complies with the basic designing principles of Rockwell hardness testing in accordance with international standard ISO6508, American Standard ASTM E18 and ASTM E110.

The hardness values can be read directly from the Rockwell hardness testers after rapid and accurate operations.

It can be considered as a non-destructive testing with very small indentations.

This kind of testers can be used at site to test the finished or semi-finished work pieces piece by piece in batches. Rockwell hardness testers are mostly applied in the metal-processing enterprises.

Parameters:

Initial test force:10kgf
Total test force: 60kgf,100kgf,150kgf
Test head: 120°diamond cone indenter, 1.588mm hard alloy ball
Indication error: Complying with ISO 6508 and ASTME18
Repeatability error: Complying with ISO6508 and ASTM E18
Test resolution: 0.5HR
Test range: HRA,HRB,...HRV etc,15 scales.

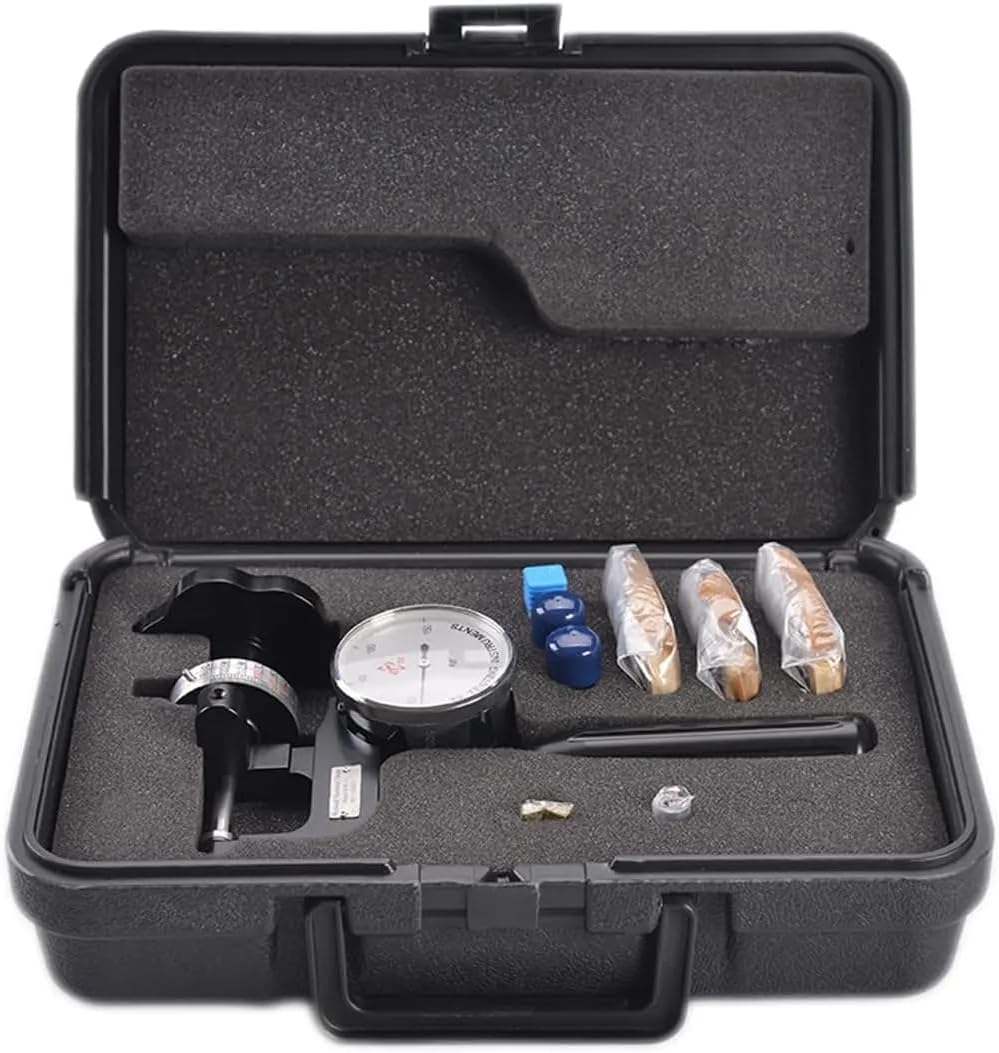

Standard package:

Brand: Graigar

Features:

• PHR series portable Rockwell hardness tester complies with the basic designing principles of Rockwell hardness testing in accordance with international standard ISO6508, American Standard ASTM E18 and ASTM E110.
• The hardness values can be read directly from the Rockwell hardness testers after rapid and accurate operations.
• It can be considered as a non-destructive testing with very small indentations.
• This kind of testers can be used at site to test the finished or semi-finished work pieces piece by piece in batches.
• Rockwell hardness testers are mostly applied in the metal-processing enterprises.
