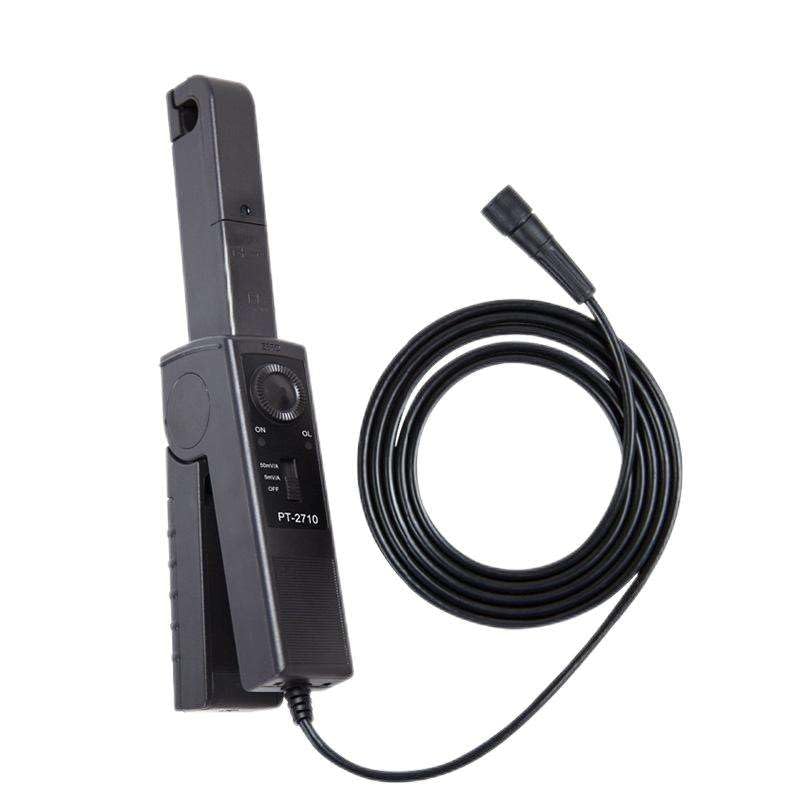

Pintech PT-2710 Oscilloscope Probe 200kHz 0.4A-60A AC/DC Current Probe

Model

PT-2710

Measuring range

0.4A~10A   10A~60A

Conversion ratio

50mV/A(20:1) 5mV/A(200:1)

Bandwidth

DC-200kHz

Accuracy

2%

Rise time

1.75μs

Working Voltage

600V

Battery

9V alkaline battery

Low battery Indicate

with green LED light when >6.5V

Overload indicator

Red LED light indicates the over measuring current, change the range

Clamp.Dia.

11mm Diameter

Operating temperature

0~50℃

Cable length

2m

Size

231*36*67 mm

Weight

330g(including battery)
