PM2302 Multifunctional Earth Ground Resistance Tester 0 Ohm to 4K Ohm and 100 Groups Display
PM2302 Multifunctional Earth Ground Resistance Tester 0 Ohm to 4K Ohm and 100 Groups Display
无法加载取货服务可用情况
PM2302 Digital Ground Resistance Tester Voltage Meter 0V~200V 50~60Hz
Specification:
|
Resistance |
RANGE |
ACCURACY |
RESOLUTION |
|
Earth groundResistance |
0Ω~29.99Ω |
±(2%+6dgt) |
0.01Ω |
|
30Ω~99.9Ω |
±(3%+3dgt) |
0.1Ω |
|
|
100Ω~999Ω |
±(3%+3dgt) |
1Ω |
|
|
1.00kΩ~4.00kΩ |
±(3%+3dgt) |
10Ω |
|
|
VOLTAGE |
RANGE |
ACCURACY |
RESOLUTION |
|
Earth voltage |
0V~200V(50~60Hz) |
±(1%+5dgt)) |
0.1V |
|
Features |
»Digital Display & Analog Bars Display »2 Pole and 3 Pole Mode »Earth Resistance By Constant Current Inverter 800Hz/3mA »MAX/MIN/AVG/REL Measurement Functions »Data Logging:100 group »Display Back Light »Low Battery Indication » Auto Power Off |
||
|
GENERAL |
|||
|
Power Supply |
6x1.5v AA batteries |
||
|
Product Size |
180mm x 140mm x65mm (7.1” x 5.5” x 2.6”) |
||
|
Product Weight |
950g(2.0lb) |
||
|
Category |
CE ETL CAT.Ⅲ1000V RoHS |
||
Brand: Graigar
Color: Black
Features:

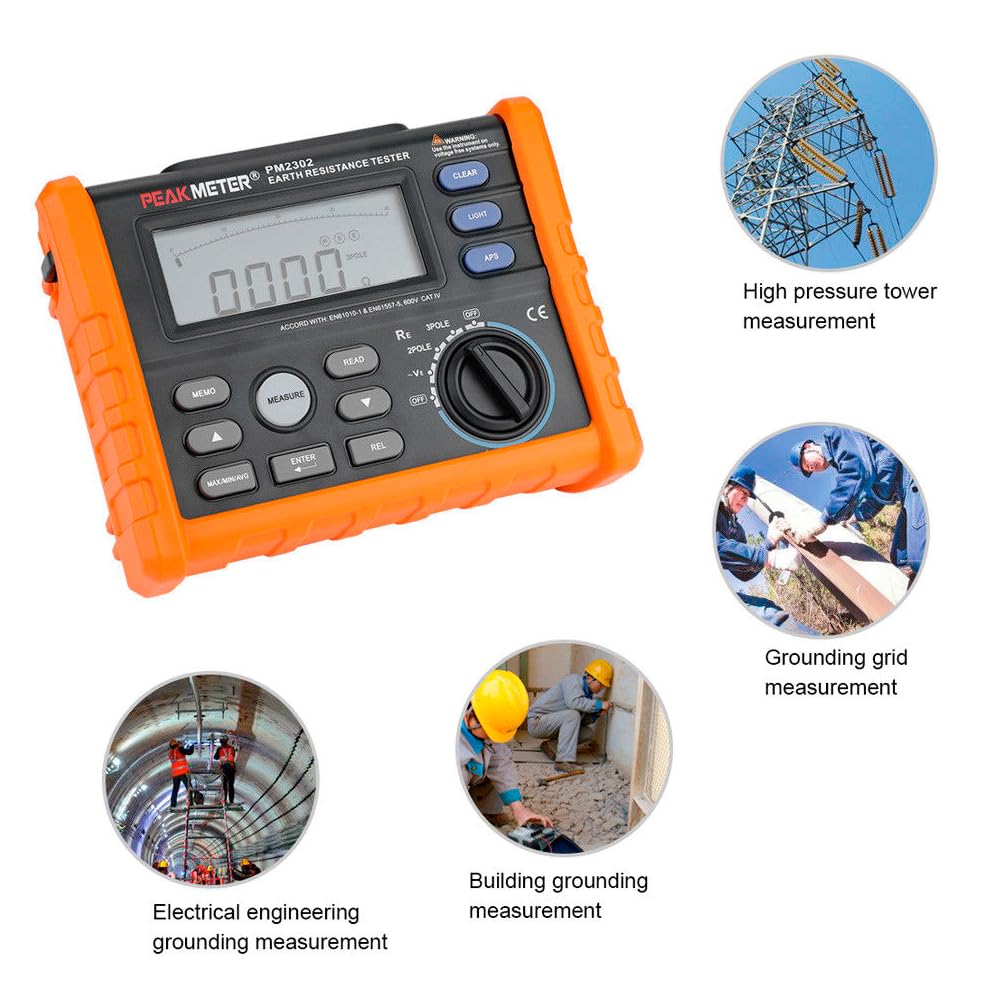

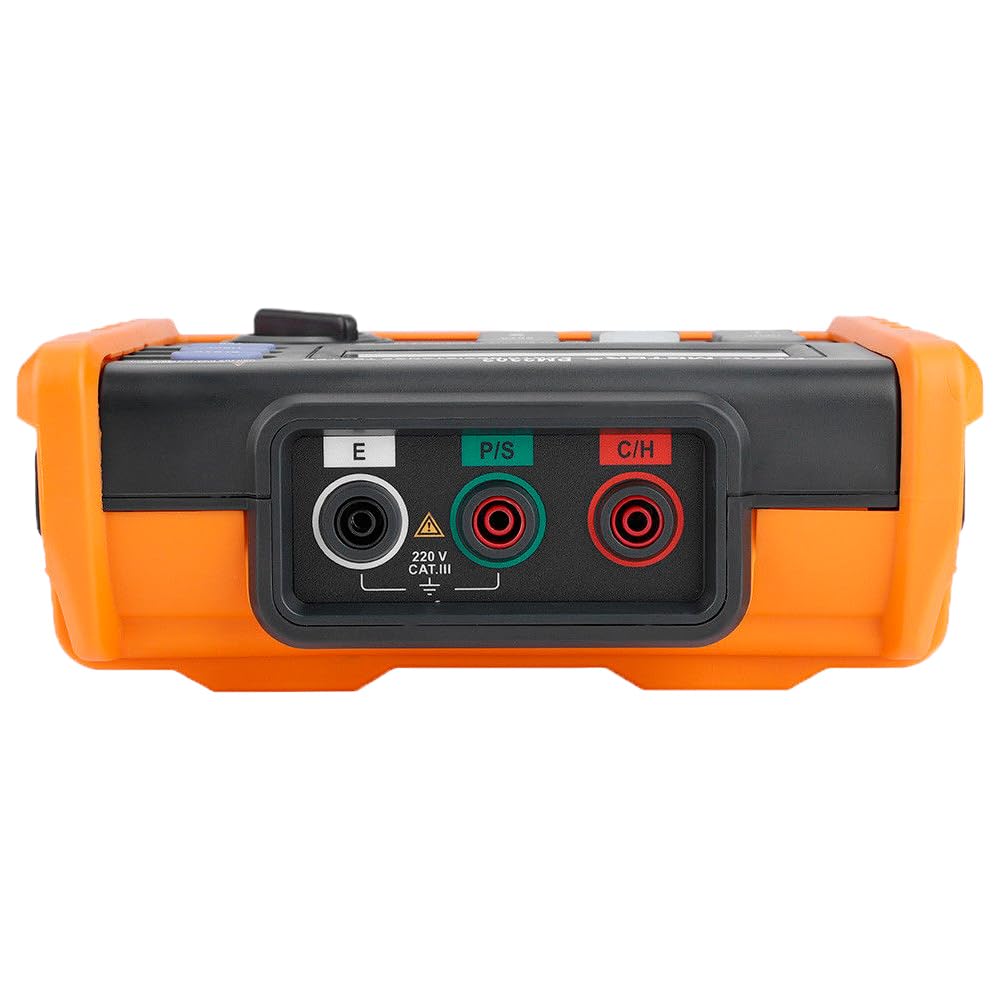

- PM2302 Meter is applicable to test earth resistance of the power supply wires, distribution wires inside a room, electrical equipment or appliance. PM2302 can done in two measurement modes: Bi-poles or Tri-poles, it can be used to measure the earth voltage as well , large digital LCD and backlight applied to the meter facilitate users to read the information on LCD.
- It is capable of storing up to 100 groups of measurement data, which will not be lost even in case of power cuts so that the user can easily consult the historical data. In addition, the meter can also be used to measure maximum, minimum or average and measure relatively. Auto Power-off function has been provided for it.
- Constant Current Conversion is used for the measurement of earth resistance, with the frequency of the testing current about 800Hz and the size about 3mA.
- The meter is capable of storing up to 100 groups of measurement data, which will not be lost even in case of power cuts.
- Relative measurement can be accessible only when the tester is used for measurement of earth resistance. Press REL to switch the relative measurement mode with the normal one or vice versa.
model number: PM2302
Part Number: PM2302
