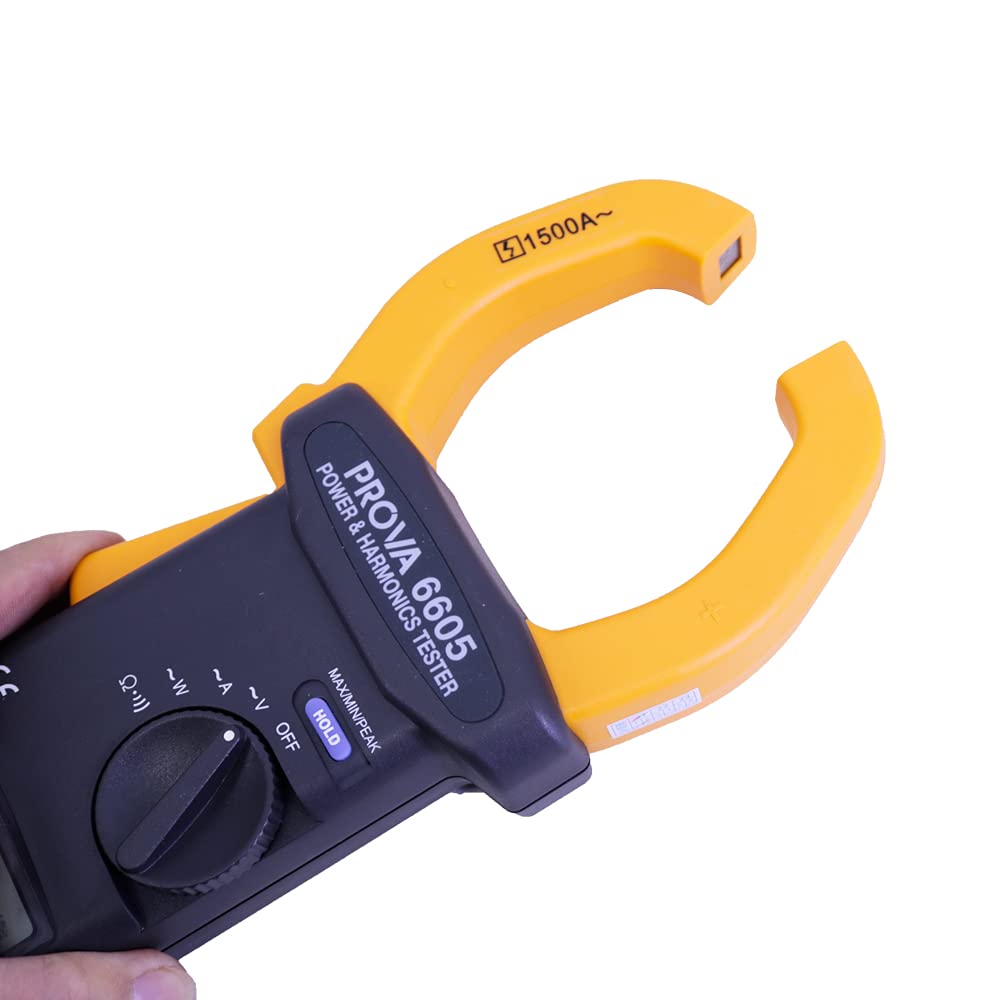

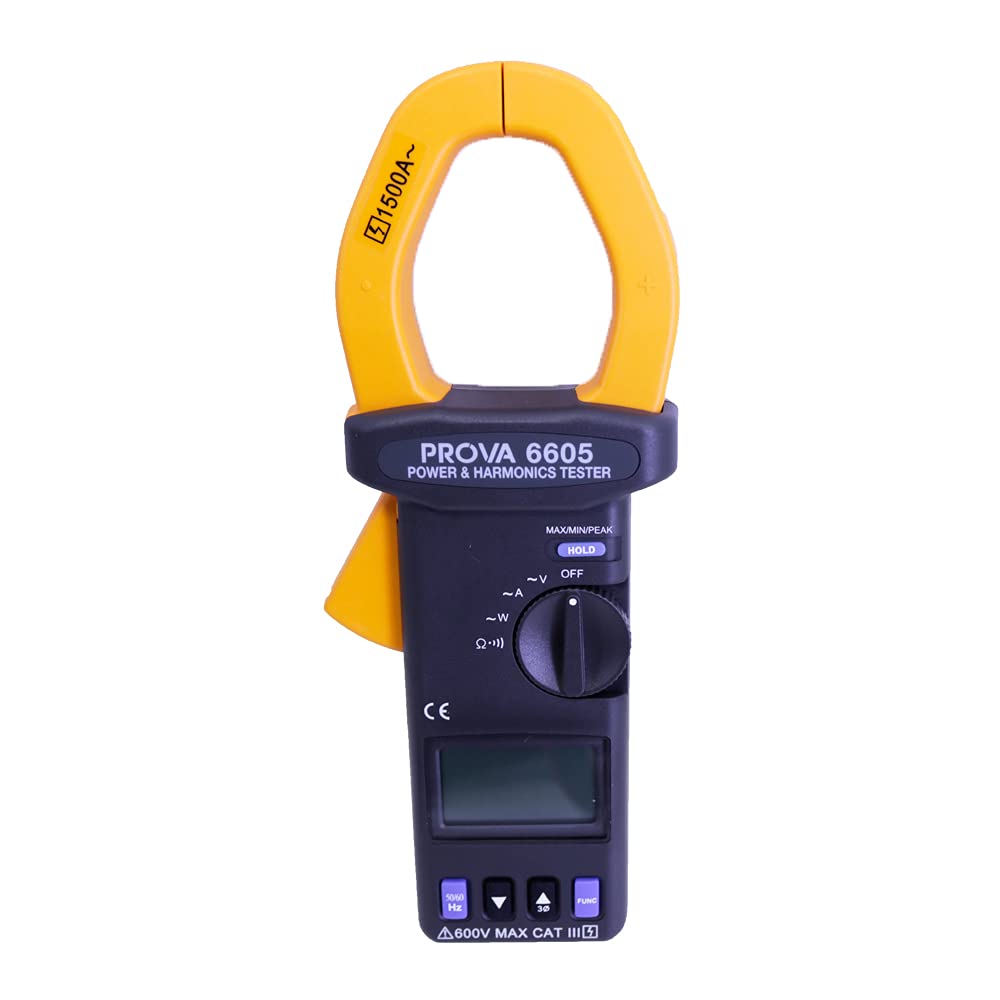

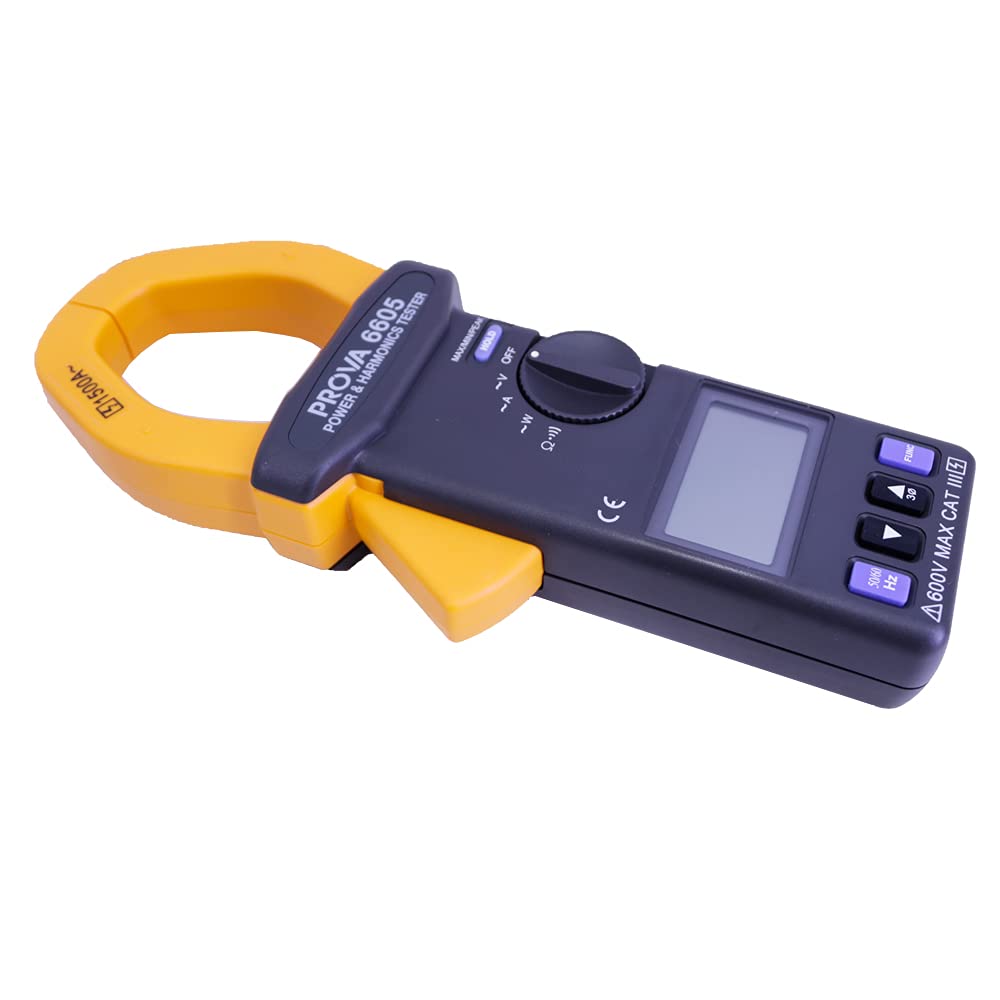

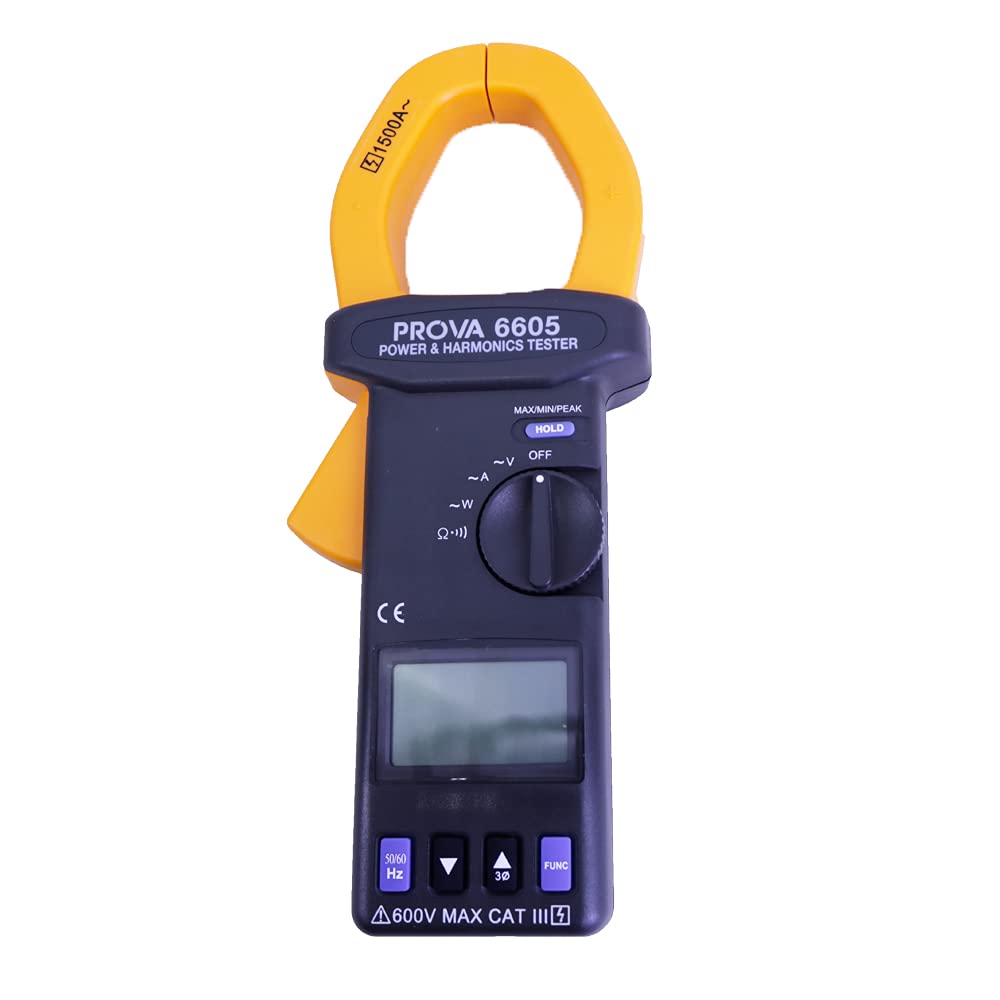

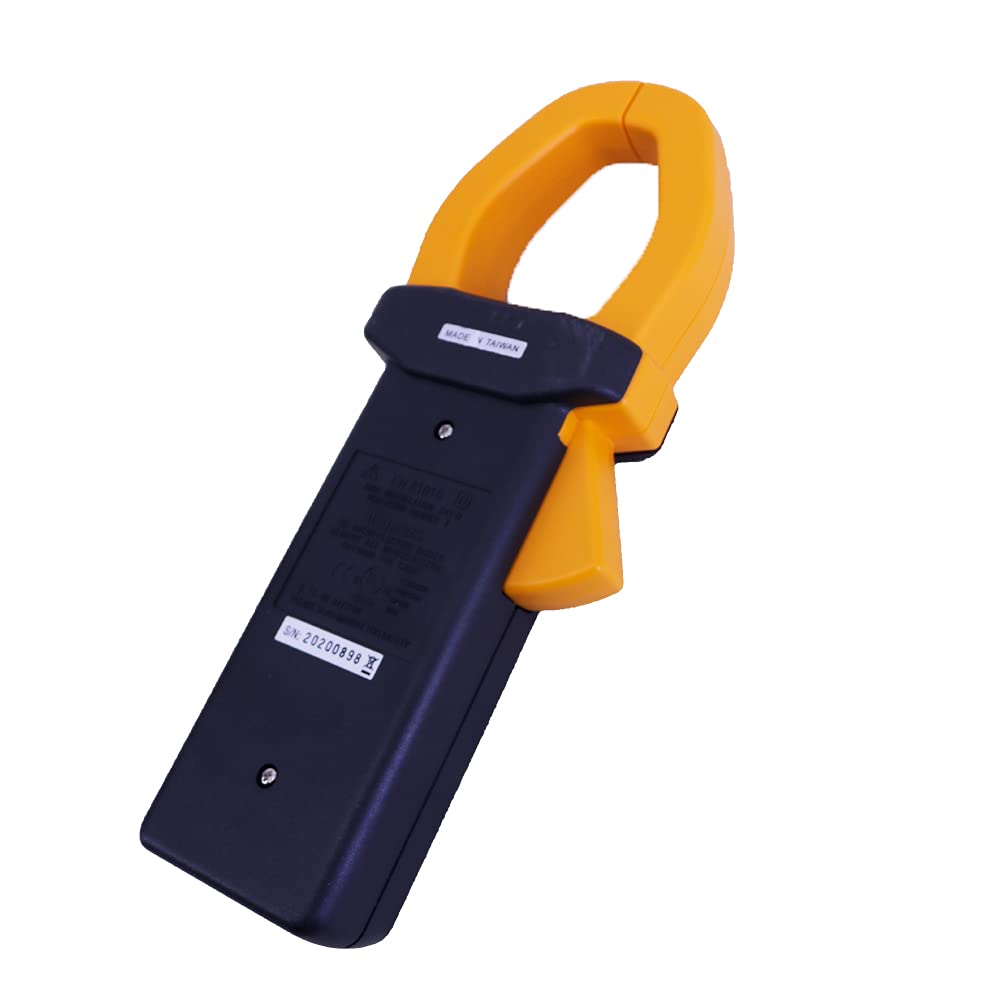

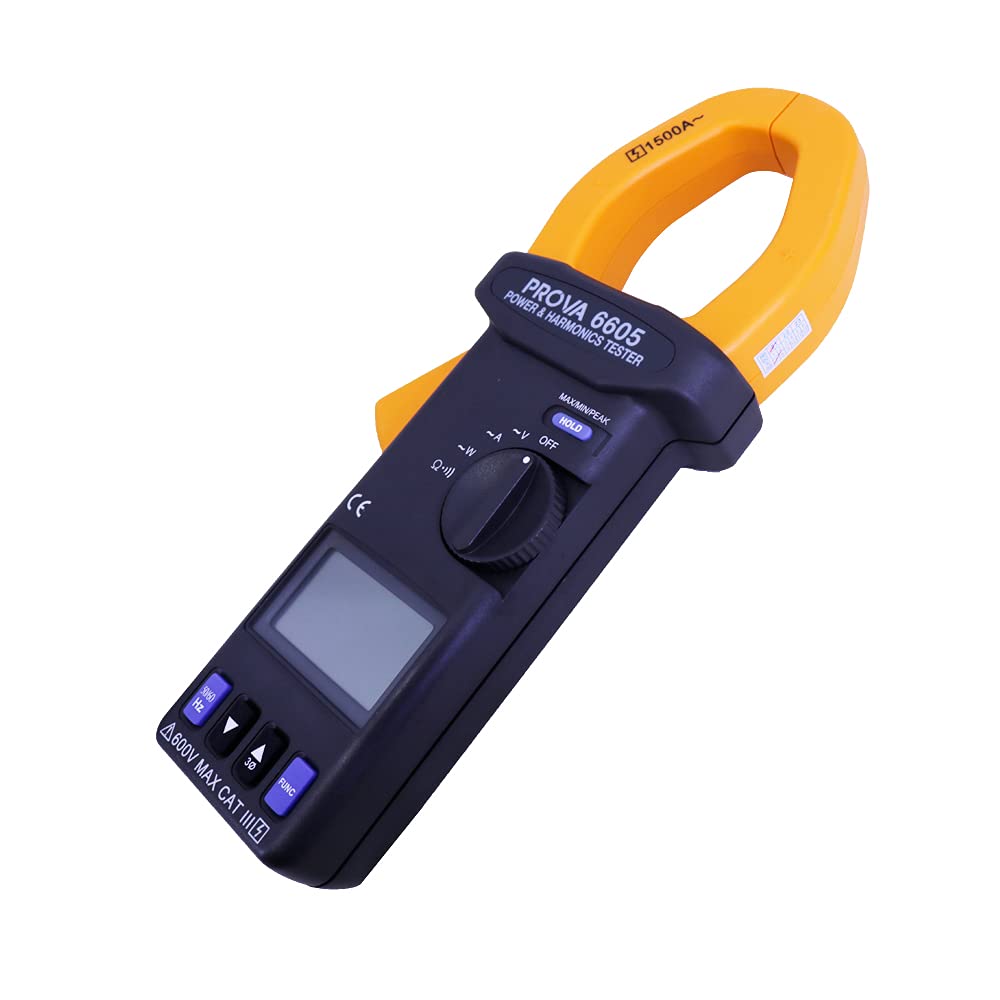

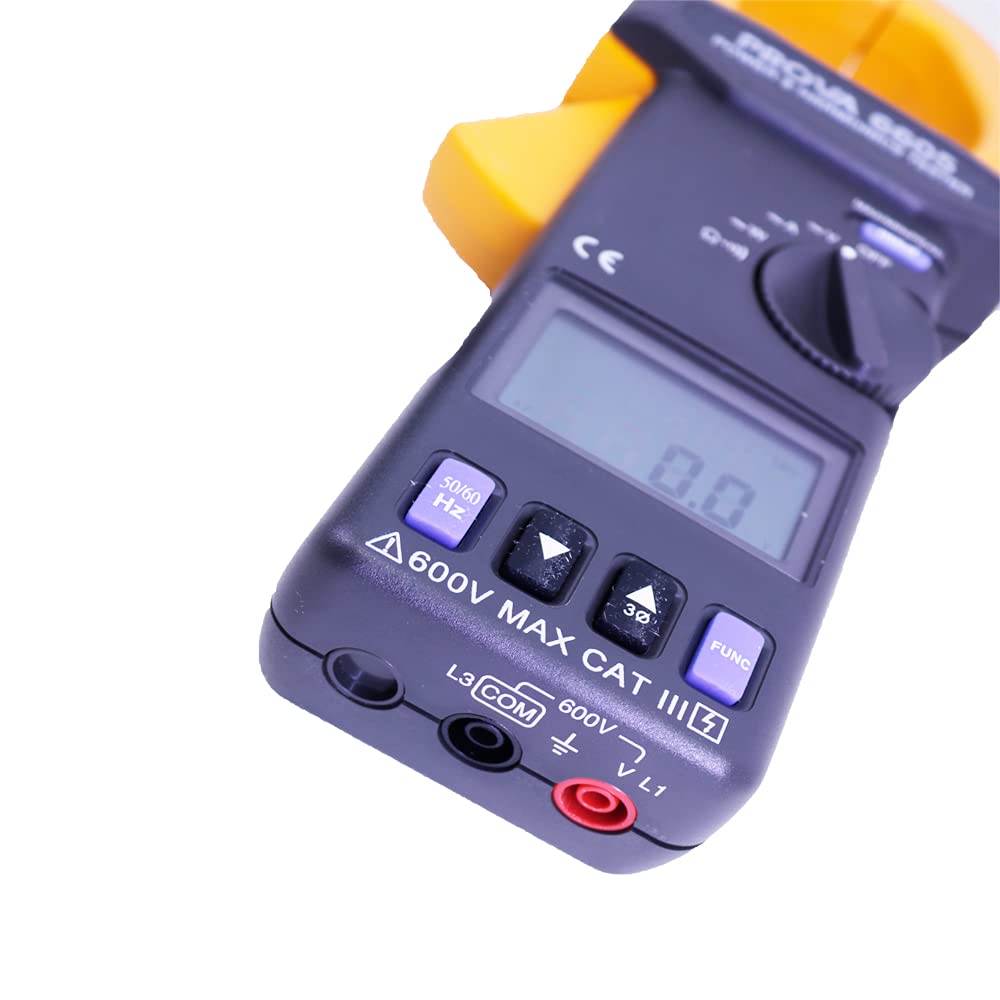

PROVA6605 Power & Harmonics Tester AC Power and Harmonic Analyzer Basic Accuracy 2.0% PROVA-6605

PROVA6605 Power & Harmonics Tester AC Power and Harmonic Analyzer Basic Accuracy 2.0% PROVA-6605

$629.00 USD
$629.00 USD
Sale Sold out

Features:

*Active (W, KW, HP), reactive (VAR, KVAR) and apparent (VA, KVA) power
*Power factor (PF), phase angle (Φ), and energy (WH, KWH)
*Non-interrupted AC current harmonic analysis
*1 to 99th order of harmonics at 2.0% basic accuracy
*Total harmonic distortion (%THD-F) and crest factor (CF)
*True RMS measurement of V and A at 0.5% basic accuracy
*Fast peak function (39μs for 50 Hz, 33μs for 60Hz)
*Resistance and Continuity with Beeper
*Measurement of balanced 3Φ power
*Measurement of balanced 3Φ sequence
*Programmable CT ratio from 1 to 250
*Max, Min and data hold functions
*Active power in H.P.
*Auto power off function in 30 minutes
*AC current: 0~1500A

General Specifications:

Conductor Size:

55mm (approx.), 65 x 24mm (bus bar)

Battery Type:

two 1.5V SUM-3

Display:

4+4 digits LCD

Range Selection:

Auto

Overload Indication:

OL

Power Consumption:

10 mA(approx.)

Auto-Power-Off:

30 minutes after power-on

Update Time:

2 times/second (display)

No. Of Samples per Period:

512 (voltage or current)

256 (power)

Operating Temperature:

-10°C to 50°C

Operating Humidity:

less than 85% relative

Altitude:

up to 2000M

Storage Temperature:

-20°C to 60°C

Storage Humidity:

less than 75% relative

Dimension:

271mm (L) x 112mm (W) x 46mm (H) 10.7" (L) x 4.4" (W) x 1.8" (H)

Weight:

647g / 22.8 oz (battery included)

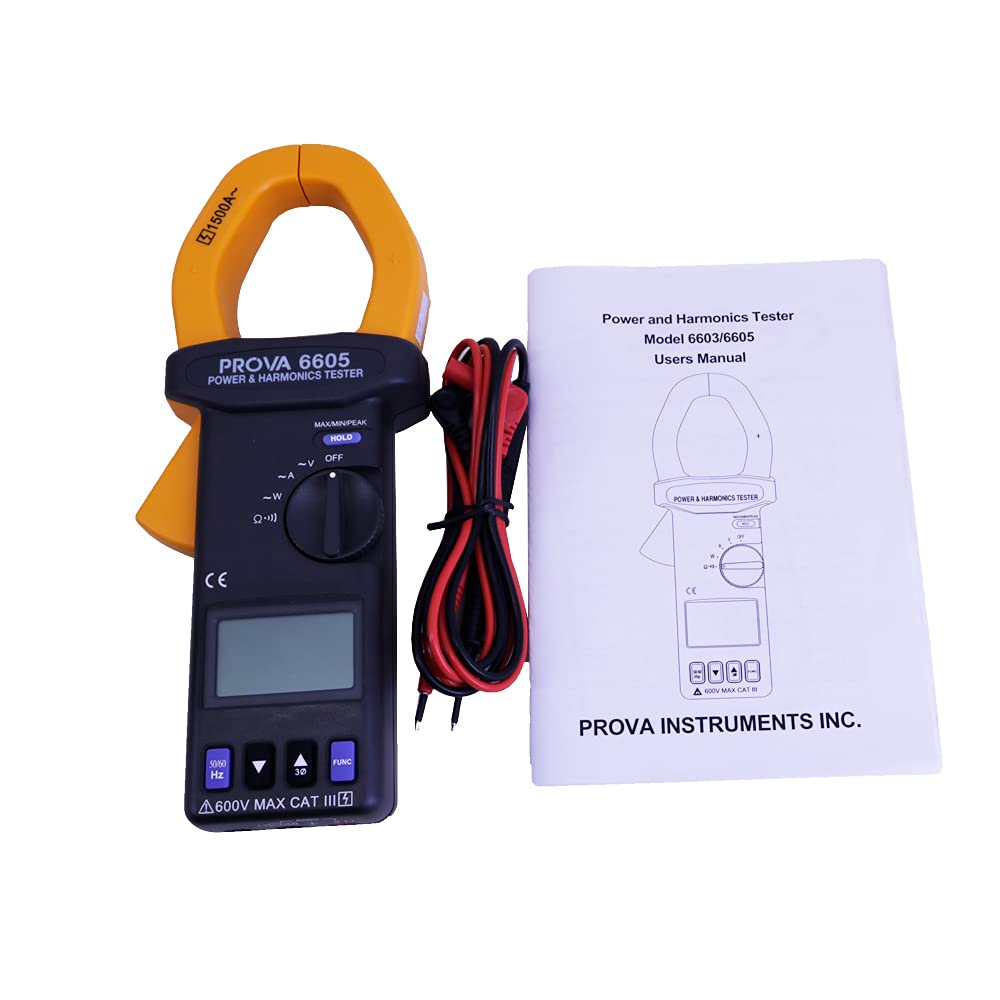

Accessories:

test leads x 1

pair Carrying bag x 1

Users manual x 1

Batteries 1.5V x 2

Option:

Alligator clips

Model 6603(0 to 600A),Model 6605(0 to 1500A)
AC currentAC Current(50 0r 60 Hz,True RMS)
Range(Model 6603)    Range(Model 6605)                         Resolution                      Accuracy of Readings
0.0000~99.99A            0.00~99.99A                                    0.01A                                      ±0.5%±8dgts
100.0~600.0A             l0000.0~999.9A                                  0.1A                                      ±0.5%±8dgts
                                      1000~1500A                                        lA                                       ±0.05%±3dgts
AC currentAC Voltage(50 or 60 Hz,True RMS)
Harmonics of AC Voltage(% And the size of1To99Times)
Range                Resolution                    Accuracy                          Resolution                             The size of the accuracy
50V~600V           0.10%                             ±0.5%                            0.1 V                                        ±0.5%±0.5V
AC current harmonic analysis(% And the size of1To99Sub-harmonic)
Range(6603)              Range(6605)        Resolution      Accuracy of Readings(%)      Resolution      Accuracy of Readings
0.00~99.99A              0.00~99.99A          0.1%                         ±1.0%                             0.01A              ±1.0%±0.08A
100.0~600.0A           100.0~999.9A         0.10%                       ±1.0%                              0.1A               ±1.0%±0.8A
                                  1000~ 1500A          0.10%                       ±1.0%                                1A                ±1.0%±3A
Power factor(PF)
Range                             Resolution                             Accuracy of Readings
0.00~1.00                             0.0l                                      ±1.5%°±8dgts
Total Harmonic Distortion(%THD-F,1To99Sub-harmonic)
Range                             Resolution                              Accuracy of Readings
0.0~999.9%                       0.10%                                     ±0.5%±5 digits
Resistance(Ω)And conduction(If less than50ΩThe buzzer will ring for the)
Range                 Resolution              Accuracy of Readings          Range            Resolution      Accuracy of Readings
10.0~999.9Ω         0.1Ω                                  ±3Ω                 1000~1200Ω             1Ω                         ±3Ω
Phase angle(φ)
Range                                                    Resolution                                   Accuracy of Readings
-180°to 180°(0°to 360°)                              0.1°                                                ±1°±2dgts
Form factor(Crest Factor,C..F.)
Range                                 Resolution                                                    Accuracy of Readings
1.00~99.99                               0.01 ±5%±30 digits
