RT1562 Platinum Resistance Thermometer Two Sampling Channels 0.01°C/°F High Resolution

RT1562 Platinum Resistance Thermometer Two Sampling Channels 0.01°C/°F High Resolution

$659.00 USD
$659.00 USD
促销 售罄

Brand: Graigar

Product Description



【Introduction】

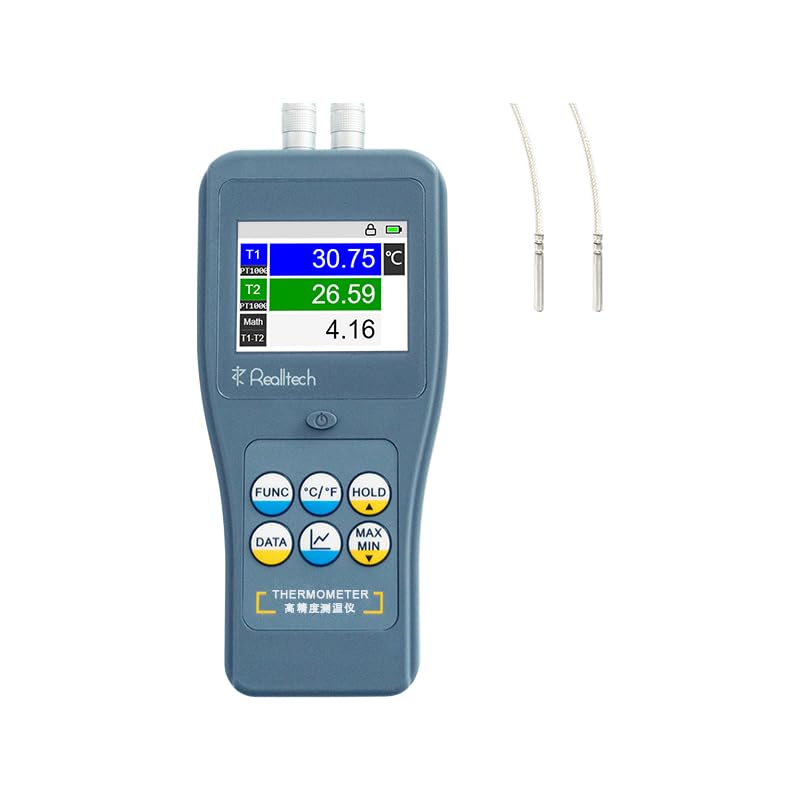

It is a high-precision RTD thermometer that uses PT1000/PT100 platinum thermal resistance as sensors to measure temperature signals. Widely used in industrial production, research and development experiments, food processing, refrigerated storage, precision temperature measurement and other occasions.

【Parameters】

Display Color LCD

Type PT1000/PT100 Platinum Resistance

Range -200~850°C (-328~1562°F)(Depend on Probe)

Accuracy ±0.1°C (Including Probe)

Resolution 0.01°C/°F

Unit °C/°F

Sampling Channel 2 Channels

Graph Display Real-time Measurement Graph

Storage 99 Groups (Manual Storage)

Statistical Functions Maximum, Minimum, Average

Auto Power Off 10 Minutes (No Operation)

Operating Conditions Temperature: 0~50°C; Humidity: 0~90%RH (No Condensation)

Storage Conditions Temperature: -10~50°C; Humidity: 0~95%RH (No Condensation)

Power Supply 4×1.5V AAA(UM-4) Battery

Dimensions 170x80x31mm

Weight 163g (Not Including Batteries)

【Standard Accessories】

Main Unit ×1

PT-01A Probe ×2 (PT1000, Range: -50~200°C)

Manual ×1

Carrying Case ×1

Optional Accessories Probes of Other Type/Size

Features:

  • High-precision PT1000/PT100 platinum thermal resistance is used for temperature measurement.Accuracy up to ±0.1°C
  • 2 sampling channels.The measured values of two channels and T1-T2 difference are displayed simultaneously.
  • With real-time measurement graph display function.
  • With data hold function and data storage function (99 Groups).
  • With maximum, minimum, average function.
  • With battery indication function,automatic power off function.

model number: RT1562

Part Number: RT1562
