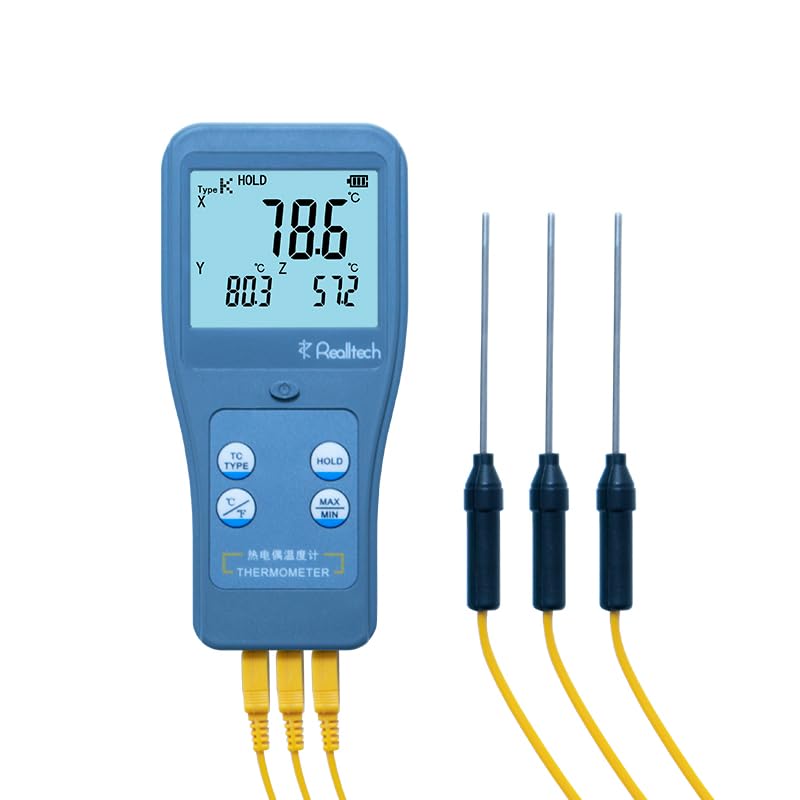

RTM1103 Thermocouple Thermometer Three Sampling Channels 0.1°C/°F Resolution

【Introduction】

It is a hand-held of 3-channel thermocouple thermometer, which uses thermocouples as sensors to measure temperature signals, can meet the needs of different industries. Used to measure the temperature of liquids, gases, solids and surface temperature. And there are a variety of thermocouple types to choose from, which are widely used in industrial production, research and development experiments, food processing, refrigerated storage, metal industry and other occasions.

【Parameters】

Display LCD

Thermocouple Type K-type, J-type, E-type, T-type

K-type Range -200~1372°C (-328~2501.6°F) Accuracy >-100°C, ±(0.2%Num+0.6°C) <-100°C, ±(0.5%Num+0.5°C)

J-type Range -210~1200°C (-346~2192°F) Accuracy>-100°C, ±(0.2%Num+0.6°C) <-100°C, ±(0.5%Num+0.5°C)

E-type Range -150~1000°C (-238~1832°F) Accuracy >-100°C, ±(0.2%Num+0.6°C) <-100°C, ±(0.5%Num+0.5°C)

T-type Range -250~400°C (-418~752°F) Accuracy >-100°C, ±(0.2%Num+0.6°C) <-100°C, ±(1%Num+0.5°C)

Resolution 0.1 (-100~+100) 1 (Other)

Temperature Unit °C/°F

Sampling Channel 3 Channel

Statistical Functions Maximum, Minimum

Automatic Power Off 10 Minutes (No Operation)

Operating Conditions Temperature: 0~50°C; Humidity: 0~80%RH

Storage Conditions Temperature: -10~60°C; Humidity: 0~90%RH

Power Supply 4×1.5V AAA(UM-4) Batteries

Size 170×80×31mm

Weight 191g (Not Including Batteries)

【Standard Accessories】

Main Unit ×1

Manual ×1

TP-02 Probe ×3 (K-type, Range: -50~400°C)

Carrying Case ×1

Optional Accessories

Probes of Other Type/Size

Note: The default type of thermocouple in the standard accessories is K-type. If other types of thermocouple are needed, please specifying when placing order.
