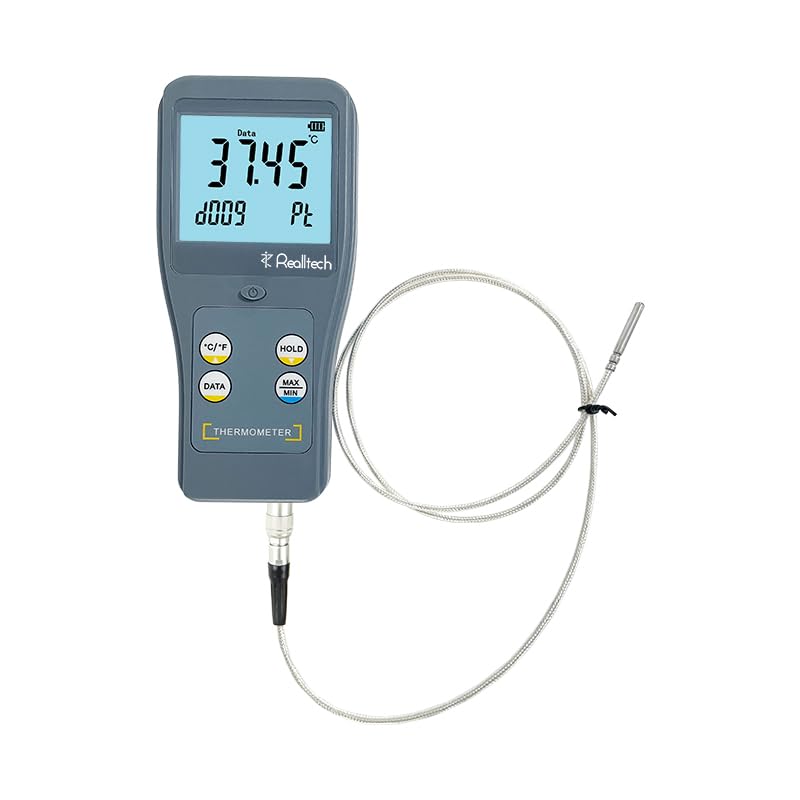

RTM1511 Platinum Resistance Thermometer Measuring Accuracy ±0.1°C High-precision PT1000 Platinum Thermal Resistance

RTM1511 Platinum Resistance Thermometer Measuring Accuracy ±0.1°C High-precision PT1000 Platinum Thermal Resistance

$409.00 USD
$409.00 USD
Sale Sold out

Brand: Graigar

Product Description



Introduction

It is a high-precision RTD thermometer that uses PT1000 platinum thermal resistance as a sensor to measure temperature signals. Widely used in industrial production, research and development experiments, food processing, refrigerated storage, precision temperature measurement and other occasions.

Parameters

Display LCD

Type PT1000 Platinum Resistance

Range -200~500°C (-328~932°F) (Depend on Probe)

Accuracy ±0.1°C

Resolution 0.01 (-100~+100) 0.1 (Other)

Sampling Channel 1 Channel

Unit °C/°F

Sampling Channel 1 Channel

Storage 99 Groups (Manual Storage)

Statistical Functions Maximum, Minimum

Automatic Power Off 10 Minutes (No Operation)

Operating Conditions Temperature: 0~50°C; Humidity: 0~80%RH (No Condensation)

Storage Conditions Temperature: -10~60°C; Humidity: 0~90%RH (No Condensation)

Power Supply 4×1.5V AAA(UM-4) Battery

Dimensions 170x80x31mm

Weight 176g (Not Including Batteries)

Standard Accessories

Main Unit ×1

PT-01A Probe ×1 (PT1000, Range: -50~200°C)

Manual ×1

Carrying Case ×1

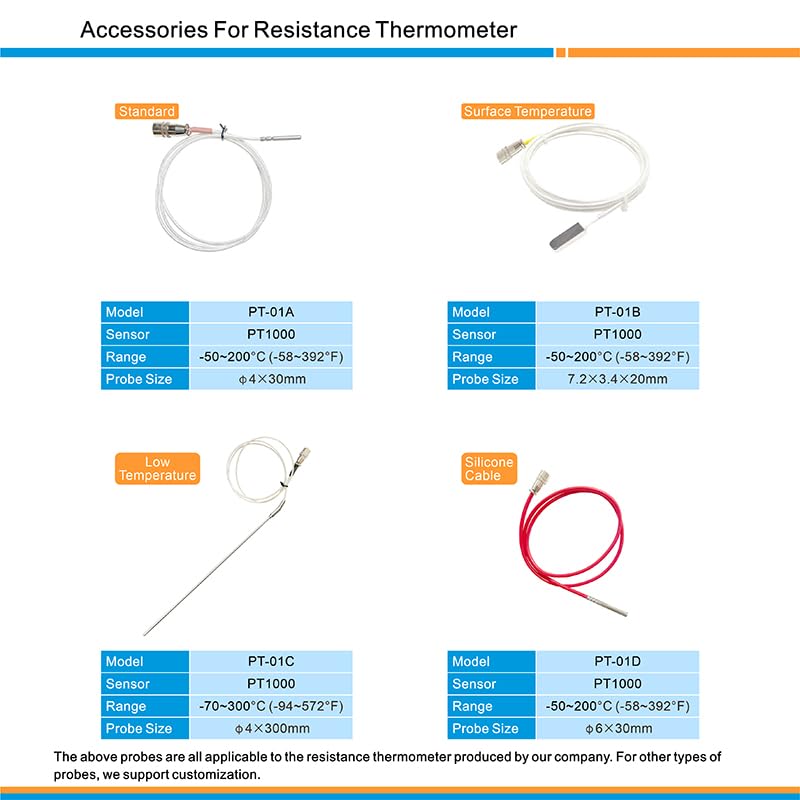

Optional Accessories Probes of Other Size

Features:

  • One sampling channel.
  • High-precision PT1000 platinum thermal resistance is used for temperature measurement Accuracy up to 0.1°C.
  • Temperature unit (°C/°F) 0.01°C/°F high resolution.
  • With data storage function (99 Groups).
  • With maximium, minimum function and data hold function.With battery indication function and automatic power off function.

Part Number: RTM1511
