High level of integration, high-performance, Full-featured, integrated design.
Single input modulator that converts HD source to a ATSC-T/ATSC-C channel.
Standard COFDM modulation and MPEG-2 encoding.
Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 720P / 1080P.
Frequency range: 50~860MHz.

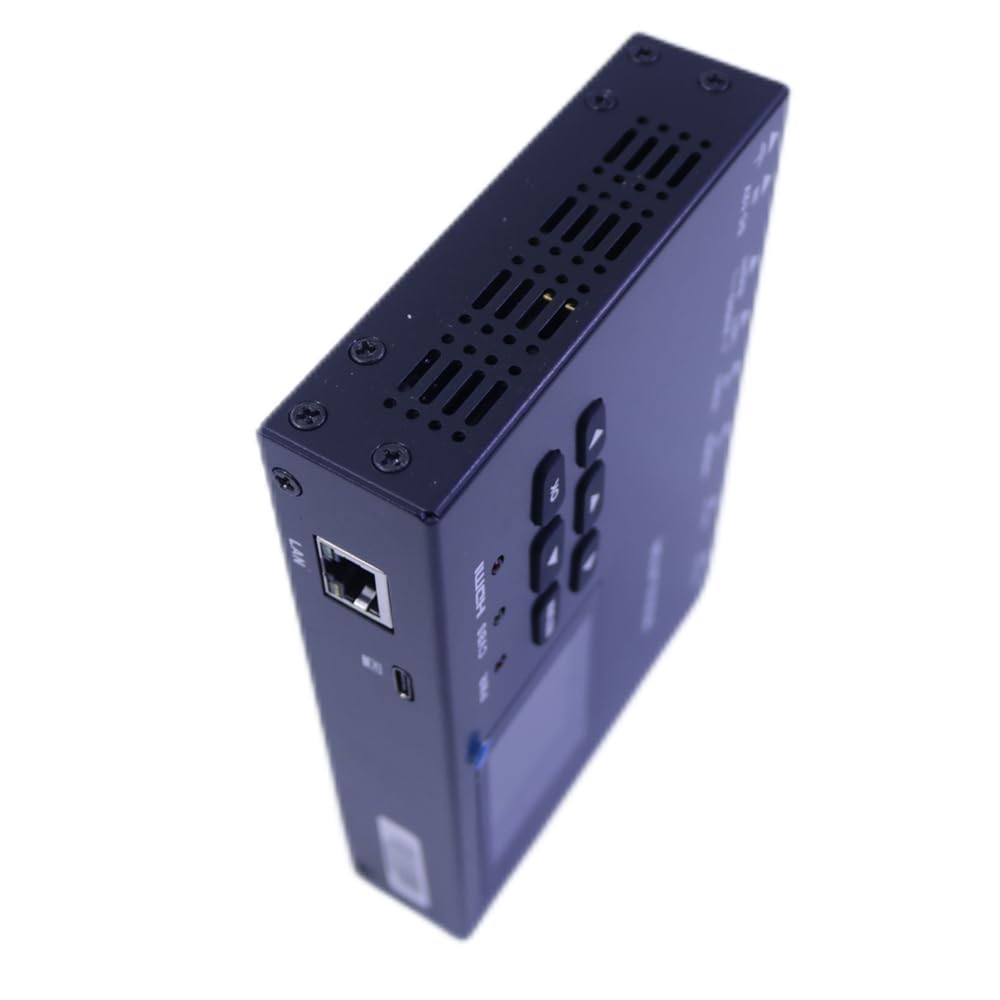

model number: ST-7201
Part Number: ST-7201
Details: This product is suitable for USA, Canada, Mexico, South Korea, Costa Rica, Ecuador.
Feature
Continuously adjustable RF signal output level range from
69dBuV to 100dBuV, step 1dBuV

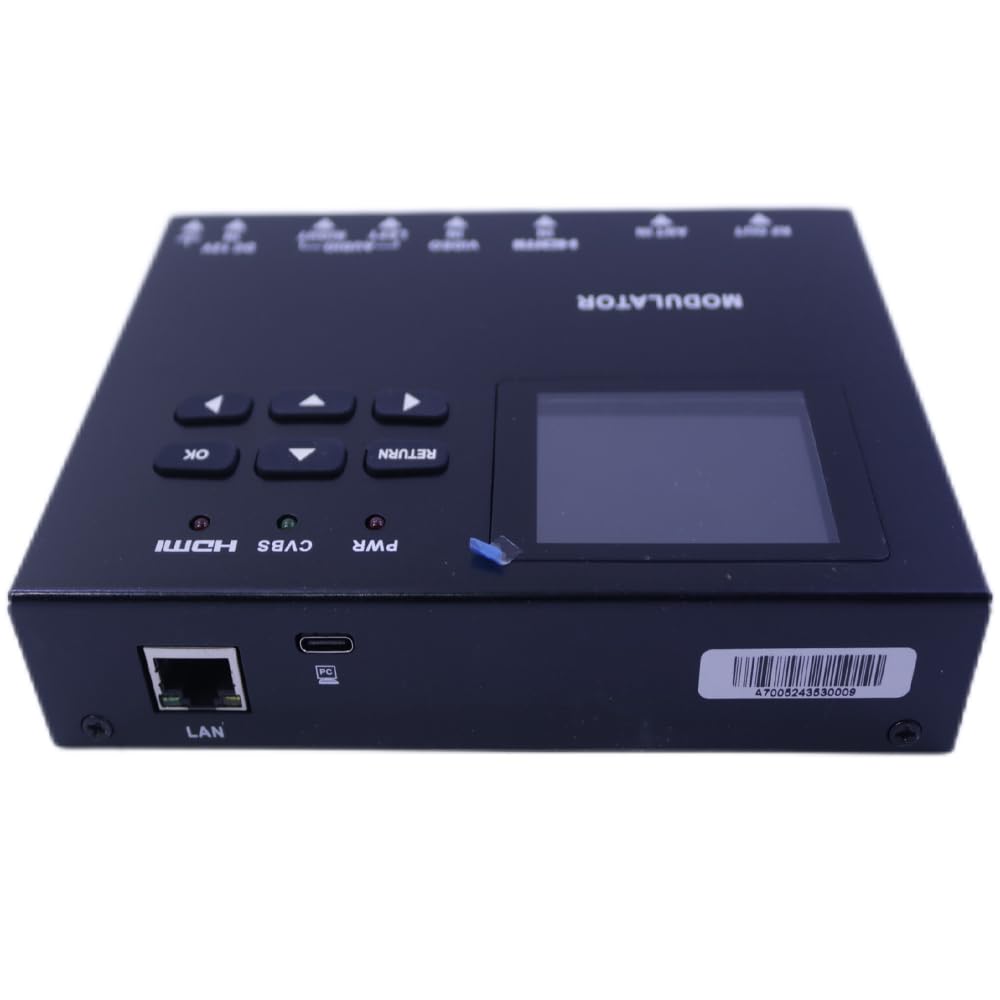

Support modifying parameters via LAN port
2.4-inch color LCD display
Small size and light weight
User friendly setup and control
Compact and wall mountable
TECHNICAL SPECIFICATION
Modulator
Standard :ATSC-T/ATSC-C
Constellation :8-VSB (ATSC-T mode)
QAM-64/QAM-256 (ATSC-C mode)
MER :35 dB
Frequency Range :50 ~ 860 MHz
Output Level :69 ~ 100 dBuV
Output Impedance :75Ω
HD Input
Compression :MPEG-2 - bitrate 5-15 Mb/s
Video Resolution :1920*1080_60P, 1920*1080_50P;
1920*1080_60i, 1920*1080_50i;
1280*720_60p, 1280*720_50P
Connector :HD
Video Output
Video Resolution :1920*1080_30P, 1920*1080_25P;
1920*1080_30i, 1920*1080_25i;
1280*720_30p, 1280*720_25P
General
Power Source :DC 12V / 1.5A
Operating Temperature :0 ~ +45°C
Dimensions :155mm(L) × 114mm(W) × 33mm(H)
Weight :0.34Kg
