Built-in black and white board parameters, without the need for black and white correction simplifies operation willing to step. Higher short-term repeatability: E≤0.03 Without even the computer power that is used, make measurements easier Double Location: The light positioning patented technology and cross positioning, to quickly align the measured region Portable structure4mmMeasuring diameter for more measurement occasions When the measured data is automatically saved, and quick.
Measurement geometry
8 / d
Selectable measurement aperture
4mm
Positioning
Light positioning and cross positioning

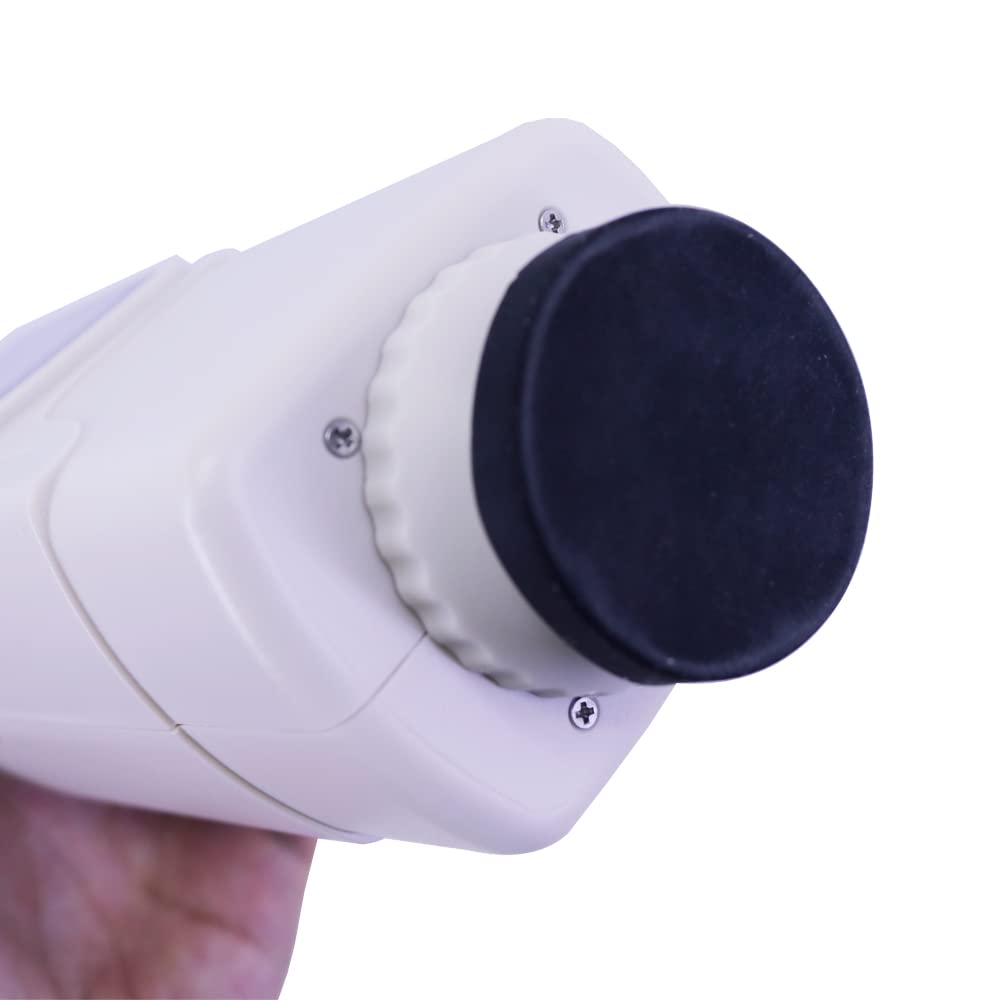

Measuring the end face
Large stable end face
Detectors
Silicon photodiode array
Color space
CIEL * a * b
Color difference formula
ΔE * ab
Optional light
D65
Light source device
LED blue light excitation
Short-term repeatability
0.03ΔE * ab measure 30 times the average of the white standard plate
The difference between the instrument station
≤0.20ΔE * ab
Store
100 10000 standard samples
Weight
500g
Size
205 × 67 × 80mm
Power supply
Rechargeable lithium-ion battery 3.7V32000mAh
Lamp Life
5 years more than 1.6 million measurements
Battery power
After the full measure 5000

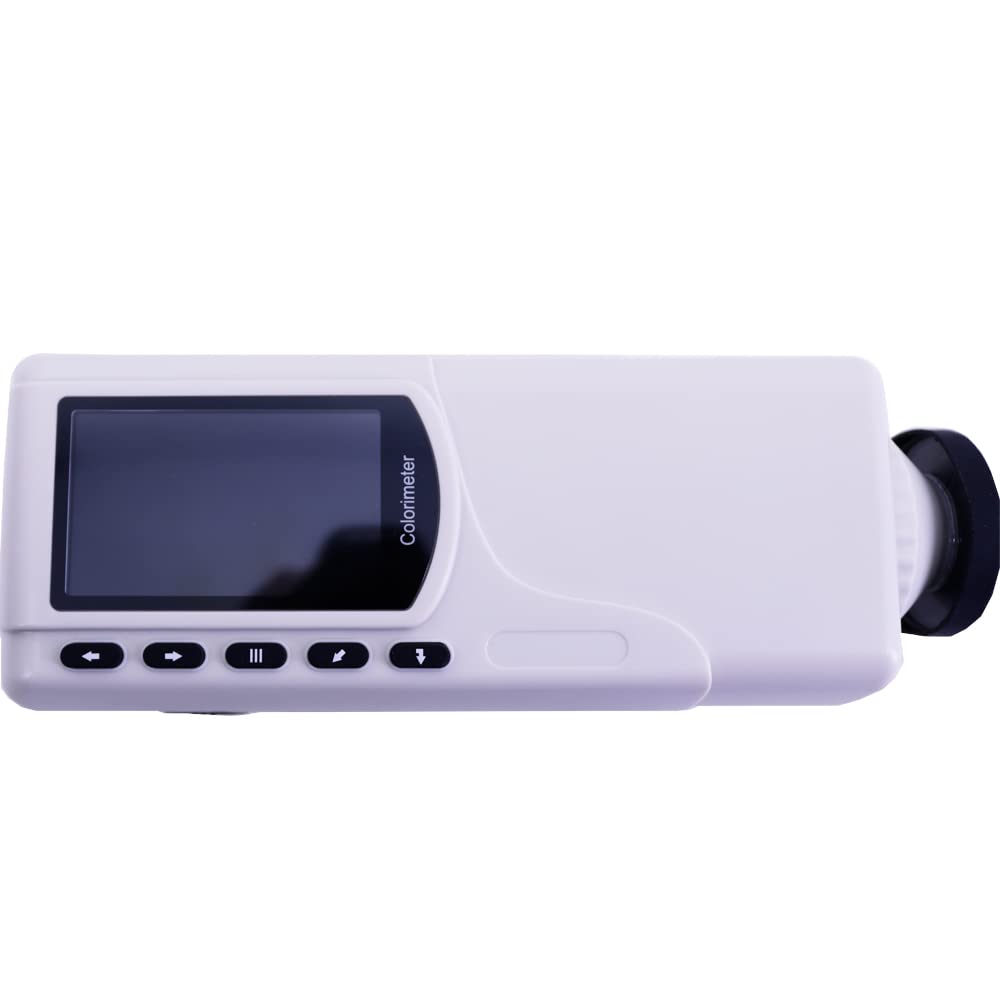

Display
TFT color 2.8inch (16: 9)
Operating Temperature Range
-10 ~ 40 , (32 -104 )
Storage temperature range
-20 -50 (-4 -122 )
Temperature Range
Relative humidity less than 85% non-condensing
Data interface
RS-232

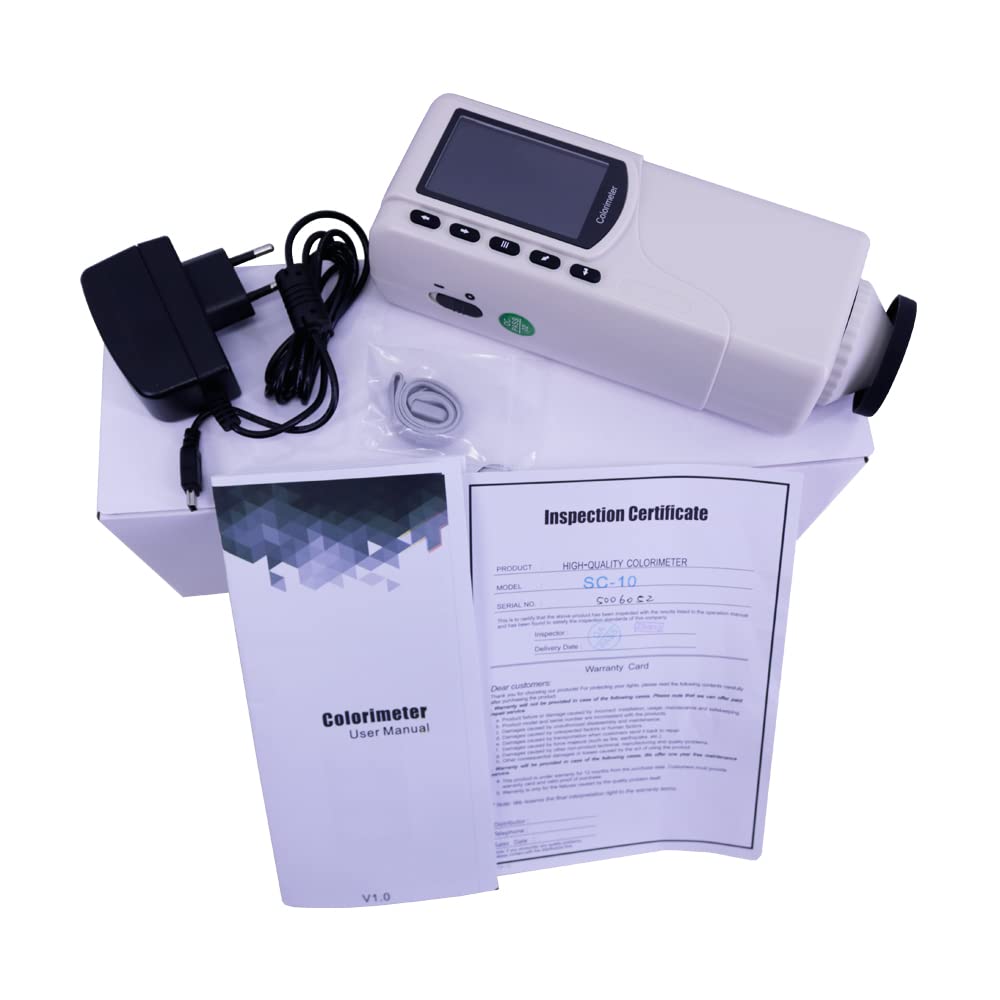

Standard accessories
Lithium battery power adapter plug ten safety instructions wristband protection shelf platform (4mm diameter measurement)
