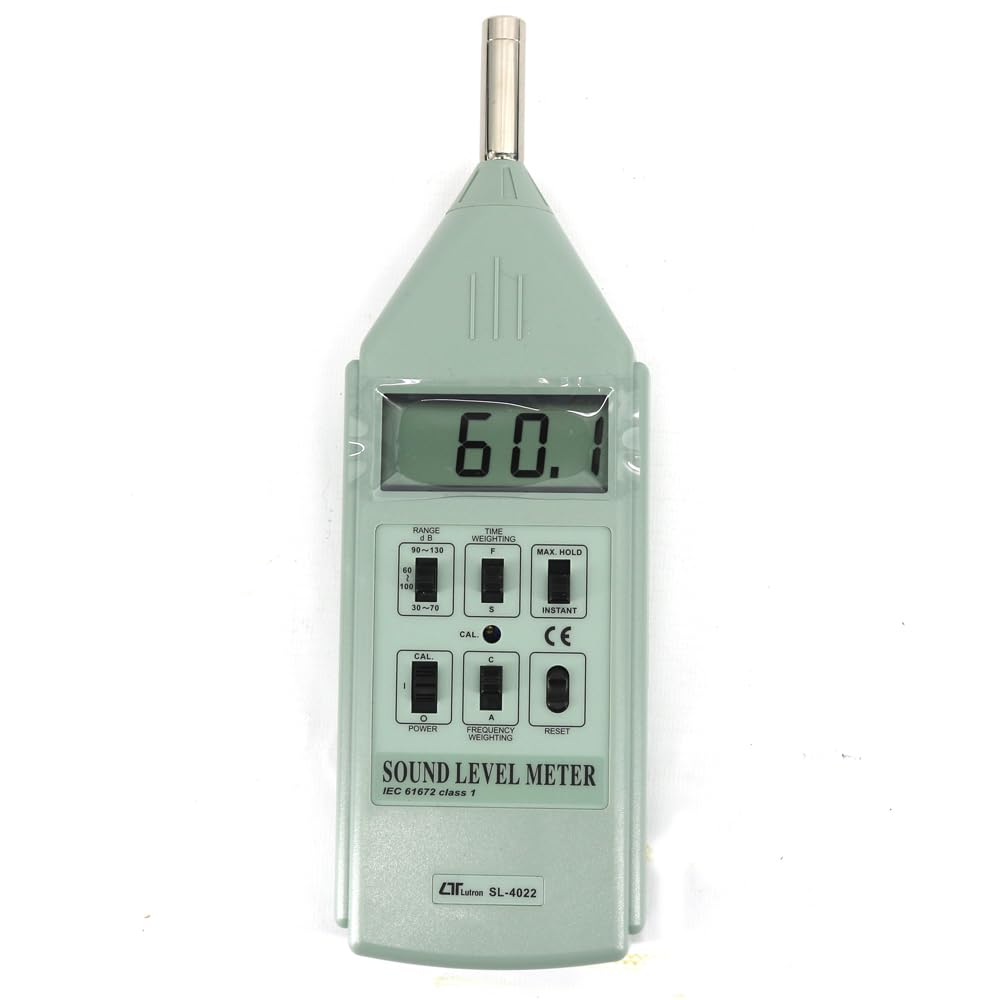

SL-4022 Digital Sound Level Meter IEC 61672 Class 1 Noise Tester 31.5 Hz to 8KHz

Name: SL-4022 Digital Sound Level Meter IEC 61672 Class 1 Noise Tester 31.5 Hz to 8KHz
Brand: Graigar
SKU: B0DPX6CJGX
Price: 315.00 USD
Availability: InStock

$315.00 USD

促销售罄

数量

NEW 100% Genuine LUTRON SL-4022 Digital Sound Level Meter Noise Meter Type 1 30-130DB

Product Description

Introduction:

Noise measurement range: 30 ~ 130dB(Decibel)

Measurement frequency range: 31.5 ~ 8000Hz

Accuracy: ±1dB(94 dB/1KHz)

Line with international normsIEC651Type1

WithA&CFrequency weighting and fast time-weighted&Slow select(Weighting)

Grab the maximum noise value

AttachACVoltage signal output to an external recorder

Size : 260 × 87 × 36mm

Electrical Specifications:

Obvious Show Device	18mm LCD,3 1/2 digits
Measurement functions	dB(A&C frequency weighting), Time weighting(Fast, Slow), Max hold, Max hold reset, AC output
Test range	3 ranges ( 30 - 70 dB,60 - 100 dB,90 - 130 dB )
Solution Analyze Degree	0.1 dB
Fine Indeed Degree	Time weighting & frequency weighting meet IEC 651 type 1, calibrating input signal on 94 dB (31.5 Hz to 8 kHz), the accuracy of A weighting is specified as following: 31.5 Hz - ± 1.5 dB, 63 Hz -± 1.5 dB, 125 Hz - ± 1 dB,250 Hz - ± 1 dB, 500 Hz - ± 1 dB, 1 kHz -± 1 dB,2 kHz - ± 1 dB, 4 kHz - ± 1 dB, 8 kHz - + 1.5 dB to -3 dB
Frequency weightingwork	Characteristics of A & C.
	A weighting - The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting.
	C weighting - The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment
The test frequency range	31.5 Hz to 8,000 Hz
School Positive Device	B & K (Bruel & kjaer), multi-fuction acoustic calibrator, model : 4226

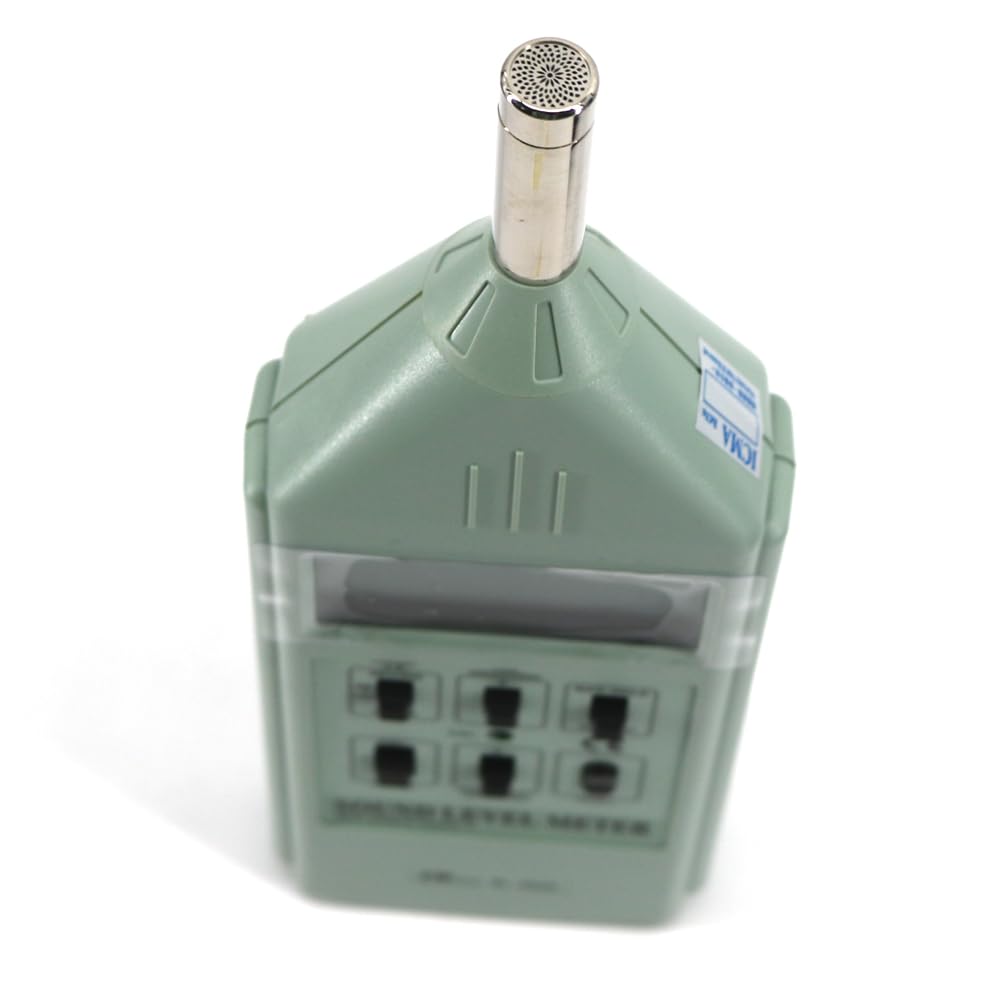

Microphone types	Electric condenser microphone.
Microphone size	1/2 inch standard size.
Range selection	30 to 70 dB,60 to 100 dB,90 to 130 dB,40 dB on each step,with over & under range indicating
Time-weightedwork (Fast / Slow)	Fast - t= 200 ms, Slow - t = 500 ms, * "Fast" range is simulated the human ear response time weighting. "Slow" range is easy to get the average values of vibration sound level. * The "Fast" & "Slow" time weighting range are designed to IEC 651 type 2 requirement

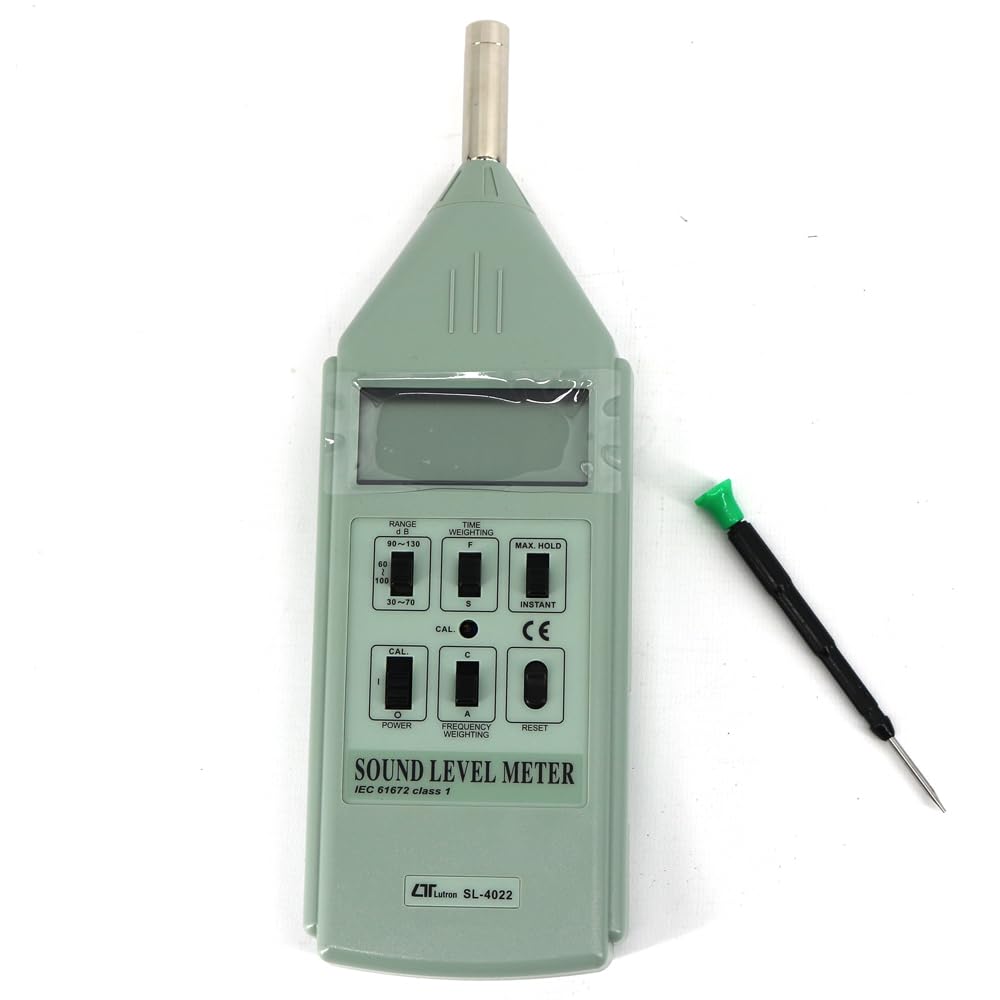

Correction methods	Build in external calibration VR, easy to calibrate on 94 dB level by screw driver. Internal oscillation system, 1 KHz sine wave generator
Output signal	AC output - AC 0.4 Vrms corresponding to each range step.

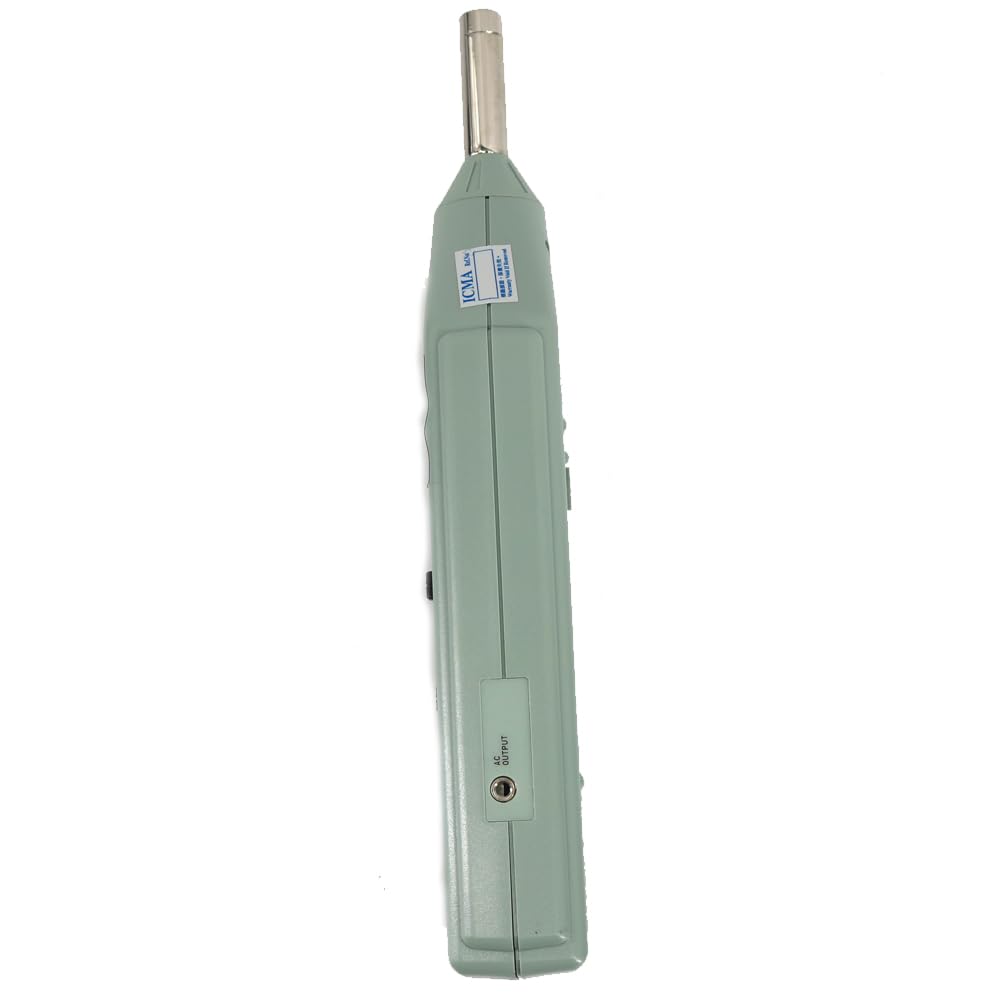

Output terminal	3.5 phone output terminal is provided for connection with analyzer, level recorder, tape recorder.

General Specifications:

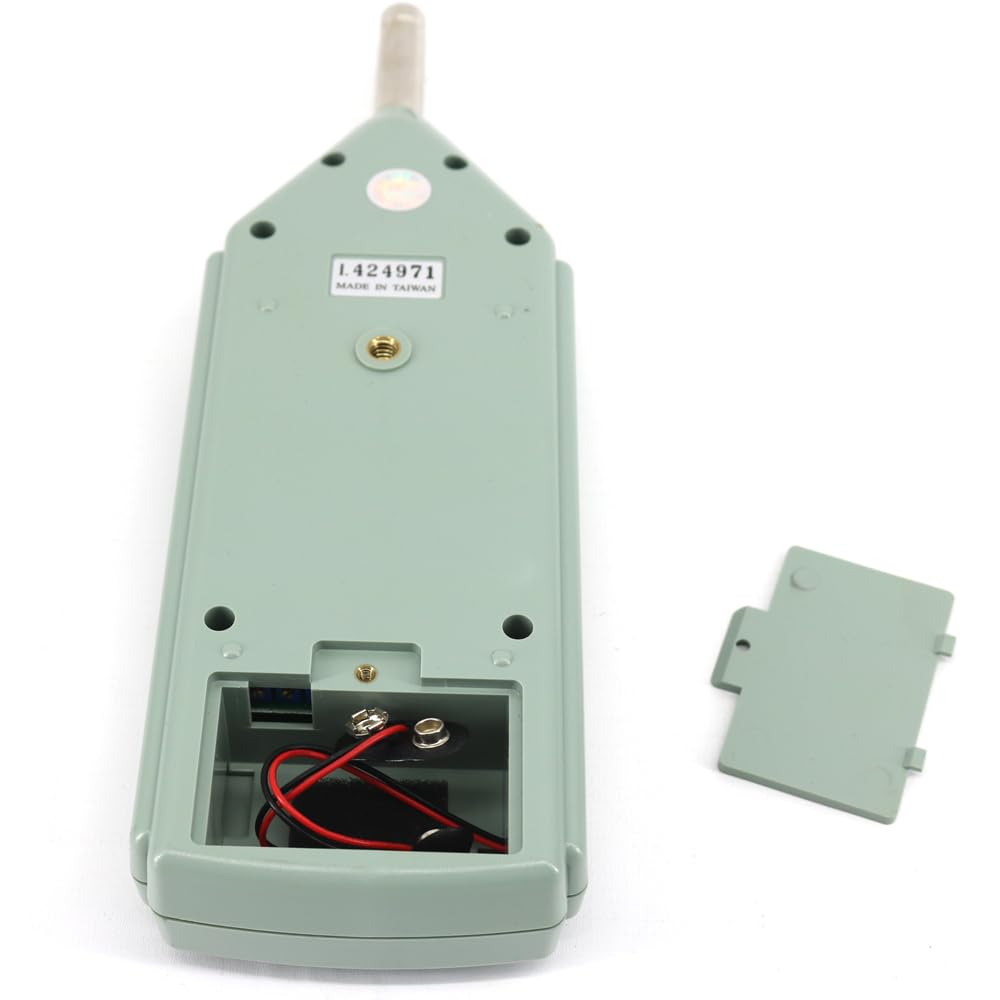

Use the power	DC 9V battery x 2 PCs or equivalent,heavy duty or alkaline type.
Current consumption	Approx. DC 17mA.
Operating ambient temperature	0 to 50
Operating Humidity	Less than 80% RH
Dimensions	260×87×36 mm
Weight Amount	450 g.(including battery)

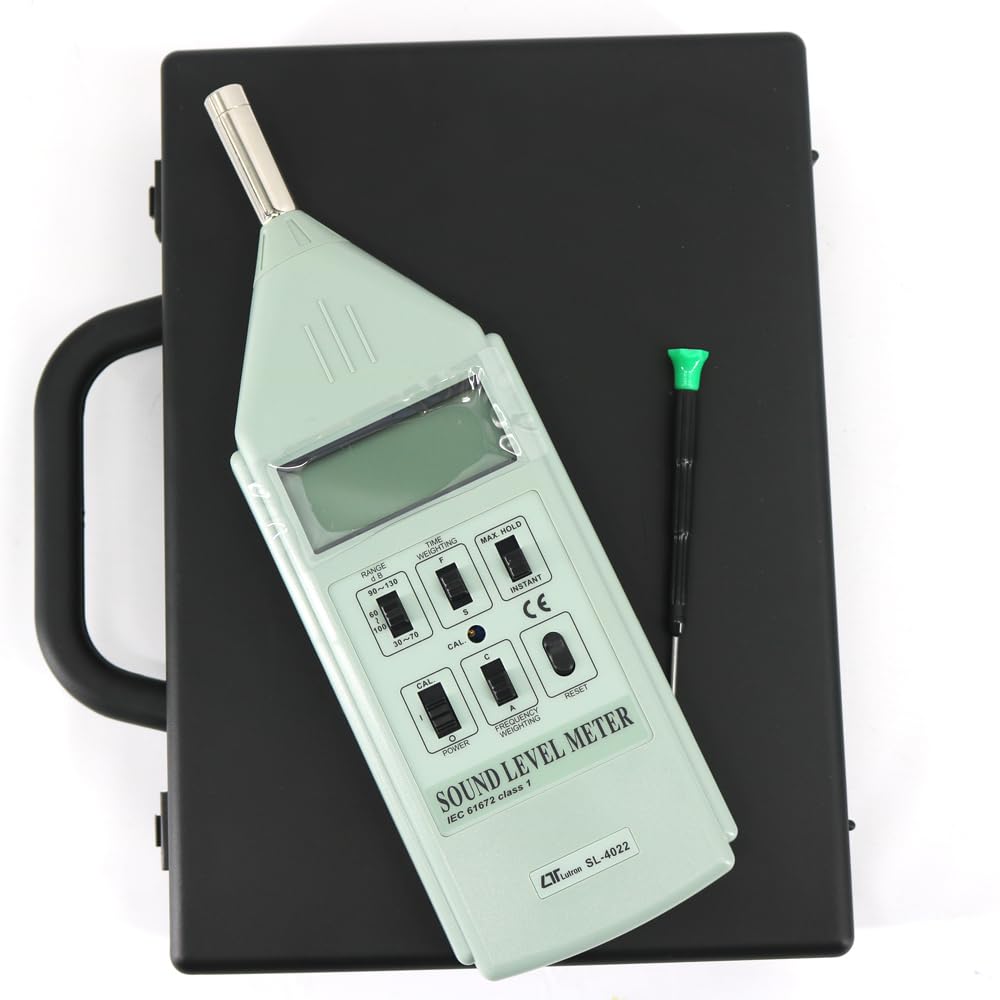

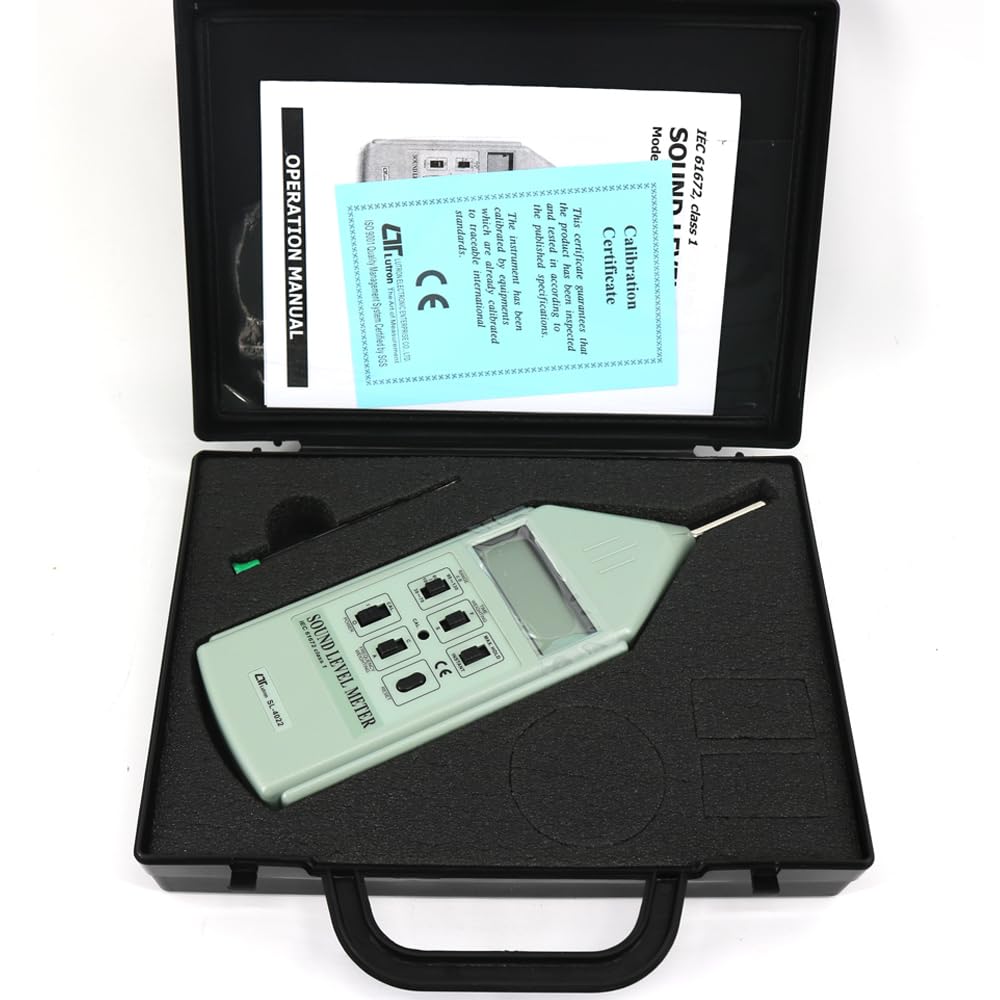

Standard Accessories	Instruction Manual .................................................... 1 PC Carrying case............................................................ 1 PC
Optional accessories	94 dB Sound Calibrator, model : SC-940, model : SC-941

Brand: Graigar

Features:

Frequency weighting and time weighting are meet IEC 61672 Class 1. A & C weighting networks are conformity to standards. AC output for system expansion.
Max. Hold function for stored the maximum value on display. FAST & SLOW dynamic characteristic modes. Warning indicator for over and under load.
Large LCD display, easy to read. LCD display for low power consumption & clear read-out even in bright ambient light condition.
Used the durable, long-lasting components, including a strong,ight weight ABS-plastic housing case Build in adj. VR, available for easy calibration.
Compact and heavy duty housing case. Condenser microphone for high accuracy & long-term stability.
Low battery indicator. Build max. hold reset switch.

model number: ‏ : ‎ SL-4022
