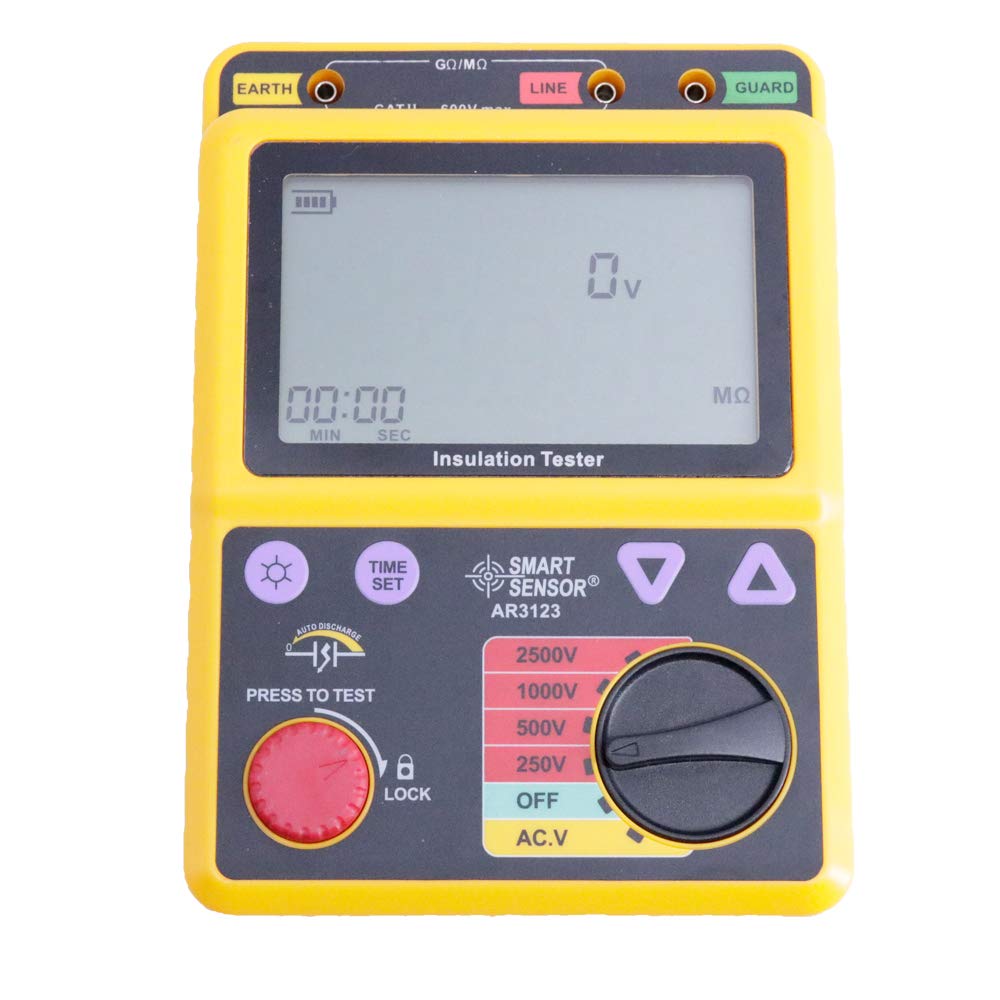

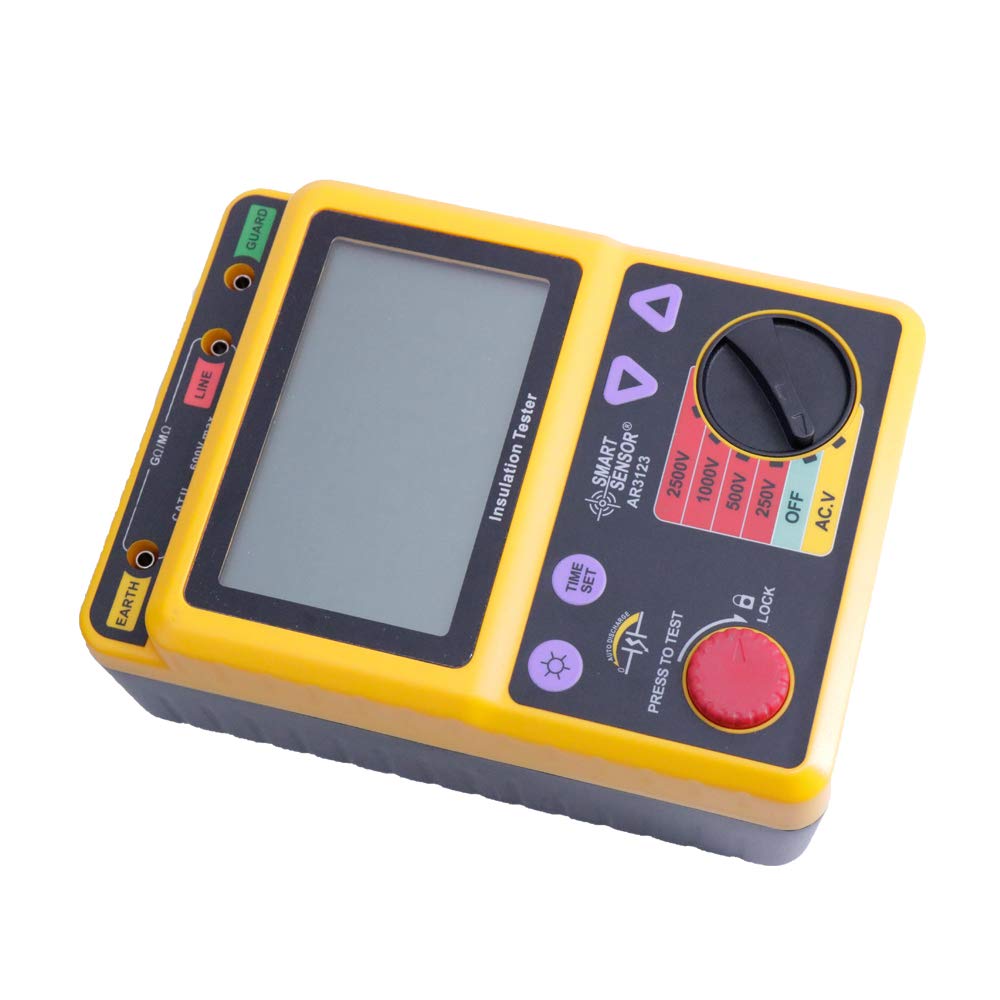

Smart Sensor AR3123 Digital High Voltage Insulation Tester Resistance Meter 250V/500V/1000V/2500V

Smart Sensor AR3123 Digital High Voltage Insulation Tester Resistance Meter 250V/500V/1000V/2500V

$233.00 USD
$233.00 USD
Sale Sold out

FEATURES

High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables.

These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.

SPECIFICATIONS

Rated voltage

250V / 500V / 1000V / 2500V

Open Circuit

Voltage

DC 250V +30%, -0% ~

DC 2500V +20%, -0%

Insulation Resistance

Testing Range

0.0MΩ~99.9GΩ

Short Circuit Current

1.3 mA Approx

Insulation Resistance

Accuracy

±5% rdg ±3% rdg

Voltage Testing Range

DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz)

Voltage Resolution

1V

Accuracy

±2%rdg ±3rdg

Sampling Rate

0.5 ~ 10 times / sec

Operation Condition

0°C ~ 40°C, ≤ 85% RH

Storage Condition

-20°C ~ 60°C, ≤90% RH

Over Load Protection

√

Auto Discharge

√

Battery Indication

√

Alarm

High Voltage Warning Symbol & Buzzer Alarm

External power supply

DC adapter 12V / 1A
