Acceleration Frequency Range 10Hz~1KHz (LO) 1KHz~15KHz (HI) Velocity Frequency Range 10Hz~1KHz
Accuracy ±5%H ±2 digits
Displacement Frequency Range 10Hz~1KHz

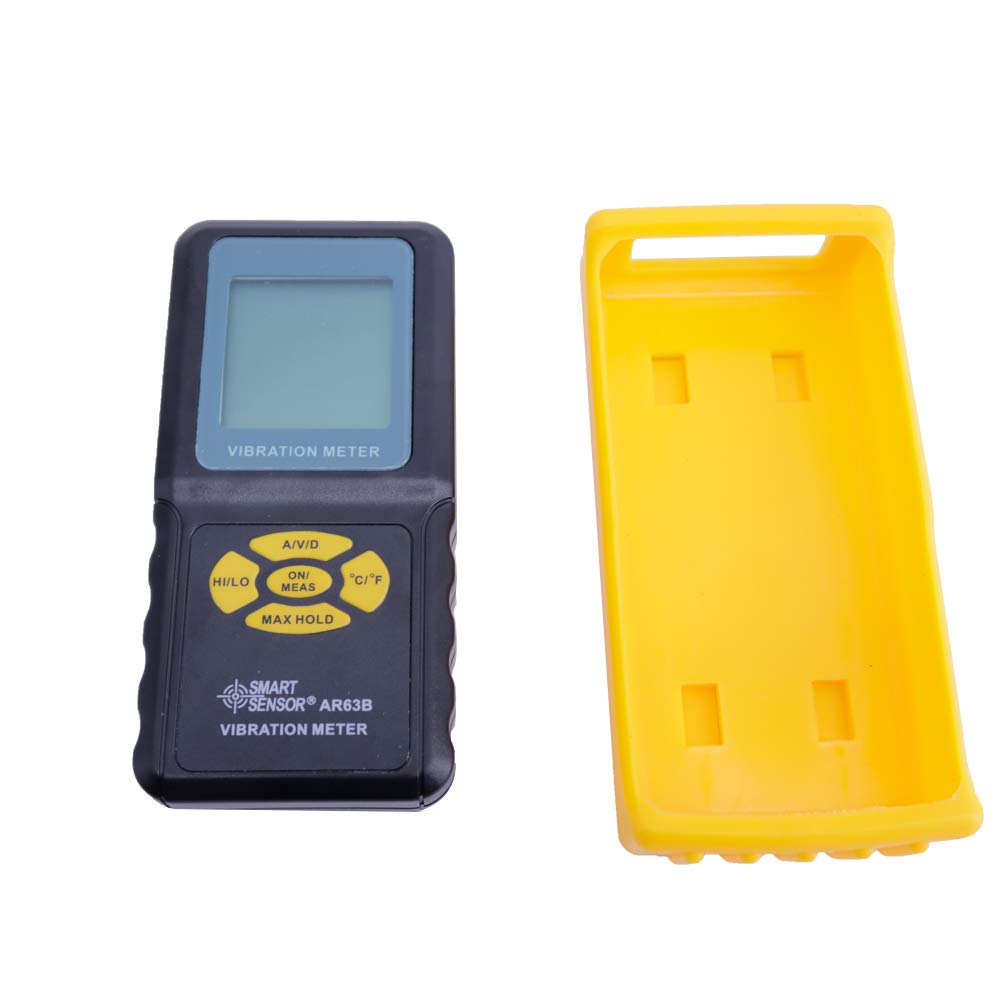

model number: AR63B
Part Number: AR63B
Details: FEATURES:
Vibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
SPECIFICATIONS:

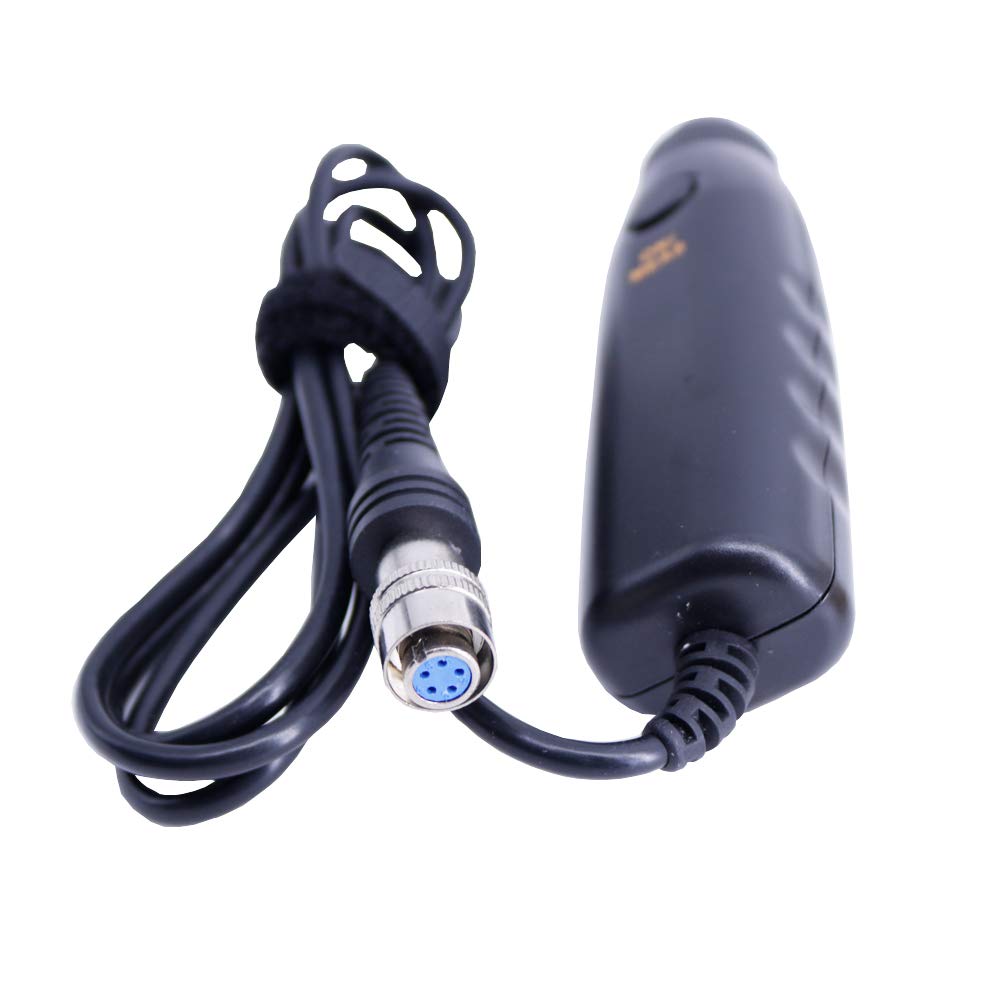

Measuring Principle :Piezoelectric Ceramic Accelerometer (shear-type)
Acceleration Range :0.1~199.9m/s2
Velocity Range :0.1~199.9m/s
Displacement Range: 0.001~1.999mm
Acceleration Frequency Range :10Hz~1KHz (LO)
1KHz~15KHz (HI)
Velocity Frequency Range: 10Hz~1KHz
Displacement Frequency Range :10Hz~1KHz
Accuracy :±5%H ±2 digits
Signal Output: AC output 2V peak ( Display full scale )
Max Hold Function: √
Temperature Measurement: √
℃/℉Selection :√
PACKING INFORMATION:

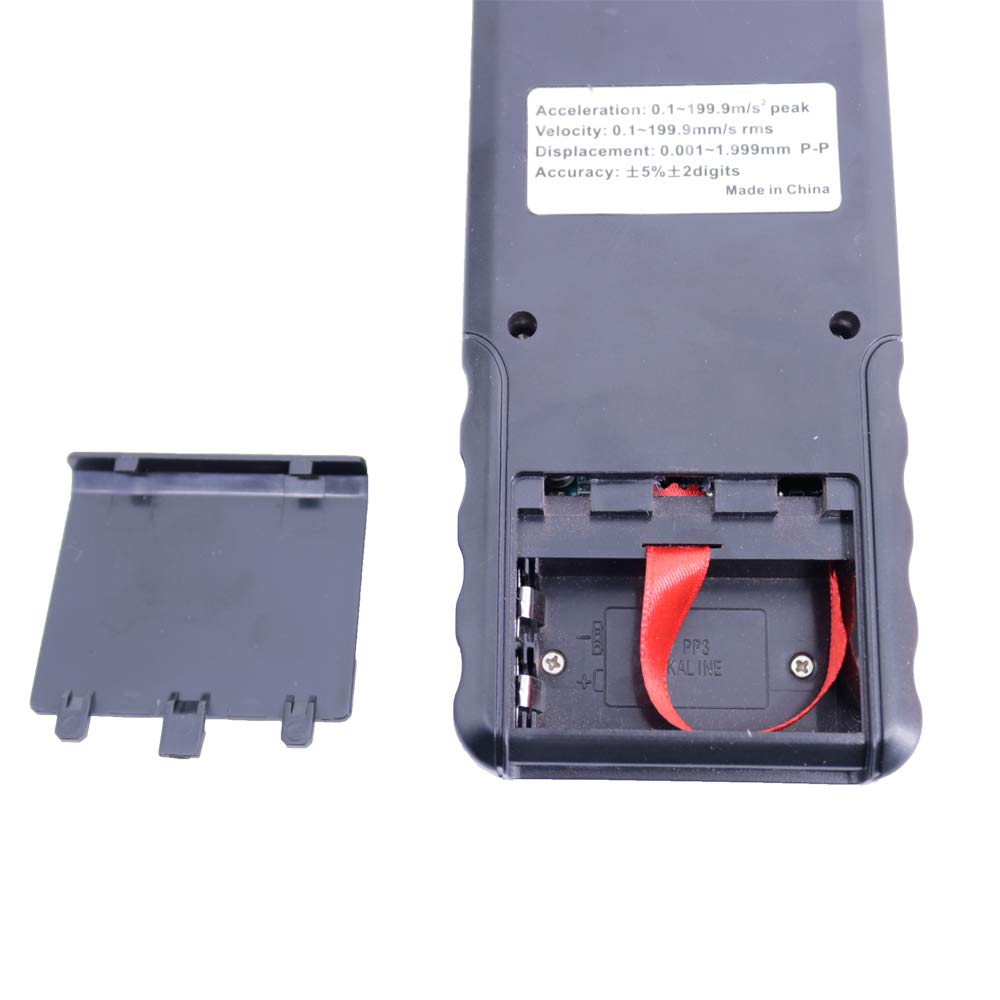

Power 9V Battery ( Not included )
Product Net Weight 137g
Product Size 150*70*30mm

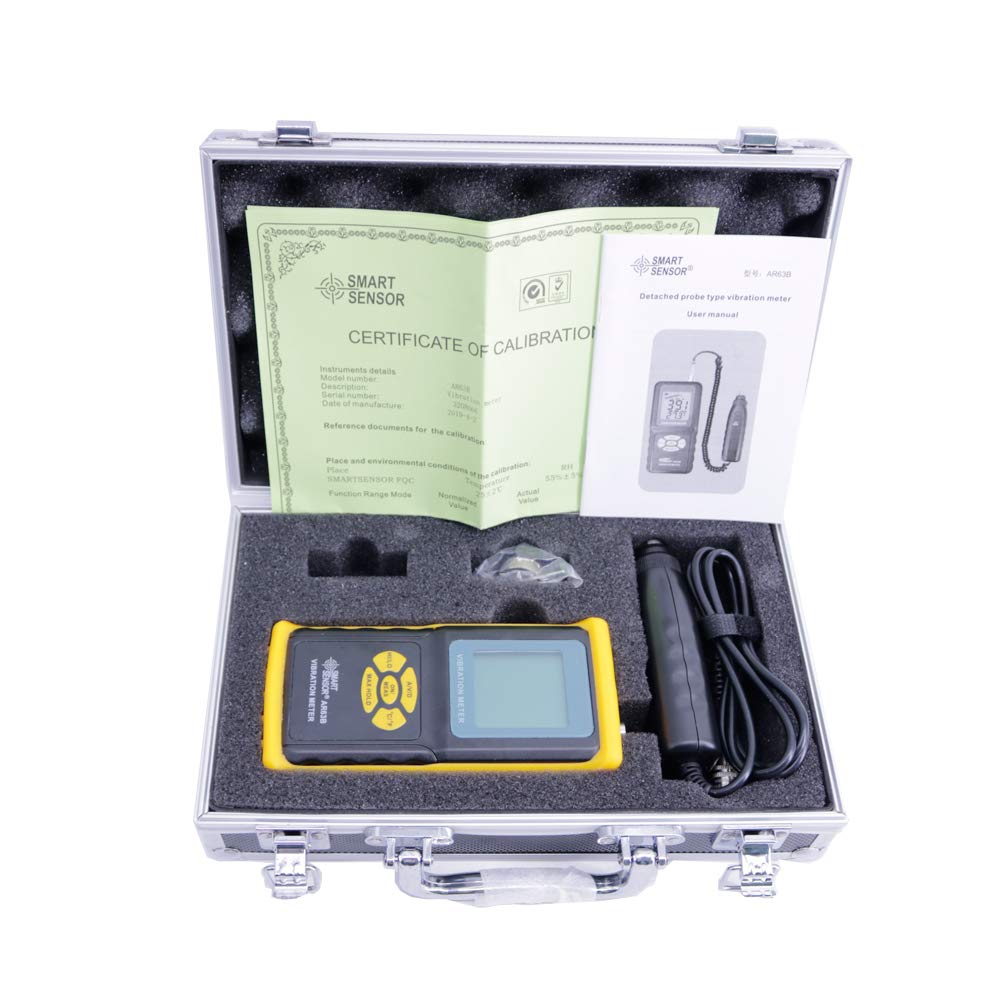

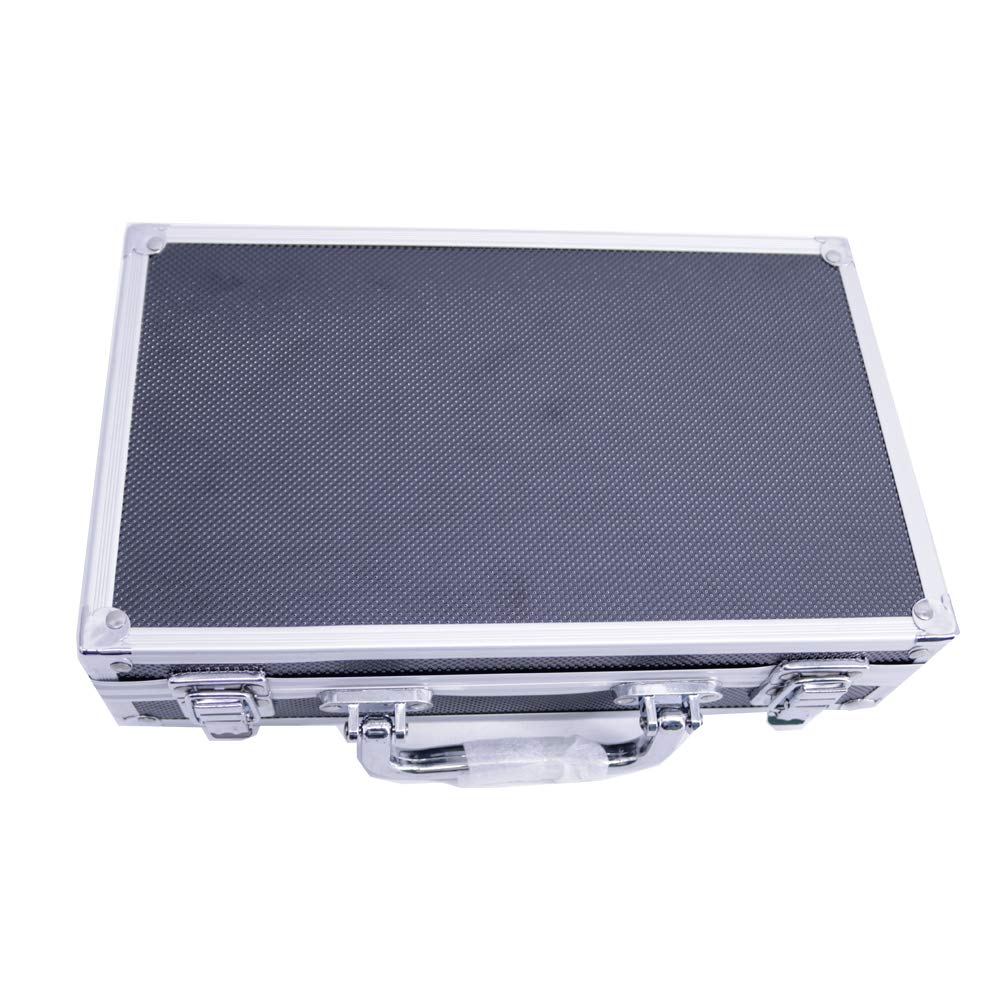

Packing Style Aluminum Box
